Zumax Medical OMS2350 User Manual

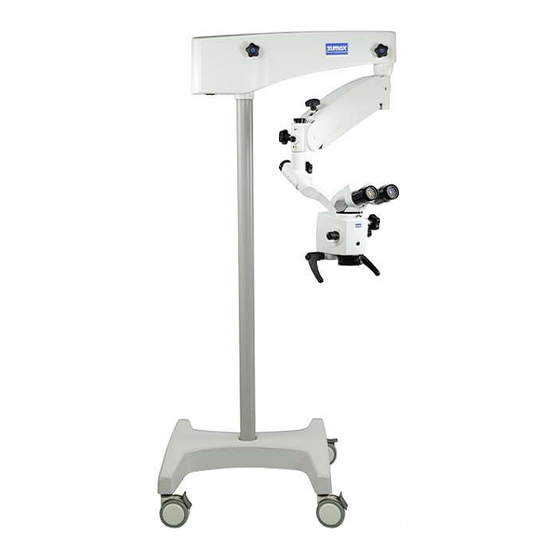

Surgical microscope
Hide thumbs
Table of Contents

Advertisement

Quick Links

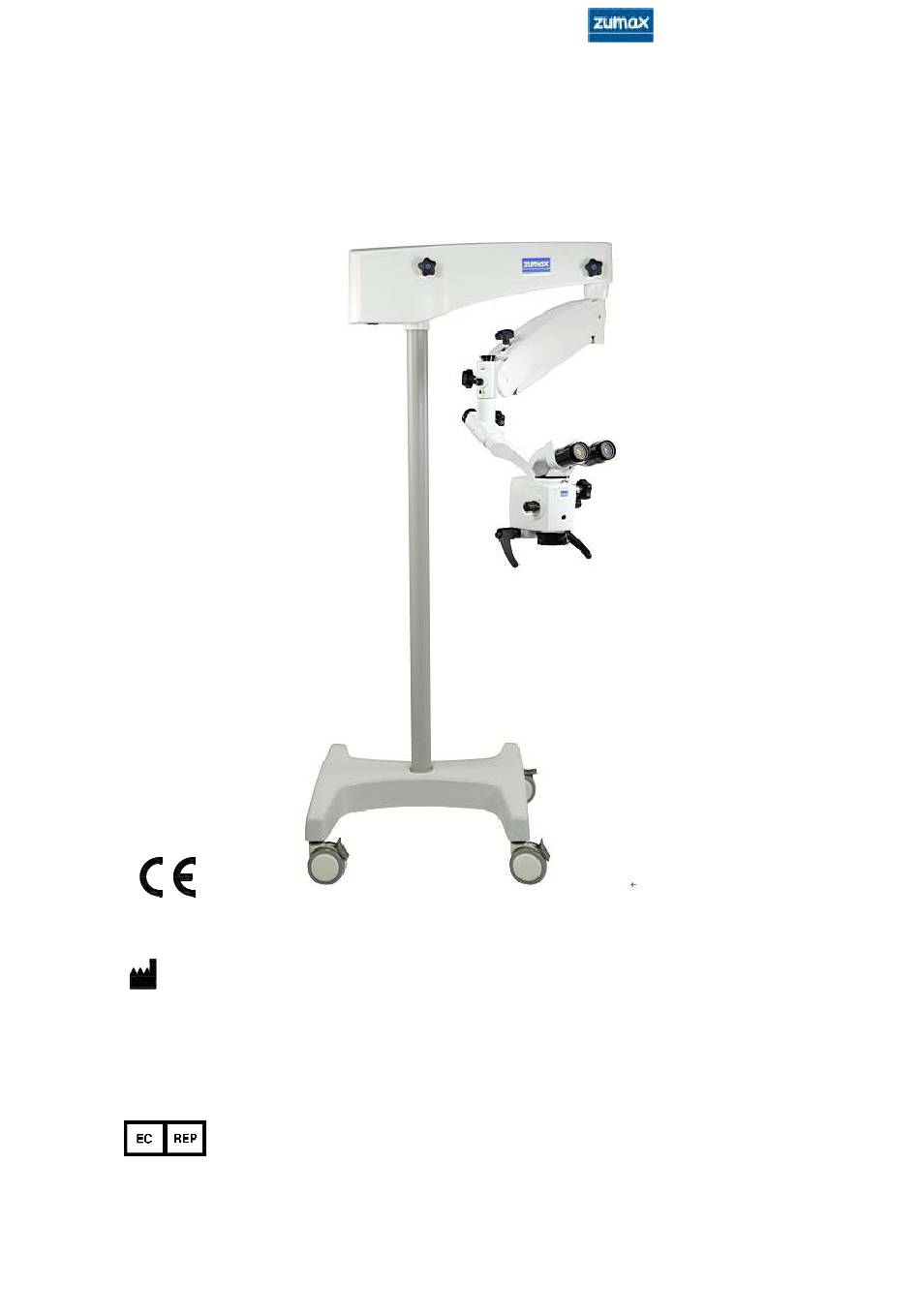

Surgical Microscope
The CE mark indicates that the product complies with the European medical
device regulation (EU) 2017/745.
Zumax Medical Co., Ltd.
5 Zhiying Street, Suzhou New District, Suzhou, Jiangsu, China 215129
Phone：+86 512 66650502
Fax： +86 512 66909655
http://www.zumaxmedical.com
E-mail：sales@zumaxmedical.com
MedNet EC-REP GmbH
Borkstrasse 10, 48163 Mü nster, Germany
OMS2350
User Manual
－1－
Issue date： 2020/3/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMS2350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zumax Medical OMS2350

Summary of Contents for Zumax Medical OMS2350

  • Page 1 OMS2350 User Manual The CE mark indicates that the product complies with the European medical device regulation (EU) 2017/745. Zumax Medical Co., Ltd. 5 Zhiying Street, Suzhou New District, Suzhou, Jiangsu, China 215129 Phone：+86 512 66650502 Fax： +86 512 66909655 http://www.zumaxmedical.com...
  • Page 2 Issue date： 2020/3/16 Preface Thank you for purchasing our Surgical Microscope. To prevent damage to your product or injury to you or to others, read the following safety precaution in their entirety before using this equipment. Keep these safety instructions where all those who use the product will read them.
  • Page 3 Issue date： 2020/3/16 * THE MARKS USED IN THIS INSTRUMENT Operating Warning Caution Protective earth (ground). instruction The black dot is the video interface The blue dot is the LED power interface light-dimmer Increase the brightness clockwise Balance adjustment Reduce the brightness counterclockwise －3－...

  • Page 4: Table Of Contents

    Issue date： 2020/3/16 Contents 1. Purpose and Features ......................... 1 1.1 Purpose ..........................1 1.2 Features ..........................1 2. Main components ........................2 3. Assembly ............................7 3.1 Assembly of base ........................ 8 3.2 Assembly of the first arm ....................8 3.3 Assembly of 120 deg coupling ....................

  • Page 5: Purpose And Features

    The microscope OMS2350 is used for ENT surgery, dental surgery, neurosurgery, dermatology or other surgery except ophthalmology. 1.2 Features  OMS2350 is based on a hanging arm design, it helps the operator by automatically adjusting the exposure, fatigue is minimized even after prolonged use.

  • Page 6: Main Components

    Issue date： 2020/3/16 2. Main components Fig.2 General assembly of microscope －2－...
  • Page 7 Issue date： 2020/3/16 Fig.3 Back-side view Fig.4 Integrated full HD camera －3－...
  • Page 8 Issue date： 2020/3/16 Fig.5 Interface details [1] Star handler fixation screw. Hang the microscope on the second arm using this nut. [2] Balance adjustment screw for second arm. Rotate the screw with 8mm special spanner to adjust the balance of the second arm.
  • Page 9 Issue date： 2020/3/16 switch installed in the second arm serves to switch off the bulb when the microscope is in "parking" position. [11] Binocular tube [12] LED power cable and the joint for power cable. [13] Column [14] Filter selection button. Rotate this button to select the filters.
  • Page 10 Issue date： 2020/3/16 [26] HDMI debug interface (Optional) [27] Integrated full HD camera with SD card (Optional) Microscope head has two buttons as shown in the figure3. Press the left button will take a picture; press the right button will record video. Interface details on the arm as shown in the figure4.

  • Page 11: Assembly

    Issue date： 2020/3/16 3. Assembly The microscope is packed in one package. Please open the package and take out all parts and assemble them according to the following procedures. Fig 6. Assembly drawing of microscope －7－...

  • Page 12: Assembly Of Base

    Issue date： 2020/3/16 3.1 Assembly of base (1) Please take out the base support from the package, lay it on the ground. (2) Take out the pole, turn out the inner hexagonal screw and gasket. Insert the pole into the hole of the floor stand, make sure that the pin of the floor stand installed in the hole of the pole.

  • Page 13: Assembly Of 120 Deg Coupling

    Issue date： 2020/3/16 3.3 Assembly of 120 deg coupling (1) Rotate the star handler fixation screw [9] a little bit until the screw tip does not above the shaft hole; Rotate the Locking pin [19] a little bit until the tip does not above the shaft hole.

  • Page 14: Assembly Of Handle

    Issue date： 2020/3/16 3.6 Assembly of handle Manipulating handle [15] is fixed on the lower part of microscope, T type handle [21] is fixed on the front of microscope. Assemble the manipulating handle [15] or T type handle supplied with your equipment, then tighten the screw. According your needs, select manipulating or T type handle.

  • Page 15: Use Of The Microscope

    Issue date： 2020/3/16 4. Use of the microscope Warning: To avoid the risk of electric shock, this equipment must only be connected to a supply mains with protective earth. Warning: To avoid the risk of mechanical hazards, this equipment must only be used in room without threshold. Warning: Exposure to eyes limit tmax =90 seconds.

  • Page 16: Installation And Adjustment Before Use

    Issue date： 2020/3/16 4.2 Installation and Adjustment before use 4.2.1Adjusting the balance of second arm ● Hold the second arm, unscrew the star handle fixation screw [3]. ● Insert an 8 mm inner hexagon spanner into the screw [2]. ● Rotate the screw [2] to adjust the balance of second arm. ●...

  • Page 17: Inspection Before Use

    Issue date： 2020/3/16 depth of field for each magnification. Caution: It is necessary to make a form if several doctors share an operation microscope. Every doctor’s diopter should have noted. Keep the form where all those doctors who use the microscope find it. 4.3 Inspection before use Please inspect the following points before the operation: －...

  • Page 18: Using The Microscope

    Issue date： 2020/3/16 ●Filter selector [14] is in good condition. Base： ● The foot wheels’ brakes have been set. Disinfection cover and handles: ● Star handle fixation screws, magnifying knob, illumination brightness adjusting button、pupil distance adjustment knob, fine focusing adjustment knob etc. have been equipped the sterile covers.
  • Page 19 Issue date： 2020/3/16 ● Release the brakes of the wheels. ● While moving the equipment, hold the movement handles and make the equipment move slowly and carefully to avoid falling and bumping. ● When the storage place has been reached, lock the brakes of the wheels. ●...

  • Page 20: Maintenance

    Issue date： 2020/3/16 5. Maintenance 5.1Replacing the consumable parts 5.1.1Replacing the LED Please contact the after-sales service department. 5.1.2 Replacing the fuse The fuse is integrated with main power input socket. Please replace the fuse according to the following steps: ●...

  • Page 21: Cleaning The Surface Of Equipment

    Issue date： 2020/3/16 5.2.1 Cleaning the surface of equipment The outer surface of the equipment may be cleaned with a wet cloth. The remaining stains can be cleaned off with a mixture of 50% C2H5OH and 50% distilled water. Do not use any corrosive detergent or the surface may be damaged.

  • Page 22: Microscope Accessories List

    Issue date： 2020/3/16 6. Microscope accessories list Order Code Description 800-0030 180 deg inclinable binocular tube 800-0031 Stereo observation tube 800-0033 180 deg inclinable binocular with PD adjustment device 800-0037 Dual iris diaphragm 800-0112 Beam Splitter (50%:50%) 800-0113 Beam Splitter (20%:80%) 800-0114 Extender and Beam Splitter (50%:50%) 800-0115...
  • Page 23 Issue date： 2020/3/16 800-0186 M62 Digital Camcorder Adapter 800-0187 M55 Digital Camcorder Adapter 800-0192 Flash adapter for Canon 800-019 Flash adapter for Nikon 800-0201 Protective Lens Caps 800-0203 Protective glass lens for VarioDist 800-0205 Laser Filter Module 800-0210 Objective lens,f=200mm,with fine focusing mechanism 800-0211 Objective lens,f=250mm,with fine focusing mechanism 800-0212...
  • Page 24 Issue date： 2020/3/16 800-9354 Inner power supply for Canon camcorder 800-9355 Inner power supply for Canon camcorder, long arm 800-9370 Wireless control Kit by footswitch for Canon camera 800-9372 Wireless control Kit by footswitch for Sony camera 800-9374 Wireless control Kit by footswitch for Nikon camera 800-1106 sterilizable caps for friction adjustment knobs 800-1206...

  • Page 25: Trouble-Shooting Guide

    Issue date： 2020/3/16 7. Trouble-shooting guide In case there is any trouble, please first refer to the trouble-shooting guide. If you can not solve the problem, please contact the authorized distributor or our after-sales service department. Trouble Possible reason Remedy Main power switch is not Turn on the main power turned on...

  • Page 26: Technical Specification

    Issue date： 2020/3/16 8. Technical specification Microscopes section (including binocular microscope, objective, eyepiece) Magnification factor 0.3x, 0.5x, 0.8x, 1.2x, 2x, 3x Objective 250mm Fine Focus by knob on objective 11mm Binocular 180° inclined or straight, F=170mm Adjustable range for pupil distance 55mm~75mm Eyepiece magnification 12.5X/17.7B, adjustable dioptor: ±...

  • Page 27: Emc (Electromagnetic Compatibility)

    Issue date： 2020/3/16 9. EMC (electromagnetic compatibility) When using the device, the EMC precautions specified below must be observed. • Only use spare parts approved by zumax for this device. • Do not use any portable or mobile RF communication equipment in the vicinity of the device as this may impair the device's function.
  • Page 28 Issue date： 2020/3/16 Electromagnetic immunity for ME equipment and ME systems Guidance and manufacturer’s declaration – electromagnetic immunity The microscope is intended for use in the electromagnetic environment specified below. The customer or the user of the microscope should assure that it is used in such an environment.
  • Page 29 Issue date： 2020/3/16 Electromagnetic immunity for non-life-supporting ME equipment and ME systems Guidance and manufacturer’s declaration – electromagnetic immunity The microscope is intended for use in the electromagnetic environment specified below. The customer or the user of the microscope should assure that it is used in such an environment. Electromagnetic environment IMMUNITY IEC 60601...
