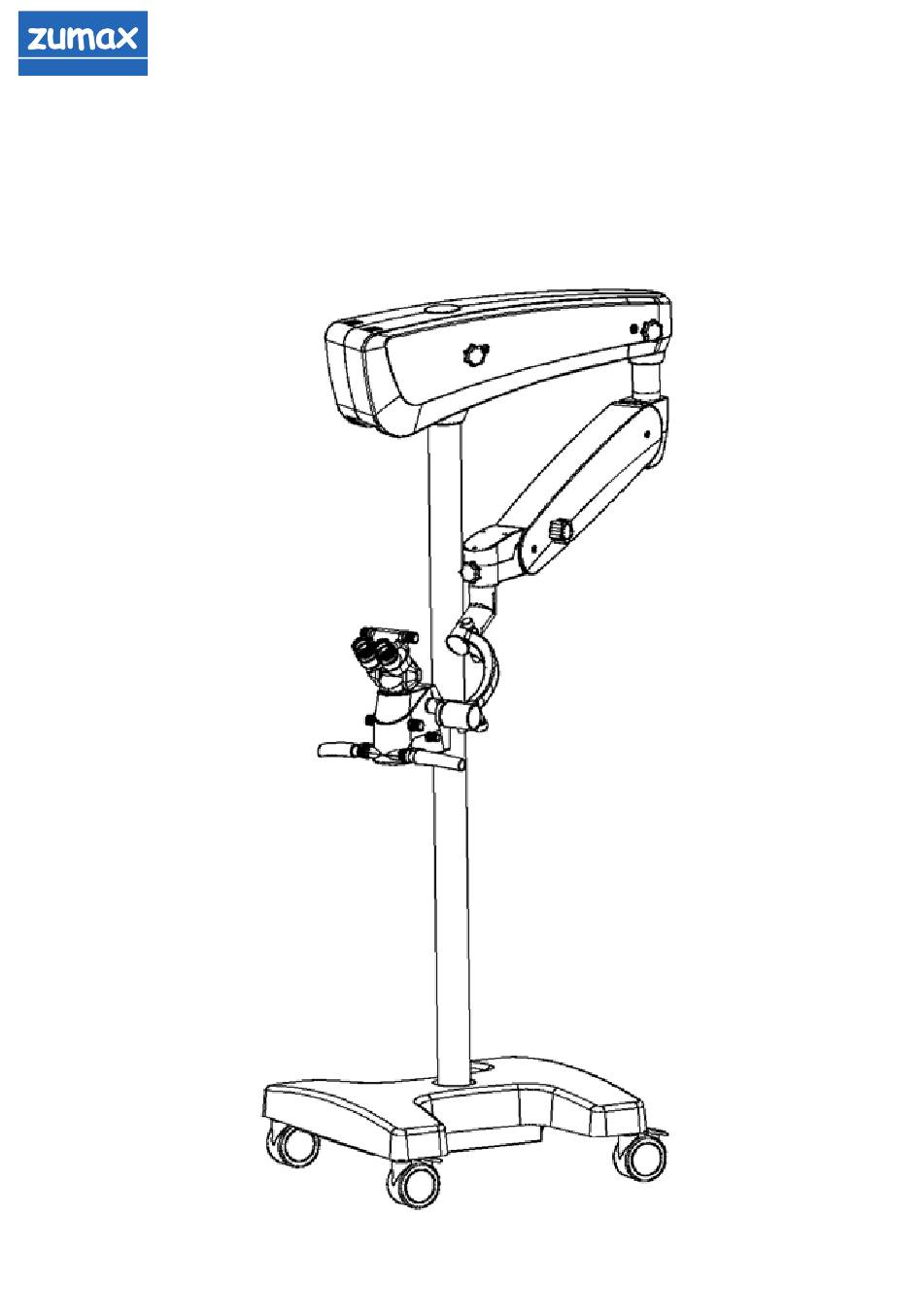

OMS2360/OMS2380/OMS2380 R2
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMS2360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zumax Medical OMS2360

Summary of Contents for Zumax Medical OMS2360

  • Page 1 OMS2360/OMS2380/OMS2380 R2 USER MANUAL...

  • Page 3: Table Of Contents

    Contents Safety Information-----------------------------------------------------------------1-6 Field of application---------------------------------------------------------------------1 Name of the devices in this manual--------------------------------------------------1 Precautions------------------------------------------------------------------------------1 Symbols and labels------------------------------------------------------------------2-3 Liability and warranty------------------------------------------------------------------4 Requirement for operation------------------------------------------------------------4 Security measures of balancing system-----------------------------------------5-6 System Structure-----------------------------------------------------------------7-32 Floor stand---------------------------------------------------------------------------7-8 Ceiling mount----------------------------------------------------------------------9-10 Wall mount-------------------------------------------------------------------------11-12 Fixed ground----------------------------------------------------------------------13-14 Binocular tube with eyepieces-------------------------------------------------15-16 Microscope main body-----------------------------------------------------------17-20 Super balancing arm-------------------------------------------------------------21-22 First arm and second arm-------------------------------------------------------23-24...

  • Page 4: Safety Information

    Safety Information Field of application Thank you for purchasing Zumax Surgical Microscope. OMS2360/OMS2380 Series is an optical microscope specifically designed to be used in a surgical setting, especially requisite for microsurgery in the field of dentistry, neurosurgery, spinal, ENT, and plastic etc.

  • Page 5: Symbols And Labels

    Symbols and labels Symbol Title of symbol Consult instructions for use Warning Caution Terminal of the protective grounding. Illumination adjustment Adjust the brightness clockwise Counterclockwise adjustment reduces Weight limit <12Kg Balance arm regulation Power plug Video plug Manufacturer Page 2 EN-2021-VERSION 1.0 July 16, 2021...
  • Page 6 Symbol Title of symbol 55 ℃ Temperature limit -40 ℃ 1060 hpa Atmospheric pressure limitation 500 hpa Humidity limitation Keep dry Fragile, handle with care Serial number Date of manufacture Authorized Representative in the European Community Page 3 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 7: Liability And Warranty

    Liability and warranty For details of warranty and liability, please refer to the provisions of the warranty clause. Modifications to this device are not allowed. The manufacturer is not responsible for damage caused by unauthorized tampering with the system. In addition, it will lose any right to claim within the scope of the warranty.

  • Page 8: Security Measures Of Balancing System

    Release Second Arm [1] To release the Fixation knob before setting the balancing system of the balancing arm. On the OMS2360/OMS2380/OMS2380 R2 models, this switch is located at the front of the second arm [1]. The cover on the knob needs to be opened for initial use and loosen the screw with an Allen key.
  • Page 9 OMS2360/OMS2380/OMS2380 R2 Page 6 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 10: System Structure

    System Structure Floor stand OMS2360, OMS2380 and OMS2380 R2 surgical microscope with the microscope main body, the first arm, the second arm, the super balancing arm and the base with casers. The microscope can be easily moved in the operating room.
  • Page 11 OMS2360/OMS2380/OMS2380 R2 Page 8 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 12: Ceiling Mount

    Ceiling mount OMS2360, OMS2380 and OMS2380 R2 surgical microscope with the microscope main body, the first arm, the second arm, the super balancing arm and the ceiling mount components. This installation method will make the room look clean and tidy without being restricted by space.
  • Page 13 OMS2360/OMS2380/OMS2380 R2 Page 10 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 14: Wall Mount

    Wall mount OMS2360, OMS2380 and OMS2380 R2 surgical microscope with the microscope main body, the first arm, the second arm, the super balancing arm and the Wall mount components. This installation method will make the room look clean and tidy without being restricted by space.
  • Page 15 OMS2360/OMS2380/OMS2380 R2 Page 12 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 16: Fixed Ground

    Fixed ground OMS2360, OMS2380 and OMS2380 R2 surgical microscope with the microscope main body, the first arm, the second arm, the super balancing arm and the fixed ground components. This installation method is very suitable for clinics with a relatively small room area.
  • Page 17 OMS2380 R2 Page 14 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 18: Binocular Tube With Eyepieces

    Binocular tube with eyepieces 0°-180° inclinable binocular tube 1. 0°-180° inclinable tube, f=170mm 2. PD adjusting knob Adjustable range of pupil distance is between 55mm to 75mm. 3. Eyepieces Magnification of eyepieces is 12.5x/17.7B, adjustable diopter is ±7D. MagPlus 1.5 0°-180°...
  • Page 19 Page 16 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 20: Microscope Main Body

    2. Light source power supply interface 3. Integrated laser filer (optional and available on OMS2380 R2 model only). 4. Manual Magnification Changer OMS2380/OMS2380 R2 models with a continuous zoom magnification, OMS2360 with a 6-step magnification. 5. Filters Changer Rotate this knob to select large spot, small spot, micro spot, yellow filter, green filter and anti-reflect module (anti-reflect module is optional, only available on OMS2380...
  • Page 21 OMS2380 R2 OMS2360/OMS2380 Page 18 EN-2021-VERSION 1.0 July 16, 2021...
  • Page 22 10. Light intensity adjusting knob Page 19 EN-2021-VERSION 1.0 July 16, 2021...
  • Page 23 OMS2360/OMS2380/OMS2380 R2 Page 20 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 24: Super Balancing Arm

    Super balancing arm 1. Friction knob 2. Balancing knob Used to adjust left and right balance 3. Friction knob 4. Balancing knob Used to adjust front and rear balance Page 21 EN-2021-VERSION 1.0 July 16, 2021...
  • Page 25 Page 22 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 26: First Arm And Second Arm

    First arm and second arm 1. Fixation screw Use this screw to adjust the damping of the horizontal movement of the first arm. 2. Fixation screw Use this screw to adjust the damping of the horizontal movement of the second arm. 3.
  • Page 27 OMS2360/OMS2380/OMS2380 R2 Page 24 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 28: Illumination System

    Illumination System OMS2360, OMS2380 and OMS2380 R2 surgical microscope use integrated LED light module which direct the light from the microscope head. 1. Integrated LED module The OMS2380 R2 microscopes are already equipped with twin-light sources as standard. OMS2360 and OMS2380 can be equipped as optional.
  • Page 29 OMS2360/OMS2380/OMS2380 R2 OMS2380 R2 Page 26 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 30: Magnification System

    The working rang of the magnification is 1.8x-19.4x (this parameter is on the basis of standard configuration). OMS2360 with 6-step magnification changer, the working rang of the magnification is 1.4x-24.2x (this parameter is on the basis of standard configuration).
  • Page 31 Page 28 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 32: Power And Video Connections

    Power and video connections 1. Main power socket and fuse socket Pull out the power table, right side is fuse socket. 100-127 ~60Hz T2.5 AL250V 220-240~50Hz T1.25AL250V 2. Network port 3. HDMI video output 4. Foot pedal interface 5. USB socket On the OMS2380 R2 model, this socket is used for the receiver of the wireless mouse.
  • Page 33 OMS2360/OMS2380/OMS2380 R2 Floor Stand OMS2380 R2 Ceiling Mount, Wall Mount Page 30 EN-2021-VERSION 1.0 July 16, 2021...
  • Page 34 11. Debug interface This interface is used to set the parameters of the integrated full HD video image by connecting a remote control. 12. SD card socket Page 31 EN-2021-VERSION 1.0 July 16, 2021...
  • Page 35 OMS2360/OMS2380 Ceiling Mount, Wall Mount Page 32 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 36: Preparations For Operate

    Preparations for Operate Adjusting the balance of second arm ▶Hold the second arm, unscrew the fixation screw [1]. Caution: The first arm must be held in the horizontal position. Caution: The second arm must be held firmly before release the fixation screw [1]. ▶Use an 8 mm Allen key into the screw which under the second arm end [2].
  • Page 37 Page 34 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 38: Adjusting The Balance Of Magnetic Balancing Arm

    Adjusting the balance of Super balancing arm ▶In the first step, you need to loosen the locking knob Friction knobs [1] /[3]. ▶Rotate the balancing knobs [2] /[4] until the head can be stayed at the equilibrium position. ▶The Friction knobs [1] /[3] can be used to enhance the stability of the balance arm and the head, but the knob should not be tightened too much or you will be unable to move the head and the balance arm.
  • Page 39 Page 36 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 40: Initial Setup The Microscope

    field of view. 3. Set the focal length of VarioDist lens to median. We suggest 250-300mm for the models of OMS2360/OMS2380 series. 4. Move the microscope up and down for focusing and find the center position of the target on the monitor.
  • Page 41 Page 38 EN-2021-VERSION 1.0 July 16, 2021...
  • Page 42 10. Then close your right eye, adjust the left diopter ring till you view the sharpness image through left eyepiece. 11. After the diopters are set, please do not forget to record them so that they can use the microscope in the future and set their own values directly. 12.
  • Page 43 Page 40 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 44: Operation Of Microscope

    Operation of Microscope Position of the microscope After finding the basic location of the doctor and patient, the location of the microscope needs to be determined. Usually, the microscope and the ground maintain a vertical angle, some treatment conditions need to change the angle of the microscope. ▶Move the microscope arm up and down to the right working range.

  • Page 45: Image Storage

    Image Storage The storage media of the model with HD integrated camera is an SD card, and the model with 4K integrated camera uses a USB flash stick. Press the control button on the handle, the captured pictures or videos will be automatically stored on the SD card or USB flash stick, and then read through the computer..

  • Page 46: Light Source Switching

    If you choose a fluorescent module [2], there is no twin-light module, you can only choose one. On OMS2360 and OMS2380 models, twin-light module is optional, which can be obtained by turning these two knobs [3] [4] if your microscope has twin-light module.
  • Page 47 OMS2380 R2 OMS2360/OMS2380 Page 44 EN-2021-VERSION 1.0 July 16, 2021...

  • Page 48: Care And Maintenance

    Care and Maintenance Cleaning the surface of device The outer surface of the equipment may be cleaned with a wet cloth. The remaining stains can be cleaned off with a mixture of 50% C2H5OH and 50% distilled water. Caution: Do not use any corrosive detergent or the surface may be damaged. Cleaning the surface of the optical lens ▶To prevent the dust from staining the lens, never expose the optical lens to air without the objective, eyepiece tube and eyepiece.

  • Page 49: Replacing The Fuse

    Replacing the fuse The fuse is integrated with main power input socket. Please replace the fuse according to the following steps: ▶Turn off the main power switch. ▶Pull out the power plug from the main power plug. ▶Find the fuse socket on the right side of power plug, take out the fuse socket from the side with a small screwdriver.

  • Page 50: Trouble-Shooting Guide

    Care and Maintenance In case there is any trouble, please first refer to the trouble-shooting guide. If you can't solve the problems by yourself, please contact the authorized distributor or our after-sales service department. Trouble Possible reason Remedy Turn on the main power switch or Main power switch is not turned on Equipment not plug in power cable...

  • Page 51: Technical Specification

    Technical specification Basic configuration OMS2380 OMS2380 R2 OMS2360 6-step manual Manual zoom system, with magnification changer apochromatic 1:6 ratio 1.4x-24.2x with Magnification system 1.8x-19.4x with 12.5x eyepieces 12.5x eyepieces Magnification factor Magnification factor γ=0.4X-2.4X γ=0.3x,0.5x,0.8x,1.2x,2x,3x Tubes 0°-180° inclinable binocular tube with PD adjusting knob, f=170mm Eyepieces 12.5x wide-field eyepieces, also suitable for eyeglass wearers...

  • Page 52: Ems (Electromagnetic Compatibility)

    EMC (electromagnetic compatibility) When using the device, the EMC precautions specified below must be observed. ▶Only use spare parts approved by zumax for this device. ▶Do not use any portable or mobile RF communication equipment in the vicinity of the device as this may impair the device's function.
  • Page 53 Electromagnetic immunity for ME equipment and ME systems Guidance and manufacturer's declaration – electromagnetic immunity The microscope is intended for use in the electromagnetic environment specified below. The customer or the user of the microscope should assure that it is used in such an environment. Electromagnetic environment IEC 60601 Compliance level...
  • Page 54 Electromagnetic immunity for non-life-supporting ME equipment and ME systems Guidance and manufacturer's declaration – electromagnetic immunity The microscope is intended for use in the electromagnetic environment specified below. The customer or the user of the microscope should assure that it is used in such an environment.
  • Page 56 The CE mark indicates that the product complies with the European medical device regulation (EU) 2017/745. Zumax Medical Co., Ltd. 5 Zhiying Street, Suzhou New District, Suzhou, Jiangsu, China 215129 Phone：+86 512 66650502 Fax： +86 512 66909655 E-mail：Sales@zumaxmedical.com http://www.zumaxmedical.com MedNet EC-REP GmbH Borkstrasse 10, 48163 Münster, Germany...
