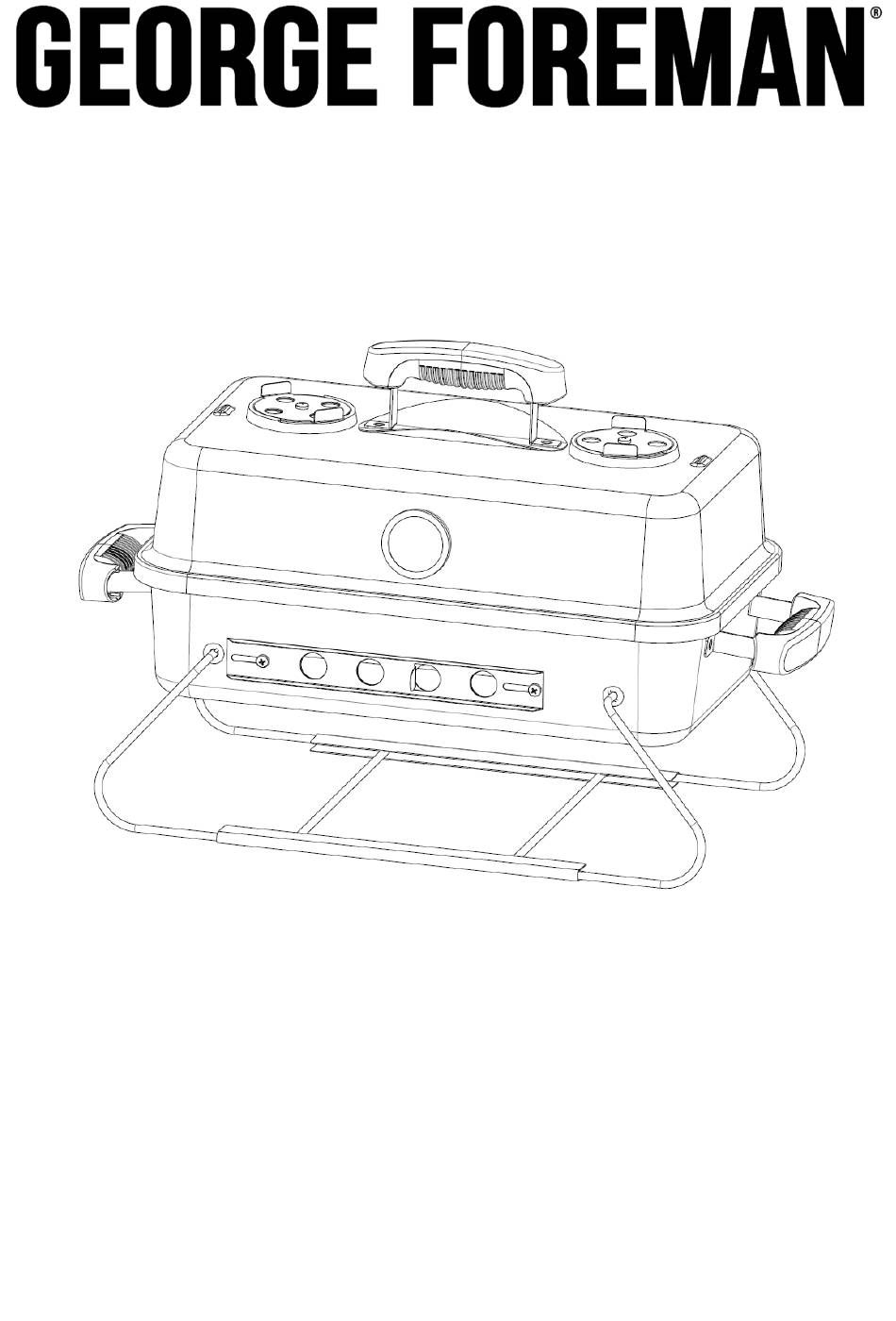

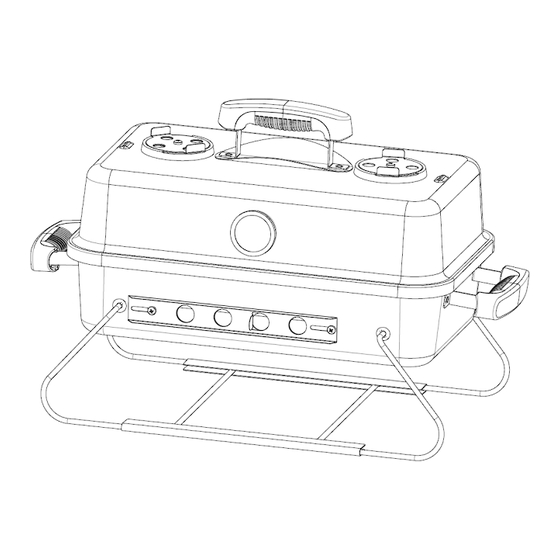

- Page 1 BLACK TOOLBOX CHARCOAL BBQ GFPTBBQ1004B WARNING: CARBON MONOXIDE HAZARD Burning charcoal indoors can kill you. It gives off carbon monoxide which has no odour. NEVER burn charcoal in enclosed spaces e.g. homes, vehicles or tents. PLEASE RETAIN INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
CONTENTS Page(s) Safety Instructions BBQ Feature Diagram BBQ Parts List BBQ Assembly 7-13 Lighting Your BBQ After Grilling Food Safety Cleaning and Care Guarantee and Customer Services Notes GFPTBBQ1004B... -
Page 3: Safety Instructions
• WARNING: Failure to follow instructions could result in death, serious bodily injury and/or property loss. Carbon Monoxide Do Not Use Do Not Use Do Not Use in Use in Open Poisoning Hazard in Motor Indoors Tents Spaces Homes GFPTBBQ1004B... - Page 4 Do not use these materials to light or relight. • Do not store the barbeque until the fire is completely out and surfaces are cold and ensure the barbeque is emptied of ashes or combustible materials. GFPTBBQ1004B...
-
Page 5: Bbq Feature Diagram
BBQ FEATURE DIAGRAM GFPTBBQ1004B... -
Page 6: Bbq Parts List
BBQ PARTS LIST PART DESCRIPTION Handle Heat resistant plate Lid air vent Lid air vent base Temperature gauge Cooking grid Charcoal grid Charcoal tray Base Charcoal vent Leg support PART IMAGE SIZE M5 x 10 M5 x 20 Ø6x16 Ø5x12 GFPTBBQ1004B... -
Page 7: Bbq Assembly
2 each of the “B” Screws and “F” Washers, and 4 each of the “C” Nuts. • Ensure the screws are placed on the outside of the lid and the nuts and washers are placed on the inside of the lid. • 2 PCS 4 PCS 2 PCS GFPTBBQ1004B... -
Page 8: Step 2 - Assembling The Lid
(5) on the outside of the lid (6), and securing with the supplied nut; tighten and secure with a wrench. • Ensure the gauge is correctly aligned before securing, and that the nut is placed on the inside of the lid. 2 PCS 2 PCS GFPTBBQ1004B... - Page 9 • Attach the charcoal vents (11) onto the base (10) using 4 each of the “A” Screws and 8 each of the “C” Nuts. • Ensure the screws and charcoal vents are placed on the outside of the base and the nuts are placed on the inside of the base. 4 PCS 8 PCS GFPTBBQ1004B...
- Page 10 • Attach the handles (1) onto the base (10) using 4 each of the “E” Washers and “D” Wing Nuts. • Ensure the washers and wing nuts are placed on the inside of the base. 4 PCS 4 PCS GFPTBBQ1004B...
-
Page 11: Step 5 - Attaching The Legs
STEP 5 – Attaching the legs • Attach the legs (13) onto the base (10) as shown in the diagram below, using 4 each of the “E” Washers. • Ensure the washers are placed on the outside of the fire bowl. 4 PCS GFPTBBQ1004B... - Page 12 BBQ ASSEMBLY STEP 6 – Attaching the leg supports • Attach the leg supports (12) onto the legs (13) as shown in the diagram below. GFPTBBQ1004B...
- Page 13 • Place the charcoal tray (9) into the bottom of the base (10) followed by the charcoal grid (8), and then the cooking grids (7). • Place the assembled lid (6) onto the base (10). • Your barbeque is now assembled. GFPTBBQ1004B...
-
Page 14: Lighting Your Bbq
WARNING: Accessible parts will be hot – avoid touching the BBQ while hot, however if it is necessary, make sure to wear heat proof gloves when touching the barbecue. WARNING: Do not extinguish with water as this may damage the barbecue. GFPTBBQ1004B... -
Page 15: After Grilling
• The barbeque can now be carried and easily stored. • For cleaning, all you need is a dishcloth, warm water and a commercial detergent. Do not use abrasive cleaners! GFPTBBQ1004B... -
Page 16: Food Safety
• To check whether meat, particularly poultry, is cooked, pierce the flesh with a skewer or fork; the juices should run clear. Ensure the product is piping hot throughout. GFPTBBQ1004B... -
Page 17: Cleaning And Care
• Avoid using abrasive cleaners, wire wool, and brushes as these may scratch the surface. • When not in use this barbecue should be stored in a dry location or under a waterproof cover. GFPTBBQ1004B... -
Page 18: Guarantee And Customer Services
• This warranty does not cover wear and tear, damage, misuse or consumable parts. This does not affect your statutory rights. Customer Services & Spare Parts: Region Contact UK & Northern Ireland 0345 209 7461 Ireland 1 800 938982 Rest of Europe europe@productcaregroup.com GFPTBBQ1004B... -
Page 19: Notes
NOTES GFPTBBQ1004B... - Page 20 Hindley Green, Wigan, WN2 4AY, United Kingdom / Product Care (Ireland) Ltd, Unit 3D North Point House, North Point Business Park, New Mallow Road, Cork, T23 AT2P, Ireland. George Foreman is the registered trademark of Spectrum Brands (U.K.) Ltd. Revision 1.3...
