Kogan KA30LDGFRYA User Manual

Kogan KA30LDGFRYA User Manual

30l digital air fryer oven
Hide thumbs

Advertisement

Table of Contents

30L DIGITAL AIR FRYER
OVEN
KA30LDGFRYA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KA30LDGFRYA and is the answer not in the manual?

Questions and answers

Related Manuals for Kogan KA30LDGFRYA

Summary of Contents for Kogan KA30LDGFRYA

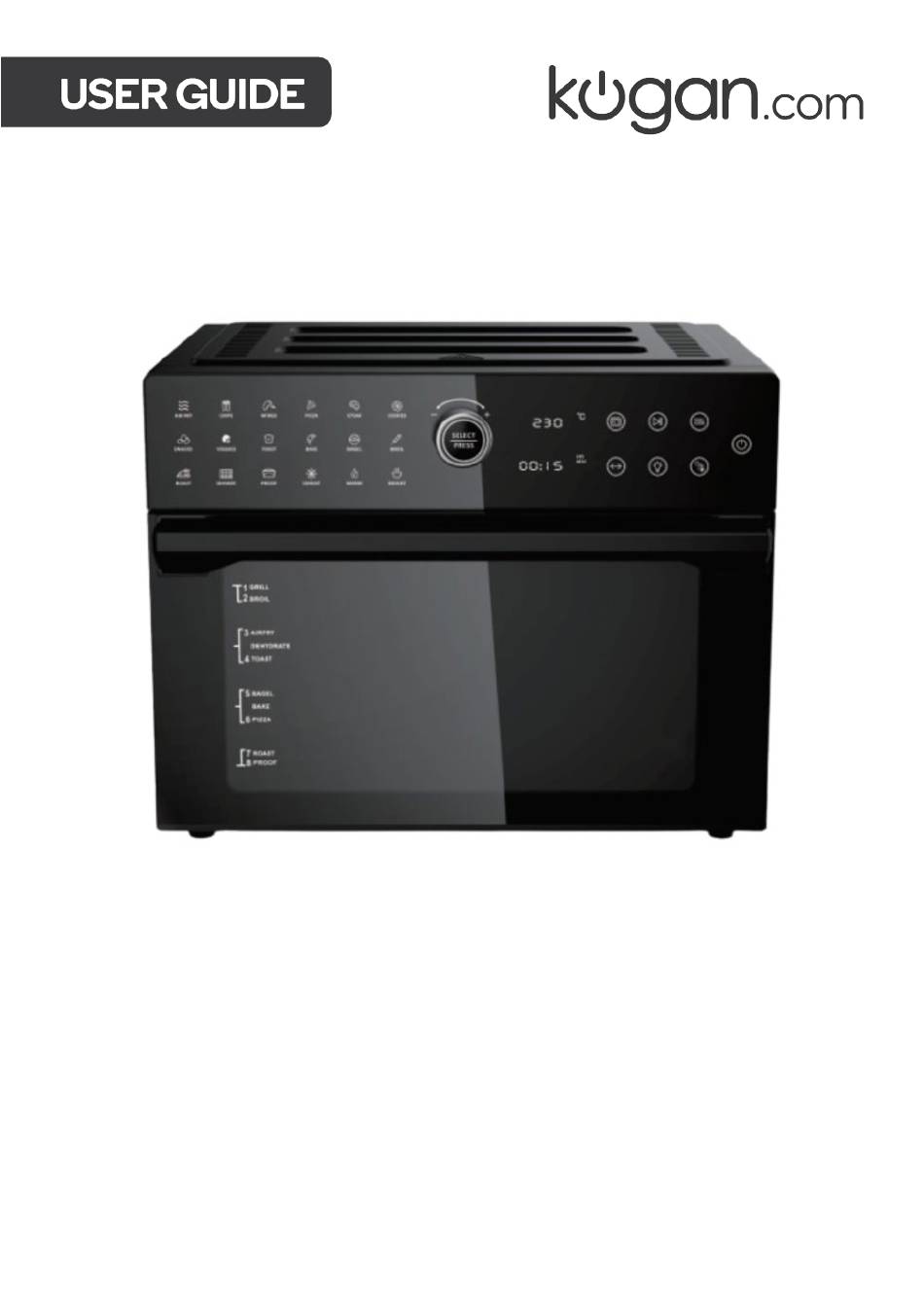

  • Page 1 30L DIGITAL AIR FRYER OVEN KA30LDGFRYA...

  • Page 2: Table Of Contents

    Safety & Warnings Overview Before First Use Operation Function Cleaning & Care Troubleshooting...

  • Page 3: Safety & Warnings

    • This appliance is not designed to be operated using an external timer or separate remote-control system. • If the power cord is damaged, it must be replaced by Kogan.com, its service agent or similarly qualified persons in order to avoid a hazard. Cease use immediately and contact help.Kogan.com for support.
  • Page 4 • When not in use, always unplug the unit. Do not store any materials other than oven proof accessories recommended by Kogan.com in this appliance. • Do not place paper, cardboard, plastic, or similar materials inside the appliance.
  • Page 5 • A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. • Extension cords are available and may be used if care is exercised in their use. If an extension cord is used, the marked electrical rating of the extension cord must be at least as great as the electrical rating of the appliance and the longer cord should be arranged so that it will not drape over edges.

  • Page 6: Overview

    OVERVIEW Control Panel Door Handle Light Rotisserie Cooking Window Crumb Tray...
  • Page 7 Wire Rack Air Fryer Basket Baking Pan Rotisserie Spit Spit Removal Tool Wire Rack: The wire rack can be used in the 3 upper rack positions. Air Fry Basket: The Air fry basket is grated to allow air to pass through the basket for even cooking.

  • Page 8: Before First Use

    BEFORE FIRST USE Read this user guide along with all warning stickers and labels. Remove all packaging around and inside the oven. Place on a stable, level, heat-resistant surface, away from anything that can be damaged by heat. Keep at least 110mm distance between the electrical outlet the wall, furniture etc.
  • Page 9 Before use ensure that the power and outlet meet the requirements to operate this product (input power requirements). Upon first use, it is necessary to run the oven for 18 minutes at the highest temperature (230°C) to sterilise and remove any manufacturing odour. The ir fryer may emit an odour or smoke due to the heater's protective film.

  • Page 10: Operation

    OPERATION Door Sensor If the door is opened during operation, cooking pause and the light will turn on. The display will show . When the door is closed, the light will turn off and cooking will resume. Control Panel Preset Functions Preset functions on the control panel of the digital air fryer simplify cooking by offering pre-programmed settings for various popular dishes, ensuring convenient and precise cooking results.
  • Page 11 Dual Cook Utilize the advanced dual-function cooking technology to program your Air Fryer, enabling it to initiate cooking with one preset and seamlessly transition to a second preset, ensuring an impeccably cooked meal. For instance, place a casserole topped with breadcrumbs in the oven, set it to bake, and then to broil, resulting in a thoroughly cooked dish with a golden, crisp topping.
  • Page 12 Preset Programs Default Preset Default time Temp range Time range temperature Air fry 200°C 10MINS 90-230°C Up to 2 HOURS Chips 230°C 18MINS 90-230°C Up to 2 HOURS Wings 230°C 18MINS 90-230°C Up to 2 HOURS Pizza 230°C 11MINS 90-230°C Up to 2 HOURS Steak 230°C...
  • Page 13 Cooking Guide Plug in, touch the POWER icon to turn on the Air fryer, screen will illuminate and “AIR FRY” icon will blink. Turn the program select knob to choose your preferred program. The default temperature and time will be displayed. Push the program select knob.
  • Page 14 Position 1: Position 2: • Dehydrate • Toast • Dehydrate Position 3: Position 2: • Toast • Chips • Dehydrate • Wings • Bake • Veggie • Pizza Position 4: Position 5: • Roast • Rotisserie Accessories Wire Rack Baking Pan Air Fry Basket Rotisserie Insert the accessories with the food into the desired position, then...
  • Page 15 Dual Cook Guide Plug in, touch the POWER icon to turn on the Air fryer, screen will illuminate and “AIR FRY” icon will blink. First Step AIR FRY BROIL DUAL BAKE ROAST COOK WARM Second Step BROIL BAKE ROAST WARM Dual Cook Press the DUAL COOK icon, and 5 functions (AIR FRY/BAKE/BROIL/ROAST/WARM) will light up.
  • Page 16 Insert the accessories with the food into the desired position, then close the door. Refer to the above rack position diagrams to Accessories correctly place the accessories. Position Note: If you intend to use the rotisserie, secure the food and position it within the Air Fryer.

  • Page 17: Function

    FUNCTIONS Cooking Functions Reference Chart Suggested Suggested Suggested Function Preheat Amount of Rack Accessory Food Position Based on your AIR FRY Air Fryer Basket selected dish CHIPS 550g Air Fryer Basket WINGS 1038g(28pcs) Air Fryer Basket Baking Pan or PIZZA 13 inches Oven Rack Baking Pan or...
  • Page 18 Dual-Cooking Functions Reference Chart Suggested Suggested Suggested Function 1 Function 2 Preheat Amount of Rack Accessory Food Position base on the Air Fryer AIR FRY WARM food you Basket select base on the Baking BAKE BROIL food you Pan or select Oven Rack Baking...

  • Page 19: Cleaning & Care

    CLEANING & CARE Before cleaning, remove the power plug from the electrical outlet. Allow the oven and all accessories to cool completely before disassembling and cleaning. Replacing the Light Note: Be sure to unplug the Air Fryer and allow it to cool completely before replacing the oven light.
  • Page 20 Disassembling the Inner Glass Door for Cleaning Note: Be sure to unplug the Air Fryer and allow the glass door to cool completely before disassembling it. Loosen the screws using a screwdriver. Use the silicone suction cup to lift the glass and then remove it. After cleaning and drying the glass, place it back and tighten the screw clockwise to secure it in place.
  • Page 21 Cleaning the Outer Body and Door • Clean the outer body with a soft, damp sponge. Use a non-abrasive liquid cleanser or mild spray solution to prevent the accumulation of stains. Apply the cleanser to the sponge, not directly on the oven's surface, before cleaning. •...
  • Page 22 Cleaning the Crumb Tray • After each use, pull out the crumb tray and dispose of the crumbs. Wipe the tray with a soft, damp sponge. Use a non-abrasive liquid cleanser or mild spray solution to prevent the accumulation of stains. Apply the cleanser to the sponge, not directly on the tray, before cleaning.

  • Page 23: Troubleshooting

    TROUBLESHOOTING Problem Cause Solution The appliance is not plugged Make sure the oven is plugged in. The oven does NOT You have not turned on the Touch the POWER work oven ON/OFF icon to power on The door is not closed properly This is normal.
  • Page 24 Remove the power cord Display shows Error There is a short circuit in the from the power outlet. Contact help.Kogan.com Code "E1" temperature monitor for support. Remove the power cord from the power outlet, reconnect and operate...
  • Page 25 NOTES...
  • Page 28 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
