Summary of Contents for Feider Machines FFR1600

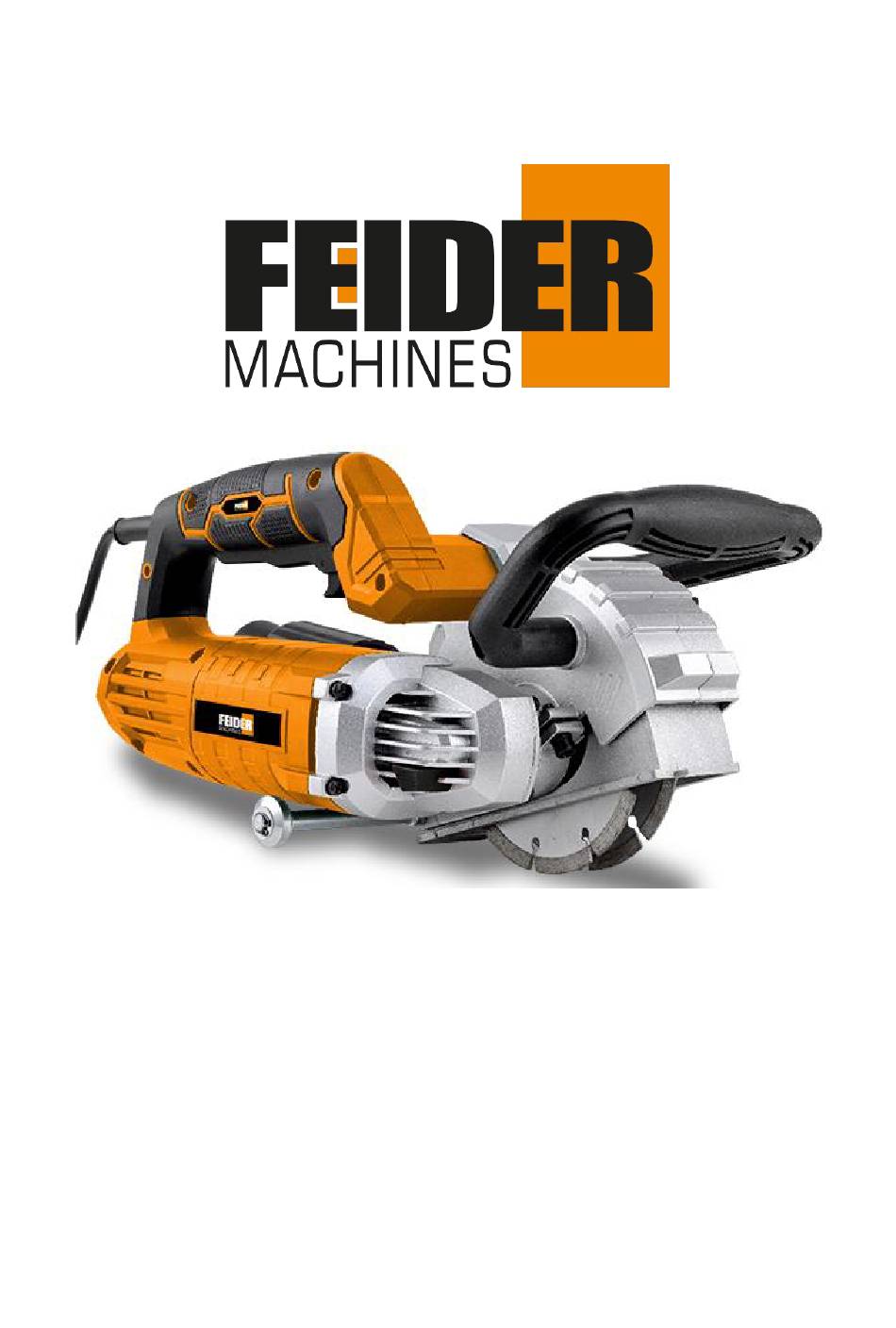

- Page 1 ORIGINAL NSTRUCTIONS >EN WALL GROOVE CUTTER FFR1600 USER GUIDE CAUTION: Read the instructions before using the machine!
-
Page 2: Table Of Contents
CONTENTS 1. CONDITIONS OF USE 2. SAFETY INSTRUCTIONS 3. PRODUCT DESCRIPTION 4. TECHNICAL DATA 5. ASSEMBLY 6. OPERATION 7. CLEANING AND SERVICE 8. TROUBLESHOOTING 9. DISPOSAL 10. DECLARATION OF CONFORMITY 11. WARRANTY 12. PRODUCT FAILURE 13. WARRANTY EXCLUSIONS... -
Page 3: Conditions Of Use
1. CONDITIONS OF USE This product is exclusively intended for the use according to the corresponding descriptions and safety instructions in these operating instructions. Any other use is not as intended. If the product is used other than for the intended purpose ... -
Page 4: Safety Instructions For Abrasive Cutting-Off Operations
use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. - Page 5 f) Do not use worn down reinforced wheels from larger power tools. Wheels intended for a larger power tool are not suitable for the higher speed of a smaller tool and may burst. g) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool.
-
Page 6: Residual Risks
opposite to the wheel’s movement at the point of snagging. d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. - Page 7 unhealthy body position, excessive overload, unnatural holding), related to the handle design or machine balance. Dangers caused by unexpected starting, unexpected exceeding of motor revs caused by defect/failure of control system, relate to the defects by the handle and placing of drivers. Dangers caused by impossibility to stop the machine in best conditions, relate to solidity of the handle ...
-
Page 8: Productdescription
3.PRODUCTDESCRIPTION 1. Handgrip 8. Cutting disc 15. Protective guard 2. on/off switch 9. Guide roller 16. Mounting spindle 3. Switch block 10. Vacuum connector 17. Threaded clamping flange 4. Auxiliary handle 11. Vacuum adapter 18. Retaining screw 5. Lower guide 12. -
Page 9: Technical Data
4. TECHNICAL DATA Voltage 220-230V~ Frequency 50Hz Power 1600W No load speed 9000/min Blade diameter Ø125mm Cutting width 8-26mm Max cutting depth 30mm Cable length Sound pressure level LpA 92,3 dB(A) Uncertainty K 3.0 dB(A) Sound power level L 103,3 dB(A) Uncertainty K 3 dB(A) Vibration value a... -
Page 10: Assembly
5. ASSEMBLY WARNING: Ensure that you have sufficient space in which to work, and that you do not endanger other people. All hoods and protective devices must be assembled properly before commissioning. Disconnect the mains plug before changing the setting on the device. 5.1 INSTALING / CHANGIN DISC 1) Press the spindle lock button (7). -
Page 11: Operation
6. OPERATION WARNING: Always remove the mains plug before working on the tool. Only use grinding discs and accessories recommended by the manufacturer. Using other attachment tools and other accessories can represent a risk of injury for you. Only use grinding tools which bear information about the manufacturer, type of binding, dimension and ... -
Page 12: Cleaning And Service
4) Once you reach the end of the groove, remove the device from the groove before switching it off. 5) Chip out the resulting ridge between the two grooves using the hand chisel (12) 7. CLEANING AND SERVICE Pull the mains plug before any adjustments, maintenance or repair. WARNING: Have any work on the device that is not described in this instruction guide performed by a professional. -
Page 13: Declaration Of Conformity
10. DECLARATION OF CONFORMITY BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that， Product: Wall Groove Cutter Model: FFR1600 Serial number: 20230506586-20230506885 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. -
Page 14: Warranty
11. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 15: Product Failure
12. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 16: Warranty Exclusions
13. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 17 NOTES...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in China in 2023...
