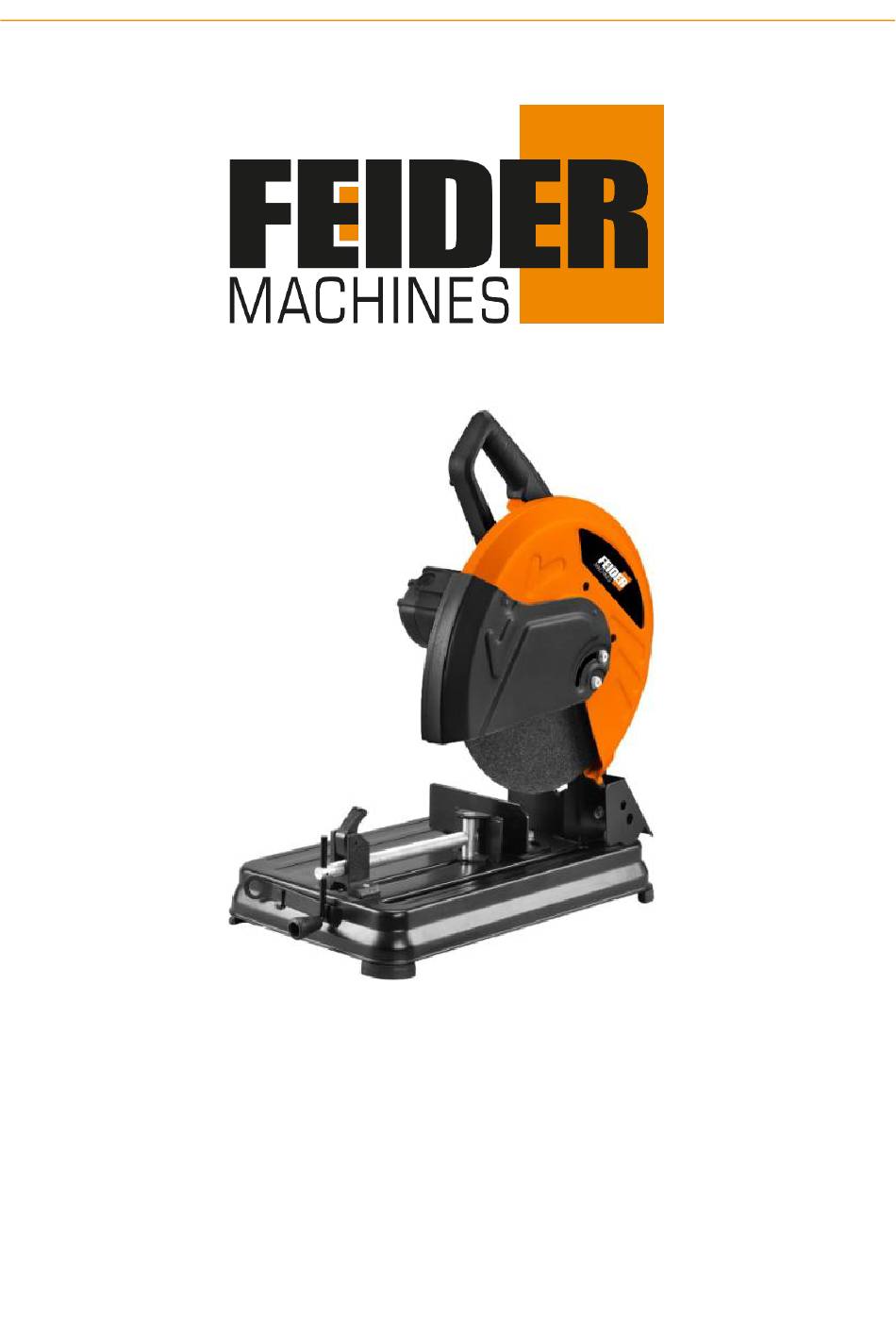

- Page 1 ORIGINAL INSTRUCTIONS >EN CUTTING MACHINE F2000TM-A USER GUIDE CAUTION: Read the instructions before using the product.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS………………………………………………………3 2. PRODUCT DESCRIPTION……………………………………………………..7 3. SPECIFICATIONS……………………………………………………………….8 4. OPERATION……………………………………………………………………...9 5. MAINTENANCE…………………………………………………………...……11 6. DISPOSAL…………………………………………………………………...….11 7. DECLARATION OF CONFORMITY………………………………………….12 8. WARRANTY…………………………………………………………………….13 9. PRODUCT FAILURE…………………………………………………………..14 10. WARRANTY EXCLUSIONS…………………………………………………15... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS 1.1 GENERAL POWER TOOL SAFETY WARNINGS WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. Power tool use and care a) Do not force the power tool.
- Page 5 h) Do not use damaged wheels. Before each use, inspect the wheels for chips and cracks. If the power tool or wheel is dropped, inspect for damage or install an undamaged wheel. After inspecting and installing the wheel, position yourself and bystanders away from the plane of the rotating wheel and run the power tool at maximum no load speed for one minute.
- Page 6 g) Support any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel. 1.3 SPECIFIC SAFETY INSTRUCTIONS Make sure the cut-off wheel is securely mounted as described in the assembly instructions before connecting the tool to a power supply.
-
Page 7: Product Description
2. PRODUCT DESCRIPTION 1.Carbon brush cap 2. Safety guard 3. Vise handle 4. Rubber foot 5. Base 6. Blade 7. Top guard 8. Switch 9. Handle... -
Page 8: Specifications
3. SPECIFICATIONS Model F2000TM-A Mains voltage/ frequency 220-240V~, 50Hz Power 2300W Speed 3800/min Blade size Ø355mm Weight 16.5kg Sound pressure level LpA 92.2dB(A) Sound power level LwA 105.2 dB(A) Uncertainty K: 3 dB(A) The total vibration value does not exceed 2,5 m/s²... -
Page 9: Operation
4. OPERATION Warning. Do not connect the saw to power source until assembly is complete. Failure to comply could result in accidental starting and possible serious injury. Warning. 1.Don't use the cut-off machine without protective cover on suitable position. 2.The recommended thick of grinding wheel is 2.8mm, and diameter of wheel's hole is 25.4mm. 3. - Page 10 Warning. Always unplug the saw from power source before adjusting or performing routine maintenance. Failure to heed this warning can result in serious injury. CUTTING ANGLE ADJUSTMENT Using the supplies wrench, loosen hex head bolts behind the vise fence; Rotate the vise fence until the desired angle of the cut is aligned with the indicator groove in the saw base.
-
Page 11: Maintenance
4.11 SWITCH - To start the tool, completely depress the trigger switch located in the saw handle. - To stop the tool, release the trigger switch completely. 4.12 CUTTING Warning. Do not attempt to cut wood or masonry with this saw. Never cut magnesium or magnesium alloy with this tool. -
Page 12: Declaration Of Conformity
32, rue Aristide Bergè s - ZI 31270 Cugnaux – France Phone: +33 (0) 5.34.508.508 Fax: +33(0) 5.34.508.509 Herewith we declare that the product Cutting machine Model number: F2000TM-A S/N: 20210905445-20210905744 Is in conformity with the following European Directives 2006/42/EC 2014/30/EU 2011/65/EU &... -
Page 13: Warranty
8. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 14: Product Failure
9. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Empty the fuel tank if your product has the one. • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 15: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 16 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2021...
