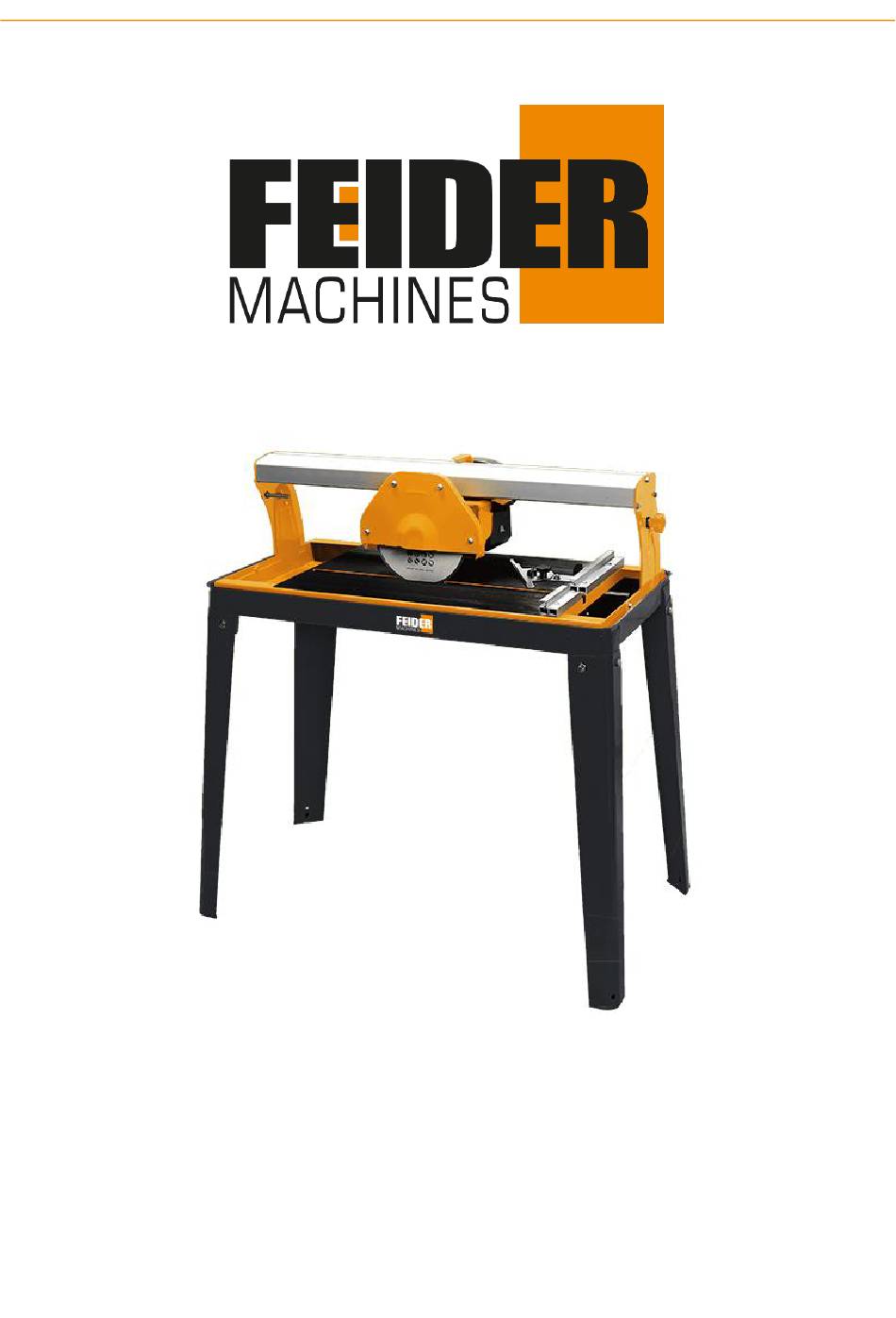

- Page 1 ORIGINAL INSTRUCTIONS >EN ELECTRIC TILE CUTTER FCPR852-A USER GUIDE CAUTION: Read the instructions before using the product.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................... 3 PRODUCT DESCRIPTION .......................... 7 SPECIFICATION ............................. 11 ASSEMBLY AND PREPARATION……………………………………………………………………………………………………………..12 OPERATION ............................14 MAINTENANCE ............................. 14 TRANSPORTATION………………………………………………………………………………………………………………………………..14 STORAGE………………………………………………………………………………………………………………………………………………15 TROUBLESHOOTING………………………………………………………………………………………………………………………………15 DISPOSAL ............................. 15 DECLARATION OF CONFORMITY ......................16 WARRANTY ............................17 PRODUCT FAILURE ..........................18 WARRANTY EXCLUSIONS ........................19... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Important! Before each use (!) and regularly during work the user must: - perform visual inspection of the tool, - inspect the general condition of the tool, - check the tool, the accessories and the safety equipment for integrity, - check the security of fastening elements, units, attachments etc., bolts tightening etc., - check for other damages (incl. - Page 4 c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on.
- Page 5 6) Disconnect the machine from the power source and make sure that there are no hindrances by manually turning the cutting blade. 7) Make sure that the removable guard works properly (no hindrances). 8) The guard must be installed and it must be in good working order. While the machine is disconnected from the power source, check the operation of the guard and make sure it works properly.
- Page 6 6) Eye damage if eye protection is not used. 7) Any use other than that described above is considered improper. The manufacturer is not liable for any resulting damage; the user is solely responsible for this. DESCRIPTION OF THE SYMBOLS The use of symbols in this manual is intended to draw your attention to possible risks.
-
Page 7: Product Description
PRODUCT DESCRIPTION Fig. A Fig. B... - Page 8 Fig.C Fig.D...
- Page 9 Fig.E Fig.F Fig.G...
- Page 10 Fig.H LIST OF MAIN PART (Fig.A) 1 On/off switch 15 Cross head screw 29 Outer flange Handle 16 Washer 30 Fixing bolt Head lock knob 17 Long fence 31 Outer guard Cutting disc 18 Short fence 32 Bolt Water tray 19 Spring washer 33 Protractor 20 Nut...
-
Page 11: Specification
SPECIFICATION Voltage/Frequency 230 V~50 Hz Max. cutting length 620 mm No-load speed 2980/min Inclined cutting 0-45° Motor power 800 W (S2:15min) IP class IP 44 Cutting blade size Ø 200 x 22.2mm Net weight 32.8 kg Spindle output diameter 14mm Water pump capacity 600 l/h Table size... -
Page 12: Assembly And Preparation
ASSEMBLY AND PREPARATION Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product! Do not connect the product to power supply before it is completely assembled! NOTE: Take care of small parts that are removed during assembly or when making adjustments. Keep them secure to avoid loss. - Page 13 - Loosen the bevel locking knobs on both sides (11). - Set the required angle using the pointer (10). - Tighten the locking knobs. MOUNTING AND ADJUSTING THE MITRE FENCE (FIG. F) The mitre angle is infinitely variable between 0° and 45°. To install the mitre fence proceed as follow : - Loosen the screw (38) a few turns.
-
Page 14: Operation
OPERATION WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Notes 1. Check the cutting disc before every use for damage and wear. Replace it with a new one if required. 2. -
Page 15: Storage
STORAGE a) Clean the product as described above. b) Store the product and its accessories in a dry, frost-free place. c) Always store the product in a place out of reach of children. The perfect storage temperature is between 10 and 30°C. d) We recommend using the original packaging for storing the product or covering it with an appropriate cloth, to protect it from dust. -
Page 16: Declaration Of Conformity
ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: Tile Cutter Model: FCPR852-A Serial number: 20220301192-20220302391 Complies with the provisions of the Directive « Machinery » 2006/42/EC and national laws transposing it: Also complies with the following European directives:... -
Page 17: Warranty
WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 18: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Empty the fuel tank if the product has one. • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 19: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 20 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2022...
