Summary of Contents for Feider Machines FCPR852

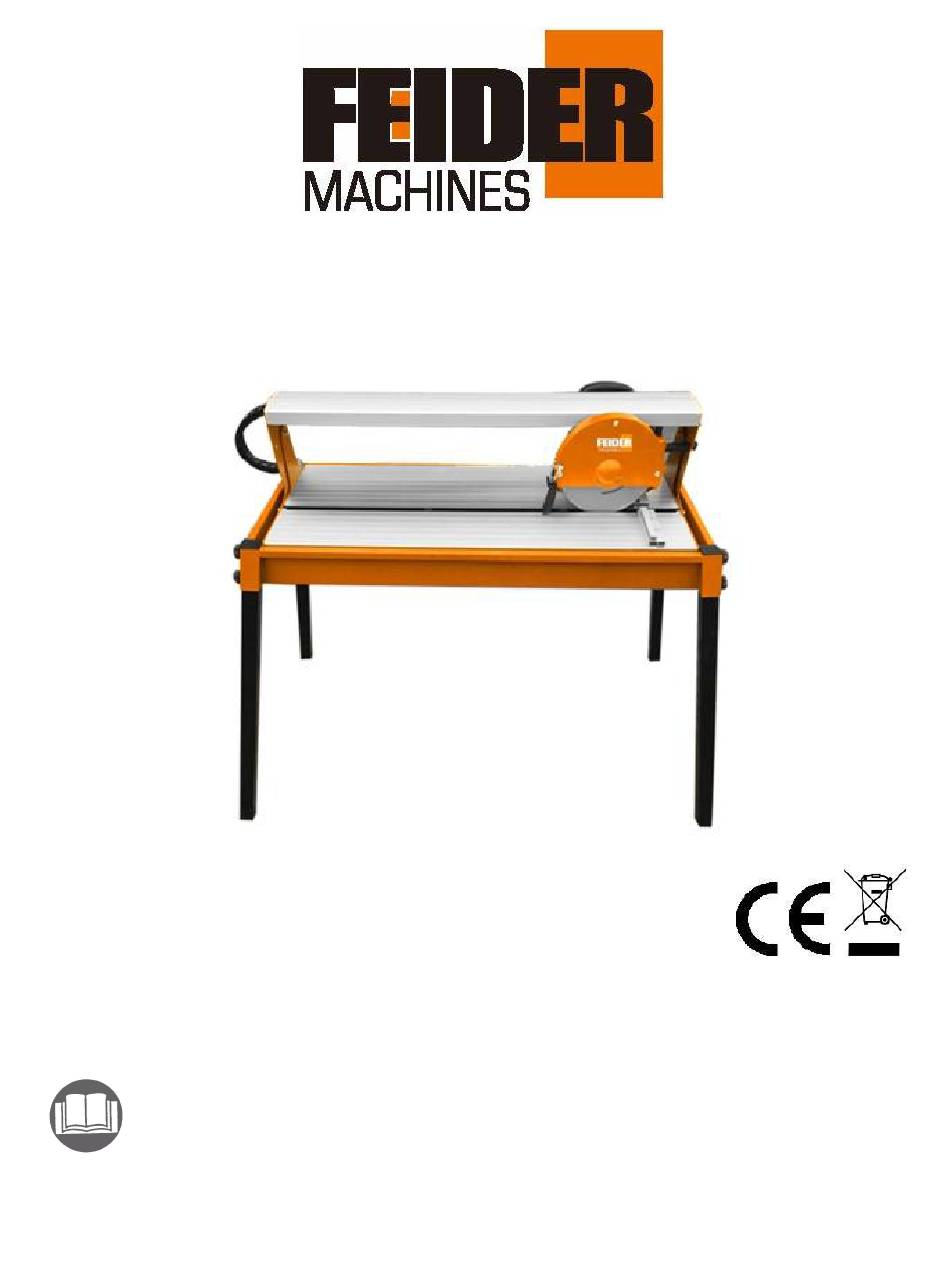

- Page 1 ORIGINAL INSTRUCTIONS TILE CUTTER 200mm FCPR852 Feider France ZI – 32, rue Aristide Bergès, 31270 Cugnaux, France MADE IN RPC 202 1 Warning: Please read the manual carefully before using the unit!
- Page 2 DESCRIPTION OF THE SYMBOLS The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents.
- Page 3 Description (Fig. 1) 1. Angle scale 2. Locking knobs (x2) for the adjustment of bridge angle 3. Angle indicator 4. Handle 5. Adjustable bridge 6. Locking knob of the adjustable rail for the miter angle 7. Adjustable rail for the miter angle 8.
- Page 4 Technical features of the model Voltage/Frequency 230 V~50 Hz Max. cutting length 520 mm No-load speed 2950/min Inclined cutting 0-45° Motor power 800 W S2:20 min IP class IP 54 Cutting blade size Ø200 x 25.4mm Net weight 28 kg Table size 790 mm x 394 mm Max.
- Page 5 Safety rules Important! Before each use (!) and regularly during work the user must: - perform visual inspection of the tool, - inspect the general condition of the tool, - check the tool, the accessories and the safety equipment for integrity, - check the security of fastening elements, units, attachments etc., bolts tightening etc., - check for other damages (incl.
- Page 6 8. Dress properly Do not wear loose clothing or jewellery; they can be caught in moving parts. Non-skid footwear is recommended when working outdoors. Wear protective hair covering to contain long hair. 9. Use protective equipment Use safety glasses. ...
- Page 7 A guard or other part that is damaged should be properly repaired or replaced by an authorized service centre unless otherwise indicated in this instruction manual. Have defective switches replaced by an authorized service centre. Do not use the tool if the switch does not turn it on and off. ...
- Page 8 • Do not cut fragments which are too small and which do not enable fastening them securely on the guide bar and keeping hands at a safe distance from the cutting blade. • Make sure that there are no foreign objects on the machine bench. •...
- Page 9 Installation of the pump. (Fig. 3) • Place the pump on the water tank (stationary position of the pump) on the tilt. • Lay the hose and the cord around the pump. • Press on the pump case with your thumbs till you hear a click.
- Page 10 Equipment operating rules: The cutting blade may be tilted to any angle within the range from 0° to 45°. Adjustable rail for the miter angle on the bench can be rotated to any angle. During the cutting process the pump can feed water to the cutting blade extending the service life of the cutting blade and reducing the level of dust.
- Page 11 Cutting (Fig. 7) • Make sure that all the adjusting knobs are Fig. 7 tightened correctly (2) and that there is enough water in the tank for the flow on the cutting blade. • Mark the cutting position (11) on the processed part, place the processed part on the bench by pressing it firmly against the supporting guard and rail for the miter...
- Page 12 Miter cutting (Fig. 9) • The procedure is the same as during the Fig. 9 straight cutting, the rail for the miter angle/transverse guard is set to the desired angle. Before cutting make sure that the tile is securely fastened. CAUTION! Do not lift or remove the cutting waste before the cutting blade fully stops.
- Page 13 DEFECTS In case of defects of the tool due to wear and tear of the parts, contact the point of sale where you acquired this tool or the service centre. WARNING! Before carrying out maintenance or adjustments, the machine must be unplugged from power. Cleaning Empty the water reservoir and remove from the reservoir and the table any dust deposits remaining after cutting.
- Page 14 Problem Possible cause Solution 1. Product does not start 1.1. Power not connected 1.1. Connect the power 1.2. Damaged power cord 1.2. Check by a qualified or plug electrician 1.3. Other electrical fault 1.3. Check by a qualified of the product electrician 2.
- Page 15 FEIDER FRANCE ZI, 32 RUE ARISTIDE BERGES – 312070 CUGNAUX – FRANCE Declares that the machinery designated below: Tile Cutter Model: FCPR852 Serial number: 20210165906-20210166305 Complies with the provisions of the Directive « Machinery » 2006/42/EC and national laws transposing it:...
-
Page 16: Warranty
WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 17: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 18: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
