Manual

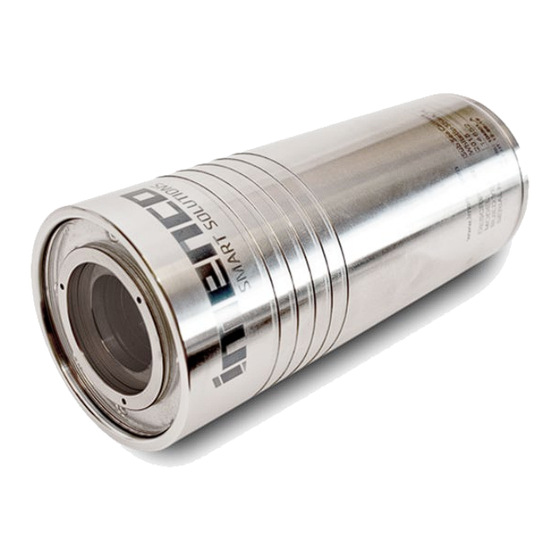

Blacktip II Subsea Camera
U S E R M A N U A L
IMENCO AS
Org No: 923 005 749 MVA
Visiting Address:
Stoltenberggata 1, 5527 Haugesund, Norway
imenco@imenco.com
Mail Address:
PO. Box 2143, 5504 Haugesund, Norway
www.imenco.com
1
Spinner II - User
Office: +47 52 86 41 00
Fax:
+47 52 86 41 01
Rev.1.0
Advertisement
Table of Contents
Related Manuals for imenco Blacktip II
Summary of Contents for imenco Blacktip II

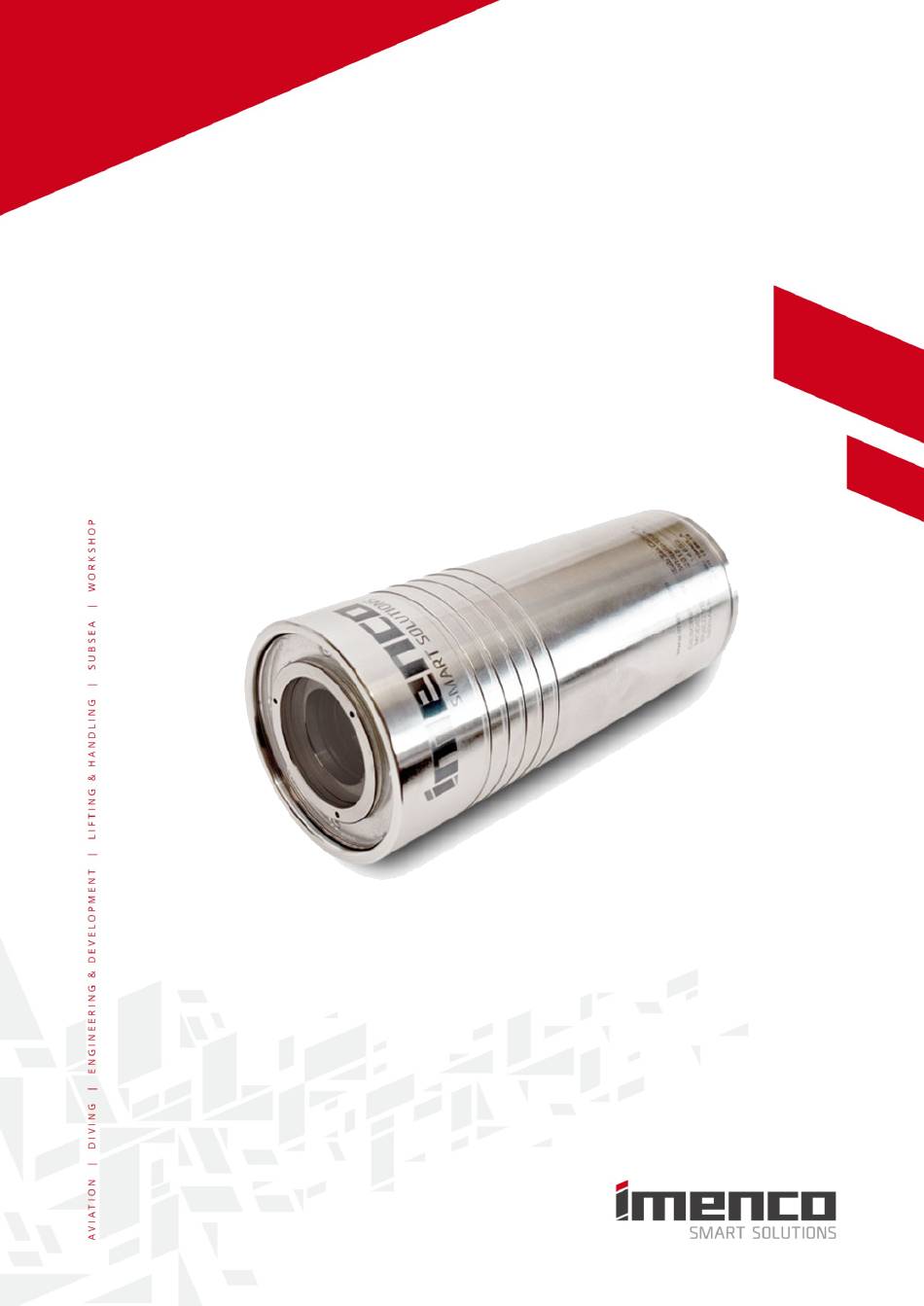

- Page 1 Spinner II - User Rev.1.0 Manual Blacktip II Subsea Camera U S E R M A N U A L IMENCO AS Visiting Address: Stoltenberggata 1, 5527 Haugesund, Norway Office: +47 52 86 41 00 imenco@imenco.com Org No: 923 005 749 MVA Mail Address: PO.
-
Page 2: Table Of Contents
Safety information ......................... 3 Warranty ............................3 General Description ....................... 4 Regarding these Instructions for Use ................4 The Blacktip II Subsea Camera ..................4 Main Features ......................... 4 Technical Specifications ......................5 Power ..........................6 Installation Instructions ......................6 Unpacking and testing .................... -
Page 3: Contact
Warranty Be sure to read and comply with Imenco’s Terms & Conditions that the Blacktip camera was sold under. IMENCO AS... -
Page 4: General Description
Copyright © 2021 IMENCO. All Rights Reserved. 1.2 The Blacktip II Subsea Camera The Blacktip II colour cameras incorporate a 1/3-type CMOS image sensor and feature a 10x optical zoom (+ 16x digital zoom). With its ultra-compact and lightweight body, this is an ideal camera for restricted space applications, and for tooling. -
Page 5: Technical Specifications
Blacktip II - User Manual 2 Technical Specifications Image Resolution 1080P @ 25/30 – PAL / NTSC (CVBS) Video output format Composite video Minimum illumination 0,5 lux Zoom 10x optical (+16x digital) F 1.8 to 3.4 View angle in water (wide) 43°... -
Page 6: Power
The camera housing is not connected to Protective Earth. 3 Installation Instructions Make sure that Imenco’s Terms & Conditions are followed when using this product. 3.1 Unpacking and testing When having received the camera do a visual inspection for damage of the packet or any of the parts. -
Page 7: Function Test
Lubricate the subsea connector and mate it properly. 3) Now turn on the DC power to the Camera. 4) Changes to settings and camera control is done by means of the Imenco serialCommander software or by the Visca software if the camera is configured for RS232 / RS485. -
Page 8: Electrical Installation
4 Operational Instructions 4.1 Hazards and protective measures The Blacktip II Camera does not generate or use dangerous high electrical voltages. The camera is filled with inert gas at atmospheric pressure. Follow the safety information at the beginning of this manual. -
Page 9: Bipolar Control
Blacktip II - User Manual 4.3.2 Bipolar control: Bipolar control gives no control of camera module settings. Control voltage input ± 5vdc to ±24vdc, for pin numbering please refer to connector pin- out in the QC document. Autofocus on / off: •... -
Page 10: Tri-State Control
Blacktip II - User Manual 4.3.3 Tri-state control: Tri-state gives no control of camera module settings Default reference voltage is set to +12VDC, for pin numbering please refer to connector pin-out in the QC document. Autofocus on / off: •... -
Page 11: Maintenance
5.3 Packing & Shipping The packing & shipping of the goods shall generally be according to Imenco’s approved procedures. Warning: The Blacktip II camera includes fragile parts which must not be subject to vibrations and shock during transport. - - - - -...
