Vision ZB 5311 US-8 Installation & Operation Manual

Limited Warranty
Vision Guarantees that every wireless ZB5311 is free from physical defects in material
and workmanship under normal use for one year from the date of purchase. If the
product proves defective during this one-year warranty period, Vision will replace it free
of charge. Vision does not issue any refunds. This warranty is extended to the original
end user purchase only and is not transferable. This warranty does not apply to: (1)
damage to units caused by accident, dropping or abuse in handling, or any negligent
use; (2) units which have been subject to unauthorized repair, taken apart, or otherwise
modified; (3) units not used in accordance with instruction; (4) damages exceeding the
cost of the product; (5) transit damage, initial installation costs, removal cost, or
reinstallation cost. For information on addtional devices, please visit us at
www.visionsecurity.com.tw
Federal Communications Commission Statement
This equipment has been followed to comply with Part 15 of the FCC Rules. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try and correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna,
-Increase the separation between the equipment and receiver,
-Connect the equipment into and outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesirable operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
Introduction
Thanks for choosing the Vision's wireless Glass Break Detector (ZB
5311) of the home automation device. This sensor is a Z-Wave Plus®
V2 enabled device (interoperable, two –way RF mesh networking
technology) and is fully compatible with any Z-Wave® enabled network
and its security framework. Every mains powered Z-Wave Plus enabled
device acts as a signal repeater and multiple devices result in more possible transmission
routes which helps eliminate RF dead-spots.
Z-Wave Plus enabled devices displaying the Z-Wave Plus® logo can also be used with it
regardless of the manufacturer, and ours can also be used in other manufacturer's
Z-Wave Plus enabled networks. This sensor monitors various glass breaking sound with
dual stage detection for home security protection. Its adjustable sensitivity can meet
specific environment's requirement. When the device is secure included into Z-Wave
network, above communication will be encrypted.

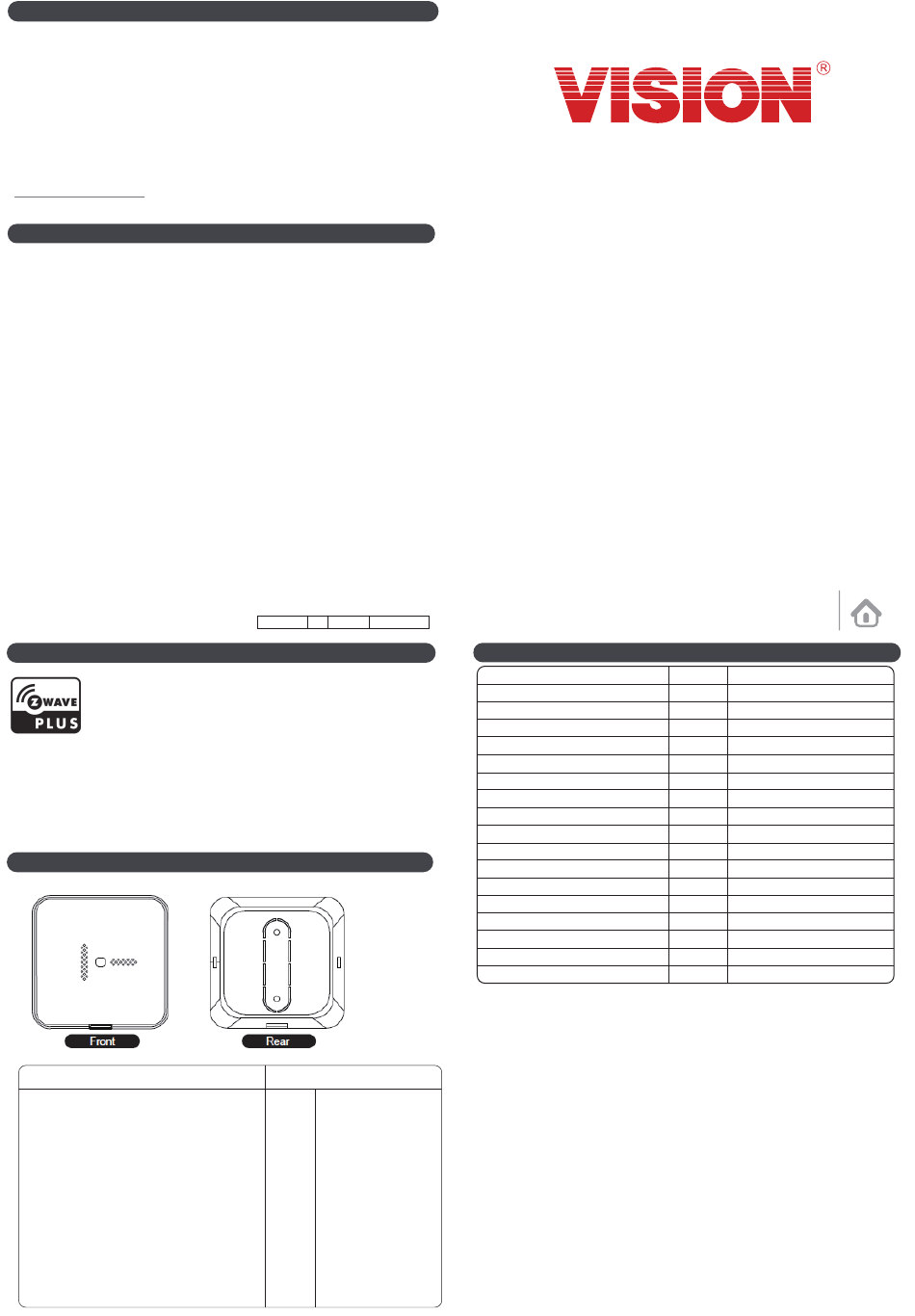

Product Description and Specification
Specification:
Protocol: Z-Wave™
Frequency Range:
908.42MHz (ZB5311US-8)
912.00MHz (ZB5311USLR-8)
868.42MHz (ZB5311EU-8)
921.42MHz (ZB5311BR-8)
865.22MHz (ZB5311IN-8)
916.00MHz (ZB5311IL-8)
869.00MHz (ZB5311RU-8)
922~926MHz (ZB5311JP-8)
919~923MHz (ZB5311KR-8)
Operating Range: > 100 feet line of sight
Operating Temp.: -15°C~ 60°C (-5°F ~140°F)
ZB5311-8 V0 1130815
Package Content:
1pc ZB 5311 Detector
1pc CR123A Battery
1pc Accessory Pack
Configuration – Supervision Report delayed reception time
Size
500 ~ 10000 (unsigned decimal) Unit: ms
Parameter 9 2
(Parameter 9)
Wake Up Test Mode
Configuration –
Size
Parameter 224 1 0x00 (Off) 0xFF (Device always Wake-Up)
(Parameter 224)
Installation & Operation Manual
ZB 5311 US-8
ZB 5311 USLR-8
ZB 5311 EU-8
ZB 5311 BR-8
ZB 5311 RU-8
ZB 5311 JP-8
ZB 5311 KR-8
Glass Break Detector
Command Class
COMMAND CLASS NAME
ASSOCIATION
ASSOCIATION GROUP INFO
BATTERY
CONFIGURATION
DEVICE RESET LOCALLY
FIRMWARE UPDATE MD
INDICATOR
MANUFACTURER SPECIFIC
MULTI CHANNEL ASSOCIATION
POWERLEVEL
SECURITY
SUPERVISION
TRANSPORT_SERVICE
VERSION
ZWAVEPLUS_INFO
NOTIFICATION
WAKE UP
VALUE
To set up the Supervision Report delayed reception time
VALUE
0x00 (Off)
To wake up the Test Mode for testing the command class and signal
purpose only. Please do not try it out of these two purposes.
ZB 5311 IN-8
ZB 5311 IL-8
www.visionsecurity.com.tw
VERSION REQUIRED SECURITY CLASS
2 S0´or S2
3 S0´or S2
1 S0´or S2
4 S0´or S2
1 S0´or S2
5 S0´or S2
3 S0´or S2
2 S0´or S2
3 S0´or S2
1 S0´or S2
2 None
1 None
2 None
3 S0´or S2
2 None
8
2
Default
500 ms.
Default
