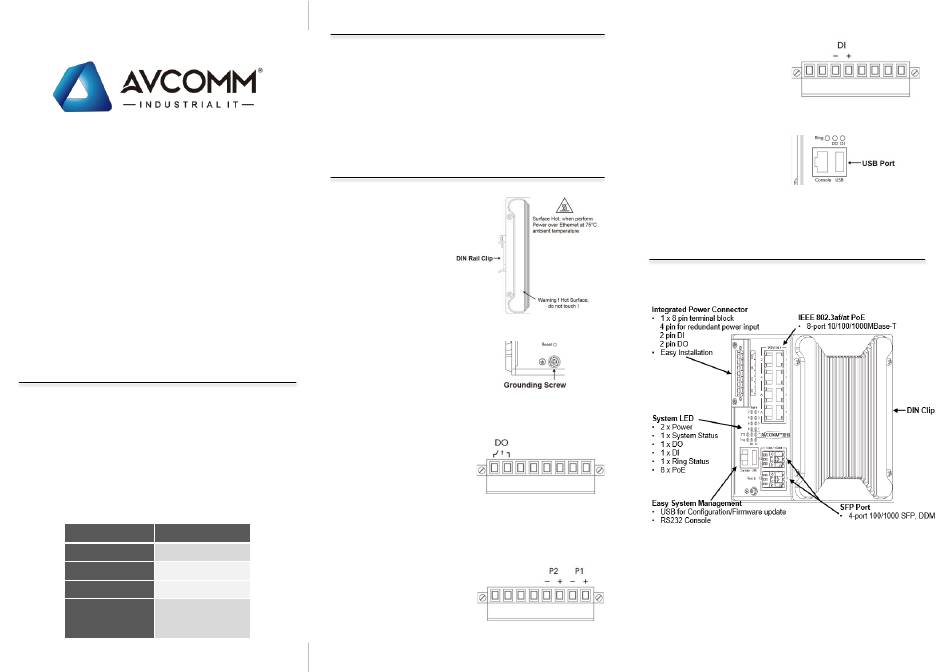

Quick Installation Guide
6012GX4-PoE
Industrial 8G + 4GF L2+/L3 PoE
Cyber Security Switch
www.avcomm.us
・Overview
The new 6012GX4-PoE is full Gigabit Managed Switch with Layer 2
functions. Both switches provide more flexibility in planning a large-scale
IP network. 6012GX4-PoE is equipped with 8-port 10/100/1000Base-T
RJ-45 and 4-port 100/1000 Base-X SFP connectivity, where 6012GX4-
PoE
supported 8 Giga 802.3at PoE ports. These switches provide
reliable network with high performance. It supports critical cyber security
features that meet IEC62443-4-2 criteria. Advanced management and
redundancy features guarantee the fastest network recovery, zero packet
loss data transmission, and high level of network protection against the
hackers' attacks. Besides, for 6012GX4-PoE , it has a rugged design with
EN 61850-3/IEEE 1613/EN 50121-4 standard which is the best choice for
substation and railway wayside applications.
6012GX4-PoE
10/100/1000Base-T
100/1000Base SFP
PoE Mode
IEEE 802.3af/at
46~57VDC
Power input
(50~57VDC for
802.3at)
AVCOMM Technologies, Inc
・Package Checklist
•
1 x Product Unit (Without SFP transceiver)
•
1 x 8-pin Removable Terminal Connector
•
1 x Din Clip
•
1 x Quick Installation Guide
Optional Accessory (for detailed information please refer to the
Datasheet):
•
10Gbps SFP+ Transceiver
•
1000Mbps SFP Transceiver
•
RS232 Console Cable
•
Wall-mounting kit with 2 plates and 8 screws
・Installation
DIN Rail mount
To mount the switch on the DIN
Rail track, insert the upper end
of the DIN‐Rail clip into the
back of the DIN‐Rail track from
its upper side and lightly push
the bottom of the DIN‐Rail clip
into the track. The DIN Rail
should comply with DIN
EN50022 standard. Using
wrong DIN rail may cause
unsafe installation.
Grounding Screw
For avoiding system damage by
noise or electric shock, establish a
direct connection between the
ground screw and the grounding
surface prior to connecting devices.
Wiring the Relay Output
The relay output of the 2-pin
terminal block connector are used
to detect user-configured events.
The two wires attached to the fault
contacts form a close circuit when a
user-configured event is triggered.
If a user-configured event does not
occur, the fault circuit remains
opened.
8
Wiring the Power Input
1) Insert the positive and negative
4
wires into the V+ and V- contact on
the terminal block connector.
2) Tighten screws when the
wire is connected.
3) Connect the power
wires to suitable DC Switching type
power supply.
Wiring the Digital Input
To wire the DI on the Terminal
block, loosen screws by screw
driver on the terminal block
connector, insert the positive and
negative wires into the V+ and V-
contact and then tighten screws
after the DI wire is connected.
USB Port
Use the USB port in order to save
or restore the configuration and
upload the firmware upgrade file.
For further configurations, please
refer to User Manual.
・Appearance
6012GX4-PoE
Address: 333 West Loop North, Suite 460 Houston, TX 77024,United States
