Quick Installation Guide
616TX
16-Port 100M Managed
Ethernet Switch
www.avcomm.us
・Overview
616TX is 16-port 10/100Base-TX RJ-45 managed Ethernet switch
with reverse polarity protection of DC input. It has ingenious
appearance design and supports DIN Rail-mounted to facilitate in
various industrial network applications.
・Package Checklist
•
1 x Product Unit
•
1 x Quick Installation Guide

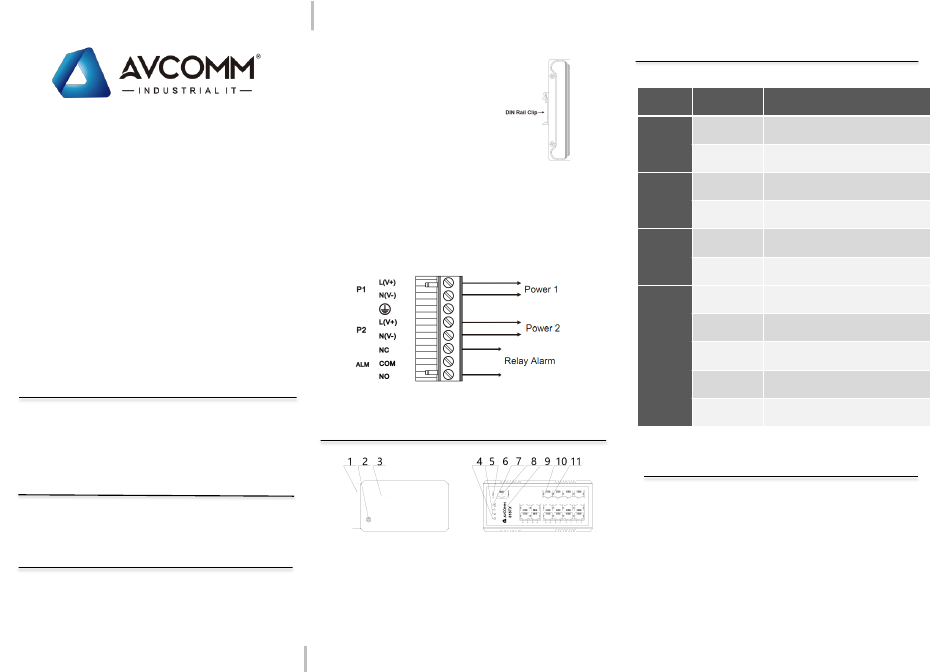

・Installation
Grounding Screw
For avoiding system damage by noise or electric shock,
establish a direct connection between the grounding screw and
the grounding surface prior to connecting devices.
AVCOMM Technologies, Inc
DIN Rail-mounted
To mount the switch on the DIN Rail track,
insert the upper end of the DIN‐Rail clip into
the back of the DIN‐Rail track from its upper
side and lightly push the bottom of the
DIN‐Rail clip into the track. The DIN Rail
should comply with DIN EN50022 standard.
Using wrong DIN rail may cause unsafe
installation.
Wiring the Power Input
1) Insert the positive and negative wires into the V+ and V-
contact on the terminal block connector.
2) Tighten screws when the wire is connected.
3) Connect the power wires to suitable DC Switching type power
supply.
・Appearance
1.DIN-Rail clip
6.Reset
2.Grounding screw
7.Run indicator
3.Power & relay alarm input
8.Console port
terminal
9.Company logo
4.Relay alarm indicator
10.10/100Base-TX port
5.Power indicator P1 P2
11.10/100Base-TX port indicator
・Indicator
LED
Status
Green On
Power is in normal condition
P1 P2
Green Off
Power is abnormal or power failure
Red On
With alarm output
FAIL
Red Off
Without alarm output
Green Blinking
RUN
Green On/Off
Abnormal running
Green On
100Base network is ready
Amber On
Green On
100Base network is established
Amber Blinking
Amber On
10/100Base network is ready or link
RJ45
Green Off
Amber Blinking
10/100Base network is established
Amber Off
Link is not ready or link failure
・Safety Precautions
➢ Keep DC power off before connecting to the terminal block
connectors and ensure all connections are secure established.
➢ Do make sure that models connect to the corresponding supply
voltage. The device is to be supplied by Limited Power Supply.
The relay contact supports 0.5 A current, DC 24V
➢ Do not touch the surface of the switch while it is in
operation!
Address: 333 West Loop North, Suite 460 Houston, TX 77024,United States
