AVCOMM 7028GX12 Quick Installation Manual

Quick Installation Guide

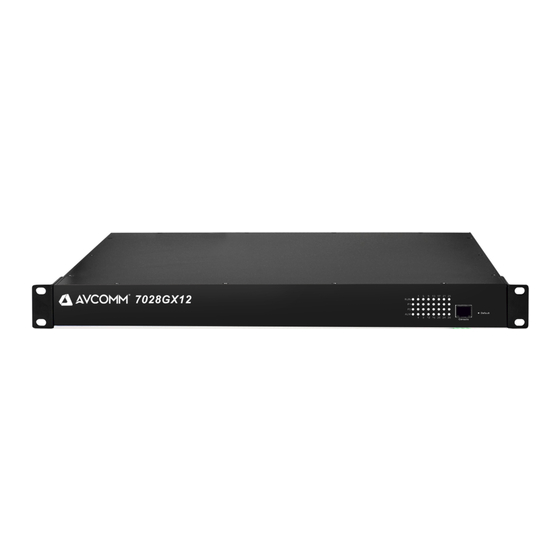

Full-Gigabit Ethernet Switch
7028GX12
www.avcomm.us
・Overview
The 7028GX12 series is a cost-effective, fully Gigabit,
managed industrial Ethernet switch that also supports static
layer-3 routing. To meet diverse requirements in industrial
applications, this series of switches can support up to 28
Gigabit interfaces and a maximum of 12 Gigabit fiber
interfaces, enhancing network scalability. The series offers
flexibility in network expansion. These switches come
equipped with a variety of layer-2 software features, including
port mirroring, VLAN, IGMP
STP/RSTP/MSTP, and ACL (Access
Additionally, practical management options such as Console,
Telnet, Web, SNMP, and relay alarm outputs are supported.
The switches also incorporate layer-3 switching technologies
like static routing, RIP, OSPF, and VRRP. This makes them
well-suited for industrial applications such as factory
automation, intelligent transportation, video surveillance, and
more. Moreover, the series provides reliable solutions for
building secure and robust LANs in government settings.
AVCOMM Technologies, Inc

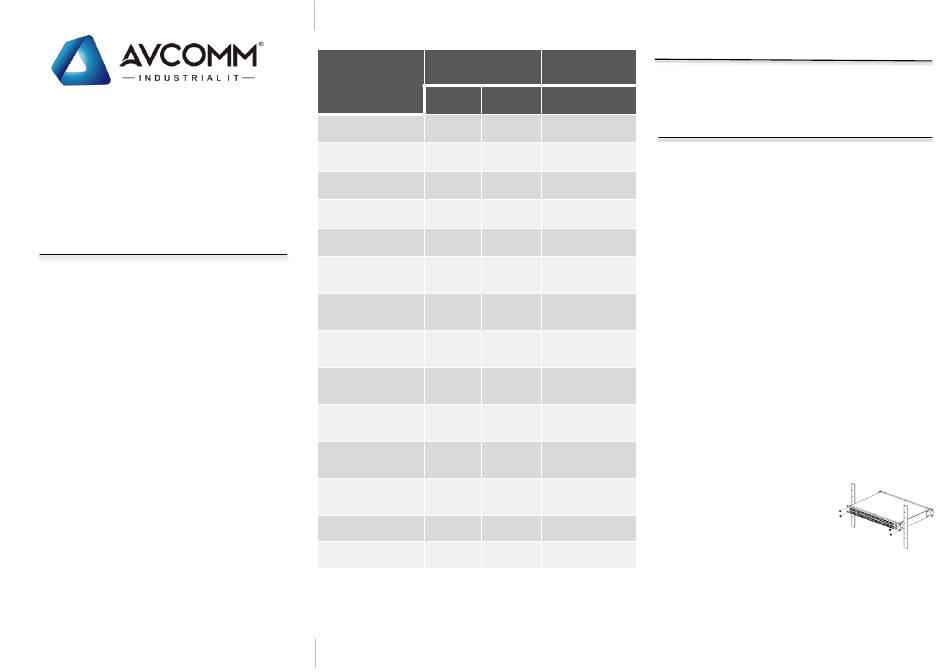

Model Name
7028GX12-AC2-8TX-
8SFP
7028GX12-AC2-16TX-
4SFP
7028GX12-AC2-16TX-
8SFP
7028GX12-AC2-16TX-
12SFP
7028GX12-AC2-24TX-
4SFP
7028GX12-AC2-8TX-
8SC
7028GX12-AC2-16TX-
2SC
7028GX12-AC2-16TX-
4SC
7028GX12-AC2-16TX-
8SC
Snooping, QoS,
Control List).
7028GX12-AC2-16TX-
12SC
7028GX12-AC2-24TX-
2SC
7028GX12-AC2-24TX-
4SC
7028GX12-AC2-16TX
7028GX12-AC2-24TX
Fiber Interface
Description Types
1000Base 10/100/100 1000Base-X
-X 0Base-T
8-port 8-port SFP Slot
4-port 16-port SFP Slot
8-port 16-port SFP Slot
12-port 16-port SFP Slot
4-port 24-port SFP Slot
SC Fiber Optic
8-port 8-port
Interface
SC Fiber Optic
2-port 16-port
Interface
SC Fiber Optic
4-port 16-port
Interface
SC Fiber Optic
8-port 16-port
Interface
SC Fiber Optic
12-port 16-port
Interface
SC Fiber Optic
2-port 24-port
Interface
SC Fiber Optic
4-port 24-port
Interface
- 16-port -
- 24-port -
・Package Checklist
•
1 x Product Unit
•
1 x Quick Installation Guide
•
1 x Console Cable
•
1 x Single power cord/2 x Dual power cord
・Installation
Installation Guidelines
To prevent equipment damage and personal injury caused by
improper use, please adhere to the following guidelines:
To avoid equipment falling and causing damage, place the device in a
stable environment.
When supplying power to the device, ensure to verify the voltage range
and the polarity of the power source to avoid incorrect operations that
may damage the equipment.
To minimize the risk of electric shock, ensure that the equipment is
properly grounded in the working environment.
Please do not disassemble the device casing at any time.
When placing the switch, avoid areas with excessive dust and strong
electromagnetic interference.
Rack-Mount Installation
Install the product on a 1U rack following these steps:
Step 1: Check the grounding and stability of the 1U rack. Use
screws to secure the mounting ears on both sides of the switch
panel.
Step 2: Place the switch on a tray in the
rack. Adjust the switch to the appropriate
position, ensuring that the switch aligns with
the 1U rack.
Step 3: Use screws to secure the mounting
ears onto the fixed slots at both ends of the
1U rack. Ensure that the brackets on each
slot of the rack and the mounting ears of the
switch securely fasten the switch to the 1U
rack.
