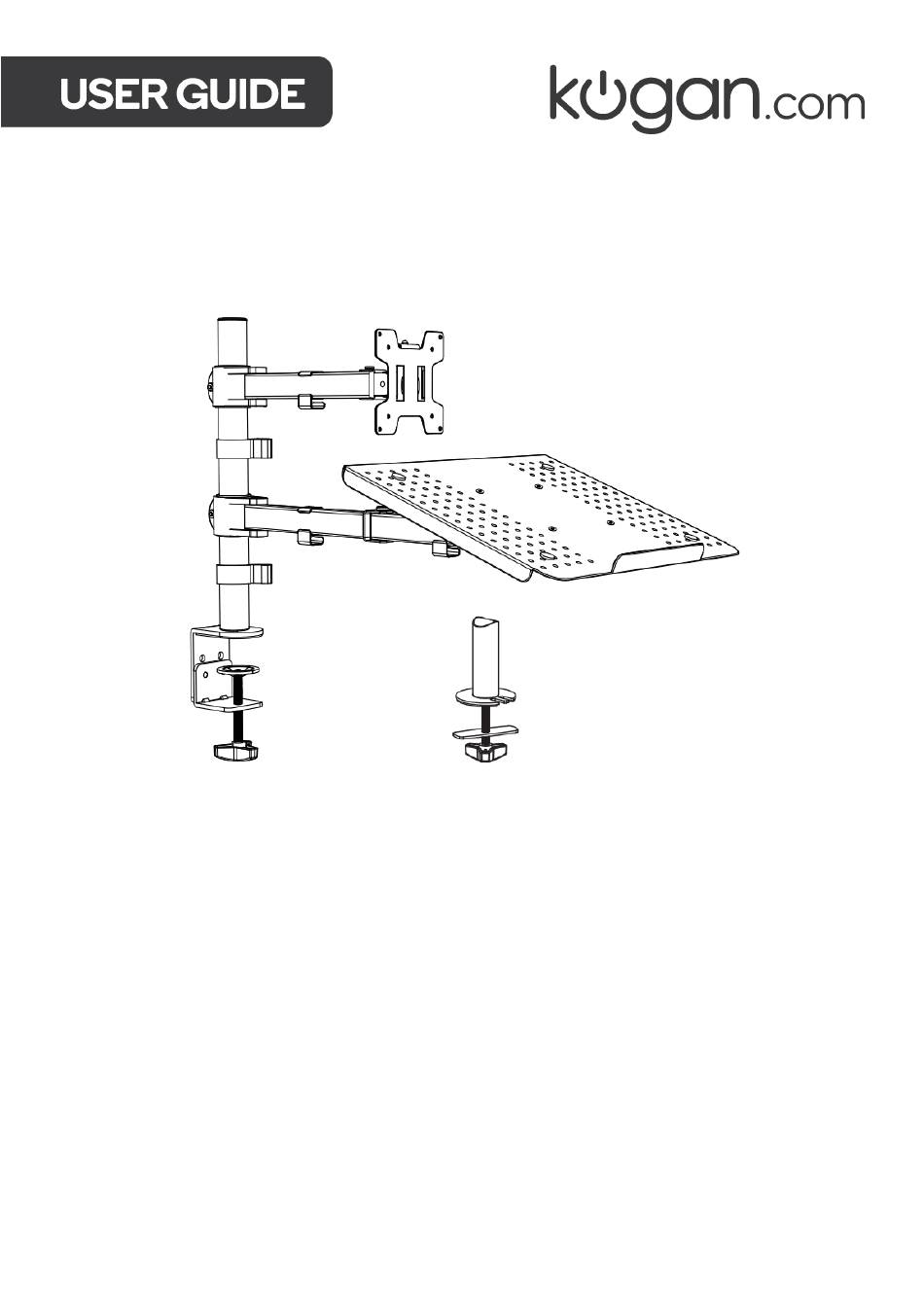

- Page 1 ARTICULATING MONITOR MOUNT WITH LAPTOP HOLDER 17” – 32” KAMMTARTCBA...
-
Page 2: Safety And Warnings
• Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact help.Kogan.com for support. • Closely follow the assembly instructions. Improper installation may result in property damage or serious personal injury. - Page 3 COMPONENTS A Pole B C-Clamp C C-Clamp Brace D Swivel Arm (x2) E VESA Plate (x2) F M5x14 Bolt (x3) G M8x12 Bolt (x2) H Security Nut (x2) I Allen Key J M4x12 Bolt (x8) J M4x30 Bolt (x8) L M4 Spacer (x8) M M10 Hand Knob N EVA Pad A O EVA Pad B...
-
Page 4: Installation
INSTALLATION Clamp Installation Connect Pole (A) and C-Clamp Brace (C) from the bottom using x3 M5x14 bolts (F) and tighten using the Allen Key 3mm (I). Attach the EVA pad (O) to the C-Clamp Brace (C). Attach the EVA pad O to the C-Clamp Brace C... - Page 5 Unscrew the screw and washer from the M10 hand knob (M) to remove the top plate. Connect the C-clamp (B) to the M10 hand knob (M) and reattach the top plate by fastening the screw and washer. Connect the C-clamp (B) to the C-clamp brace (C) using x2 M8x12 bolts (G) and tighten using the Allen key (5mm) (I).
- Page 6 Existing Grommet Hole Installation • If the existing grommet hole comes with a plastic protector, remove it. • Unscrew the screw and washer from the M10 hand knob (M) to remove the top plate. Store the screw, washer and top plate safely. •...
- Page 7 Assemble the Swivel Arms • Slide the 2 wire clips (W) and 2 swivel arms (D) onto the pole (A). • Adjust to the preferred heights and tighten using the Allen Key 5mm (I). • Attach the 3 wire clips (X) to the swivel arms (D). Laptop Tray Installation •...
- Page 8 Attach the VESA Plate to the Monitor Select the bolts that fit your monitor (M4x12 (J) or M4x30 (K)). Insert the bolts into the holes on the back of the monitor to determine which size bolt suits your monitor. M4x12 M4x30 If you have a curved monitor or one with recessed VESA holes, you will need to use x4 M4 spacers (L).
- Page 9 Insert the x4 M4 spacers (L) (if required) and the x4 bolts selected in step 1 ((J) or (K)) through the VESA plate (E) and into the monitor and tighten with a screwdriver (not provided).
- Page 10 Install the Laptop Tray Place the assembled laptop tray onto the swivel arm (D) and install the security nut (H) as shown. Note: Ensure the security nut is installed before adjusting the monitor or laptop. Tighten the security nut (H) using the wrench (V). Route the cables through the Wire Clips (W, X) and store the Allen Keys (I) in the wire clip (W).
- Page 11 Manually swivel, tilt and rotate the laptop tray to achieve the best viewing angle. Note: Ensure the security nut is installed before adjusting the monitor or laptop. Always remove your laptop before making any adjustments. 360° + 15° - 15° Laptop Tray...
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
