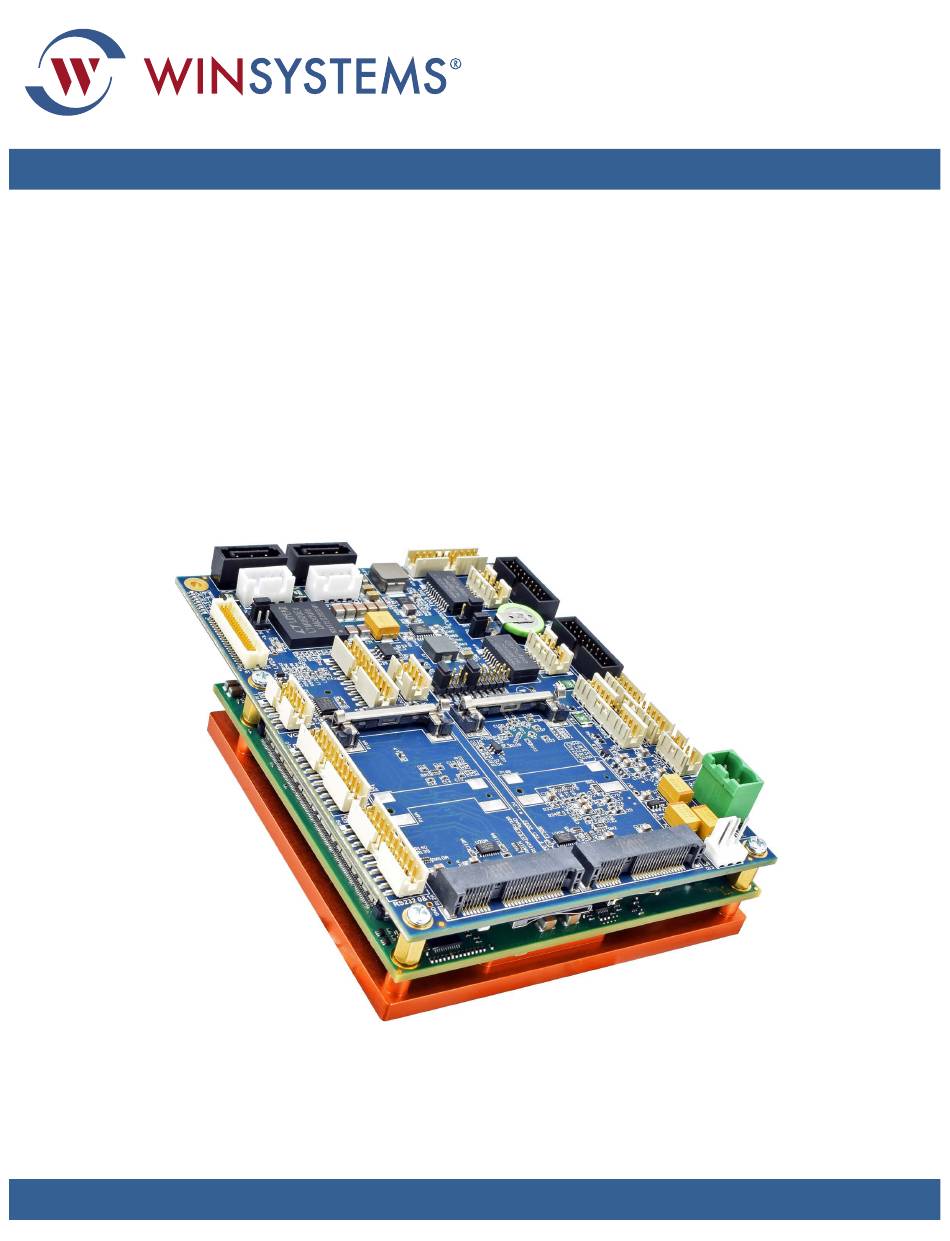

- Page 1 SBC-477-TCA7-X Industrial Single Board Computer with ® 11th Gen. Intel Core™ Processor Product Manual WINSYSTEMS, Inc. | 2890 112th Street, Grand Prairie, Texas 75050 | 817-274-7553 | info@winsystems.com | www.winsystems.com...
-
Page 2: Revision History
WINSYSTEMS, Inc. The information in the document is subject to change without notice. The information furnished by WINSYSTEMS, Inc. in this publication is believed to be accurate and reliable. However, WINSYSTEMS, Inc. makes no warranty,... -
Page 3: Table Of Contents
9.13 miniPCIe & mSATA Slots [P12A, P12B] ....... . 21 9.14 Half and Full Length mini PCIe/mSATA module Installation [P12A, P12B] [P15A, P15B] . 22 v1.0 www.winsystems.com Page 3... - Page 4 Warranty Information ........38 v1.0 www.winsystems.com Page 4...
-
Page 5: Before You Begin
Review the warnings in this section and the best practice recommendations (See “Best Practices” on page 33.) when using and handling the WINSYSTEMS SBC-477-TCA7-X module. Following these recommendations provides an optimal user experience and prevents damage. Read through this document and become familiar with the SBC-477-TCA7-X before proceeding. - Page 6 BIOS settings and layout, or request a custom branded configurable BIOS to support specific project requirements. The SBC-477-TCA7-X supports Microsoft® Windows 10 IoT Enterprise, Microsoft ® Windows 11 IoT Enterprise and Linux operating systems. Drivers are available from the WINSYSTEMS website at http://www.winsystems.com. v1.0 www.winsystems.com...
-
Page 7: Product Features And Specifications
SMBus, 12C, Battery Low Indication, PC speaker Interfaces Interface System Status (S3 and Reset Outputs) Input: Single +12V input +/- 5% (5mm pitch terminal connector) RTC Battery On-board 3V 48mAh (BR1125A) Option to connect external RTC battery. v1.0 www.winsystems.com Page 7... -
Page 8: Part Numbers / Ordering Information
NOTE Requires appropriate thermal solution to achieve maximum 85°C. The maximum measurable temperature on any spot of the heat spreader or heat sink, and module surfaces must not exceed the operating temperature specified in the table above. Contact Winsystems at https://winsystems.com/contact/ for more information. Part Numbers / Ordering Information... -
Page 9: Product Overview
SBC-477-TCA7-X/Product Overview Product Overview Block Diagram Optional Optional v1.0 www.winsystems.com Page 9... -
Page 10: Connector Locations
Ports 0-1 MULTI Jumper Block mini PCIe/mSATA Slot 1 RTC Battery Jumpers SYSTEM Jumper Block VIN+ VIN- Audio Display Port++ USB3.0 USB3.0 (GND) In/Out Ports 0 & 1 Ports 2-3 Ports 0-1 Ports 0 Ports 1 v1.0 www.winsystems.com Page 10... - Page 11 (Showing Options Below) micro SD Card Slot SIM Card Socket for mini PCIe/mSATA (See NOTE Below) NOTE SIM’s Card option requires a WAN interface controller card that allows the device to connect to a wide area network. v1.0 www.winsystems.com Page 11...
-
Page 12: Carrier Jumper And Connector Summary
Stereo Audio In and Out page 28 2 x USB2.0 Internal Connector page 29 Multifunction Jumper Block page 30 Misc Controls page 27 RTC Clear page 17 RTC Selection page 17 LVDS power selection page 24 v1.0 www.winsystems.com Page 12... -
Page 13: Detailed Feature Pinouts And Descriptions
DP0+ DP3+ DP0- DP3- DP1+ DPAUX- DP1- DPAUX+ DP2+ DP Hot Plug Detect DP2- DP Power DP AUX SEL [1]- For DP_AUX_SEL-Cable assembly must tie high (+3.3V) for HDMI/DVI output and low (GND) for DisplayPort output. v1.0 www.winsystems.com Page 13... -
Page 14: Hdmi / Dvi / Vga From Displayport
These can be purchased from any OEM vendor (such as www.startech.com) or contact Winsystems. USB 3.0 Ports [P3A,P3B] The SBC-477-TCA7-X implements four USB 3.0 connections via two 19-pin Locking Intel Motherboard style USB connectors. -
Page 15: Microsd Card [P4] (Optional)
Micro SD Card Socket Molex 502570-0893 Pinout SDIO Signal COM Express GPIO Mapping SD D2 GPl2 SD D3 GPl3 micro SD Card Slot SD CMD GP01 SD_VCC (+3.3V) SD CLK GPO0 SD D0 GPIO SD D1 GPl1 SD CD# GP03 v1.0 www.winsystems.com Page 15... -
Page 16: Input Power [P5]
2 Position 5mm pitch terminal connector Mating Connector: PN: 796634-2 MFG: TE Connectivity Fuse +12V is protected with a one-time 10A fuse, at F4. Pinout Signal Description +12V Power In Power Return *DO NOT REVERSE POLARITY! VIN+ VIN- +12V v1.0 www.winsystems.com Page 16... -
Page 17: Rtc Battery [J1, J2]
17V358 Software Support for the Exar 17V358 Additional drivers will be needed to properly operate the 4 additional serial ports on the COM Express carrier. Drivers for this functionality can be found on Winsystems website: http://www.winsystems.com. v1.0 www.winsystems.com Page 17... -
Page 18: Serial Connector Rs-232 [P8]
Port B,RI 9.10 Serial Connector RS-422/485 [P10] Function RS485 Serial Location Type FCI 98424-G52-20LF, 2x10 Pinout Description Port A, RXD+ Port A, TXD+ Port A, TXD- Port A, RXD- Port B,RXD+ Port B,TXD+ Port B,TXD- Port B,RXD- v1.0 www.winsystems.com Page 18... -
Page 19: Rs485 Control Jumpers
Full Duplex Multidrop The UART RTS signals can used for TX/RX control and can be enable via the MULTI jumper block. See below for the RS-422/485 circuit diagram. Sample circuit shown (not exact circuit that is on-board) v1.0 www.winsystems.com Page 19... -
Page 20: Gpio And Console Serial Port [P9]
Console RS-232 / GPIO Location Type FCI 98424-G52-20LF Pinout Description Description GPIO Input 0 GPIO Output 3 GPIO Input 1 GPIO Output 2 GPIO Input 2 GPIO Output 1 GPIO Input 3 GPIO Output 0 RS-232 RX RS-232 TX v1.0 www.winsystems.com Page 20... -
Page 21: Minipcie & Msata Slots [P12A, P12B]
Optional PCIe / SATA Dual Functionality Diagram Selection between mSATA and miniPCIe is done on the MULTI-JUMPER block (P23) Position Jumper ON Jumper OFF Slot-0 miniPCle selected Slot-0 mSATA selected Slot-1 miniPCle selected Slot-1 mSATA selected v1.0 www.winsystems.com Page 21... -
Page 22: Half And Full Length Mini Pcie/Msata Module Installation [P12A, P12B] [P15A, P15B]
Half and Full Length mini PCIe/mSATA module Installation [P12A, P12B] [P15A, P15B] The SBC-477-TCA7-X comes with its latches in the full length position. Function mini PCle / mSATA Slots Location P12A, P12B Type Standard miniPCle Slots v1.0 www.winsystems.com Page 22... - Page 23 SBC-477-TCA7-X/Detailed Feature Pinouts and Descriptions Position v1.0 www.winsystems.com Page 23...
-
Page 24: Lvds Video [P13] [J3]
SBC-477-TCA7-X/Detailed Feature Pinouts and Descriptions 9.15 LVDS Video [P13] [J3] Function LVDS Video Location Type Hirose DF20G-40DP-1V(56) Pinout v1.0 www.winsystems.com Page 24... - Page 25 SBC-477-TCA7-X/Detailed Feature Pinouts and Descriptions The LVDS Panel VCC voltage is selected via the J3 jumper block. The current is limited to 1.5A Function LVDS Panel VCC voltage Location Type Pinout Location Description 3.3V v1.0 www.winsystems.com Page 25...
-
Page 26: External Sata Ports [P17A, P17B] [P6, P7]
+12V and +5V are protected with 1200mA Raychem Poly fuses. Note: The SATA power connectors are fused independently from the main +12V fuse that provides + 2V power to the board, i.e. the SATA power connectors are not double fused. v1.0 www.winsystems.com Page 26... -
Page 27: Cpu Fan [P18]
+5V rail to the +5VSB rail which may be needed by some modules. Function Miscellaneous Control Header Location Type FCI 98414-G06-20LF, 2x10 2mm Pinout Description Description Speaker +5VSB Ext CMOS Bat System Reset Power Button Batlow# Sus_S3# I2C.CLK I2C.DAT v1.0 www.winsystems.com Page 27... -
Page 28: Sim Socket [P20] (Optional)
Audio Interface [P21] The SBC-477-TCA7-X features HD Audio capabilities. 1 input (microphone) and 1 output (headphone) are available. Function Audio Connector Location Type FCI 98414-G06-08LF, 2x4 2mm Pinout Description Description MicR Micl Head Phone R Head Phone L v1.0 www.winsystems.com Page 28... -
Page 29: Usb 2.0 Ports [P22]
Ethernet Port 1 is coming from an Intel 82574 PCIe PHY Controller located on the carrier. Function LAN Connector Location P24A, P24B Type FCI 98424-G52-10LF Pinout Description Description MX1- MX1+ MX2- MX2+ SHELL SHELL MX3- MX3+ MX4- MX4+ v1.0 www.winsystems.com Page 29... -
Page 30: Software Support For The Intel 82574
PCle UART - 485 Port 1- RTS-TX Control Enable RS-485 Port-1 RTS-TX Control Disable RS-485 Port·1 RTS· TX Control PCle UART - 485 Port 1- RTS-RX Control Enable RS-485 Port-1 RTS-RX Control Disable RS-485 Port-1 RTS-RX Control v1.0 www.winsystems.com Page 30... -
Page 31: Typical Hardware Installation For +12V Power Input
/ mSAT A Slot 1 PCle x1 -3 PCle GBE PHY (Intel 82574) PCle x1 -4 No Connect PCle x1 -5 No Connect PCle x1 -6 No Connect PCle x1 -7 No Connect PEG /PCle x16 No Connect v1.0 www.winsystems.com Page 31... -
Page 32: Usb Allocation Details
/ mSATA Slot 0 USB 2.0 Port 5 miniPCle / mSATA Slot 1 USB 2.0 Port 6 USB 2.0 Connector (P22) USB 2.0 Port 7 USB 2.0 Connector (P22) Cables Contact Winsystems at https://winsystems.com/contact/ for cables options. v1.0 www.winsystems.com Page 32... -
Page 33: Appendix A. Best Practices
SBC-477-TCA7-X. Gauge Wire Use the largest gauge wire that the pin and connector manufacture allows. Most pin and connector manufacturers have a maximum gauge wire they recommend for their pins. v1.0 www.winsystems.com Page 33... - Page 34 SBC-477-TCA7-X/Best Practices Contact Points WINSYSTEMS boards mostly use connectors with gold finish contacts. Gold finish contacts are used exclusively on high-speed connections. Power and lower speed peripheral connectors may use a tin finish as an alternative contact surface. It is critical that the contact material in the mating connectors is matched properly (gold to gold and tin to tin).
- Page 35 Conformal Coating Applying conformal coating to a WINSYSTEMS product does not in itself void the product warranty, if it is properly removed prior to return. Coating can change thermal characteristics and impedes our ability to test, diagnose, and repair products.
-
Page 36: Appendix B. Mechanical Drawings
SBC-477-TCA7-X/Mechanical Drawings Appendix B. Mechanical Drawings SBC-477-TCA7-X v1.0 www.winsystems.com Page 36... - Page 37 SBC-477-TCA7-X/Mechanical Drawings v1.0 www.winsystems.com Page 37...
-
Page 38: Appendix C. Warranty Information
Products or licensing of Software hereunder. In the event this Order is placed in the hands of an attorney or collection agency by WINSYSTEMS to collect any sums due hereunder to WINSYSTEMS, Customer shall pay all reasonable attorney's fees, expenses, collection and court costs incurred by WINSYSTEMS.
