WinSystems EPX-C414 Product Manual

Intel atom epic single board computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EPX-C414
®
Intel
Atom™ EPIC Single Board Computer
Product Manual
WinSystems, Inc. | 715 Stadium Drive, Arlington, Texas 76011 | 817-274-7553 | info@winsystems.com | www.winsystems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPX-C414 and is the answer not in the manual?

Questions and answers

Related Manuals for WinSystems EPX-C414

Summary of Contents for WinSystems EPX-C414

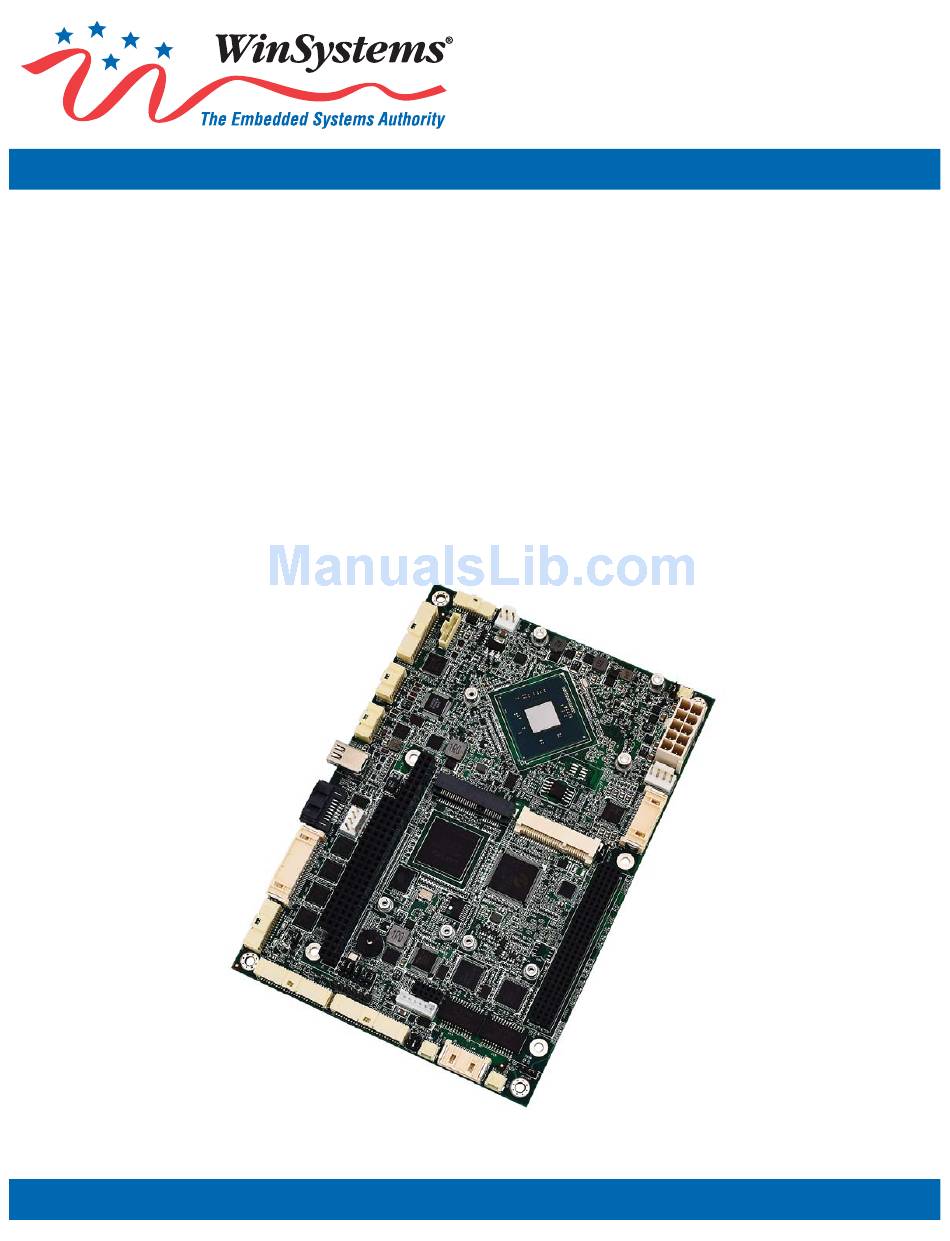

  • Page 1 EPX-C414 ® Intel Atom™ EPIC Single Board Computer Product Manual WinSystems, Inc. | 715 Stadium Drive, Arlington, Texas 76011 | 817-274-7553 | info@winsystems.com | www.winsystems.com...
  • Page 2 No part of this document may be copied or reproduced in any form or by any means without the prior written consent of WinSystems, Inc. The information in the document is subject to change without notice. The information furnished by WinSystems, Inc. in this publication is believed to be accurate and reliable.

  • Page 3: Table Of Contents

    EPX-C414 Table of Contents Before You Begin ......... 1 Warnings .
  • Page 4 EPX-C414 7.10.1 PWR Power and Reset ........... 21 7.10.2...
  • Page 5 EPX-C414 BIOS Splash Screen ............. 51 BIOS Setting Storage Options .

  • Page 6: Before You Begin

    LPT. The SBC also supports HD audio and 8 USB ports, and is equipped with a CFast socket and 2 MiniPCIe card sockets. The EPX-C414 board supports up to 8 GB DDR3L SODIMM system memory via an on-board socket located at CDIMM.

  • Page 7: Features

    EPX-C414/Features Features The EPX-C414 provides the following features. Single Board Computer ® • Multi-Core Intel Atom™ E3800 processors – E3825 2 core, 1.33 GHz – E3845 4 core, 1.91 GHz Operating Systems (compatibility) • Windows Embedded Standard 7,8 • Windows 10 and 10 IoT Enterprise (32/64-bit) •...
  • Page 8 EPX-C414/Features • mSATA SSD optionally supported at MiniPCIe socket • CFast SSD socket Digital Input/Output • 48 GPIO bidirectional lines Bus Expansion • PC/104 • PC/104-Plus • 2x MiniPCIe (1 socket supports mSATA SSD) Serial Interface • 4 serial ports (RS-232/422/485) Line Printer Port •...

  • Page 9: General Operation

    EPX-C414/General Operation General Operation System Block Diagram The EPX-C414 is a single-board computer (SBC). It is a full-featured embedded system with a variety of on-board I/O options. The following figure is a simplified system block diagram of the EPX-C414. DDR3L...

  • Page 10: Specifications

    EPX-C414/Specifications The EPX-C414 processor options provide single, dual, or quad-core processing. Each processor option is available with up to 8 GB of socketed DDR3L memory and non-stack-through PC/104-Plus connectors. 1 MB of external battery-backed SRAM is available at an interface provided by the FPGA.
  • Page 11 RoHS compliant Operating Systems Runs 32/64-bit Windows, Linux, and other x86-compatible operating systems. Additional Accessories Standoff kits are available and recommended for use with the EPX-C414. • KIT-PCM-STANDOFF-4: Four piece nylon hex PC/104 standoff kit • KIT-PCM-STANDOFF-B-4: Four piece brass hex PC/104 standoff kit The following table lists the items contained in each kit.

  • Page 12: Configuration

    EPX-C414/Configuration Configuration This section describes the EPX-C414 components and configuration. Component Layout The EPX-C414 provides components on the top and bottom of the board. 7.1.1 Top View Table 3: Top View Components Item Description Reference Power and reset page 21...
  • Page 13 EPX-C414/Configuration Connectors, top view PC104P AUDIO ATXAUX DIO2 DIO1 BKLT SATA LVDS power USB1 USB2 COM 1-4 SATA PC104 Jumpers and LEDs, top view JP104P JP5VSB LED1 JPBAT Reserved LED2 JPATX JPMC2 JPMC1 JPDIO2 JPMSATA JPSATA JPFPGA JPDIO1 LED3 LED4...

  • Page 14: Bottom View

    EPX-C414/Configuration 7.1.2 Bottom View There are two Ethernet controllers on the EPX-C414 board. On the top side of the board, two headers (LED1 and LED2) drive remotely mounted LEDs or other inputs. Each controller has three LEDs on the bottom of the board to indicate connectivity status.

  • Page 15: I/O Port Map

    EPX-C414/Configuration I/O Port Map The following tables list the EPX-C414 I/O ports. NOTE The EPX-C414 uses a PnP BIOS resource allocation. Take care to avoid contention with resources allocated by the BIOS. Table 5: Movable I/O Ranges Device Size (bytes)
  • Page 16 EPX-C414/Configuration Table 6: PCU Fixed I/O Addresses (Continued) I/O Address Device 00A8h-00A9h Interrupt controller 0ACh-00ADh Interrupt controller 00B0h-00B1h Interrupt controller 00B2h-00B3h Power management 00B4h-00B5h Interrupt controller 00B8h-00B9h Interrupt controller 00C0h-00DFh DMA controller 82C37 00F0h FERR#/IGNNE/interrupt controller 0120h-012Fh Digital I/O (default)

  • Page 17: Interrupt Map

    Reserve IRQs in the BIOS CMOS configuration for use by legacy devices. The PCIe/PnP BIOS uses unreserved IRQs when allocating resources during the boot process. The table below lists IRQ resources as used by the EPX-C414. Table 7: IRQ Resources...

  • Page 18: Pci Devices And Functions

    Bit 6 Bit 7 WinSystems does not provide software support for implementing the Interrupt Status Register to share interrupts. Some operating systems, such as Windows XP and Linux, have support for sharing serial port interrupts and examples are available. The user must implement the appropriate software to share interrupts for the other devices.

  • Page 19: Dos Legacy Memory Map

    EPX-C414/Configuration Table 10: External Devices Device Function Device ID Device/Function Description 104Ch Device: 8240 Function: PCI/PCI bridge 12D8h Device: 2304 Function: PCI/PCI bridge 12D8h Device: 2304 Function: PCI/PCI bridge 12D8h Device: 2304 Function: PCI/PCI bridge 8086h Device: 8086 Function: Intel Ethernet controller...

  • Page 20: Physical Address Space: Dram And Mmio

    7.5.1 Physical Address Space: DRAM and MMIO Digital I/O Register Definitions The EPX-C414 uses the WinSystems exclusive application-specific integrated circuit (ASIC), the WS16C48. This device provides 48 lines of digital I/O. There are 16 unique registers within the WS16C48. The following table summarizes the registers.

  • Page 21: Port 0 Through 5 I/O

    EPX-C414/Configuration Table 12: Register Definitions I/O Address Offset Page 0 Page 1 Page 2 Page 3 Port 0 I/O Port 0 I/O Port 0 I/O Port 0 I/O Port 1 I/O Port 1 I/O Port 1 I/O Port 1 I/O...

  • Page 22: Pol0 Through Pol2

    (value ignored) clears ALL the pending interrupts in this register. 1 MB SRAM Registers The EPX-C414 board provides 1 MB of battery-backed user SRAM. The 1 MB SRAM is normally used as a solid-state disk device by configuring appropriate driver for your operating systems.
  • Page 23 EPX-C414/Configuration Table 14: Offset 0 OFFSET 0 - MSB Address Register D7 - A23 of access address D6 - A22 of access address D5 - A21 of access address D4 - A20 of access address D3 - A19 of access address...

  • Page 24: Watchdog Timer Registers

    Watchdog Timer Registers The EPX-C414 features an advanced watchdog timer to guard against software lockups; it resets the system if software does not pet the watchdog within the given time-out period. Enable and boot times are selectable from the CMOS setup.

  • Page 25: Advanced

    When the operating system is loaded, the watchdog can be disabled or reconfigured in the application software. NOTE WinSystems recommends using a long timeout if the watchdog is enabled when trying to boot any operating system.

  • Page 26: Standard

    7.10 Connectors 7.10.1 PWR Power and Reset Power is applied to the EPX-C414 via the connector at PWR. DC 5V is the main supply to the board. The +12V and -12V DC are not required for the basic SBC operation, this supplies the PC104, PC/104-Plus, and backlight connectors.

  • Page 27: Atxaux Atx Signals Connector

    MOLEX 39-00-0039 (crimp) 7.10.2 ATXAUX ATX Signals Connector ATX signals for the power button, reset and power good are provided at ATXAUX. WinSystems offers the cable CBL-265-G-2-1.5 to simplify this connection. Layout and Pin Reference Name 1 2 3 4...

  • Page 28: Fan Fan Power Connector

    TACH 7.10.4 BAT External Battery Connector An optional external battery, connected at BAT, supplies the EPX-C414 board with standby power for the real-time clock, and CMOS setup RAM and SRAM (applicable models only). An extended temperature lithium battery is available from WinSystems, part number BAT-LTC-E-36-16-2 or BAT-LTC-E-36-27-2.

  • Page 29: Sata Pwr Sata Power Connector

    Connector MOLEX 501953-0307 (BAT) Matching Connectors • MOLEX 501939-0300 (housing) • MOLEX 501334-0100 OR 501334-0000 (crimp) WinSystems battery BAT-LTC-E-36-16-2 and BAT-LTC-E-36-27-2 simplify these connections to the board. BAT-LTC-E-36-16-2 BAT-LTC-E-36-27-2 7.10.5 SATA PWR SATA Power Connector Layout and Pin Reference Name...

  • Page 30: Lpt Parallel Printer Port Connector

    EPX-C414/Configuration 7.10.6 LPT Parallel Printer Port Connector Layout and Pin Reference Name Name STROBE AUTOFEED DATA0 ERROR DATA1 PRINTER_INT DATA2 SELECT DATA3 DATA4 DATA5 DATA6 DATA7 BUSY PAPER_END SELECT Additional Information The LPT port, located at LPT, is a multimode parallel printer port that supports the PS/2 Standard Bidirectional Parallel Port (SPP) and Enhanced Parallel Port (EPP) functionality.

  • Page 31: Vga Analog Vga Connector

    EPX-C414/Configuration 7.10.7 VGA Analog VGA Connector NOTE The EPX-C414 has one VGA, one DisplayPort, and one low-voltage differential signaling (LVDS) interface. Only two of the three outputs may be active simultaneously. Layout and Pin Reference Name Description Red signal input...

  • Page 32: Lvds Connector

    EPX-C414/Configuration 7.10.8 LVDS Connector NOTE The EPX-C414 has one VGA, one DisplayPort, and one low-voltage differential signaling (LVDS) interface. Only two of the three outputs may be active simultaneously. Layout and Pin Reference Name Name SWVDD DA0- DA0+ DA1- DA1+...

  • Page 33: Dp Displayport (Mini Dp)

    EPX-C414/Configuration 7.10.9 DP DisplayPort (Mini DP) NOTE The EPX-C414 has one VGA, one mini DisplayPort, and one low-voltage differential signaling (LVDS) interface. Only two of the three outputs may be active simultaneously. Layout and Pin Reference Name Name ML_LANE0 (P)

  • Page 34: Audio Hd Audio Connector

    CD_GND HEAD_R AUDIO_GND AUDIO_GND AUDIO_GND Additional Information The Intel HD audio controller is included with a VIA 1708B codec. Audio connection is provided at AUDIO. Three cables are available from WinSystems to adapt to this connector: v1.0 www.winsystems.com Page 29...
  • Page 35 EPX-C414/Configuration • CBL-AUDIO7-102-12 provides full 7.1 audio support. • A simplified cable, CBL-AUDIO2-102-12, provides basic Line In, Line Out, and Microphone audio support. • CBL-AUDIO5-102-12 provides 5.1 audio support. Connector MOLEX 502046-3070 (AUDIO) Matching Connectors • MOLEX 503110-3000 (housing) •...

  • Page 36: Bz1 Speaker

    EPX-C414/Configuration 7.10.12 BZ1 Speaker Speaker An on-board speaker, BZ1, is available for sound generation. The BIOS activates the buzzer to beep during POST failure. Each error has its own unique beep code. Refer to InsydeH20 BIOS POST Tasks for details.

  • Page 37: Com1, Com2, Com3, Com4 Db9 Male Connector

    16-byte FIFO. All serial ports have 16C550-compatible UARTs. The RS-232 has a charge pump to generate the plus and minus voltages so the EPX-C414 only requires +5V to operate. An independent, software-programmable baud rate generator is selectable from 50 through 115.2 kbps. Individual modem handshake control signals are supported for all ports.

  • Page 38: Usb1, Usb2 - Usb 2.0 Ports

    CBL-USB4-002-12 PIN 1 Up to two USB cables may be attached to the EPX-C414 via the connectors for a total of eight USB 2.0 ports. These are terminated to 20-pin connectors at USB1 and USB2. An adapter cable CBL-USB4-002-12 is available from WinSystems for connection along with ADP-IO-USB-001.

  • Page 39: Sata Serial Ata (Sata)

    EPX-C414/Configuration 7.10.16 SATA Serial ATA (SATA) The EPX-C414 supports one SATA interface, multiplexed with the CFast connector. Only one of these two features (either SATA or CFast) is available at a time. Layout and Pin Reference Name Connector • MOLEX 67490-1220 (SATA) or equivalent •...

  • Page 40: Cfast Cfast Connector

    EPX-C414/Configuration 7.10.17 CFAST CFast Connector CFast is a small form-factor SATA SSD standard that encompasses CFast data storage cards. This interface is multiplexed with the SATA connector. Only one of the two features is available at any time. Layout and Pin Reference...

  • Page 41: Lan Ethernet Port

    (G2) MX4+ (G2) MX4- Additional Information The EPX-C414 is equipped with two Intel i210 Gigabit Ethernet controllers. Each of these provides a standard IEEE 802.3 Ethernet interface for 1000/100/10BASE-T networks. The connections for each Ethernet port are available at LAN. WinSystems offers CBL-ENET2-002-12, to interface with two RJ-45 jacks.

  • Page 42: Dio1, Dio2 Digital Input/Output

    EPX-C414/Configuration 7.10.20 DIO1, DIO2 Digital Input/Output The EPX-C414 has two digital I/O connectors to support 48 bi-directional TTL digital I/O lines, 24 of which are capable of event-sense interrupt generation. External voltage translators allow the signals to drive or sink up to 5VDC.
  • Page 43 EPX-C414/Configuration Name Name Bit C7 DIO2 Port 5 Bit C6 Port 5 Bit C5 Port 5 Bit C4 Port 5 Bit C3 Port 5 Bit C2 Port 5 Bit C1 Port 5 Bit C0 Port 4 Bit B7 Port 4 Bit B6...

  • Page 44: Pc104 Pc/104 Bus

    The PC/104 bus is electrically equivalent to the ISA bus and is generated from LPC by FPGA. Standard PC/104 I/O cards can be populated on EPX-C414's connectors, located at PC104. The interface does not support hot swap capability. The PC/104 bus connector pin definitions are provided below for reference.
  • Page 45 Additional Information 1. Rows C and D are not required on 8-bit modules. 2. B10 and C19 are key locations. WinSystems uses key pins as connections to GND. 3. Signal timing and function are as specified in ISA specification. 4. Signal source/sink current differ from ISA values.

  • Page 46: Pc104P Pc/104-Plus Bus

    EPX-C414/Configuration 7.10.22 PC104P PC/104-Plus Bus Layout and Pin Reference RESERVED AD00 GND/5.0V KEY VI/O AD02 AD01 AD05 AD04 AD03 C/BE0# AD07 AD06 AD09 AD08 AD11 VI/O AD10 M66EN AD14 AD13 AD12 +3.3V C/BE1# AD15 +3.3V SERR# SB0# PERR# +3.3V SDONE STOP# +3.3V...

  • Page 47: Mc1 And Mc2 Minipci Express

    120-Pin SAMTEC type ESQT-130-G-Q-368, solder-tail (short) pins 7.10.23 MC1 and MC2 MiniPCI Express The EPX-C414 includes MiniPCIe sockets at MC1 and MC2. These support a variety of peripherals as available in this format. Though the sockets support other devices, they are most often used to add wireless Ethernet cards from Broadcom, Foxconn (Atheros), or others.
  • Page 48 EPX-C414/Configuration Layout and Pin Reference MC1 and MC2 Name Name WAKE# 3.3Vaux COEX1 COEX2 1.5V CLKREQ# UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RESET UIM_VPP Mechanical Key RSVD(UIM_C8) RSVD(UIM_C4) W_DISABLE# PERST# PERn0(SATA_RXp) +3.3Vaux PERp0(SATA_RXn) +1.5V SMB_CLK PETn0(SATA_TXn) SMB_DATA PETp0(SATA_TXp) USB_D- USB_D+ +3.3Vaux +3.3Vaux...

  • Page 49: Jumpers

    To install a miniPCIe/mSATA into MC1 or MC2: 1. Insert the miniPCIe/mSATA 2. Push the free end of the card toward the circuit board and then secure it with two (2 mm) screws (WinSystems P/N G527-0000-400). Connector Tyco 1775838-2 or equivalent 7.11 Jumpers...

  • Page 50: Jpmsata

    Additional Information The EPX-C414 has an integrated display controller that interfaces to both Analog VGA and flat panel displays. The video output mode is selected in the CMOS setup. Simultaneous flat panel and Analog VGA mode is also supported. The Analog VGA connector is located at VGA.

  • Page 51: Jpatx Power Supply Selection

    When the power button is pressed, the EPX-C414 pulls PSON (Power Supply On) low and the power supply turns on all voltages to the single board computer. When the power button is pressed again, the BIOS signals the event so ACPI-compliant operating systems can be shutdown before the power is turned off.

  • Page 52: Jpdio1 And Jpdio2 Digital I/O Power

    EPX-C414/Configuration 7.11.5 JPDIO1 and JPDIO2 Digital I/O Power The I/O connectors provide either +5V or +3.3V to an I/O rack for miscellaneous purposes through jumper configurations at JPDIO1 and JPDIO2. When JPDIO2 pins 2-3 are jumpered, +5V is provided at pin 49 of DIO1 and DIO2. If JPDIO2 pins 1-2 are jumpered, then +3.3V is provided at pin 49 of DIO1 and DIO2.

  • Page 53: Jpfpga

    7.12 LED Indicators 7.12.1 LED1, LED2 Ethernet LEDs There are two Ethernet controllers on the EPX-C414 board. On the top side of the board, two headers (LED1 and LED2) drive remotely mounted LEDs or other inputs. Each controller has three LEDs on the bottom of the board to indicate connectivity status.
  • Page 54 EPX-C414/Configuration Table 21: Ethernet LEDs Controller 1 Controller 2 Function Off Board Header On Board LEDs Off Board Header On Board LEDs Activity LED1 pin 1 LED5 LED1 pin 1 LED8 Link 10 None None Link 100 LED1 pin 2...

  • Page 55: Led4 - Status Led

    EPX-C414/Configuration Layout and Reference, bottom of board Enet1 Enet2 Description LED5 LED8 Activity (green) LED5-\ LED6 LED9 Speed 100 (yellow) LED6 ENET1 LED7-/ LED7 LED10 Speed 1000 (red) LED8-\ LED9 ENET2 LED10/ Activity Speed 100 Speed 1000 7.12.2 LED4 - Status LED A status LED is populated on the board at LED4, to indicate activity.

  • Page 56: Led11 - Sata Led

    LED11 BIOS General Information ® The EPX-C414 includes BIOS from Insyde software to ensure full compatibility with PC operating systems and software. The basic system configuration is stored in battery-backed CMOS RAM within the clock/calendar. As an alternative, the CMOS configuration may be stored in EEPROM for operation without a battery.
  • Page 57 EPX-C414/BIOS Main Menu System Time 09:40:34 System Date 04/09/2010 >IDE Primary/Master None >IDE Primary/Slave None >SATA Port 1 None >SATA Port 2 None System Memory 633 KB Extended Memory 2085888 KB Ethernet MAC Address 1 xx:xx:xx:xx:xx:xx Ethernet MAC Address 2...
  • Page 58 EPX-C414/BIOS Advanced Installed O/S Win95 Options Other/Win95/Win98 WinMe /Win2000 Reset Configuration Data Options No Yes Large Disk Access Mode Options Other DOS Summary screen Disabled Options Disabled/Enabled Boot-time Diagnostic Screen Enabled Options Disabled/Enabled QuickBoot Mode Enabled Options Disabled/Enabled Extended Memory Testing...
  • Page 59 EPX-C414/BIOS Intel > CPU Control Sub-Menu > CPU Thermal Control Sub-Menu Thermal Control Circuit Disabled Options Disabled/TM1 DTS Enable Disabled Options Disabled/Enabled Active Trip Point 55 C Options Disabled/55 C 63 C 71 C 79 C 87 C 95 C...
  • Page 60 EPX-C414/BIOS Intel > CPU Control Sub-Menu > CPU Thermal Control Sub-Menu Critical Trip Point Options POR 15 C 23 C 31 C 39 C 47 C 55 C 63 C 71 C 79 C 87 C 95 C 103 C...
  • Page 61 EPX-C414/BIOS Intel > Video (Intel IGD) Control Sub-Menu > IGD - LCD Control Sub-Menu IGD - LCD Panel Type 3: 1024x768 LVDS Options: 1: 640x480 LVDS 2: 800x600 LVDS 3: 1024x768 LVDS 4: 1024x600 LVDS 5: 800x480 LVDS 6: Reserved...
  • Page 62 EPX-C414/BIOS Intel > ICH Control Sub-Menu > Integrated Device Control Sub-Menu Pop Up Mode Enable Enabled Options Disabled/Enabled Pop Down Mode Enable Enabled Options Disabled/Enabled LPC Decode Range 1 Base Address 300h LPC Decode Range 1 Size 64 Bytes Options...
  • Page 63 EPX-C414/BIOS Intel > ICH Control Sub-Menu > Integrated Device Control Sub-Menu > PCI Express Control Sub-Menu PCI Express - Root Port 1 Enabled Options Disabled/Enabled/ Auto PCI Express - Root Port 2 Auto Options Disabled/Enabled/ Auto Root Port ASPM Support...
  • Page 64 EPX-C414/BIOS Intel > Super I/O Control Sub-Menu Serial port 1 Enabled Speed Base I/O address Interrupt IRQ 4 Interface RS232 Options Port x Speed Disabled/Enabled Base I/O address Low/High Interrupt Disabled IRQ 3 IRQ 4 IRQ 5 IRQ 6 IRQ 7...
  • Page 65 EPX-C414/BIOS Intel > Super I/O Control Sub-Menu Base I/O address Interrupt IRQ 5 Interface RS232 Options Port x Speed Disabled/Enabled Base I/O address Low/High Interrupt Disabled IRQ 3 IRQ 4 IRQ 5 IRQ 6 IRQ 7 Interface RS232 RS422 RTS...
  • Page 66 EPX-C414/BIOS Intel > Super I/O Control Sub-Menu Interrupt Disabled IRQ 3 IRQ 4 IRQ 5 IRQ 6 IRQ 7 IRQ 9 IRQ 10 IRQ 12 Digital I/O port Enabled DIO port address DIO IRQ IRQ 10 Options Digital I/O port...
  • Page 67 EPX-C414/BIOS Intel > ACPI Control Sub-Menu 71 C 79 C 87 C 95 C 103 C 111 C 119 C Passive TC1 Value Passive TC2 Value Options Passive TSP Value Options Intel > ACPI Control Sub-Menu (continued) Critical Trip Point...
  • Page 68 EPX-C414/BIOS Intel > ACPI Control Sub-Menu 23 C 31 C 39 C 47 C 55 C 63 C 71 C 79 C 87 C 95 C 103 C 111 C 119 C 127 C FACP - RTC S4 Flag Value...

  • Page 69: Bios Setting Storage Options

    Discard Changes Save Changes BIOS Setting Storage Options The EPX-C414 includes BIOS from Insyde software to ensure full compatibility with PC operating systems and software. The basic system configuration is stored in non-volatile memory. Access to this setup information is via the Setup Utility in the BIOS.

  • Page 70: Software Drivers

    EPX-C414/Software Drivers Table 22: Cable and Battery Specifications Item Part Number Connection Description Cables CBL-265-G-2-1.5 See “PWR Power and Reset” on Power connection page 21 CBL-USB4-002-12 See “USB1, USB2 - USB 2.0 USB - dual 2 mm Molex Milli-Grid, 12”...

  • Page 71: Best Practices

    EPX-C414. Use Proper Power Connections (Voltage)—When verifying the voltage, measure it at the power connector on the EPX-C414. Measuring it at the power supply does not account for voltage drop through the wire and connectors.
  • Page 72 Power Supply OFF—The power supply should always be off before it is connected to the I/O Module. Do not hot-plug the EPX-C414 on a host platform that is already powered. I/O Connections OFF—I/O Connections should also be off before connecting them to the embedded computer modules or any I/O cards.
  • Page 73 C414 on the mounting standoffs. Sliding the board around until the standoffs are visible from the top can cause component damage on the bottom of the board. Do Not Bend or Flex the EPX-C414—Bending or flexing can cause irreparable damage. Embedded computer modules are especially sensitive to flexing or bending around Ball Grid Array (BGA) devices.
  • Page 74 I/O board to be damaged beyond repair. Conformal Coating Applying conformal coating to a WinSystems product does not in itself void the product warranty, if it is properly removed prior to return. Coating may change thermal characteristics and impedes our ability to test, diagnose, and repair products. Any coated product sent to WinSystems for repair will be returned at customer expense and no service will be performed.

  • Page 75: Mechanical Drawings

    EPX-C414/Mechanical Drawings Appendix B. Mechanical Drawings EPX-C414 Dual-core, no fan (Layout 2d) 4.528 115 4.528 115 4.328 109.93 4.328 109.93 3.913 99.40 3.862 98.10 3.550 90.17 1.641 41.67 1.441 36.60 .953 24.20 .713 18.10 .200 5.08 .200 5.08 .102 2.60 .125 3.18...
  • Page 76 EPX-C414/Mechanical Drawings EPX-C414 Quad-core, with fan (Layout 1q) 4.528 115 4.528 115 4.328 109.93 4.328 109.93 3.913 99.40 3.862 98.10 3.550 90.17 1.641 41.67 1.441 36.60 .953 24.20 .713 18.10 .200 5.08 .200 5.08 .102 2.60 .125 3.18 .150 3.81 THRU (8X) 1.470 37.35...

  • Page 77: Power-On Self-Test (Post) Codes

    EPX-C414/Power-on Self-Test (POST) Codes Appendix C. Power-on Self-Test (POST) Codes If the system hangs before the BIOS can process the error, the value displayed at the I/O port address 80h is the code of the last successful operation. In this case, the screen does not display an error code.
  • Page 78 EPX-C414/Power-on Self-Test (POST) Codes SEC Phase Table 24: SEC Phase 8-Bit POST Code Values Value Functionality Name Description SEC_SYSTEM_POWER_ON CPU Power on and switch to Protected mode SEC_BEFORE_MICROCODE_PATCH Patching CPU microcode SEC_AFTER_MICROCODE_PATCH Setup Cache as RAM SEC_ACCESS_CSR PCIE MMIO Base Address initial...
  • Page 79 EPX-C414/Power-on Self-Test (POST) Codes Value Functionality Name Description PEI_ENTER_RECOVERY_MODE Recovery device initialization PEI_RECOVERY_MEDIA_FOUND Found Recovery image PEI_RECOVERY_MEDIA_NOT_FOUND Recovery image not found PEI_RECOVERY_LOAD_FILE_DONE Load Recovery Image complete PEI_RECOVERY_START_FLASH Start Flash BIOS with Recovery image PEI_ENTER_DXEIPL Loading BIOS image to RAM PEI_FINDING_DXE_CORE...
  • Page 80 EPX-C414/Power-on Self-Test (POST) Codes Value Functionality Name Description DXE_BEFORE_CSM16_INIT Legacy BIOS initialization DXE_AFTER_CSM16_INIT Legacy interrupt function initialization DXE_LOAD_ACPI_TABLE ACPI Table Initialization DXE_SB_DISPATCH Setup SB SMM Dispatcher service DXE_SB_IOTRAP_INIT Setup SB IOTRAP Service DXE_SUBCLASS_DRIVER Build AMT Table DXE_PPM_INIT PPM Initialization DXE_HECIDRV_INIT...
  • Page 81 EPX-C414/Power-on Self-Test (POST) Codes Value Functionality Name Description BDS_EFI64_SHADOW_ALL_LEGACY_ROM Shadow Misc Option ROM BDS_ACPI_S3SAVE Save S3 resume required data in RAM BDS_READY_TO_BOOT_EVENT Last Chipset initialization before boot to OS BDS_GO_LEGACY_BOOT Start to boot Legacy OS BDS_GO_UEFI_BOOT Start to boot UEFI OS...
  • Page 82 EPX-C414/Power-on Self-Test (POST) Codes ACPI Table 30: ACPI 8-Bit POST Code Values Value Functionality Name Description ASL_ENTER_S1 Prepare to enter S1 ASL_ENTER_S3 Prepare to enter S3 ASL_ENTER_S4 Prepare to enter S4 ASL_ENTER_S5 Prepare to enter S5 ASL_WAKEUP_S1 System wakeup from S1...

  • Page 83: Architectural Diagnostic Codes

    EPX-C414/Architectural Diagnostic Codes Appendix D. Architectural Diagnostic Codes Architectural Diagnostic diagnostic codes describe important events in the BIOS initialization sequence. Table 33: Architectural Diagnostic Codes Code Symbol Description SEC_ENTRY SEC phase entry (reset vector) SEC_EXIT SEC phase exit PEI_ENTRY PEI phase entry (PEI dispatch)

  • Page 84: Progress And Error Codes

    EPX-C414/Progress and Error Codes Appendix E. Progress and Error Codes Progress and error codes are only displayed on POST diagnostic displays that show four digits. On these displays, the most significant two digits show the progress or error code from the table in this section (Progress and Error Codes), while the least significant two digits show the diagnostic code (see tables above).

  • Page 85: Warranty Information

    WinSystems, provided that the warranty, if any, may be assigned. The sole obligation of WinSystems for any breach of warranty contained herein shall be, at its option, either (i) to repair or replace at its expense any materially defective Products or Software, or (ii) to take back such Products and Software and refund the Customer the purchase price and any license fees paid for the same.
