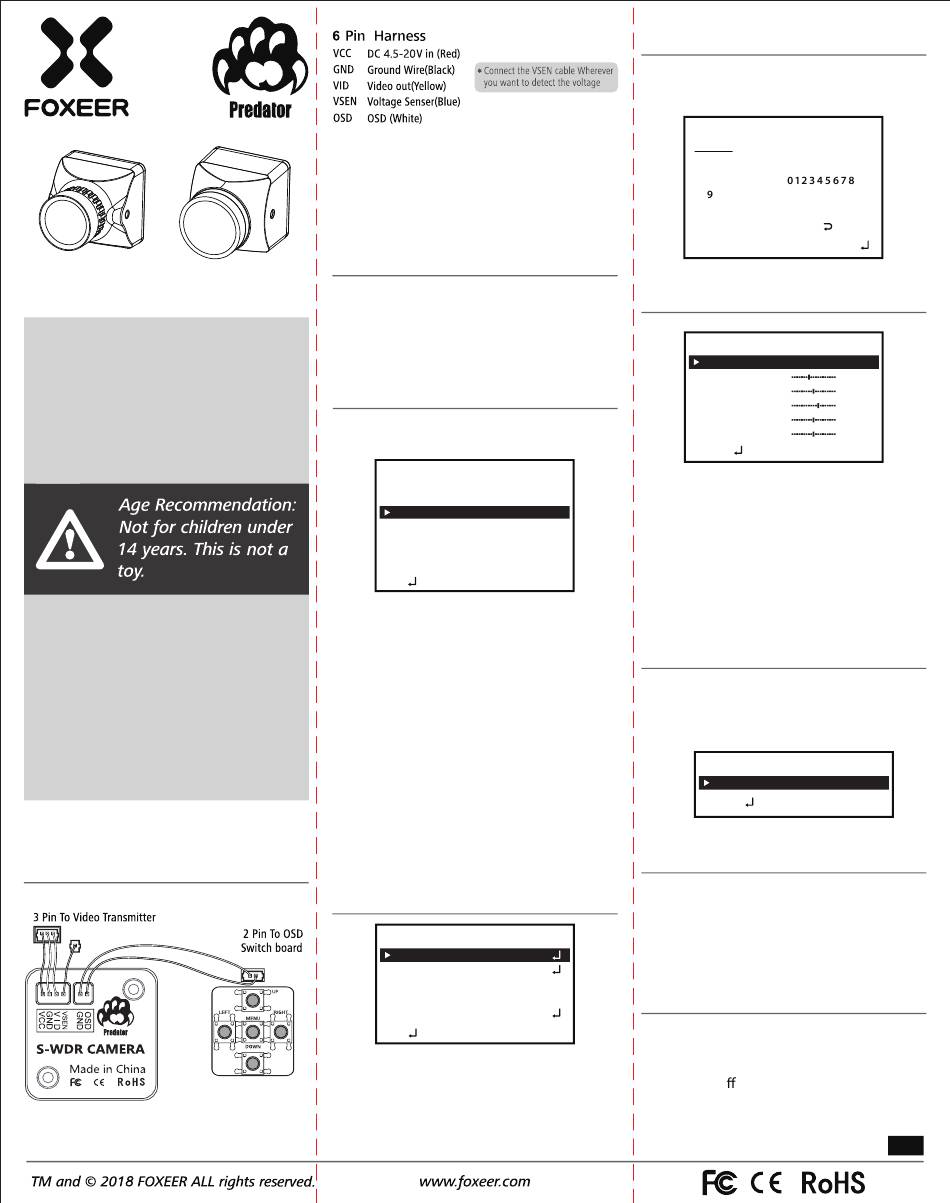

FOXEER PREDATOR MICRO M8 Quick Start Manual

PREDATOR MICRO PREDATOR MICRO
M8
WARNING: Read the ENTIRE instruction
manual to become familiar with the
features of the product before operating.
Failure to operate the product correctly
can result in damage to the product,
personal property and cause serious
injury.
NOTICE: This product is only intended for
use with unmanned, hobby- grade,
remote-controlled vehicles and aircraft.
FOXEER disclaims all liability outside of
the intended purpose and will not
provide warranty service related thereto.
SUPPORT: Visit www.foxeer.com/ to get
more information.
CAMERA-OSD SWITCH
CONNECTION
VBAT+
Camera Back
CAUTION: If you are using ESC's with active
braking, we recommend powering the
camera system through a BEC or voltage
regulator.
CAMERA-VIDEO
TRANSMITTER CONNECTION
M12
To connect the camera directly to the video
transmitter, plug the 3 pin wiring harness from
the video transmitter into the camera leaving
the OSD pin open.
FPV OSD Setup
Press top button for 3s, you can access OSD
menu.
1. TIME: ON/OFF
2. POWER: ON/OFF
3. VOL ALARM: You can setup a bat boundary
(single), click LEFT/RIGHT button to decrease/
increase the value, 3.6V default.
4. V CAL: Voltage calibration, range -0.5~0.5.
5. LED: OFF/MID/DARK.
MID: Middle brightness.
DARK: Dark environment.
6. N/P: NTSC/PAL switchable.
7. SIZE: 4:3/16:9 switchable.
8. EXIT
Main MENU
MENU: Push MENU(center button) to go to
the main menu.
UP/DOWN: Move up and down through the
OSD Switch Front
menu.
Left/Right: Modify the menu parameters.
DISPLAY
TIME ON
POWER ON
VOL ALARM 3.6
V CAL
0.0
LED OFF
N/P PAL
SIZE 4:3
EXIT
SETUP MENU
CAMERA ID ON
PICT ADJUST
DAY / NIGHT AUTO
LANGUAGE ENGLISH
CAMERA RESET YES
EXIT
1. Camera ID
Camera ID: ON/OFF. You can setup pilot
name and position.
CAMERA ID
FOXEER 00 : 00
A B C D E F G H I J K L M N O P Q
R S T U V W X Y Z
- ! " # $ % & ( ) _ ˋ , ￥ : ; <=> ? @
\ ˆ﹡﹣×＋／
←→↑↓ CLR POS
RETURN
2. PICT ADJUST
PICT ADJUST
FLIP
BRIGHTNESS
CONTRAST
SHARPNESS
HUE
COLOR GAIN
RETURN
1. FLIP: OFF/ H-FLIP/ V-FLIP/ HV-FLIP
2. BRIGHTNESS
3. CONTRAST
4. SHARPNESS
5. HUE
6. COLOR GAIN
3. DAY/NIGHT
DAY/NIGHT include "AUTO" and "MANUAL" ,
click "MANUAL" , you can setup permanent
"COLOR" or "B/W" .
DAY/NIGHT
DAY/NIGHT
RETURN
4. LANGUAGE
7 Languages: ENGLISH/ DEUTSCH/ FRANCAIS/
PYCCKNN/ PORTUGUES/ ESPANOL/ 中文 .
5. Camera reset
6. EXIT
Save All: Save all setup.
Not Save: Can save the value temporary, but
once power o , the value won't save.
cancel: Cancel Setup.
00 : 0
OFF
122
136
160
090
136
COLOR
V3.0
