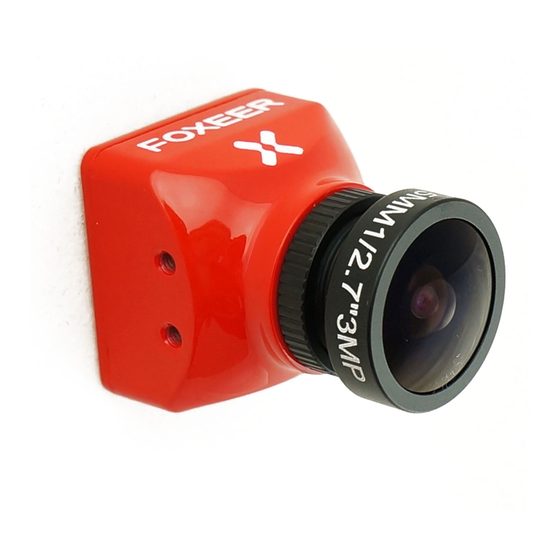

FOXEER Monster Instruction Manual

1200TVL 16:9 Widescreen Camera
LEFT/RIGHT
1. EXPOSURE
Move the cursor to "EXPOSURE" , press the LEFT/RIGHT button to
select "STD" or "BLC" mode.
22

1. STD

Press the MENU to set camera
brightness. It has "LOW" , "MIDDLE" ,
"HIGH" three modes for choice.

2. BLC

Press the MENU to set camera
intensity. It has "LOW" , "MIDDLE" ,
"HIGH" three modes for choice.

2. SHUTTER MODE

Move the cursor to "SHUTTER
MODE" , press the LEFT/RIGHT to
select "AUTO" or "MANUAL" . Camera
normally works on "AUTO" mode.
1. AUTO
"SLOWSHUTTER" has several
options : AUTO, 1X, 2X, 3X, 4X, 5X,
6X, 7X, 8X, 9X.
Higher "SLOWSHUTTER" value,
brighter image at night, but heavier
ghost e ect.
2. MANUAL
"SHUTTER SPEED" can select from
1/50 to 1/100000.

3. AGC

"AGC" can adjust the peak value, the
bigger value, the brighter image,
cause bigger noise, there are "ON" or
"OFF" optional by LEFT/RIGHT
according to actual needs.

4. AWB

It can restore the authenticity of the
color when it is a ected by the
temperature change. The user can
choose di erent white balance
mode accordingly, "ATW1" , "ATW2"
"ATW3" .

5. IMAGE ADJ

When the IMAGE is displayed on the
screen, it allows you to do settings
of image function and details.
"SHARPNESS" is used to adjust
overall image sharpness, can set
from 0-100, the higher value, the
sharper image.
EXPOSURE STD
SHUTTER MODE AUTO
AGC
AWB ATW1
IMAGE ADJ
PREV NEXT SAVE EXIT
STD
BRIGHTNESS LOW
RETURN
BLC
INTENSITY LOW
RETURN
EXPOSURE STD
SHUTTER MODE AUTO
AGC
AWB ATW1
IMAGE ADJ
PREV NEXT SAVE EXIT
SHUTTER MODE
SLOWSHUTTER AUTO
RETURN
SHUTTER MODE
9×
SLOWSHUTTER
RETURN
SHUTTER MODE
1/100000
SHUTTER SPEED
RETURN
EXPOSURE STD
SHUTTER MODE AUTO
AGC
AWB ATW1
IMAGE ADJ
PREV NEXT SAVE EXIT
AGC
MODE OFF
INTENSITY MIDDLE
RETURN
EXPOSURE STD
SHUTTER MODE AUTO
AGC
AWB ATW1
IMAGE ADJ
PREV NEXT SAVE EXIT
EXPOSURE STD
SHUTTER MODE AUTO
AGC
AWB ATW1
IMAGE ADJ
PREV NEXT SAVE EXIT
IMAGE ADJ
SHARPNESS 80/100
HDNR 20/100
3DNR 75/100
CONTRAST 52/100
SATURATION 55/100
NEXT RETURN
