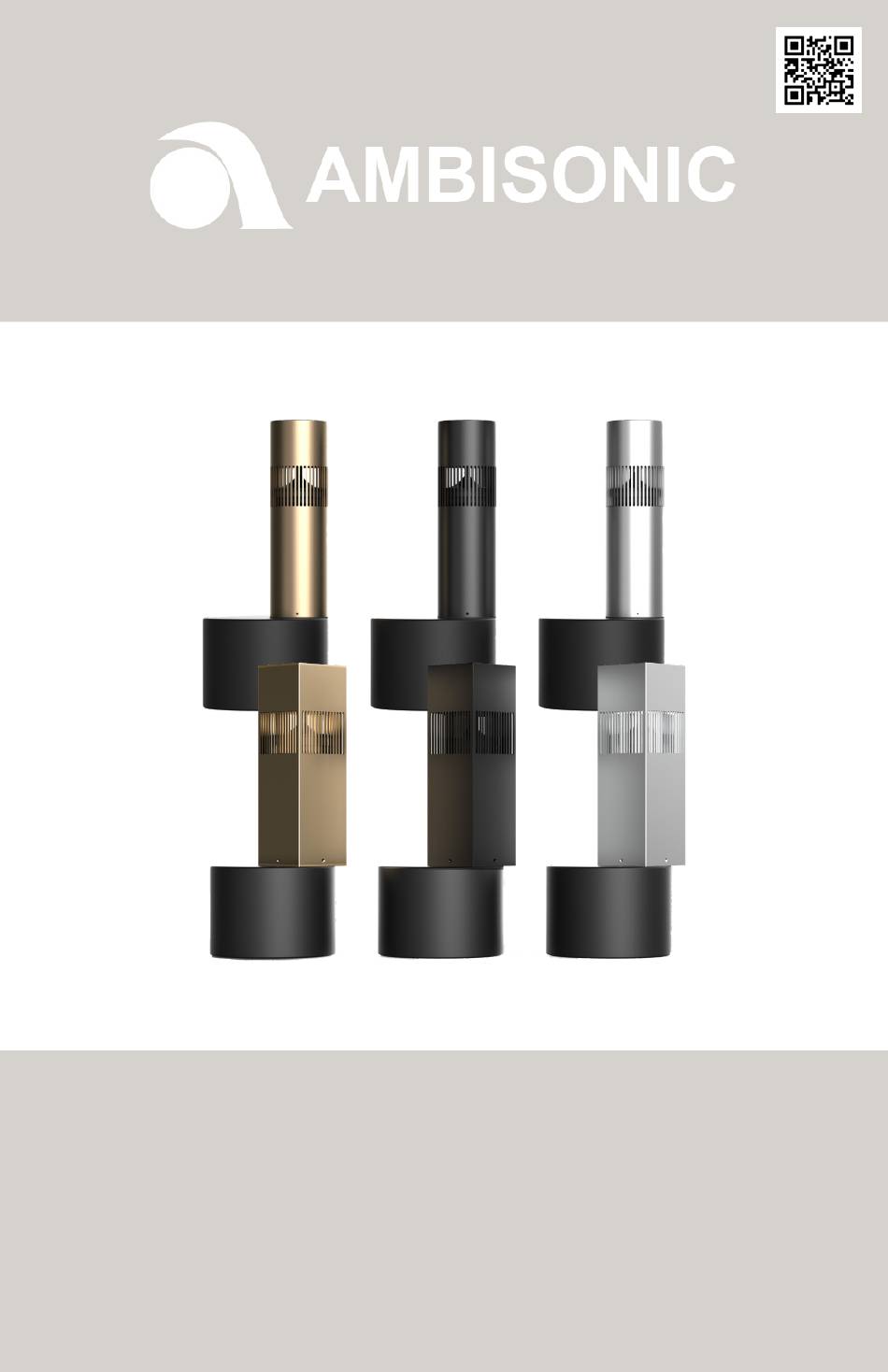

- Page 1 ALSB106RD|ALSB106SQ LANDSCAPE BOLLARD 10 • INSTALLATION MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ..1 1. Introduction ..2 2. Specifications ..3 3. Model Details ..4 4A. Included Items ..6 4B. Required Tools ..6 5A. Round & Square Bollard Assembly Steps ..6 5B. Tap Setting Location .. -
Page 3: Introduction
AMBISONIC BOLLARD COLLECTION™ 1. INTRODUCTION Congratulations on selecting one of the finest outdoor speaker systems ever produced. The Ambisonic Bollard is a single unit that houses both a subwoofer and a mid/ high frequency satellite in the same enclosure. The speaker is designed to allow the subwoofer section to be buried in the ground leaving only the pillar section exposed. -
Page 4: Specifications
AMBISONIC BOLLARD COLLECTION™ 2. SPECIFICATIONS MODEL ALSB106RD| ALSB106SQ Woofer 10'' Polypropolyne Woofer Midrange 6.5'' Polypropolyne Woofer Tweeter 1'' HD Aluminum Conical Ribbon Tweeter Frequency Response 32HZ - 20KHZ Power RMS 100W Power Peak 300W Impedance 8 Ohm (Sub) / 8 Ohm (Sat) Transformer Taps Selectable 8 Ω, 100W, 50W, (70V) -
Page 5: Model Details
AMBISONIC BOLLARD COLLECTION™ 3. MODEL DETAILS ROUND SLEEVE: Sleeve Color Sound Dispersion ALSB106RD-Black360 Black ALSB106RD-Black180 Black ALSB106RD-Silver360 Silver ALSB106RD-Silver180 Silver ALSB106RD-Bronze360 Bronze ALSB106RD-Bronze180 Bronze Sleeve Color Sound Dispersion SQUARE SLEEVE: Black ALSB106SQ-Black360 Black ALSB106SQ-Black180 Silver ALSB106SQ-Silver360 Silver ALSB106SQ-Silver180 Bronze ALSB106SQ-Bronze360... -
Page 6: Included Items
ALSB106RD Box 1 Box 2 Mid-Range | Tweeter Bollard Subwoofer Round Sleeve (1) with Port Tube (1) ALSB106S ALSB106RD-Black360 / ALSB106RD-Black180 Round Sleeve Bollard (1) ALSB106RD-Silver360 / ALSB106RD-Silver180 Origin Acoustics ® ALSB106RD-Bronze360 / ALSB106RD-Bronze180 Origin Acoustics No Sleeve Origin Acoustics No Sleeve ®... - Page 7 AMBISONIC BOLLARD COLLECTION™ ALSB106RD ACCESSORIES Type A Screws Metal Tie- Clasps Wire Nuts (4 Installation Manual for Sleeve (2) for Port-Tube (2) ALSB106SQ ACCESSORIES Type A Screws Metal Tie- Clasps Wire Nuts (4 for Sleeve (8) for Port-Tube (2) Installation Manual...
-
Page 8: Required Tools
AMBISONIC BOLLARD COLLECTION™ 4B. REQUIRED TOOLS • • Flat Head Screwdriver Phillips Screwdriver [Min 10'' Length] OR Electrical Drill with • Elbow Attchment Shovel 5A. ROUND & SQUARE BOLLARD ASSEMBLY STEPS The Bollard comes in two individual packages; DSP2-200 AMP Bollard switch setup Sat IN... -
Page 9: Mid-Range/Tweeter Port Tube Assembly
AMBISONIC BOLLARD COLLECTION™ To change the power tap setting, use the tap switch under the cap on the subwoofer. Ensure this selection is done before assembly & subwoofer burial. Tap Switch Tap Switch oustics 5C. MID-RANGE/TWEETER PORT-TUBE ASSEMBLY Secure the Mid-Range/Tweeter Port-Tube into the Port Hole of the Subwoofer, by lining up the VERTICAL Silver Line markings with the protruding vertical “Dimple Line”... - Page 10 AMBISONIC BOLLARD COLLECTION™ AMBISONIC LANDSCAPE COLLECTION™ 5C DIAGRAM PORT-TUBE ALIGNMENT DIAGRAM 1: MID-RANGE/ TWEEETER PORT-TUBE ASSEMBLY PORT- TUBE ALIGNMENT AMBISONIC LANDSCAPE COLLECTION™ AMBISONIC LANDSCAPE COLLECTION™ AMBISONIC LANDSCAPE COLLECTION™ DON'T DIAGRAM 1: MID-RANGE/ TWEEETER PORT-TUBE ASSEMBLY DIAGRAM 1: MID-RANGE/ TWEEETER PORT-TUBE ASSEMBLY DIAGRAM 1: MID-RANGE/ TWEEETER PORT-TUBE ASSEMBLY AMBISONIC LANDSCAPE COLLECTION™...
-
Page 11: Cable Connection
AMBISONIC BOLLARD COLLECTION™ METAL TIE-CLASPS CABLE CONNECTION Origin Acoustics No Sleeve ®... -
Page 12: Adding Sealant Before Sleeve Assembly
AMBISONIC BOLLARD COLLECTION™ 5D. ADDING SEALANT BEFORE SLEEVE ASSEMBLY Polyurethane Sealant: It is recommended that Polyurethane Sealant be applied between the Sleeve & the Subwoofer Base. Care should be taken to apply a liberal 1/4'' bead of Poly- urethane Sealant on the Subwoofer: around the Port Tube Base and around the Screw Cap, before then assembling the sleeve over the Port Tube. - Page 13 AMBISONIC BOLLARD COLLECTION™ 6A DIAGRAM ROUND SLEEVE ASSEMBLY SNAP FIT LATCHES SNAP FIT LATCHES oustics FINAL SCREW ATTACHMENT TYPE A SCREWS: Phillips Flat Head Screws Origin Acoustics No Sleeve ®...
-
Page 14: Square Sleeve Assembly Steps
AMBISONIC BOLLARD COLLECTION™ 6B. SQUARE SLEEVE ASSEMBLY STEPS The Square Bollard requires 2 adapter brackets to assemble the Square Sleeve over the Mid-Range/Tweeter Port Tube, and secure it to the Subwoofer base. Firstly, the Mid Bracket will be placed at the mid-length of the Port Tube unit, just below the Mid-Range/Tweeter section. - Page 15 AMBISONIC BOLLARD COLLECTION™ 6B DIAGRAM SQUARE SLEEVE ASSEMBLY MID-BRACKET ASSEMBLY TYPE B SCREWS: Phillips Pan Head Screws .79in 20.00mm 7.95in 202.00mm BOTTOM BRACKET ASSEMBLY ustics big bollard square adapter r Blvd 89118 SCALE:1:4 674-4461) oustics.com TYPE B SCREWS: SNAP FIT LATCHES Phillips Pan Head Screws...
- Page 16 AMBISONIC BOLLARD COLLECTION™ SQUARE SLEEVE ASSEMBLY FINAL SCREW ATTACHMENT TYPE A SCREWS: Phillips Flat Head Screws [ Use Screwdriver Min. 10'' Length OR Electrical Drill with Elbow Attchment ]...
-
Page 17: System Layout
AMBISONIC BOLLARD COLLECTION™ 7. SYSTEM LAYOUT Placement of the speakers throughout the home’s exterior will depend on a couple of factors. The first is how uniform of a sound field is required. The laws of physics dictate that the further the listener is from the sound source the lower the apparent sound pressure level or “volume.”... - Page 18 AMBISONIC BOLLARD COLLECTION™ 8B. RECOMMENDED SPRINKLER PRECAUTIONS It is highly recommended that the Bollard speaker be installed at a location such that the water sprinkler nearby (if any) does not spray the water jet into or +/- 2 inches from vertical slots of the bollard shell.
-
Page 19: Optional Drain Plug
AMBISONIC BOLLARD COLLECTION™ 8C. RECOMMENDED BURIAL DEPTH The subwoofer enclosure should be buried to a level where the dirt covers the wire nut and protruding wire at the top of enclosure. Holes for the subs should be deep enough to cover the entire lower section of the enclosure with approximately 1-inch of dirt on top of the that section. - Page 20 AMBISONIC BOLLARD COLLECTION™ 9B. OPTION 2: WITHOUT DRAIN PLUG DRAIN PLUG IS REMOVED This option is recommended: • In applications with dry soil where occasional water may accidently enter the enclosure. Use of gravel and sand will allow any water that gets into the sub enclosure to properly escape.
-
Page 21: Wiring Guidance
AMBISONIC BOLLARD COLLECTION™ 10. 70V WIRING GUIDANCE WE HIGHLY RECOMMEND WIRING IN 70V WIRING SETUP AS THE CORRECT SOLUTION. 70V SYSTEM - 50 W TAP SWITCH SETTING RECOMMEDED AMP: DSP3-700 AMP 70V TAP MAX. NUMBER SWITCH SETTING OF BOLLARD SPEAKERS 50W (70V) Tap Maximum Number: 12 Bollard Speakers per DSP3-700 AMP Switch... - Page 22 AMBISONIC BOLLARD COLLECTION™ • Use 1 SEPARATE wire run for: SUBWOOFER units of Bollards • Use ANOTHER separate wire run for: SATELLITE units of Bollards • The subwoofers and satellites will be run in PARALLEL for 70V WIRING SETUP. PARALLEL WIRING SETUP: This means the positive connection on the amplifier will be connected to the positive connection on speaker 1, 2, 3, etc.
-
Page 23: 70V Wiring Diagram: 3 Channel Setup With Dsp3-700
AMBISONIC BOLLARD COLLECTION™ 10A. 70V WIRING WITH DSP3-700 AMP 3 CHANNEL SETUP Left Right From amp to From amp to LEFT CHANNEL BOLLARD SATS RIGHT CHANNEL BOLLARD SATS SATELLITE CHANNEL 1 SATELLITE CHANNEL 2 white + white + green - green - SUBWOOFER CHANNEL 3 SUBWOOFER CHANNEL 3... -
Page 24: Note: Painting The Sleeve
AMBISONIC BOLLARD COLLECTION™ 11. NOTE: PAINTING THE SLEEVE The outer sleeve (pillar) of the Ambisonic Bollard speaker has been anodized specifically for achieving maximum durability of the pillar color. If you wish to change the color of the Bollard sleeve by painting, or other process, it may compromise the durability and finish of the product, compared to the original manufacturing process and modify the specifications. -
Page 25: Troubleshooting
AMBISONIC BOLLARD COLLECTION™ 12. TROUBLESHOOTING If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with an MP3 player to see if you get sound. If it does work, then the problem is with the television, DVD player, or the cables connecting them. -
Page 26: Technical Assistance
AMBISONIC BOLLARD COLLECTION™ 13. TECHNICAL ASSISTANCE If you have any questions or concerns about installing or using this product, you can reach us through one of the following methods: Phone: (844) 674 - 4461 Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri Email: sales@originacoustics.com If you are having technical trouble, please include the model number and briefly explain what steps you took to resolve the problem in your email, or be prepared... -
Page 27: Limited 5 Year Warranty
AMBISONIC BOLLARD COLLECTION™ 14. LIMITED 5 YEAR WARRANTY Ambisonic warrants to the original retail purchaser only that this Ambisonic product will be free from defects in materials and workmanship, provided the speaker was purchased from an Ambisonic authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Ambisonic’s discretion. -
Page 28: Not Covered By Warranty
AMBISONIC BOLLARD COLLECTION™ 14B. NOT COVERED BY WARRANTY • Accidental damage • Damage caused by abuse or misuse • Damage caused by attempted repairs/modifications by anyone other than Origin Acoustics or an authorized dealer • Damage caused by improper installation •... - Page 29 AMBISONIC BOLLARD COLLECTION™ NOTES...
- Page 30 05-22-23 6975 S Decatur BLVD, Las Vegas, NV 89118 • www.ambisonicsystems.com • 844-674-4461 ©2023 Ambisonic. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Ambisonic Systems.
