Summary of Contents for AmbiSonic Systems LUXURY LANDSCAPE BOLLARD 8

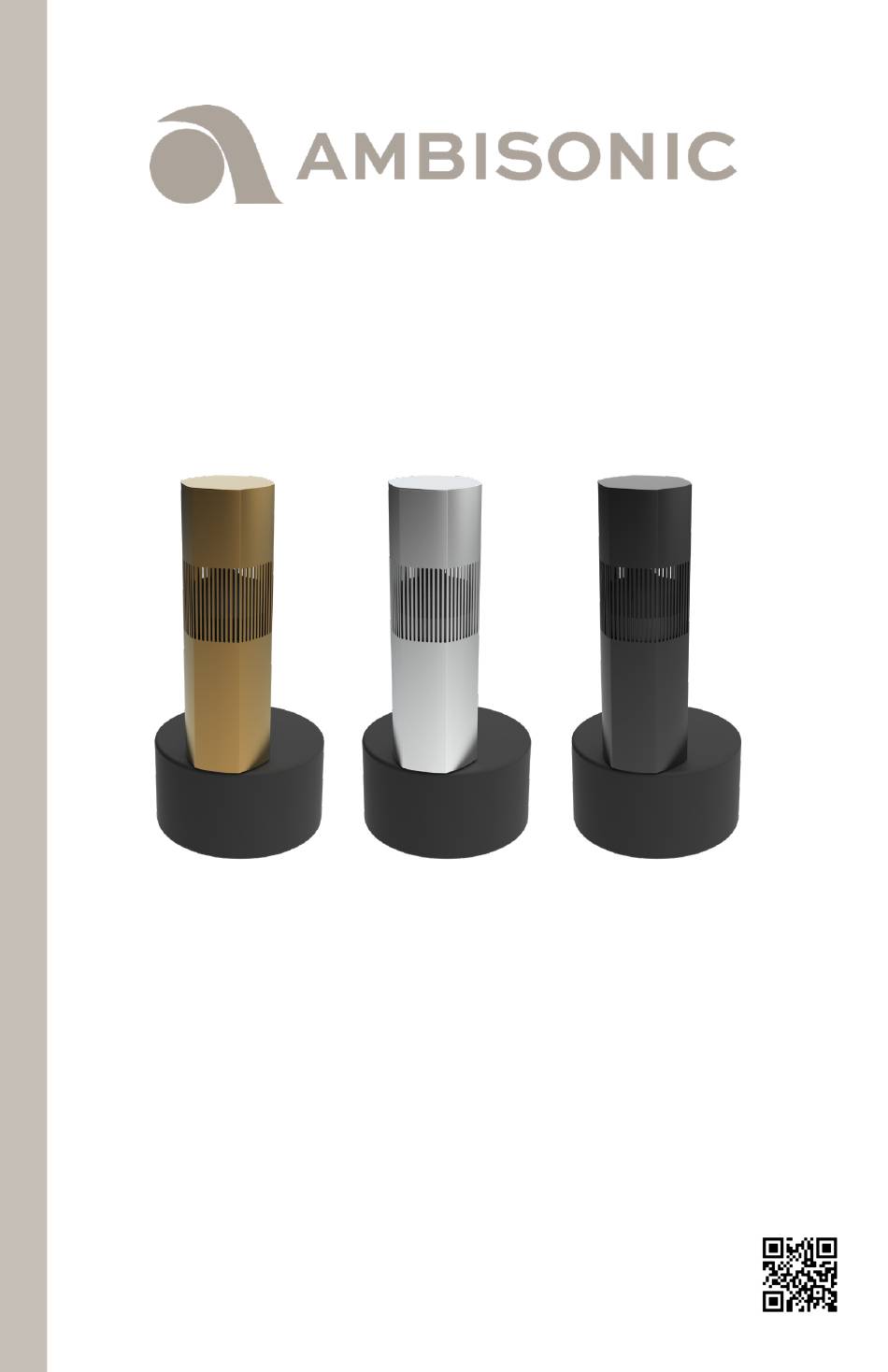

- Page 1 ALSB85CH|ALSB85S|ALSB85BL LUXURY LANDSCAPE BOLLARD 8 INSTALLATION MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ..1. Introduction ..2. Specifications ..3A. Model Details ..3B. Model Dimensions ..4A. What’s Included ..4B. Recommended Tools ..5. System Planning & Precautions ..6. Recommended Burial Depth ..6 7. Optional Drain Plug .. -
Page 3: Introduction
1. INTRODUCTION Congratulations on selecting the Luxury Landscape Bollard 8, one of the finest outdoor speaker systems ever produced, and the medium sized speaker within our Ambisonic Bollard Collection. At Ambisonic, we take pride in providing you with a high quality product, all speakers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Specifications
2. SPECIFICATIONS MODEL ALSB85CH • ALSB85S • ALSB85BL COLOR • • Champagne Stargazing Silver Midnight Black Woofer 8'' (203mm) Polypropylene Woofer Midrange 5 1/ 4 '' (133mm) Polypropylene Midrange Tweeter 1'' (25mm) HD Aluminum Conical Ribbon Tweeter Frequency Response 48HZ - 20KHZ Power RMS 100W | 50W Power... -
Page 5: Model Dimensions
3B. MODEL DIMENSIONS MODEL ALSB85CH • ALSB85S • ALSB85BL REV. Subwoofer Enclosure Ø 15 3/ 4 ’’ (400mm) • 9 1/ 1 6’’ (230mm) Depth Sleeve Dimensions 7 7/ 1 6’’ x 6 15/ 1 6’’ (188 x 176mm) Hexagonal Widths REV. -
Page 6: System Planning & Precautions
5. SYSTEM PLANNING & PRECAUTIONS 5A. SYSTEM PLANNING: SOUND QUALITY The Landscape Bollards should be strategically placed to evenly distribute sound throughout the outdoor area. Placement throughout the exterior will also depend on a couple of factors: UNIFORMITY OF SOUND REQUIRED: The laws of physics dictate that the further the listener is from the sound source the lower the apparent sound pressure level or “volume.”... - Page 7 5C. SYSTEM PLANNING: SPRINKLER PRECAUTIONS 5C. BOLLARD INSTALLATION: LOCATION 5C. BOLLARD INSTALLATION: LOCATION 5C. BOLLARD INSTALLATION: LOCATION It is highly recommended that the speakers be installed at a location such that the water sprinkler nearby (if any) does NOT spray the water jet INTO or +/- 2 INCHES FROM vertical It is highly recommended that the speakers be installed at a location such that the water It is highly recommended that the speakers be installed at a location such that the water It is highly recommended that the speakers be installed at a location such that the water...
-
Page 8: Recommended Burial Depth
6. RECOMMENDED BURIAL DEPTH The subwoofer enclosure should be buried to a level where the dirt covers the wire nut and protruding wire at the top of enclosure. Holes for the subs should be deep enough to cover the entire lower section of the enclosure with approximately 1-inch of dirt on top of the that section. - Page 9 7B. OPTION 2: WITHOUT DRAIN PLUG DRAIN PLUG IS REMOVED This option is recommended: • In applications with dry soil where occasional water may accidentally enter the enclosure. Use of gravel and sand will allow any water that gets into the sub enclosure to properly escape.
-
Page 10: Recommended Burial Wire
8. RECOMMENDED BURIAL WIRE BURIAL INSTALLATION DSP2-200 AMP Bollard Wire Length Wire Gauge switch setup Sat IN 0 - 100’ (0 - 30m) 8 ohms 50 - 150’ (15 - 45m) Over 100’ (30m) 9. TAP SETTING LOCATION DSP2-200 BRIDGED IN(L) SUB OUT EQ PRESET OPTICAL... -
Page 11: 70V/100V Vs Loz Wiring Guidance
10A. 70V/100V VS LO-Z WIRING GUIDANCE WE HIGHLY RECOMMEND WIRING IN 70V/100V WIRING AS THE CORRECT SOLUTION. TAP SWITCH RECOMMENDED MAX. NUMBER OF BOLLARD SETTING SPEAKERS PROA250.2 Amp TOTAL 4 PER 50 W (100V) PROA250.2 Amp (2 per Channel) PROA250.2 Amp TOTAL 4 PER 50 W (70V) PROA250.2 Amp... - Page 12 • Use 1 SEPARATE wire run for: SUBWOOFER units of Bollards • Use ANOTHER separate wire run for: SATELLITE units of Bollards • The subwoofers and satellites will be run in PARALLEL for 70V WIRING SETUP. 10B. PARALLEL WIRING SETUP This means the positive connection on the amplifier will be connected to the positive connection on speaker 1, 2, 3, etc.
-
Page 13: 70V/100V Wiring Diagram
11A. 4 x BOLLARDS: (50W) 70V/100V WIRING WITH PROA250.2 Amp Output mode set to Hi-Z -70V/100V [Bridge mode] Amp Output mode set to Hi-Z -70V [Bridge mode] • OUTPUT CH1/CH2 for Satellites • OUTPUT CH1/CH2 for Satallites • OUTPUT CH3/CH4 for Subwoofers •... -
Page 14: 70V & Loz Wiring Diagram
11B. 2 X BOLLARDS LO-Z WIRING WITH PROA250.2 Amp Output mode set to Lo-Z [4~8 ohms] Amp Output mode set to Hi-Z -70V [Bridge mode] • OUTPUT CH1 & CH2 for Satallite • OUTPUT CH3 & CH4 for Subwoofer • OUTPUT CH1/CH2 for Satallites Amp Output mode set to Lo-Z [4~8 ohms] •... -
Page 15: Note: Painting The Sleeve
12. NOTE: PAINTING THE SLEEVE The outer sleeve (pillar) of the Ambisonic Bollard speaker has been anodized specifically for achieving maximum durability of the pillar color. If you wish to change the color of the Landscape Bollard sleeve by painting, or other process, it may compromise the durability and finish of the product, compared to the original manufacturing process and modify the specifications. -
Page 16: Troubleshooting
13. TROUBLESHOOTING If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with an MP3 player to see if you get sound. If it does work, then the problem is with the television, DVD player, or the cables connecting them. -
Page 17: Technical Assistance
14. TECHNICAL ASSISTANCE If you have any questions or concerns about installing or using this product, you can reach us through one of the following methods: Phone: (844) 674 - 4461 Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri Email: sales@originacoustics.com If you are having technical trouble, please include the model number and briefly explain what steps you took to resolve the problem in your email, or be prepared... -
Page 18: Limited 5 Year Warranty
15. LIMITED 5 YEAR WARRANTY Ambisonic warrants to the original retail purchaser only that this Ambisonic product will be free from defects in materials and workmanship, provided the speaker was purchased from an Ambisonic authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Ambisonic’s discretion. -
Page 19: Return Process
15B. NOT COVERED BY WARRANTY • Accidental damage • Damage caused by abuse or misuse • Damage caused by attempted repairs/modifications by anyone other than Ambisonic or an authorized dealer • Damage caused by improper installation • Normal wear, maintenance, and environmental issues •... - Page 20 06-26-24 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.ambisonicsystems.com • 844-674-4461 ©2024 Ambisonic. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Ambisonic Systems.
