Summary of Contents for AmbiSonic Systems ALSB106CHK

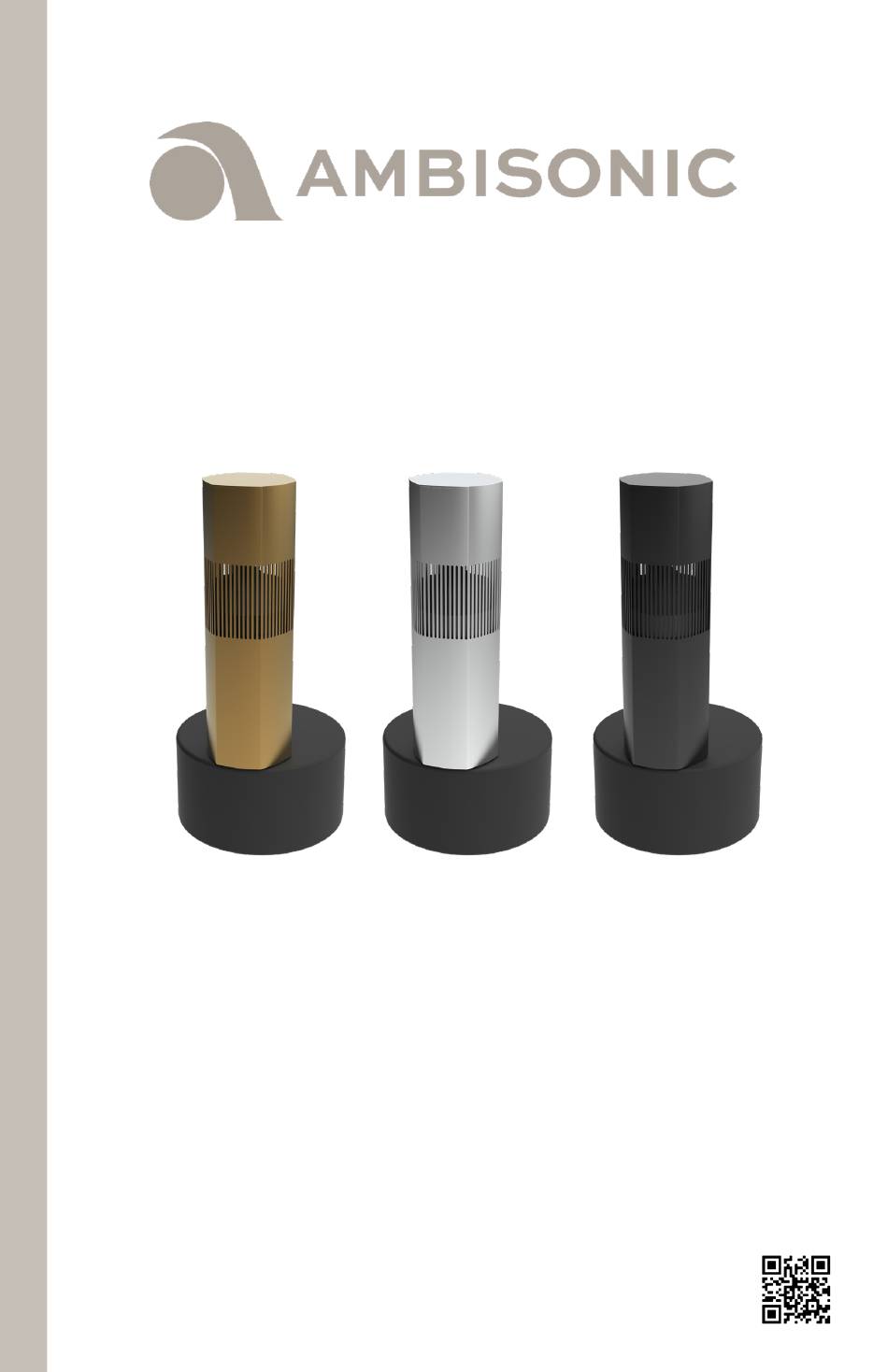

- Page 1 ALSB106CHK|ALSB106SK|ALSB106BLK LUXURY LANDSCAPE BOLLARD 10 INSTALLATION MANUAL...
-
Page 2: Table Of Contents
AMBISONIC BOLLARD COLLECTION TABLE OF CONTENTS 1. Introduction ..2. Specifications ..3. Model Details ..4A. What’s in the Box ..4B. Included Accessories ..4C. Model Dimensions ..4D. Recommended Tools ..4E. Recommended Burial Wire ..5A. Hexagonal Bollard Assembly Steps .. -
Page 3: Introduction
AMBISONIC BOLLARD COLLECTION 1. INTRODUCTION Congratulations on selecting the Luxuury Landscape Bollard 10, the grandest sized speaker within our Ambisonic Bollard Collection and one of the finest outdoor speaker systems ever produced. At Ambisonic, we take pride in providing you with a high quality product; all speakers are designed to have excellent sound quality, longevity, and a simple installation process. -
Page 4: Specifications
AMBISONIC BOLLARD COLLECTION 2. SPECIFICATIONS MODEL ALSB106CHK • ALSB106SK • ALSB106BLK COLOR • • Champagne Stargazing Silver Midnight Black Woofer 10'' (254mm) Polypropylene Woofer Midrange 6 1/ 2 '' (165mm) Polypropylene Midrange Tweeter 1'' (25mm) HD Aluminum Conical Ribbon Tweeter... -
Page 5: What's In The Box
AMBISONIC BOLLARD COLLECTION 4A. WHAT’S IN THE BOX ALSB106CHK • ALSB106SK • ALSB106BLK Box 1 Box 2 ALSB106HS ALSB106CHK • ALSB106SK • ALSB106BLK Mid-Range | Tweeter Bollard Subwoofer Hexagonal Sleeve with Port Tube (1) Hexagonal Sleeve Bollard (1) 4B. INCLUDED ACCESSORIES... -
Page 6: Model Dimensions
AMBISONIC BOLLARD COLLECTION REV. DESCRIPTION DATE ECN NO. Initial release 4C. MODEL DIMENSIONS REV. REV. DESCRIPTION DATE DESCRIPTION Initial release Initial release Ø 17 '' (450mm) Orthographic View • Side Views x 2 • Overhead View Ø 17 '' (450mm) Ø... -
Page 7: Hexagonal Bollard Assembly Steps
AMBISONIC BOLLARD COLLECTION 5A. HEXAGONAL BOLLARD ASSEMBLY STEPS DSP2-200 AMP Bollard switch setup The hexagonal Landscape Bollard 10 comes in two individual packages; Sat IN 8 ohms 1) Subwoofer 2) Mid-Range/Tweeter with Port-Tube and Sleeve To assemble these, see the following steps. 5B. -
Page 8: Mid-Range/Tweeter Port Tube Assembly
AMBISONIC BOLLARD COLLECTION 5C. MID-RANGE/TWEETER PORT-TUBE ASSEMBLY Secure the Mid-Range/Tweeter Port-Tube into the Port Hole of the Subwoofer, by lining up the VERTICAL Silver Line markings with the protruding vertical “Dimple Line” on the rubber trim surrounding the Port Hole edges. DO NOT PUSH DOWN VERTICALLY. If needed, you may hold the piece by the Port Tube and twist back and forth, so that it slides smoothly into the Port Hole. - Page 9 AMBISONIC BOLLARD COLLECTION AMBISONIC LANDSCAPE COLLECTION™ AMBISONIC LANDSCAPE COLLECTION™ AMBISONIC LANDSCAPE COLLECTION™ DIAGRAM 1: MID-RANGE/ TWEEETER PORT-TUBE ASSEMBLY DIAGRAM 1: MID-RANGE/ TWEEETER PORT-TUBE ASSEMBLY DIAGRAM 5C PORT-TUBE ALIGNMENT DIAGRAM 1: MID-RANGE/ TWEEETER PORT-TUBE ASSEMBLY PORT- TUBE ALIGNMENT PORT- TUBE ALIGNMENT PORT- TUBE ALIGNMENT AMBISONIC LANDSCAPE COLLECTION™...
- Page 10 AMBISONIC BOLLARD COLLECTION METAL TIE-CLASPS CABLE CONNECTION...
-
Page 11: Adding Sealant Before Sleeve Assembly
AMBISONIC BOLLARD COLLECTION 5D. ADDING SEALANT BEFORE SLEEVE ASSEMBLY Polyurethane Sealant: It is recommended that Polyurethane Sealant be applied between the Sleeve and the Subwoofer Base. Care should be taken to apply a liberal 1/4'' bead of Polyurethane Sealant on the Subwoofer: around the Port Tube Base (1) and around the Screw Cap (2), before then assembling the sleeve over the Port Tube. - Page 12 AMBISONIC BOLLARD COLLECTION DIAGRAM 6 HEXAGONAL SLEEVE ASSEMBLY with SNAP FIT LATCHES SNAP FIT LATCHES FINAL SCREW ATTACHMENT SCREWS: Phillips Head Screws...
-
Page 13: System Planning & Precautions
AMBISONIC BOLLARD COLLECTION 7. SYSTEM PLANNING & PRECAUTIONS 7A. SYSTEM PLANNING: SOUND QUALITY The hexagonal Landscape Bollards should be strategically placed to evenly distribute sound throughout the outdoor area. Placement throughout the exterior will also depend on a couple of factors: UNIFORMITY OF SOUND REQUIRED: The laws of physics dictate that the further the listener is from the sound source, the lower the apparent sound pressure level or “volume.”... - Page 14 AMBISONIC BOLLARD COLLECTION 7C. SYSTEM PLANNING: SPRINKLER PRECAUTIONS 5C. BOLLARD INSTALLATION: LOCATION 5C. BOLLARD INSTALLATION: LOCATION 5C. BOLLARD INSTALLATION: LOCATION It is highly recommended that the speakers be installed at a location such that the water sprinkler nearby (if any) does NOT spray the water jet INTO or +/- 2 INCHES FROM vertical It is highly recommended that the speakers be installed at a location such that the water It is highly recommended that the speakers be installed at a location such that the water It is highly recommended that the speakers be installed at a location such that the water...
-
Page 15: Optional Drain Plug
AMBISONIC BOLLARD COLLECTION 7D. RECOMMENDED BURIAL DEPTH The subwoofer enclosure should be buried to a level where the dirt covers the wire nut and protruding wire at the top of enclosure. Holes for the subwoofers should be deep enough to cover the entire lower section of the enclosure, with approximately 1 inch of dirt on top of this section. - Page 16 AMBISONIC BOLLARD COLLECTION 8B. OPTION 2: WITHOUT DRAIN PLUG DRAIN PLUG IS REMOVED This option is recommended: • In applications with dry soil where occasional water may accidentally enter the enclosure. Use of gravel and sand will allow any water that gets into the sub enclosure to properly escape.
-
Page 17: 70V/100V Wiring Guidance
AMBISONIC BOLLARD COLLECTION 9A. 70V/100V WIRING GUIDANCE NOTE: WE HIGHLY RECOMMEND WIRING IN 70V/100V WIRING AS THE CORRECT SOLUTION. TAP SWITCH MAX. NUMBER OF BOLLARD RECOMMENDED AMP SETTING SPEAKERS Origin ProA1200.2 TOTAL 5 PER ProA1200.2 Amp (70V) 100W | 200W Origin ProA1200.2 TOTAL 5 PER ProA1200.2 Amp (100V) 100W | 200W... -
Page 18: Parallel Wiring Setup
AMBISONIC BOLLARD COLLECTION • Use 1 SEPARATE wire run for: SUBWOOFER units of Landscape Bollards • Use ANOTHER separate wire run for: SATELLITE units of Landscape Bollards • The subwoofers and satellites will be run in PARALLEL for 70V/100V WIRING SETUP. -
Page 19: Channel Setup
• Rack mount ears (fitted) x 2 • Adhesive rubber feet x 4 mounting accessories and amplifier operation is available online. AMBISONIC BOLLARD COLLECTION • Mains power cable • Document pack www.originpro.com • Input connector x 2 • GPIO socket connector Connection Sockets 10A. -
Page 20: Lo-Z Wiring Diagram
• Rack mount ears (fitted) x 2 • Adhesive rubber feet x 4 mounting accessories and amplifier operation is available online. AMBISONIC BOLLARD COLLECTION • Mains power cable • Document pack www.originpro.com • Input connector x 2 • GPIO socket connector Connection Sockets 10B. -
Page 21: Note: Painting The Sleeve
AMBISONIC BOLLARD COLLECTION 11. NOTE: PAINTING THE SLEEVE The outer pillar (sleeve) of the Ambisonic Bollard speaker has been anodized specifically for achieving maximum durability of the pillar color. If you wish to change the color of the Landscape Bollard sleeve by painting, or other process, it may compromise the durability and finish of the product, compared to the original manufacturing process and modify the specifications. -
Page 22: Troubleshooting
AMBISONIC BOLLARD COLLECTION 12. TROUBLESHOOTING If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with an MP3 player to see if you get sound. If it does work, then the problem is with the television, DVD player, or the cables connecting them. -
Page 23: Technical Assistance
AMBISONIC BOLLARD COLLECTION 13. TECHNICAL ASSISTANCE If you have any questions or concerns about installing or using this product, you can reach us through one of the following methods: Phone: (844) 674 - 4461 Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri Email: sales@originacoustics.com If you are having technical trouble, please include the model number and briefly explain what steps you took to resolve the problem in your email, or be prepared... -
Page 24: Limited 5 Year Warranty
AMBISONIC BOLLARD COLLECTION 14A. LIMITED 5 YEAR WARRANTY Ambisonic warrants to the original retail purchaser only that this Ambisonic product will be free from defects in materials and workmanship, provided the speaker was purchased from an Ambisonic authorized dealer. If the product is determined to be defective, it will be repaired or replaced at Ambisonic’s discretion. -
Page 25: Not Covered By Warranty
• Accidental damage • Damage caused by abuse or misuse • Damage caused by attempted repairs/modifications by anyone other than Ambisonic Systems or an authorized dealer • Damage caused by improper installation • Normal wear, maintenance, and environmental issues •... - Page 26 06-26-24 6975 S Decatur Blvd, Las Vegas, NV 89118 • www.ambisonicsystems.com • 844-674-4461 ©2024 Ambisonic. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Ambisonic Systems.
