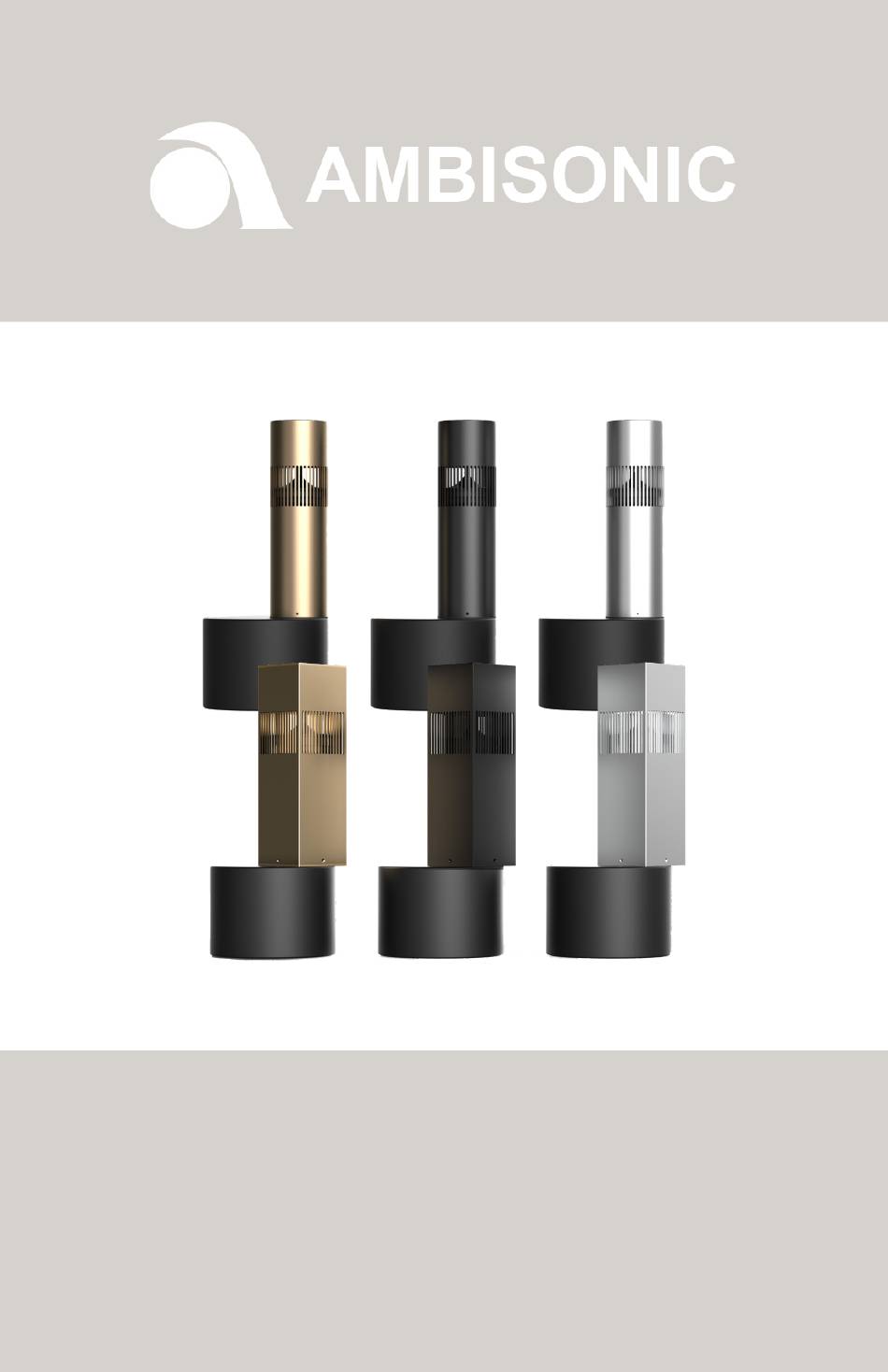

- Page 1 ALSB106S AMBISONIC BOLLARD INSTALLATION MANUAL...
-
Page 2: Table Of Contents
AMBISONIC LANDSCAPE COLLECTION™ Table of Contents _________________________ 1 Introduction _________________ 4 Models & Specifications _______________________ 5 Included Items _______________________ 6 Required Tools __________________ 6 Bollard Unit Assembly _____ 6 Mid-range/Tweeter Port Tube Assembly _____ 9 Adding Sealant, before Sleeve Assembly _________________ 9 Round Sleeve Assembly _________________ 11... -
Page 3: Introduction
AMBISONIC LANDSCAPE COLLECTION™ 1. INTRODUCTION Congratulations on selecting one of the finest outdoor speaker systems ever produced. The Ambisonic Bollard is a single unit that houses both a subwoofer and a mid/ high frequency satellite in the same enclosure. The speaker is designed to allow the subwoofer section to be buried in the ground leaving only the pillar section exposed. -
Page 4: Models & Specifications
Black ALSB106SQ-Black360 Black ALSB106SQ-Black180 Silver ALSB106SQ-Silver360 Silver ALSB106SQ-Silver180 Bronze ALSB106SQ-Bronze360 Bronze ALSB106SQ-Bronze180 MODEL ALSB106S Woofer 10'' Polypropolyne Woofer Midrange 6.5'' Polypropolyne Woofer Tweeter 1'' HD Ribbon Tweeter 32HZ - 20KHZ Frequency Response Power RMS 100W Power Peak 300W 8 Ohm (Sub) / 8 Ohm (Sat) -
Page 5: Included Items
AMBISONIC LANDSCAPE COLLECTION™ 3. INCLUDED ITEMS Mid-Range | Tweeter Bollard Subwoofer (1) Round Sleeve (1) with Port Tube (1) Round Sleeve Bollard (1) Origin Acoustics ® Type A Screws Origin Acoustics Metal Tie- Clasps No Sleeve Origin Acoustics No Sleeve Wire Nuts (4 Installation Manual for Sleeve (2) -
Page 6: Required Tools
AMBISONIC LANDSCAPE COLLECTION™ 4. REQUIRED TOOLS • • Flat Head Screwdriver Phillips Screwdriver [Min 10'' Length] OR Electrical Drill • with Elbow Attchment Shovel 5. BOLLARD UNIT ASSEMBLY The Bollard comes in two individual packages; 1) Subwoofer 2) Mid-Range/Tweeter with Port-Tube and Sleeve To assemble these, it will depend on which shape of sleeve you have purchased. - Page 7 AMBISONIC LANDSCAPE COLLECTION™ DIAGRAM 5A. MID-RANGE/ TWEEETER PORT-TUBE ASSEMBLY AMBISONIC LANDSCAPE COLLECTION™ DIAGRAM 1: MID-RANGE/ TWEEETER PORT-TUBE ASSEMBLY PORT- TUBE ALIGNMENT AMBISONIC LANDSCAPE COLLECTION™ PORT- TUBE ALIGNMENT AMBISONIC LANDSCAPE COLLECTION™ AMBISONIC LANDSCAPE COLLECTION™ DON'T DIAGRAM 1: MID-RANGE/ TWEEETER PORT-TUBE ASSEMBLY DIAGRAM 1: MID-RANGE/ TWEEETER PORT-TUBE ASSEMBLY DIAGRAM 1: MID-RANGE/ TWEEETER PORT-TUBE ASSEMBLY PUSH...
- Page 8 AMBISONIC LANDSCAPE COLLECTION™ CABLE CONNECTION Origin Acoustics No Sleeve ®...
-
Page 9: Adding Sealant, Before Sleeve Assembly
AMBISONIC LANDSCAPE COLLECTION™ 5B. ADDING SEALANT, BEFORE SLEEVE ASSEMBLY Polyurethane Sealant: It is strongly recommended that Polyurethane Sealant be applied between the Sleeve & the Subwoofer Base. Care should be taken to apply a liberal 1/4'' bead of Polyurethane Sealant along the Port Tube Base of the Subwoofer, before assem- bling the sleeve over the Port Tube. - Page 10 AMBISONIC LANDSCAPE COLLECTION™ DIAGRAM 5C: ROUND SLEEVE ASSEMBLY 5C. SLEEVE ASSEMBLY WITH SNAP FIT LATCHES SNAP FIT LATCHES oustics SLEEVE ASSEMBLY WITH SCREWS TYPE A SCREWS: Phillips Flat Head Screws Origin Acoustics No Sleeve ®...
-
Page 11: Square Sleeve Assembly
AMBISONIC LANDSCAPE COLLECTION™ 5D. SQUARE SLEEVE ASSEMBLY The Square Bollard requires 2 adapter brackets to assemble the Square Sleeve over the Mid-Range/Tweeter Port Tube, and secure it to the Subwoofer base. Firstly, the Mid Bracket will be placed at the mid-length of the Port Tube unit, just below the Mid-Range/Tweeter section. - Page 12 AMBISONIC LANDSCAPE COLLECTION™ DIAGRAM 5D. SQUARE SLEEVE ASSEMBLY SQUARE SLEEVE ASSEMBLY: MID BRACKET TYPE B SCREWS: Phillips Pan Head Screws .79in 20.00mm 7.95in 202.00mm SQUARE SLEEVE ASSEMBLY: BOTTOM BRACKET ustics big bollard square adapter r Blvd 89118 SCALE:1:4 674-4461) oustics.com TYPE B SCREWS: SNAP FIT LATCHES Phillips Pan Head Screws...
- Page 13 AMBISONIC LANDSCAPE COLLECTION™ SQUARE SLEEVE ASSEMBLY: SCREW ATTACHMENT TYPE A SCREWS: Phillips Flat Head Screws [ Use Screwdriver Min. 10'' Length OR Electrical Drill with Elbow Attchment ]...
-
Page 14: System Layout
AMBISONIC LANDSCAPE COLLECTION™ 6. SYSTEM LAYOUT Placement of the speakers throughout the home’s exterior will depend on a couple of factors. The first is how uniform of a sound field is required. The laws of physics dictate that the further the listener is from the sound source the lower the apparent sound pressure level or “volume.”... - Page 15 AMBISONIC LANDSCAPE COLLECTION™ 7A. DRAIN PLUG The Ambisonic Bollard loudspeaker comes with a drain plug inserted at the bottom of its subwoofer enclosure. If there is water ingress for any unavoidable reason, removing the drain plug will allow for water to drain out. The drain plug is easily removable with a utility knife.
- Page 16 AMBISONIC LANDSCAPE COLLECTION™ OPTION 2 – REMOVE THE DRAIN PLUG This option is recommended: • In applications with dry soil where occasional water may accidently enter the enclosure. Use of gravel and sand will allow any water that gets into the sub enclosure to properly escape.
- Page 17 AMBISONIC LANDSCAPE COLLECTION™ 7C. BOLLARD INSTALLATION & SPRINKLER LOCATION It is highly recommended that the Bollard speaker be installed at a location such that the water sprinkler nearby (if any) does not spray the water jet into or +/- 2 inches from vertical slots of the bollard shell.
-
Page 18: Location Of The Tap Setting Switch
AMBISONIC LANDSCAPE COLLECTION™ 8. LOCATION OF THE TAP SETTING SWITCH DSP2-200 SUB OUT BRIDGED IN(L) EQ PRESET Each Bollard speaker comes with a wire pigtail connecting into the subwoofer and satellite OPTICAL OPTICAL UPDATE units of Bollard speaker, and each wire pair is labeled as SUB IN and SAT IN respectively. To change the power tap setting, use the tap switch under the cap on the subwoofer. -
Page 19: Wiring Setup: Installation Guidance
AMBISONIC LANDSCAPE COLLECTION™ 10. 70V WIRING SETUP: INSTALLATION GUIDANCE • Use 1 separate wire run for: Subwoofer units of Bollards • Use another separate wire run for: Satellite units of Bollards • The subwoofers and satellites will be run in PARALLEL for 70V WIRING SETUP. This means the positive connection on the amplifier will be connected to the positive connection on speaker 1, 2, 3, etc. - Page 20 AMBISONIC LANDSCAPE COLLECTION™ Firstly, Consider whether you will be running the satellites in a Mono or Stereo Setup: In many applications, the listener will never be equidistant from a left and right speaker, so Mono may be the best option. Regardless, the D3200 offers three independent channels so both setups are viable.
- Page 21 AMBISONIC LANDSCAPE COLLECTION™ RECOMMENDED AMP: D3200 AMP The D3200 Amp offers MONO or STEREO options, each using a different wiring setup: 70V SYSTEM: 100 W TAP SWITCH SETTING (70V) TAP MAX. NUMBER SWITCH SETTING OF BOLLARD SPEAKERS OPTION A: MONO SETUP 100 W OPTION A: MONO SETUP Maximum Number: 12 Bollard Speakers per D3200 AMP...
-
Page 22: Mono 70V Wiring With D3200 Amp [2 Channel Setup]
AMBISONIC LANDSCAPE COLLECTION™ 10A. MONO 70V WIRING WITH D3200 AMP [2 Channel Setup] From amp to From amp to ALL BOLLARD SATS ALL BOLLARD SUBS BRIDGED CHANNELS 2/3 (OUT 2) (OUT 1) SAT-R SAT-L MF/HF OUT 3 OUT 2 OUT 1 bridge NL4FC CONNECTOR SATELLITE CHANNEL 3... -
Page 23: Stereo 70V Wiring With D3200 Amp [3 Channel Setup]
AMBISONIC LANDSCAPE COLLECTION™ 10B. STEREO 70V WIRING WITH D3200 AMP [3 Channel Setup] From amp to From amp to From amp to CHANNEL 3 BOLLARD SATS CHANNEL 2 BOLLARD SATS ALL BOLLARD SUBS (OUT 3) (OUT 2) (OUT 1) SAT-R SAT-L MF/HF OUT 3... -
Page 24: Stereo 70V Wiring With D3200 Amp [3 Channel Setup]
AMBISONIC LANDSCAPE COLLECTION™ 10C. MONO or STEREO 70V WIRING WITH DSP3-700 AMP [3 Channel Steup] Left Right From amp to From amp to LEFT CHANNEL BOLLARD SATS RIGHT CHANNEL BOLLARD SATS SATELLITE CHANNEL 1 SATELLITE CHANNEL 2 white + white + green - green - SUBWOOFER CHANNEL 3... -
Page 25: Ω Wiring Setup: Installation Guidance
AMBISONIC LANDSCAPE COLLECTION™ 11. 8 Ω WIRING SETUP: INSTALLATION GUIDANCE 8Ω SYSTEM: 8Ω TAP SWITCH SETTING RECOMMENDED AMP: D3200 AMP SECOND CHOICE AMP: DSP3-700 AMP MAX. NUMBER SWITCH SETTING OF BOLLARD SPEAKERS 8Ω (bypass) D3200 Maximum Number: 2 Bollard Speakers per AMP in Low Impedance 1 SAT TO OUT 2 1 SAT TO OUT 3... -
Page 26: 11A. 8 Ω Wiring With D3200 Amp (1 Bollard Pair Only)
AMBISONIC LANDSCAPE COLLECTION™ These 8Ω configurations are run in a PAIR CONFIGURATION under the 8Ω TAP SETTING, the Bollard Subwoofers will be wired in PARALLEL. Please, contact Ambisonic & Origin Customer Service for any inquiry regarding these setups. 11A. 8 Ω WIRING WITH D3200 AMP (1 BOLLARD PAIR ONLY) From amp to From amp to From amp to... -
Page 27: 11B. 8 Ω Wiring With Dsp3-700 Amp (1 Bollard Pair Only)
AMBISONIC LANDSCAPE COLLECTION™ 11B. 8 Ω WIRING WITH DSP3-700 AMP (1 BOLLARD PAIR ONLY) Left Right From amp to From amp to LEFT CHANNEL BOLLARD SATS RIGHT CHANNEL BOLLARD SATS SATELLITE CHANNEL 1 SATELLITE CHANNEL 2 white + white + green - green - SUBWOOFER CHANNEL 3... -
Page 28: Troubleshooting
AMBISONIC LANDSCAPE COLLECTION™ 13. TROUBLESHOOTING If you have a problem, try isolating it first. For example, if you’re playing a DVD and there is no sound, try replacing the DVD with an MP3 player to see if you get sound. If it does work, then the problem is with the television, DVD player, or the cables connecting them. -
Page 29: Technical Assistance
AMBISONIC LANDSCAPE COLLECTION™ 14. TECHNICAL ASSISTANCE If you have any questions or concerns about installing or using this product, you can reach us through one of the following methods: Phone: (844) 674 - 4461 Hours of operation: 8:00am - 5:00pm (Pacific Time), Mon - Fri Email: info@ambisonicsystems.com If you are having technical trouble, please include the model number and briefly explain what steps you took to resolve the problem in your email, or be prepared... -
Page 30: Limited 5 Year Warranty
AMBISONIC LANDSCAPE COLLECTION™ 15. LIMITED 5 YEAR WARRANTY Ambisonic warrants to the original retail purchaser only that this Ambisonic product will be free from defects in materials and workmanship, provided the speaker was purchased from an Ambisonic authorized dealer. (Note: The recommended Ambisonic D3200 amp carries a separate Limited 2 Year warranty). -
Page 31: Return Process
AMBISONIC LANDSCAPE COLLECTION™ 15B. NOT COVERED BY WARRANTY • Accidental damage • Damage caused by abuse or misuse • Damage caused by attempted repairs/modifications by anyone other than Origin Acoustics or an authorized dealer • Damage caused by improper installation •... - Page 32 Rev A • 10-14-2022 6975 S Decatur BLVD, Las Vegas, NV 89118 • www.ambisonicsystems.com • 844-674-4461 ©2022 Ambisonic. All copyrighted, trademarked and patented elements mentioned herein are the sole property of Ambisonic Systems.
