Sealey SIEGEN S01045.V2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions
and maintained properly, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear Eye
Instructions Protection
1. SAFETY
 WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.
 WARNING! Disconnect from air supply before changing the blade, servicing or performing maintenance.
 Maintain the saw in good condition (use an authorised service agent).
 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
 Use in suitable clean and tidy work area, free from unrelated materials, Ensure that there is adequate lighting.
 WARNING! Always wear approved eye or face and hand protection when operating the saw.
 Remove ill fitting clothing. Remove ties, loose jewellery and contain and/or tie back long hair.
 Wear appropriate protective clothing and keep hands and body clear of working parts.
 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
 Keep children and unauthorised persons away from the work area.
 Check moving parts alignment on a regular basis.
 Ensure workpiece is secure before operating the saw.
 Never hold a workpiece by hand. Use a vice or clamps.
 WARNING! Ensure correct air pressure is maintained and not exceeded. Recommended pressure 50-90psi.
 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are secure.
 Prolonged exposure to vibration from this saw poses a health risk. It is the employer's/owner's responsibility to assess the hazard correctly and
issue guidelines for safe periods of use and offer suitable protective equipment.
 DO NOT use any power source except an air compressor.
 DO NOT operate saw near any flammable substance or on any container that has held a flammable substance.
 DO NOT use the saw for a task it is not designed to perform.
 DO NOT operate saw if any parts are damaged or missing as this may cause failure and/or personal injury.
 DO NOT carry the saw by the hose, or pull the hose from the air supply.
 DO NOT operate saw when you are tired or under the influence of alcohol, drugs or intoxicating medication.
 DO NOT carry the saw with your finger on the trigger.
 DO NOT direct air from the air hose at yourself or others.
 Always recoil air line in a controlled manner.
 When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. INTRODUCTION
Ideal for initial crash-repair preparation when quick removal of damaged panels is required. Fitted with safety trigger device to prevent accidental
operation. Features adjustable blade guide. Supplied with a starter pack of blades. Suitable for the DIY enthusiast and light garage use.
3. SPECIFICATION
Maximum Cutting Capacity: . . 2mm(Steel), 2.5mm(Aluminium)
Free Speed: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10000spm
Operating Pressure: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90psi
Air Consumption: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4cfm
Air Inlet: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4"BSP
© Jack Sealey Limited
INSTRUCTIONS FOR:

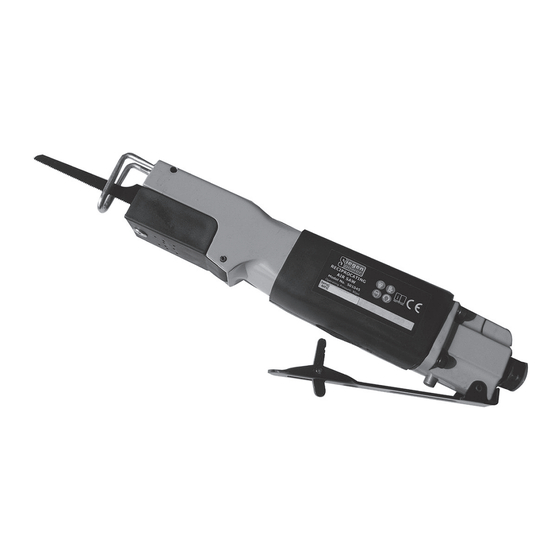

AIR SAW RECIPROCATING
S01045.V2
MODEL NO:
Wear Protective Wear Ear
Gloves Protection
Original Language Version
Wear Respiratory
Protection
Stroke: . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mm
Weight: . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.6kg
Vibration . . . . . . . . . . . . . . . . . . . . . . . 13.9m/s²
Uncertainty: . . . . . . . . . . . . . . . . . . . . . 5.56m/s²
Noise Power: . . . . . . . . . . . . . . . . . . . 100dB(A)
Noise Pressure: . . . . . . . . . . . . . . . . . . 89dB(A)
S01045.V2 Issue:1 - 07/04/15
