TM

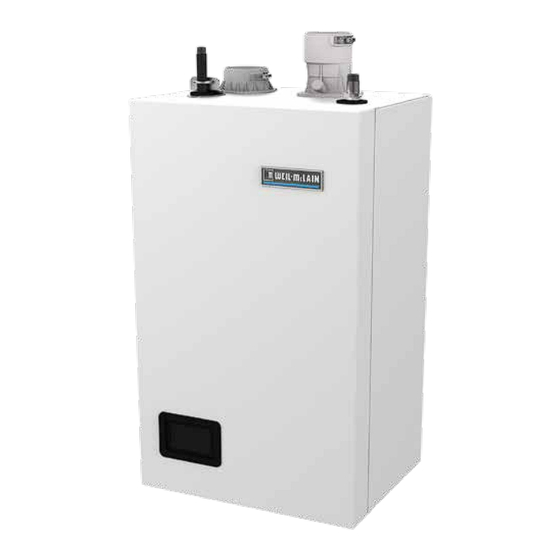

110/150/199
Wall Mount Gas - Fired
Condensing Boiler - Combi Model
User Information Manual
If the information in this manual is not followed exactly, a fire or explosion may result, causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS —
y DO NOT try to light any appliance.
y DO NOT touch any electrical switch; do not use any telephone in your building.
y Immediately call your gas supplier from a neighbor's telephone. Follow the gas supplier's instructions.
y If you cannot reach your gas supplier, call the fire department.
y Installation & service must be performed by a qualified installer, service technician or the gas supplier.
Manual Part Number 550-143-075/0824
Part number 550-100-XXX/XXXX
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Weil-McLain Simplicity 110
Summary of Contents for Weil-McLain Simplicity 110
- Page 1 110/150/199 Wall Mount Gas - Fired Condensing Boiler - Combi Model User Information Manual If the information in this manual is not followed exactly, a fire or explosion may result, causing property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. —...
- Page 2 SIMPLICITY 110/150/199 User’s Information Manual Please Read This Page First Simplicity Boiler Components To . . . Read and use . . . Page Learn See Hazard Definitions, below precautions Locate boiler See illustration at right components Laundry room or pool — make sure boiler air is piped to boiler per manual.
- Page 3 Use only in boiler system. Gaskets and seals in the system may be the products listed by Weil-McLain for use with this boiler. See damaged. This can result in substantial property damage.
-
Page 4: Prevent Combustion Air Contamination
SIMPLICITY 110/150/199 User’s Information Manual Prevent Combustion Air Contamination Air Contamination Figure 1 Corrosive contaminants and sources Common household and hobby products often contain fluorine or chlorine compounds. When these chemicals Products to avoid pass through the boiler, they can form strong acids in the Spray cans containing chloro/fluorocarbons vent system or boiler. -
Page 5: Annual Startup And General Maintenance
SIMPLICITY 110/150/199 User’s Information Manual Annual Startup And General Maintenance Figure 2 Service and maintenance schedules OWNER MAINTENANCE (see the following pages for instructions) Contact your boiler service technician to inspect, service and start up your BEGINNING OF SEASON boiler. You must have an annual start-up performed by a qualified service technician to ensure reliable operation of the boiler and system. -
Page 6: User Maintenance Procedures
SIMPLICITY 110/150/199 User’s Information Manual User Maintenance Procedures The boiler should be inspected and started annually, at the beginning of the heating season, only by a qualified service technician. In addition, the maintenance and care of the boiler designated on page 5 and explained on the following pages must be performed to assure maximum boiler efficiency and reliability. - Page 7 SIMPLICITY 110/150/199 User’s Information Manual User Maintenance Procedures (continued) Check Vent & Air Piping Visually inspect the flue gas vent piping and air piping Scald hazard — Water from air vent may be very hot. for any signs of blockage, leakage or deterioration of Avoid contact to prevent possible severe personal the piping.
- Page 8 SIMPLICITY 110/150/199 User’s Information Manual User Maintenance Procedures (continued) Check Boiler Piping 5. If water does not flow from the valve when you lift the lever completely, the valve or discharge 1. Check all gas lines and smell for gas odors. line may be blocked.
- Page 9 SIMPLICITY 110/150/199 User’s Information Manual Operating Instructions Figure 5 Operating instructions (see page 2 for location of manual gas valve) On-Off Manual Part Number 550-143-075/0824...
- Page 10 SIMPLICITY 110/150/199 User’s Information Manual Control Settings Menus Simplicity Figure 6 control display screen layout and elements STATUS COLUMN: STANDBY through HEAT appear based on the status of the corre- sponding input. Dot appears next to the priority currently being serviced. OUTPUTS ROW: 120v outputs and the status for each.
-
Page 11: Control Display
SIMPLICITY 110/150/199 User’s Information Manual The Simplicity Control Display Date/Time: Allows user to edit the current date, time, and daylight savings time. Backlight: Allows user to edit how bright the screen is during normal operation and when dormant. Software: Displays the current software revisions of the control and display. Bluetooth: Allows the user to turn Bluetooth ON or OFF. - Page 12 Direct water flow away from any person. For all applications: Protection must be taken against excessive pressure on the Combi side! Install a pressure relief valve (150 psig) on the Combi Domestic Outlet pipe. WM Technologies, LLC 500 Blaine Street Michigan City, IN 46360-2388 weil-mclain.com...
