TORP TC500A72V Quick Start Manual

QUICK START GUIDE
Make sure you follow these instructions for a
quick start with the TC500A72V for SurRon
LightBee / Segway X260 and Talaria MX3 / MX4
Connect the wires as shown below! Use only screws and tools
included in the box. The Product must be used in combination
with the circuit breaker
installation, you will lose the Warranty and cause serious
damage to the Product!
TC500 Controller is not an original SurRon/Segway/Talaria part
so you are using it at your own risk.

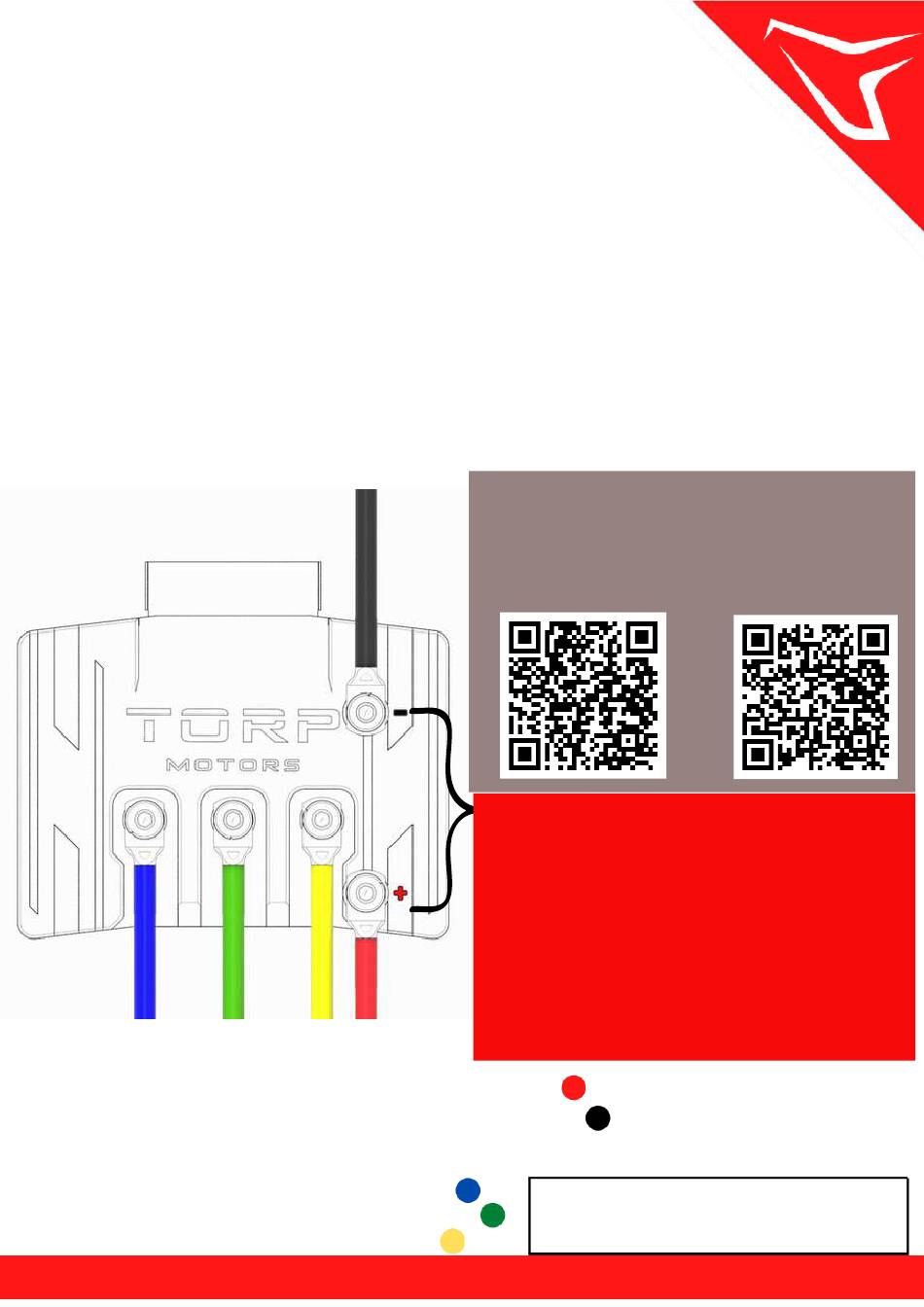

Power Wires
Make sure to connect:
The red battery wire
The black battery wire to the negative (-) electrode
Phase Wires*
Make sure to connect:
The Blue motor
The Green motor
The Yellow motor
For additional support contact us through the support form available in the contact section on Torp website.
at all times! In case of incorrect
to the positive (+) electrode
wire to the the letter B
wire to the the letter G
wire to the letter Y
For proper installation watch
the Installation Video:
SurRon LB
M6 screws with Washers
Max Torque 3.5 Nm
Use only tools included with the
controller! Any damage caused by
torque higher than 3.5 Nm and tools
that are not part of the original
package is
not covered by warranty!
*Not connecting phase wires correctly
can cause the bike to go in reverse!
Talaria
Fasten lightly!
