TORP TC1000 User Manual

Hide thumbs Also See for TC1000:

Advertisement

Quick Links

Download this manual
TORP TC1000
CONTROLLER.
User Manual for Surron Light Bee

Advertisement

loading
Need help?

Need help?

Do you have a question about the TC1000 and is the answer not in the manual?

Questions and answers

Related Manuals for TORP TC1000

Summary of Contents for TORP TC1000

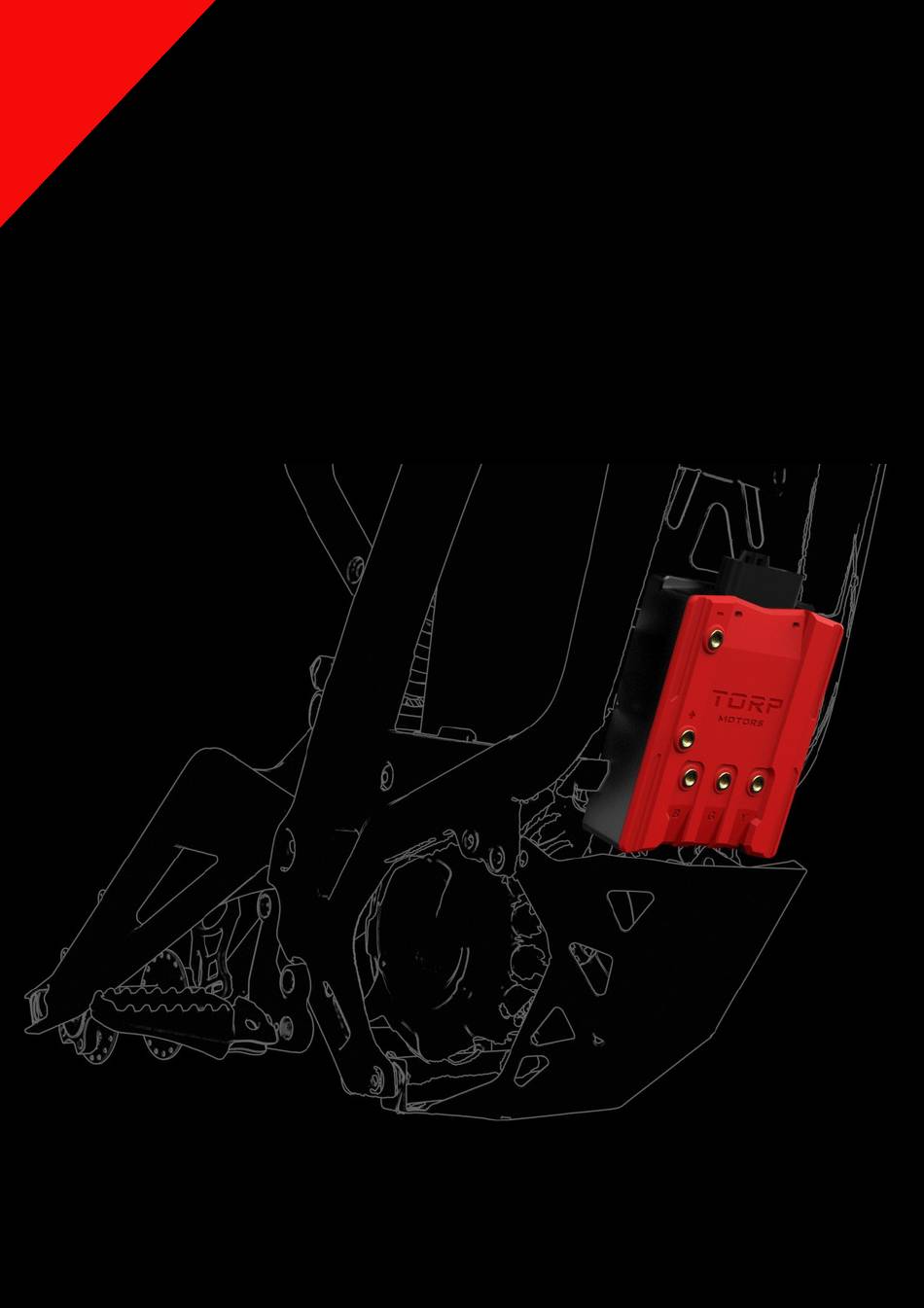

  • Page 1 TORP TC1000 CONTROLLER. User Manual for Surron Light Bee...
  • Page 2 TC1000 controller. In general, all SurRon/Segway X260 motors, manufactured after 2018 are compatible with the TC1000 controller. TC1000 controller is compatible with both versions of the stock display (L1 E & the off-road version). Both speed and the distance are displayed on it. For the additional options, like battery monitoring and settings, you will have to use your smartphone or buy a Torp Display, that is sold separately.
  • Page 3 WWW.TORPMOTORS.COM THE BOX CONSIST OF: - TC1000 controller - Wiring harness - 5 phase screws with washers - 2 hex keys and 4 bolts - 4 stickers - Heat sink - Short instructions All the settings and diagnostics are managed through an intuitive and easy-to use smartphone app for Android and IOS.

  • Page 4: Installation

    WWW.TORPMOTORS.COM INSTALLATION. Before starting with the installation, drain the bike`s capacitors. Switch off the fuse Switch on the bike and wait for the capacitors to drain. Now you can start removing the stock SurRon controller and the battery from the frame, and lower the skid-plate that covers the wiring.
  • Page 5 WWW.TORPMOTORS.COM STEP 3: There are 5 screws with washers already on the controller. Remove them from the controller and start connecting the controller to the phase motor wires. DON`T MESS THIS ONE UP! STEP 5: Connect the power and phase motor wires as shown on the picture using the screws with washers that you have removed from the controller in the previous step: Power Wires:...
  • Page 6 There are also 2 more connectors with a cap on it. To which the Torp Display and Thumb throttle are connected. See page 20.
  • Page 7 WWW.TORPMOTORS.COM A USEFUL TIP. Apply silicone grease to the controller and the main connector for additional protection from dirt and moisture. STEP 8: Take the plastic shield that came with the controller and mount it by placing its lower part into the skid plate. STEP 9: Use the longer M6 screws and a larger hex key to...
  • Page 8 WWW.TORPMOTORS.COM STEP 10: Put the battery back to the frame. STEP 11: Connect the battery to the battery power connector and to the 6-pin connector. STEP 12: Turn the fuse back on. Always use the Controller with the stock SurRon/Segway fuse!
  • Page 9 CALLIBRATION must be repeated after each firmware update! We suggest you always ride with the app set to the 1s screen. This is how the Torp Controller App will be able to recognize potential errors which will help our support team with detecting...
  • Page 10 THE APP OVERVIEW. 1st Screen: GAUGE The TC1000 controller is compatible with the stock SurRon display, where you will be able to track your speed and distance. However, we recommend using your smartphone as the display during the rides. The first screen serves as a gauge, showing all your riding information in real time.
  • Page 11 THE LIST OF WARNINGS AND ERRORS WWW.TORPMOTORS.COM Connect to the controller with the Torp App to see the Warning and Error messages on the 1st screen in the app. -KICKSTAND: Your kickstand is lowered. -OVERVOLTAGE: Battery voltage is Lift it to start riding.
  • Page 12 WWW.TORPMOTORS.COM -CUTOFF THROTTLE: The throttle has been activated while the bike is being turned on. -1st solution: Release the throttle when turning on the bike; -2nd solution: Re-calibrate the throttle (see the "Setting up the Throttle" section of this document) ; -3rd solution: Check the wiring.
  • Page 13 WWW.TORPMOTORS.COM 2nd Screen: PEAKS Check all the minimal and maximal values that occurred during your ride.
  • Page 14 WWW.TORPMOTORS.COM 3rd Screen: BATTERY INFO You will be able to see all the functions of this screen only with the stock SurRon battery and stock BMS. It also works with the bypassed battery, but with limited display of data (battery current, cycles and SOH will not be displayed correctly).
  • Page 15 We suggest you to use the settings that have been preset in the app by default. Note that the TC1000 controller is not an original SurRon/Segway part, therefore you are using it strictly at your own risk. The damages that are caused by using the controller are solely your responsibility.
  • Page 16 Setting the motor temperature to the red values can cause the motor to overheat and fail. 12-Kickstand and Crash sensor: The TC1000 controller is compatible with stock SurRon Kickstand and Crash sensors. You can simply turn them on and off through the App.
  • Page 17 SPORT MODE -BUTTON: You can switch between ECO and SPORT modes with the mode button on the bike -TORP DISPLAY: Switch between the ECO and SPORT modes using the TORP DISPLAY. 14-Throttle Settings: Set the throttle response according to your preferences and calibrate the throttle.
  • Page 18 Use this screen to identify your controller and to adjust the general settings. This screen is also useful in case of controller malfunctions, since it allows you to share errors and ride logs with Torp support team. 1-General Information: Check the App and Controller Firmware versions and update them in case there is a newer version available.
  • Page 19 WWW.TORPMOTORS.COM 5-Bluetooth Pass: In case you want additional protection for your controller, enter a Bluetooth password, which can be found on the controller`s label. Bluetooth pass will be required every time you will connect to the App with a new device. 6-Scan Bluetooth: Use it for connecting to your device.
  • Page 20 *A Torp Controller can be also used with other batteries, but you should keep in mind that in this case the voltage of the fully charged battery should not be above 84V, and minimal battery voltage should not be less...
  • Page 21 TORP DISPLAY AS A MODE BUTTON To use the Torp Display as a MODE BUTTON, you should go to the Settings Screen in the Torp App (4th screen) and tap on the MODE BUTTON option at the bottom of the screen.

  • Page 22: Stock Mode

    Stock mode allows you to ride your bike in the road-legal configuration. This option is functional with the Torp Display. To activate it, you should hold the MODE button on the Torp Display for 3 seconds until the STOCK sign appears. To deactivate it, hold the MODE button for 6 seconds.
  • Page 23 WWW.TORPMOTORS.COM For additional support contact us at: support@torp.hr with: -your Serial Number (S/N) -a detailed description of the error, with photos and videos and our team will get back to you with the solution.
  • Page 24 WWW.TORPMOTORS.COM TORP D.O.O.//Tina Ujevića 41, Rijeka, Croatia//+385 95 5296 488// info@torp.hr 07.02.2024...
