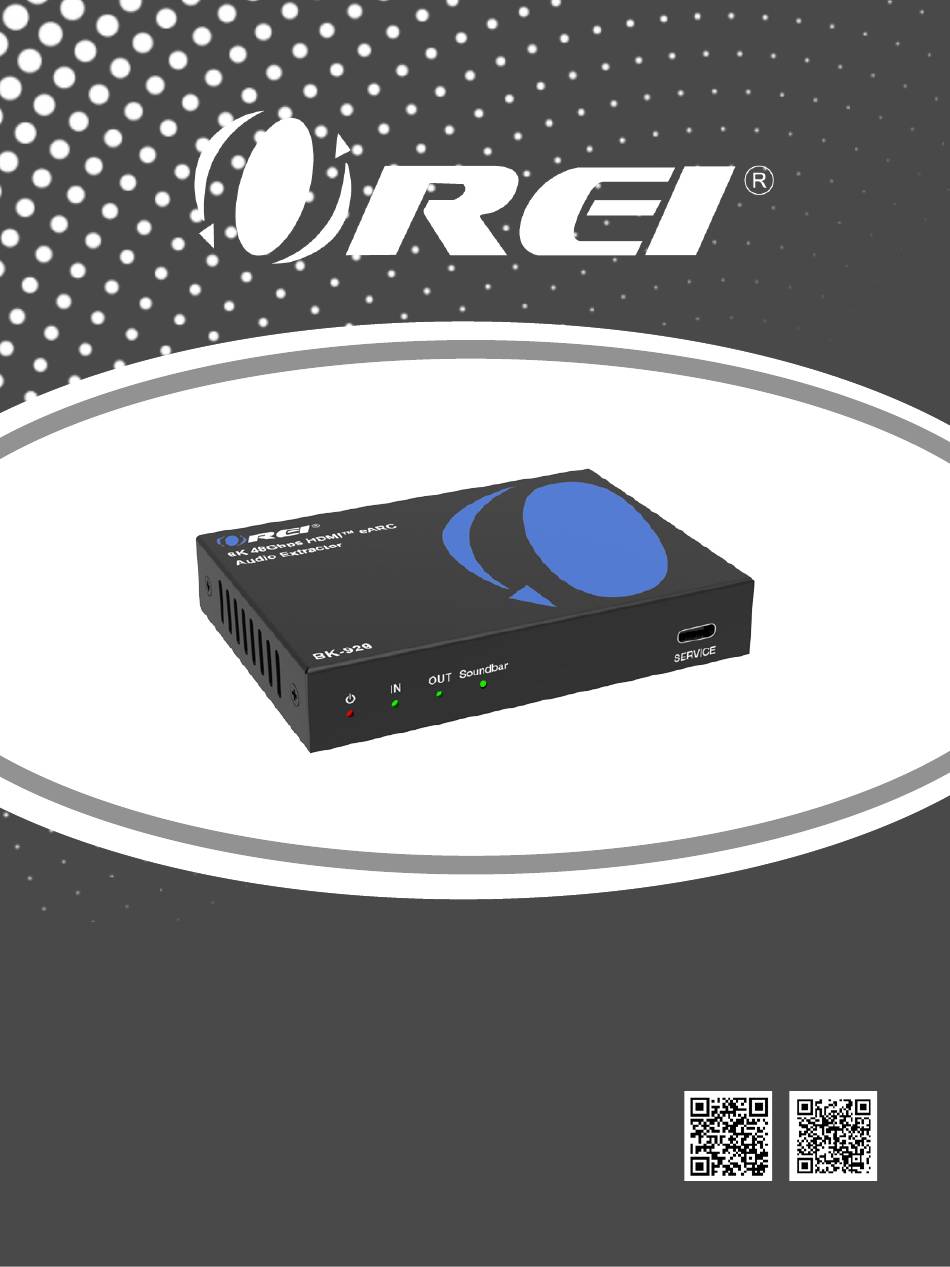

  • Page 1 BK-929 8K 48Gbps HDMI eARC Follow us on Youtube and Facebook Audio Extractor US E R M ANUA L www.orei.com Page 1...
  • Page 2: Table Of Contents

    Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example FAQs & Troubleshooting Thank you for purchasing this product For optimum performance and safety, please read these instructions care- fully before connecting, operating or adjusting this product. Please keep this manual for future reference.
  • Page 3: Registration Page

    Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget. Call, email or chat with us now.
  • Page 4: Introduction

    Introduction The BK-929 HDMI eARC Audio Extractor is crafted to extract au- dio signals from an HDMI source, delivering HDMI audio output to an ARC/eARC Soundbar. Compliant with HDMI 2.1 and HDCP 2.3 requirements, it supports video bandwidth up to 48Gbps FRL and 18Gbps TMDS.
  • Page 5: Features

    HDR/10/10+, Dolby Vision and HLG pass through LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through Extract audio directly from any input media device Compact design, plug and play setup Package Contents BK-929 1pcs 5V/1A Power Supply 1pcs Power Adapter 1pcs...
  • Page 6: Specifications

    Specifications Technical HDCP Compliance HDCP 2.3 HDMI Compliance HDMI 2.1 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit Audio Latency No Latency Video Latency No Latency Color Space RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 Color Depth 8/10/12bit HDMI Input/Output:...
  • Page 7 Specifications Mechanical Housing Metal Enclosure Color Black L: 95mm / 3.74in Dimensions W: 68mm / 2.67in H: 18mm / 0.7in Weight 178g / 6.27oz Input: AC 100-240V 50/60Hz, Output: DC 5V/1A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption 3.92W (Max) Operation -10°C ~ 50°C / 14°F ~ 122°F Temperature...
  • Page 8: Operation Controls And Functions

    Operation Controls and Functions Front Panel Soundbar SERVICE Name Function Description Power LED The Red LED will light up when the device is turned on. The Green LED will light up when an active source is IN LED detected. OUT LED The Green LED will light up when a display is connected.
  • Page 9: Operation Controls

    Operation Controls and Functions Rear Panel Soundbar Source DC 5V Name Function Description Source IN Connect a media source such as a DVD Player, Set-top port box, etc. TV OUT Connect a display device such as a monitor, TV, etc. port Soundbar Connect a Soundbar.
  • Page 10: Application Example

    Application Example DVD or Blu-ray Player Soundbar Soundbar Source DC 5V Power Supply 8K TV Page 10...
  • Page 11: Faqs & Troubleshooting

    FAQs & Troubleshooting 1. What kind of HDMI Cables should I use with this product? We recommend using HDMI 2.1 cables under 30 feet with this device. 2. My TV does not have eARC, only ARC, will this device help to extract Dolby Atmos? No, it would not work with ARC/eARC port of your TV.
  • Page 12 8K 48Gbps HDMI eARC Audio Extractor BK-929 www.orei.com © 2024 Page 12...
