Summary of Contents for REI BK-927

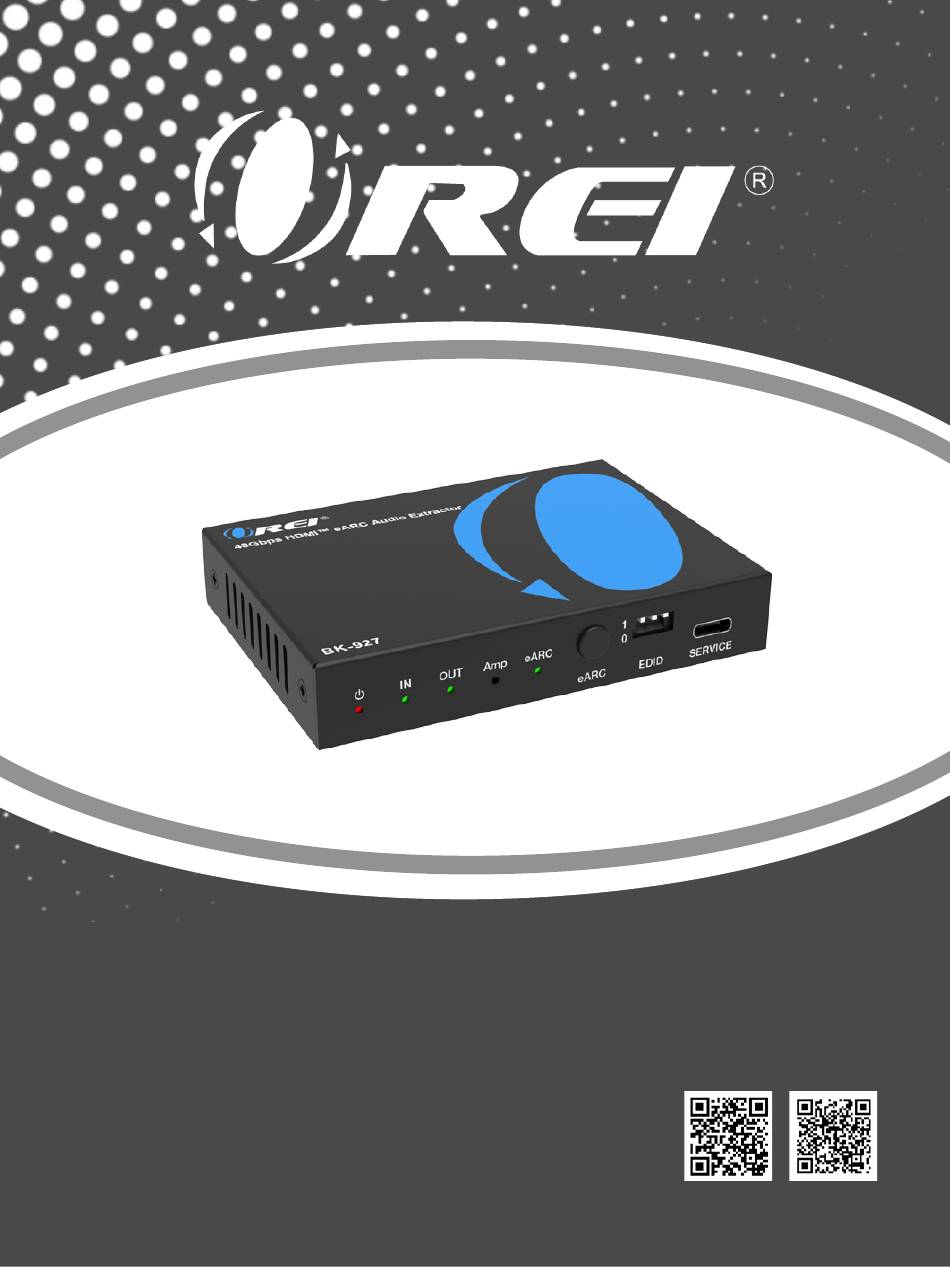

- Page 1 BK-927 48Gbps HDMI eARC Audio Follow us on Youtube and Facebook Extractor US E R M ANUA L www.orei.com Page 1...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example FAQs & Troubleshooting Thank you for purchasing this product Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. -
Page 3: Registration Page
Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help troubleshoot your project to get you installed on time and on budget. Call, email or chat with us now. -
Page 4: Introduction
Introduction The BK-927 HDMI eARC Audio Extractor seamlessly extracts audio signals from your HDMI source or TV with ARC/eARC and delivers them to your AV receiver via HDMI. Boasting support for 48Gbps video bandwidth, this device complies with both HDMI 2.1 and HDCP 2.3 standards, ensuring compatibility with your lat-... -
Page 5: Features
LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through from HDMI ARC Audio Extraction from an ARC/eARC TV Features CEC control Advanced EDID management Compact design and easy installation Package Contents BK-927 1pcs Power Adapter 1pcs User Manual 1pcs Page 05... -
Page 6: Specifications
Specifications Technical HDCP Compliance HDCP 2.3 HDMI Compliance HDMI 2.1 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit Audio Latency No Latency Video Latency No Latency Color Space RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 Color Depth 8/10/12bit HDMI Input/Output:... - Page 7 Specifications Mechanical Housing Metal Enclosure Color Black Dimensions 95mm [L] × 68mm [W] × 18mm [H] Weight 178g / 6.27oz Input: AC 100-240V 50/60Hz, Output: DC 5V/1A Power Supply (US/EU standards, CE/FCC/UL certified) Power Consumption 3.38W (Max) Operation -10°C ~ 50°C / 14°F ~ 122°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Front Panel eARC eARC EDID SERVICE Name Function Description Power LED The RED LED will light up when the device is turned on. The GREEN LED will light up when an input signal is IN LED detected. - Page 9 Operation Controls and Functions Name Function Description (Connections above) 011: FRL12G_8K_HDR, 7.1CH EDID DIP 010: FRL10G_8K_HDR, 2.0CH switch 001: FRL10G_8K_HDR, 5.1CH 000: FRL10G_8K_HDR, 7.1CH SERVICE Firmware update and debug port. Rear Panel AUDIO OUT TV(eARC) Source DC 5V Name Function Description Source IN Connect an HDMI Source device such as a DVD Player, port...
-
Page 10: Application Example
Application Example Amplifier AUDIO OUT TV(eARC) Source DC 5V Power Supply 8K TV with eARC Note: When eARC function is turned on, the audio will be extracted from the connected ARC/eARC TV. When the eARC function is turned off, the audio will be extracted from the connected source device. -
Page 11: Faqs & Troubleshooting
FAQs & Troubleshooting 1. No Video Output Try the following: 1. Check if the LEDs on the front of the device are lighting up? 2. Change the HDMI cable going to the display 2. No Audio Output Try the following: 1. - Page 12 48Gbps HDMI eARC Audio Extractor BK-927 www.orei.com © 2023 Page 12...
