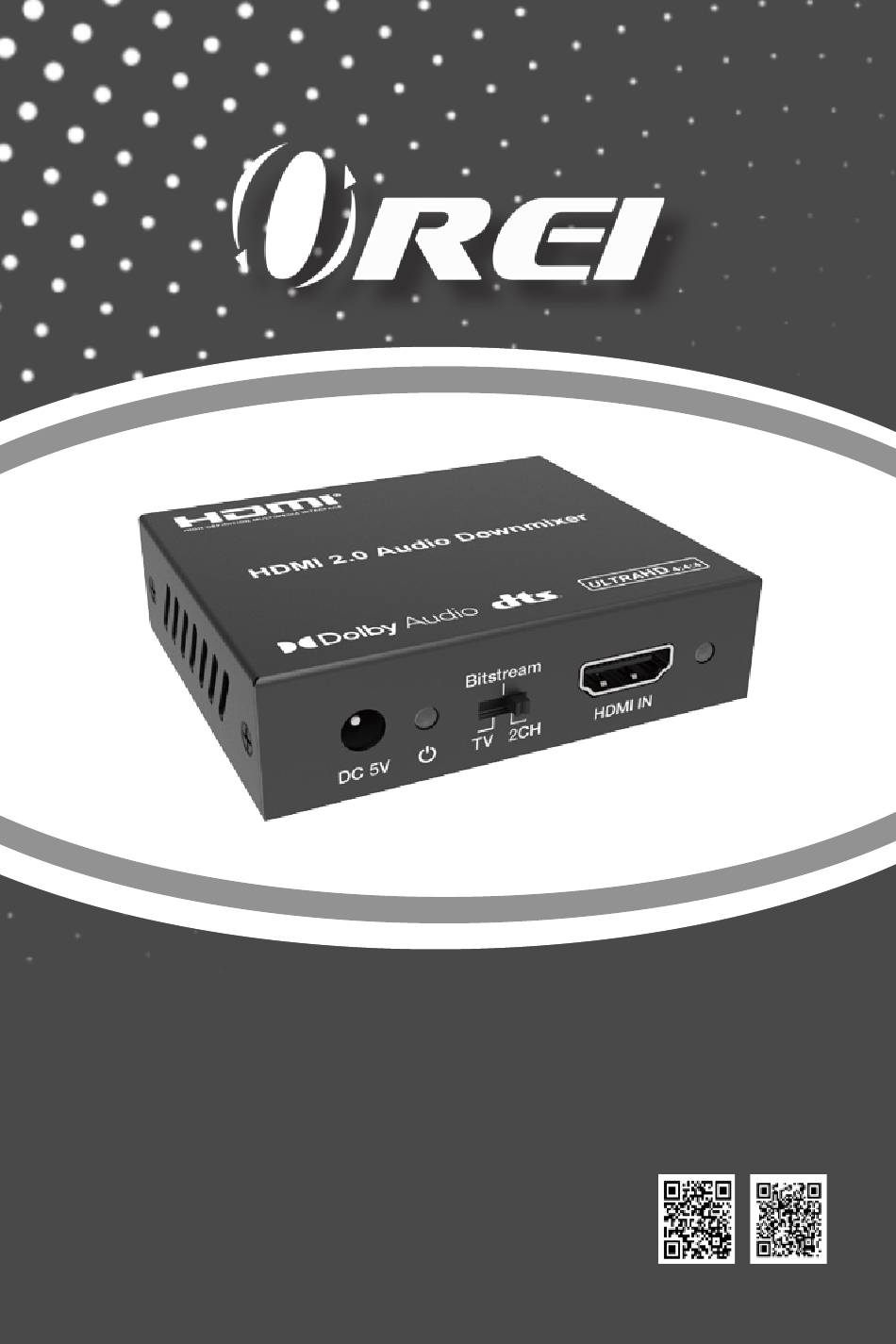

- Page 1 HDA-913 HDMI 18Gbps Audio Extractor with Audio Downmix Follow us on Youtube and Facebook USER MANUAL www.orei.com...
-
Page 2: Table Of Contents
Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Application Example Thank you for purchasing this product Thank you for purchasing this product. For optimum perfor- mance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. - Page 3 Registration Page Please Activate your warranty by registering our product through the link below - www.orei.com/register Technical Support Need Help? Our experienced Technical Support Team is here for you to answer your questions, give technical advice or help trouble-shoot your project to get you installed on time and on budget.
-
Page 4: Introduction
Introduction The HDA-913 Audio Extractor with Audio Downmix can extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. For maximum flexibility, this audio extractor also supports bitstream audio down-mix to analog stereo output, and keeps optical and HDMI output audio pass-through. -
Page 5: Features
2/5.1CH, DTS 2/5.1CH 7. Supports HDMI High Bit Rate(HBR) audio pass-through 8. Audio sample rates up to 192kHz 9. 10bits HDR (High Dynamic Range) pass-through 10. Supports CEC pass-through Package Contents HDA-913 Audio Extractor 1pcs 5V/1A Power Adapter 1pcs User Manual 1pcs... -
Page 6: Specifications
Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.4 Video Bandwidth 18Gbps Up to 4K2K@50/60Hz(YUV4:4:4), Video Resolution 4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, HDMI Audio Formats Dolby Digital+, Dolby TrueHD, DTS-HD (Pass-through) Master Audio, Dolby Atmos, DTS:X Optical Audio LPCM 2CH, Dolby Digital 2/5.1CH, Formats... - Page 7 Specifications Connections Inputs 1 × HDMI Type A [19-pin female] 1 × HDMI Type A [19-pin female] Outputs 1 × L/R Audio Out [RCA] 1 × Optical Out [S/PDIF] Mechanical Housing Metal Enclosure Silkscreen Color Black Dimensions 73.5mm (W) × 60.7mm (D) × 20mm (H) Weight 135g Input: AC 100-240V 50/60Hz...
-
Page 8: Operation Controls And Functions
Operation Controls and Functions Front Panel Bitstream DC 5V HDMI IN Name Function Description 1. DC 5V DC 5V 1A input port for power supply. 2. Power LED Power indicator. Used to select audio format: TV: Copy EDID from TV. Bitstream: Multi-channel audio, up to six /Bitstream /2CH... - Page 9 Operation Controls and Functions Rear Panel HDMI OUT OPTICAL OUT Name Function Description HDMI output port, connects to an HDMI 1. HDMI OUT display device, such as TV or monitor. OPTICAL Toslink digital audio output port (mirrors HDMI). 3. L/R OUT Stereo RCA analog audio output port.
-
Page 10: Application Example
Application Example AV Receiver UHDTV HDMI OUT OPTICAL OUT Bitstream Active Speakers DC 5V HDMI IN Power Supply DVD or Blu-ray Player For DTS patents, see http://patents.dts. Manufactured under license from com. Manufactured under license from Dolby Laboratories. Dolby and the DTS Licensing Limited. - Page 11 HDMI 18Gbps Audio Extractor with Audio Downmix www.orei.com © 2023...
