Summary of Contents for Ryobi R36XBCT10

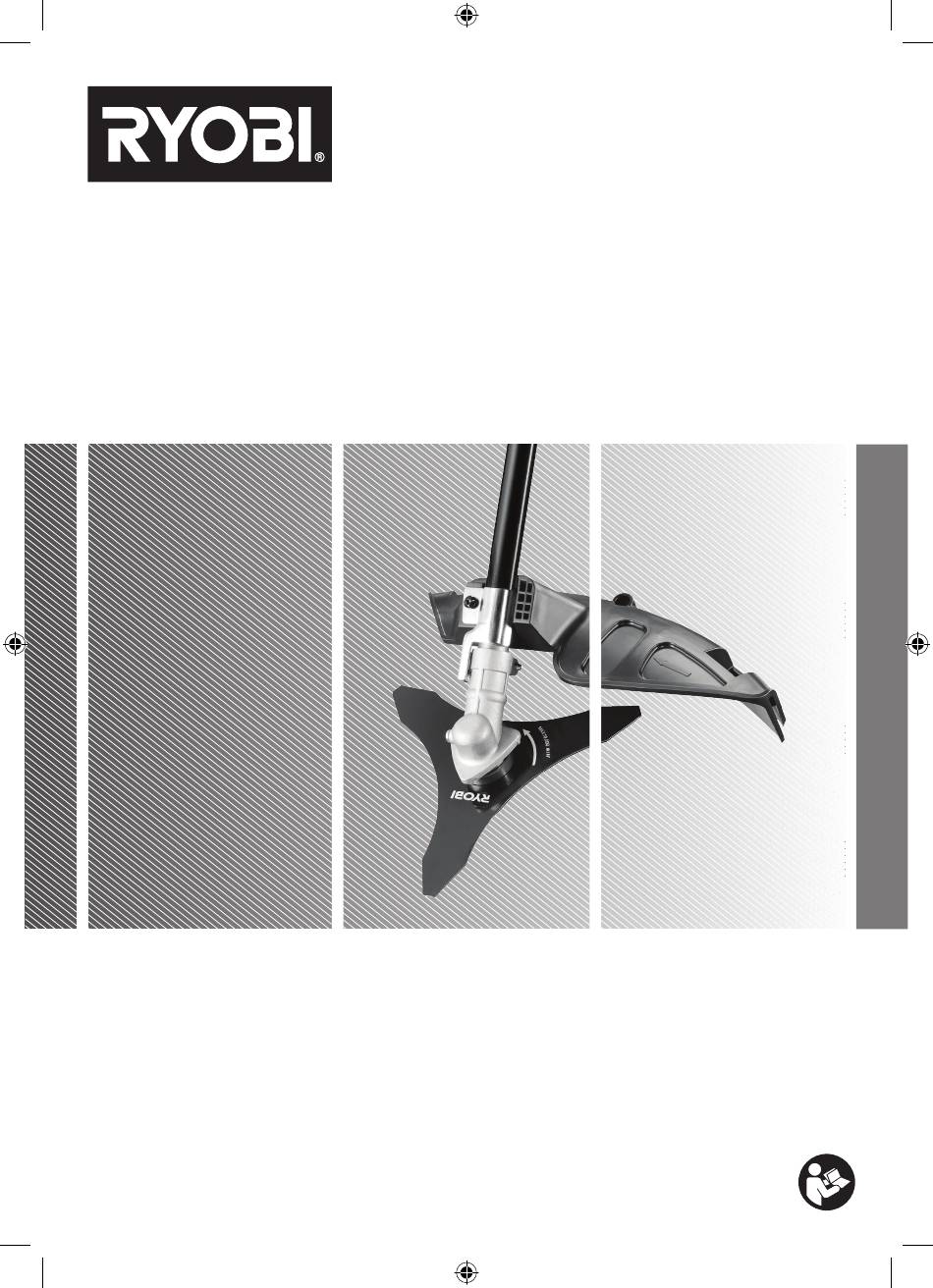

  • Page 1 R36XBCT10...

  • Page 2: Intended Use

    cord away from heat, oil, sharp edges or moving IMPORTANT! parts. Damaged or entangled cords increase the risk of It is essential that you read the instructions in this manual electric shock. before assembling, operating, and maintaining the ■ When operating a power tool outdoors, use an product.
  • Page 3 ■ Store idle power tools out of the reach of children ■ Never service damaged battery packs. Service and do not allow persons unfamiliar with the power of battery packs should only be performed by the tool or these instructions to operate the power tool. manufacturer or authorized service providers.

  • Page 4: Additional Safety Warnings

    ■ Keep all parts of the body away from the cutter, line Investigate and take corrective actions to eliminate the or blade when the machine is operating. Before you cause of blade binding. start the machine, make sure the cutter, line or blade ■...

  • Page 5: Transportation And Storage

    ■ Do not wear multiple belt or shoulder harnesses. ■ When transporting the product in a vehicle, secure it against movement or falling to prevent injury to persons ■ Always ensure that ventilation openings are kept clear or damage to the product. of debris.

  • Page 6: Symbols In This Manual

    This product is not intended for use with a toothed saw type blade. The TRI-ARC blade is appropriate for the product and is suited for cutting pulpy weeds and vines. Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area.

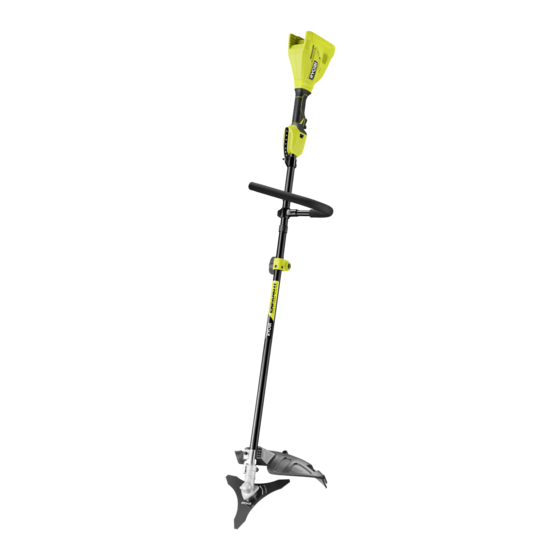

  • Page 7 R36XBCT10 Harness hanger Rear handle On/Off trigger Lock-out trigger Speed selector Upper drive shaft Front handle Hanger cap Lower drive shaft Grass deflector Knob Combination wrench Lock pin TRI-ARC blade Blade protector Harness Operator's manual Battery pack Charger Know your product...
  • Page 8 Wear full eye protection, ear and Push the lock button and remove the hanger cap from the lower drive shaft. Insert head protection, non-slip heavy-duty the lower drive shaft into the upper drive shaft, and push the lower drive shaft until the lock button clicks into place.
  • Page 9 Install the grass deflector to the bottom side of the silver bracket on the lower drive On the underside of the front handle, shaft. Insert the tab of the bracket into the opening on the grass deflector. Align the loosen the nut and bolt. screw to the hole on the grass deflector.
  • Page 10 Operating the p.11 product Replacing the Cleaning the p.13 p.15 p.16 Storing the product TRI-ARC blade product...

  • Page 11: Operating The Product

    OPERATING THE PRODUCT WARNING: For safety reasons, the product must be adequately controlled by a two- handed operation. Hold the product with one hand on the rear handle and the other hand on the front handle. WARNING: Exercise extreme caution when using the product.
  • Page 12 NOTE: Use the speed selector to adjust the speed from low to high. 3. Use the product to cut long grass, pulpy weed, and similar vegetation at or about ground level. NOTE: Beware of blade thrust. NOTE: Cut tall grass from the top down. This prevents grass from wrapping around the shaft housing and bump head, which may cause damage from overheating.
  • Page 13 REPLACING THE TRI - ARC BLADE 1. Remove the battery pack. 2. Place the product on a level surface. Position the product with the motor side down and the grass deflector side up. 3. Insert the lock pin into the slot underneath the trimmer head.
  • Page 14 NOTE: When installing the blade, make sure that the arrow in the blade follows the direction of the arrow in the grass deflector. 6. Insert the lock pin into the slot underneath the trimmer head. Tighten the nut by turning it counterclockwise using the combination wrench.

  • Page 15: Cleaning The Product

    CLEANING THE PRODUCT 1. Remove the battery pack. 2. Place the product on a level surface. Position the product with the motor side down and the grass deflector side up. WARNING: Exercise extreme caution when using the product. Keep hands and feet away from the cutting means at all times, especially when turning on the motor.

  • Page 16: Storing The Product

    STORING THE PRODUCT WARNING: Clean the product before storing. 1. Remove the battery pack. 2. Place the product on a level surface. Position the product with the motor side down and the grass deflector side up. 3. Install the blade protector. 4.

  • Page 17: Product Specifications

    = 3.0 dB 95 dB BPL3640D2, BPL3650D2, BPL3660D, BPL3690D, Compatible battery packs R36BTY4, R36BTY5, R36BTY6, R36BTY8, R36BTY2 REPLACEMENT PARTS TRI-ARC blade (26 cm) 638006011 Brushcutter blade PBB1 NOTE: Visit your local special orders desk or contact RYOBI customer service for replacement parts.
  • Page 20 Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. TRI-ARC is a trade mark of Techtronic Outdoor Products Technology Limited. 961121089-01...
