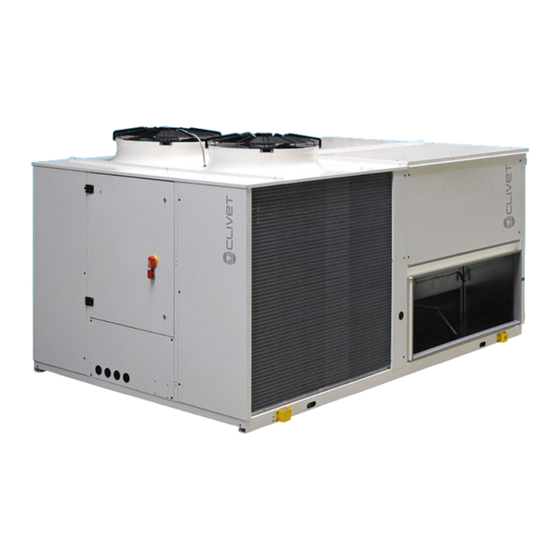

CLIVET CSNX-XHE2 Manual

Hide thumbs Also See for CSNX-XHE2:
Table of Contents

Advertisement

Quick Links

Download this manual

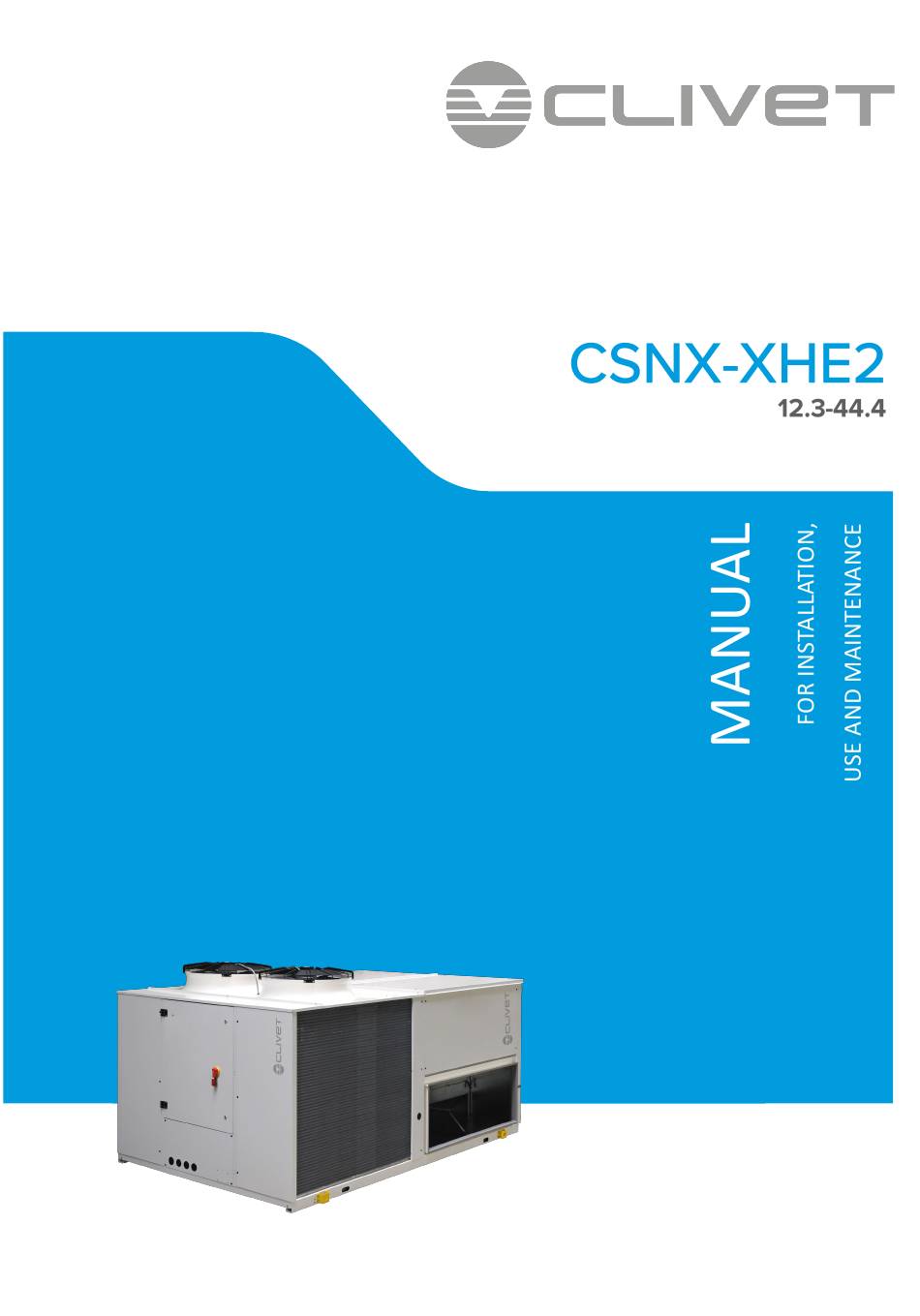

M07X00002-02 02/2022
R-410A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSNX-XHE2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CLIVET CSNX-XHE2

Summary of Contents for CLIVET CSNX-XHE2

  • Page 1 M07X00002-02 02/2022 R-410A...
  • Page 3 INDEX...

  • Page 4: Safety Considerations

    1 - SAFETY CONSIDERATION S SAFETY CONSIDERATION S Safety Operate in compliance with safety regulations in force. Use single protection devices: gloves, glasses etc. Manual The manual provides correct unit installation, use and maintenance. Pay particular attention to: It is advisable to read it carefully so you will save time during operations.

  • Page 5: User Training

    1 - SAFETY CONSIDERATION S Modification All unit modifications will end the warranty coverage and the manufacturer responsibility. Breakdown/Malfunction Disable the unit immediately in case of breakdown or malfunction. Contact a certified service agent. Use original spares parts only. Using the unit in case of breakdown or malfunction: voids the warranty ...

  • Page 6: Unit Identification

    1 - SAFETY CONSIDERATION S Unit identification The serial number label is positioned on the unit and allows to indentify all the unit features. The matriculation plate shows the indications foreseen by the standards, in particular: unit type  serial number (12 characters) ...
  • Page 7 2 - CONFIGURATIONS CONFIGURATIONS CCK configuration Double fan section for recirculation, fresh and exhaust air Return air Supply air Fresh air Exhaust air 1 G4 efficiency filters + F7 filter (option)/F9 filter (option)/ Electronic filters (option) 2 Hot water exchanger or electric heaters 3 Handling exchanger 4 Hot gas reheating exchanger 5 Return + supply fan section...
  • Page 8 2 - CONFIGURATIONS Supply and return configuration Standard unit Option Option Option Option Option Filters nomenclature according to EN ISO 16890 1° filtering stage - standard ISO 16890 Coarse 60% 2° filtering stage - option ISO 16890 ePM1 55% 2° filtering stage - option ISO 16890 ePM1 80% 2°...
  • Page 9 3 - RECEPTION RECEPTION Safety Operate in compliance with safety regulations in force. For detailed information (dimensions, weight, technical characteristics etc.) please refer to the TECHNICAL INFORMATION section. Use single protection devices: gloves, glasses etc. Reception You have to check before accepting the delivery: That the unit hasn’t been damaged during transport ...
  • Page 10 3 - RECEPTION Handling Caution  Check that all handling equipment complies with local safety regulations (cran, forklifts, ropes, hooks, etc.).  Provide personnel with personal protective equipment suitable for the situation, such as helmet, gloves, accident-prevention shoes, etc.  Observe all safety procedures in order to guarantee the safety of the personnel present and the of material.

  • Page 11: Selecting The Installation Site

    4 - SELECTING THE INSTAL LATION SITE SELECTING THE INSTAL LATION SITE Positioning The unit must be level.  Installation must be in accordance with local regulations. If they do not exist, follow EN378 . During positioning consider these elements: customer approval ...
  • Page 12 4 - SELECTING THE INSTAL LATION SITE Avoid therefore: obstacles to the airflow  exchange difficulties  leaves or other foreign bodies that can obstruct the exchange  batteries winds that hinder or favour the airflow  heat or pollution sources close to the unit (chimneys, ...
  • Page 13  The Costumer is responsible for mounting the chimney kit during installation.  Based on the specific installation requirements, the length of the chimney can be increased with suitable joints and fittings (not supplied by Clivet). Gas connection Read the gas heating module manual.
  • Page 14 4 - SELECTING THE INSTAL LATION SITE A. Apply the flat adhesive gasket15x5 on the Gas Module flange perimeter to guarantee the absence of air bypass. B. Fix with screws the flue supporting bracket to the GM frontal panel C. Fix the extensions with clamps to the flue supporting bracket D.
  • Page 15 4 - SELECTING THE INSTAL LATION SITE Connections performed by costumer rooftop supply fan gas module connecting cables electrical panel - terminal XG Gas use features...

  • Page 16: Water Connections

    5 - WATER CONNECTIONS WATER CONNECTIONS Condensate drain The condensate must be disposed in order to avoid damages to people and things. Unit discharge fitting: the connection must not transmit  mechanical stresses and must be performed taking care not to damage the unit discharge fitting.
  • Page 17 5 - WATER CONNECTIONS Immersed electrode humidifier Option Connexion humidificateur: 1/2” M Supply water The humidifier must be supplied with mains water having the following features: pressure between 0.1 and 0.8 Mpa (1 – 8 bar)  temperature between 1 and 40°C ...

  • Page 18: Heating Coil

    5 - WATER CONNECTIONS Heating coil Option Max. operating pressure = 10 bar A drain valve B vent valve Provided by the costumer: 1 anti-vibration devices 2 piping supports 3 Shut-off valves...

  • Page 19: Aeraulic Connections

    6 - AERAULIC CONNECTIONS AERAULIC CONNECTIONS The dimensioning and correct execution of the aeraulic connections are fundamental to guarantee good unit operation and adequate level of silence in the room. When designing and manufacturing the ducting, consider LOAD LOSSES, AIR FLOW AND SPEED that must be consistent with the unit features.

  • Page 20: Electrical Connections

    7 - ELECTRICAL CONNECTIONS ELECTRICAL CONNECTIO NS The characteristics of the electrical lines must be determined by specialized personnel able to design electrical installations; moreover, the lines must be in conformity with regulations in force. The protection devices of the unit power line must be able to stop the presumed short circuit current, whose value must be determined in function of system features.

  • Page 21: Power Input

    7 - ELECTRICAL CONNECTIONS Signals / data lines Do not overpass the maximum power allowed, which varies, according to the type of signal. Lay the cables far from power cables or cables having a different tension and that are able to emit electromagnetic disturbances. Do not lay the cable near devices which can generate electromagnetic interferences.
  • Page 22 Modulation of supply air flow (1) (2) 910-912 Modulation of extraction air flow (1) (2) Option It must be enabled and set up by personnel trained and authorised by Clivet Not provided by CLIVET SA1 input SA5 input SA1: remote on/off...
  • Page 23 7 - ELECTRICAL CONNECTIONS - CAREL ELECTRONICS Wall mounted room control * RT2 Bus termination heater 120 Ohm - 1/4W Mandatory installation to be borne by the customer. Remote ambient air temperature probe. HT1.1 Option Allows adjustment of the unit with a temperature probe located at a suitable point of the room to detect the conditions at rest.

  • Page 24: Serial Communication Module

    7 - ELECTRICAL CONNECTIONS - CAREL ELECTRONICS Serial communication module Modbus LonWorks BACnet BACnet MSTP RS485 Serial communication module Every RS485 serial line must be set up using the ‘In/Out’ bus system. The difference in potential between the earth of the two RS485 devices that the cable shielding needs to be connected to must be lower than 7 V There must be suitable arresters to protect the serial lines from...
  • Page 25 7 - ELECTRICAL CONNECTIONS - SIEMENS ELECTRONICS Connections performed by costumer...

  • Page 26: Optional Keypad

    7 - ELECTRICAL CONNECTIONS - SIEMENS ELECTRONICS P.C. - not supplied Optional keypad RJ45 : standard connection Shift RJ45 from T-IP to T-HI P.C. configuration connect P.C. and main module with LAN cable check in the taskbar that the connection is active Control panel Network and sharing center Open...
  • Page 27 7 - ELECTRICAL CONNECTIONS - SIEMENS ELECTRONICS Remote control with user interface Distance up to 350 mt Connections Distance up to 700 mt user interface B = B1 KNX bus, max 350 mt twisted pair with shield, Ø 0,8 mm EIB/KNX cable marking recommended power supply unit N125/11 5WG1 125-1AB11 AC 120...230 V, 50...60 Hz...
  • Page 28 7 - ELECTRICAL CONNECTIONS - SIEMENS ELECTRONICS MODBUS - RS485  Ogni linea seriale RS485 deve essere realizzata con sistema bus di tipo ‘Entra/Esci’. Non sono ammesse tipologie diverse.  Every RS485 serial line must be set up using the 'In/ Out' bus system.
  • Page 29 7 - ELECTRICAL CONNECTIONS - SIEMENS ELECTRONICS BACNET BACNET LONWORK LONWORK LED BSP communication with AP1 module LED BSP communication with AP1 module green communication ok green communication ok yellow software ok but communication with AP1 yellow software ok but communication with AP1 down down flashing : software error...

  • Page 30: Preliminary Checks

    8 - START-UP START-UP The indicated operations should be done by qualified technician with specific training on the product. Upon request, the service centres performing the start-up. The electrical, water connections and the other system works are by the installer. Agree upon in advance the star-up data with the service centre.

  • Page 31: Start-Up Sequence

    8 - START-UP Start-up sequence For details refer to the different manual sections. Unit ON power supply 1 compressor crankcase heaters operating at least since 8 hours 2 off-load voltage measure 3 phase sequence check 4 shut-off valve refrigerant circuit open 5 unit ON 6 load voltage measure and absorptions 7 liquid sight glass check (no bubbles)

  • Page 32: Electric Circuit

    8 - START-UP Electric Circuit Verify that the unit is connected to the ground plant. Check the conductors are tightened as: the vibrations caused by handling and transport might cause these to come loose. Connect the unit by closing the sectioning device, but leave it on OFF.

  • Page 33: Start-Up Report

    8 - START-UP Start-up report dentifying the operating objective conditions is useful to control the unit over time. With unit at steady state, i.e. in stable and close-to-work conditions, identify the following data: total voltages and absorptions with unit at full load ...

  • Page 34: Remote Controls

    Air flow setting The airflow calibration must be checked by a service centre authorised by Clivet The real unit flow is according to the aeraulic system features. Before checking, make sure that the system has been completed in all its parts (shunts, dampers, grilles, diffusers etc.).
  • Page 35 8 - START-UP - CAREL ELECTRONICS FanSpeedOut calibration After checking and setting the required airflow and completing the start-up stage, we also recommend setting the FanSpeedOutMand Constant air flow parameter accordingly (and FanSpeedOutMin if the unit is configured with a variable airflow). Indeed, in the event of failure of the BPM differential pressure detector, FanSpeedOutMand is note down P50 the signal used to control the fan.

  • Page 36: Eco Mode

    8 - START-UP - CAREL ELECTRONICS ECO mode The air flow supply remains constant at varied heat loads and is shutdown when setpoint is fulfilled. To further increase the energy savings in this condition, it is also possible to set less demanding operation setpoints for the unit in respect to the standard mode.

  • Page 37: Fire Alarm

    8 - START-UP - CAREL ELECTRONICS Ambient pressure control The ambient pressure control device compares the return pressure with the external pressure and compensates any variations by acting on the outdoor air damper. This way, the unit maintains the relevant ambient pressure desired by the user, who can choose between the overpressure, depression or equal-pressure.
  • Page 38 8 - START-UP - CAREL ELECTRONICS Textile channels Option The operation allows to set the start-up ramp of the supply fan Par 050 = QSet (l/sec) Par 052 = NominalFanQ (%) Par 056 = TStartup (sec.) Application for low outdoor temperature Option indicated for very cold climates, where the outside temperature can be between -10 and –...
  • Page 39 8 - START-UP - - SIEMENS ELECTRONICS Delivery air flow management ECO Mode Eco mode The fan rotation speed (or the delivery air flow if the constant Airflow flow option is present) stays constant as the thermal load varies and is shutdown when setpoint is fulfilled. Constant air flow Standard mode The delivery air flow stays constant as the thermal load varies...
  • Page 40 8 - START-UP - - SIEMENS ELECTRONICS ECO mode The fan rotation speed (or the delivery air flow if the constant flow option is present) stays constant as the thermal load varies and is shutdown when setpoint is fulfilled. To further increase the energy savings in this condition, it is also possible to set less demanding operation setpoints for the unit in respect to the standard mode.
  • Page 41 8 - START-UP - - SIEMENS ELECTRONICS Ambient pressure control CCK or CCKP configurations only. The ambient pressure control device compares the return pressure with the external pressure and compensates any variations by acting on the outdoor air damper. This way, the unit maintains the relevant ambient pressure desired by the user, who can choose between the overpressure, depression or equal-pressure.
  • Page 42 8 - START-UP - - SIEMENS ELECTRONICS Complete unit shutdown Fire alarm: configuration unit CAK, CBK, CCK, CCKP  The unit cannot be used as smoke extractor.  Any fire detection devices built-in unit must considered as an auxiliary safety system, and, accordingly, must not be a replacement for any fire detection devices in the room.

  • Page 43: Demand Limit

    It allows to limit the electric power absorbed by the unit (compressors or auxiliary elements). The function must be configured and validated by an authorized Clivet service center. The limitation can be: fixed, value defined by parameter variable, according to the external signal 0-10v...

  • Page 44: Key Function

    9 - CONTROL - CAREL ELECTRONICS CONTROL SETPOINT the display visualizes the ambient temperature 1. Press once ▲ or ▼ to display the setpoint ( it appears on the display 2. press ▲▼ to modify the working setpoint 3. Wait that the ambient temperature appears again on the display ( disappears Display meaning Key function...
  • Page 45 9 - CONTROL - CAREL ELECTRONICS ON / OFF Hour modification - day  Press the CLOCK button for 5 sec. mode  °c By the ▲ ▼ buttons, select the clock menu 20.3 Press for 5 seconds 10:00  Confirm with OK ...
  • Page 46 9 - CONTROL - CAREL ELECTRONICS Time band scheduling It Is possible to set 4 types of scheduling: Set the temperature  7 days (from monday to sunday) mode 20.0  5 days (from monday to friday) Press OK  2 days (from saturday to sunday) ...
  • Page 47 9 - CONTROL - CAREL ELECTRONICS Alarms Stored alarm (installer use only) Malfunctions are displayed with the ALARM icon. Before resetting an alarm, identify and remove the cause that generated it. mode °c 20.3 Repeated reset may cause irreversible damages as a system Press buttons for 5 sec 10:00 malfunction.
  • Page 48 9 - CONTROL - CAREL ELECTRONICS Alarms - 1 Stor. Description Cause AE01 Return temperature probe fault alarm µPC - B1 Inlet probe fault AE02 Supply temperature probe fault alarm µPC - B4 Inlet probe fault AE03 Outdoor temperature probe fault alarm µPC - B2 Inlet probe fault AE04 Circuit 1 coil temperature probe fault alarm µPC - B3 Inlet probe fault...
  • Page 49 9 - CONTROL - CAREL ELECTRONICS Alarms - 2 Stor. Description Cause AE31 Circuit 2 evaporation pressure probe fault alarm µPC – B12 Inlet probe fault AE32 Circuit 2 intake temperature probe fault alarm µPC – B9 Inlet probe fault AE33 Circuit 2 circuit breaker alarm Compressor overload AE40 Gas module alarm...
  • Page 50 9 - CONTROL - CAREL ELECTRONICS Alarms - 3 Stor. Descrizione Causa AA01 Fire alarm. Digital input alarm AA02 Dirty filters warning. Digital input alarm and supply ventilation on Digital input alarm (integration high AA03 Heaters high temperature alarm temperature) or communication error with the pCOe 1 module AI01 Circuit 1 source water flow alarm Digital input alarm...
  • Page 51 9 - CONTROL - CAREL ELECTRONICS Stata To access to the stata: Press the On/Off + Fan button for 5 sec. Enter the password: with ▲ ▼ buttons, set Code = 1 Confirm with OK The Sta menu appears, confirm with OK Stata Description Scroll the list of stata with ▲...
  • Page 52 9 - CONTROL - SIEMENS ELECTRONICS Keypad Keys and function change of status: OFF, ON, ECO, FAN ALARMS menu access (if available) set TIME and DATE set SCHEDULER (prolonged pressure) to browse through the menus to set values to browse through the menus to set values access to the STATUS menu to confirm your selection...

  • Page 53: Operational Modes

    9 - CONTROL - SIEMENS ELECTRONICS OPERATIONAL MODES Setpoint MANUAL TEMPERATURE SETPOINT MANUAL The room setpoint can be MANUALLY modified from The choice between HEATING or COOLING mode is manually carried out from keyboard, room keyboard at parameter n. 01 ManSet = xx °C . thermostat or remote selector (see ELECTRIC Starting from this value, the module determines 2 CONNECTIONS chapter).

  • Page 54: Parameters Menu

    9 - CONTROL - SIEMENS ELECTRONICS PARAMETERS MENU MANUAL SET POINT Press To change the manset manual 16.3 C° temperature Setpoint: 16.3 C° the access by password is reserved to press 17:00 qualified personnel, the parameters 17:00 changes can cause malfunctions. The unit: must be On En Climate must be = 0...
  • Page 55 9 - CONTROL - SIEMENS ELECTRONICS STATA MENU Press 16.3 C° 17:00 scroll the statuses 011.6 exit wait for 3 sec 16.3 C° when the time is displayed it is possible to carry out other operations 16.3 C° 17:00 Keyboard index STATUS SupplyTemp._B2:AI-687 OutdoorTemp._B3:AI-687...

  • Page 56: Date And Hour

    9 - CONTROL - SIEMENS ELECTRONICS DATE AND HOUR BUTTON LOCK Press Press for 4 sec. 16.3 C° 16.3 C° 17:00 17:00 HOUR digits start flashing enter password confirm edit _ _ _ _ 17:00 confirm MINUTE digits start flashing example: T0 = "-"...
  • Page 57 9 - CONTROL - SIEMENS ELECTRONICS To visualize alarm in progress Caution  Before resetting an alarm identify and remove its cause.  Repeated resets can cause irreversible damage. press 16.3 C° only if the ALARM symbol is flashing 17:00 Type of alarm type of alarm (see table) Code...
  • Page 58 9 - CONTROL - SIEMENS ELECTRONICS SCHEDULER Scheduling days 2,4,5,6 Scheduling the 1st day, also the other days of the week are Caution automatically scheduled.  Enable scheduler (see: menu parametres) It is possible to set up to 7 schedules (1 for every day of the Press 2 sec week) (only if the unit is not OFF)
  • Page 59 9 - CONTROL - SIEMENS ELECTRONICS Scheduling days 1,3,7 press Scheduling the 1st day, also the other days of the week are automatically scheduled. --:-- 2 4 5 6 Set event 1 Press 2 sec example: Tuesday 05:30 FAN (only if the unit is not OFF) 16.3 C°...
  • Page 60 9 - CONTROL - SIEMENS ELECTRONICS press Modify scheduling Example: --:--  day 5  change events 3 and 4 Set event 1  from ON to OFF example: Monday 05:30 FAN press Time Event Monday Tuesday Wedne- Thursday Friday Saturday Sunday -- starts flashing...
  • Page 61 9 - CONTROL - SIEMENS ELECTRONICS press 15:00 press 4 times (= event 4) 15:00 press 3 times starts flashing 003 (= ON) 15:00 select mode 002 (=OFF) confirm 15:00 press 2 times to exit 16.3 C° 17:00...

  • Page 62: Service Keypad

    9 - CONTROL - SIEMENS ELECTRONICS SERVICE KEYPAD Function keys Main menu Alarm display 10.02.2012 10:15:30 ActualSetPoint 22.0°C Return temperature 24.0°C Exit Supply temperature 23.0°C Previous level ActualState ActualMode Cool Increases value Down Decreases value Confirm DISPLAY MEANING ActualSetPoint temperature setting Return temperature Supply temperature ActualState...
  • Page 63 9 - CONTROL - SIEMENS ELECTRONICS MAIN MENU Select Main index Cmd Local state Cmd Local mode Cool Unit stata Unit parameters Select the Main index menu Cmd Local state Cmd Local mode Cool Confirm Unit stata Unit parameters Cmd Local state Cmd Local mode Cool Heat...

  • Page 64: Keyboard Settings

    9 - CONTROL - SIEMENS ELECTRONICS SCHEDULER KEYBOARD SETTINGS It is possible to set 6 events (Off, Eco, On, Recirculating) for Press 3 sec each week day. Scheduler must be enabled: display : actual value = On Select HMI settings : unit parameters service-maintenance, P0500=1 Confirm local connection...
  • Page 65 9 - CONTROL - SIEMENS ELECTRONICS To Visualize alarm in progress alarm log Press Caution Reset Passivo 10  Before resetting an alarm identify and remove its cause. + eE001 : Monitore fase : Fault Slide  - EE003 : Guasto P1 Util : Ok Repeated resets can cause irreversible damage.
  • Page 66 9 - CONTROL - SIEMENS ELECTRONICS Alarm log reset Press Press 3 sec. alarm log 10.02.2012 10:15:30 Reset Passivo 10 + eE001 : Monitore fase : Fault SetPointAttuale 8.5°C - EE003 : Guasto P1 Util : Ok T.InH2OUtilizzo 10.5°C + EE003 : Guasto P1 Util : Fault T.OutH2OUtilizzo 12.5°C ……...
  • Page 67 9 - CONTROL - SIEMENS ELECTRONICS Cmd local state Main menù - installer use Cmd local Mode Circuit stata Unit Stata Press 3 sec. Password Circuit 1 stata Circuit 1 I/O stata Password Thermostatic stata 0 - - - General stata Central POL687-IO Expansion POL955 - I/O Thermoregulator...
  • Page 68 EE107 Comp 2 Protec. Generic error not coded in the HMI ee0000 For further details, connect the laptop or the EE108 Comp 3 Protec. POL871 to the APC (only for Clivet authorized technicians) EE118 Source Protec. EE002 Compartment opening ee122...
  • Page 69 9 - CONTROL - SIEMENS ELECTRONICS ALARMIS- tab 2 Description Reset ff105 Overheating below minimum limit fF109 DI Low Pressure ff110 Cool Low pressure Pre-alarm ff111 Low Heat Pressure pre-alarm fF112 AI Low Pressure fF113 DI High Pressure ff114 High pressure pre-alarm fF115 AI High Pressure ff116...
  • Page 70 9 - CONTROL - SIEMENS ELECTRONICS Stata- tab 1 MENU Short description Description 1 Main Page Machine status Current unit status [0]:Off, [1]:ECO, [2]:ON, [3]:FAN 1 Main Page Machine mode Current unit mode [0]:COOL, [1]:HEAT 1 Main Page Current setpoint Current unit setpoint 1 Main Page No.
  • Page 71 9 - CONTROL - SIEMENS ELECTRONICS Stata - tab 2 MENU Short description Description 3002 Expansion POL955 - IO Cmd Addition 2_Q2:DO-955 Addition 2 control 3002 Expansion POL955 - IO Cmd Addition 3_Q2:DO-955 Addition 3 control 3003 Thermoregulator Startup phase Start-up phase 3003 Thermoregulator Time to end startup...
  • Page 72 9 - CONTROL - SIEMENS ELECTRONICS Stata - tab 3 MENU Short description Description 3003 Thermoregulator CPYCurrent CPY humidifier absorbed current 3003 Thermoregulator CPYIstSteam CPY humidifier output 3003 Thermoregulator Supply Q Air Supply air flow rate 3003 Thermoregulator Return Q Air Return air flow rate 3003 Thermoregulator Supply temp.
  • Page 73 9 - CONTROL - SIEMENS ELECTRONICS Stata- tab 4 MENU Short description Description 3102 Circuit C1 -IO Stata T.DischargeC2_B2:AI-985 Compressor 2 discharge temperature 3102 Circuit C1 -IO Stata T.DischargeC3_X2:AI-985 Compressor 3 discharge temperature Source 1 temperature (for machines with reversible air source on 3102 Circuit C1 -IO Stata T.Source1_B3:AI-985 gas = Probe 1 on the source coil.
  • Page 74 9 - CONTROL - SIEMENS ELECTRONICS Stata - tab 5 MENU Short description Description 0=Idle (motor off) 1=Init (valve initialised when completely closed) 3200 Thermostatic C1 Stata 1205 EEVMode 2=Manual (valve controlled in manual mode) 3=Control (the valve conducts adjustments to control SH) 3200 Thermostatic C1 Stata 1206 Prepos Positioning % required for thermostatics...
  • Page 75 9 - CONTROL - SIEMENS ELECTRONICS Stata- tab 6 MENU Short description Description 0 = Idle 1 = ECVAlarm 2 = FailSafe 3 = Referencing 4 = Positioning 3201 Thermostatic C2 Stata 2217 ECVState 5 = Positioned 6 = ECVWaiting 7 = FastClosing 4300 ModBus ModBusBios Bios version of the ModBus RTU expansion module...

  • Page 76: Maintenance

    10 - MAINTENANCE MAINTENANCE Safety Operate in compliance with safety regulations in force. Use single protection devices: gloves, glasses etc. General Maintenance must be performed by authorized centres or by qualified personnel The maintenance allows to: maintaining the unit efficient ...
  • Page 77 10 - MAINTENANCE Recommended periodic checks sheet intervention frequency (months) Presence of corrosions Panel fixing Fan fixing coil cleaning bowl cleaning + sanitisation outflow test air filters cleaning / inspection air flow rate measurement channelling: anti-vibration devices and fastenings check 10 check of the fixing and the insulation of the power lead 11 check of the earthing cable 12 Electric panel cleaning...
  • Page 78 10 - MAINTENANCE Wall mounted electronic room control Only with CAREL electronic In the maintenance operations the keypad can be detached from the fixing support and directly connected to the unit electrical panel. Structure Check the condition of the parts making up the structure Paint so as to eliminate or reduce oxidation at the points in the unit where this problem may occur Check that the panelling is fastened correctly...
  • Page 79 10 - MAINTENANCE Condensation collection basin Dirt or scale can give rise to clogging. Also, microorganisms and mould can flourish in the bowl. It is very important to foresee periodical cleaning with suitable detergents and, eventually, disinfect with sanitising products. Once cleaning is completed, pour water inside the bowl to check the regular outflow.
  • Page 80 The electronic adjustment is integrated in the filter; maintenance can be carried out without removing it. Materials necessary for maintenance 1 Acid detergent B01212 (code CLIVET C6460316) 2 Plastic or steel tank (750x750x310 mm) with settling bottom 3 Protective gloves and goggles...
  • Page 81 10 - MAINTENANCE Ionisation wires The impurities can determine oxidation or scaling on the wires, which can be removed using a cloth soaked in alcohol or an abrasive scourer with very fine grain. Due to the high voltage powering them, the ionisation wires are subject to wear.

  • Page 82: Electric Heaters

    10 - MAINTENANCE Humidifier cylinder drainage Cylinder must be drained in these situations: cleaning of the cylinder  emptying of the cylinder to avoid ice forming  replacement of the cylinder  The manual drainage is carried out by means of selector SA7: see ELECTRIC CONNECTIONS chapter.

  • Page 83: Weee Information

    11 - DECOMMISSIONING DECOMMISSIONING Disconnection WARNIN G  Before performing any operation, read the warnings found in the Maintenance chapter. Avoid leak or spills into the environment. Before disconnecting the unit, the following must be recovered, if present:  refrigerant gas ...

  • Page 84: Residual Risks

    12 - RESIDUAL RISKS RESIDUAL RISKS General In this section the most common situations are indicated,as these cannot be controlled by the manufacturer and could be a source of risk situations for people or things. Danger zone This is an area in which only an authorised operator may work. The danger zone is the area inside the unit which is accessible only with the deliberate removal of protections or parts thereof.

  • Page 85: Electric Parts

    12 - RESIDUAL RISKS If there is a fire the temperature of the refrigerant could reach values that in-crease the pressure to beyond the safety valve with the consequent possible projection of the refrigerant itself or explosion of the circuit parts that remain isolated by the closure of the tap. Do not remain in the vicinity of the safety valve and never leave the refriger-ating system taps closed.

  • Page 86: General Technical Data

    General technical data Standard airflow SIZE 12.3 15.3 16.4 20.4 24.4 33.4 40.4 44.4 COOLING Cooling capacity 40,9 50,6 66,3 77,9 95,4 Sensible capacity 26,8 35,0 45,4 50,2 62,7 82,4 98,4 Compressor power input 12,2 15,5 19,3 22,5 27,4 34,2 38,1 4,45 4,15...

  • Page 87: Sound Levels

    General technical data SIZE 12.3 15.3 16.4 20.4 24.4 33.4 40.4 44.4 EXTERNAL SECTION FANS Type of fans No. of fans Fan diameter Standard airflow 6944 6944 11389 11389 11389 11389 11389 11389 Single power input 1,05 1,05 CONNECTIONS Condensate drain POWER SUPPLY Standard power supply 400/3~/50...
  • Page 88 General technical data Operating range (Cooling) The limits are meant as a guide. Please note that they have been calculated by considering • general and non specific sizes • standard airflow • non-critical positioning and correct use of the unit •...

  • Page 89: Dimensional Drawings

    Dimensional drawings Size 12.3 - 15.3 - CCK and CCKP Configuration...
  • Page 90 Dimensional drawings Size 12.3 - 15.3 Combustion module - CCK and CCPK Configuration...
  • Page 91 Dimensional drawings Size 16.4 - 20.4 - 24.4 - CCK and CCKP Configuration DAA7X16.4_20.2_24.4_CCK-CCKP_01 Date: 09/02/2017...
  • Page 92 Dimensional drawings Size 16.4 - 20.4 - 24.4 Combustion module - CCK and CCPK Configuration DAA7X16.4_20.4_24.4_CCK-CCKP_GC01X-GC10X_01 Date: 09/02/2017...
  • Page 93 Dimensional drawings Size 33.4-40.4-44.4 - CCK and CCKP Configuration DAA7X33.4_40.4_44.4_CCK-CCKP_00 Date: 16/12/2015...
  • Page 94 Dimensional drawings Size 33.4-40.4-44.4 Combustion module - CCK and CCPK Configuration DAA7X33.4_40.4_44.4_CCK-CCKP_GC09X-GC11X_00 SINGLE CHAMBER Date: 18/12/2015...
  • Page 95 Dimensional drawings Size 33.4-40.4-44.4 Combustion module - CCK and CCKP configuration. DOUBLE CHAMBER DAA7X33.4_40.4_44.4_CCK-CCKP_GC12X_00 Date: 18/12/2015...
  • Page 96 sales and assistance...
