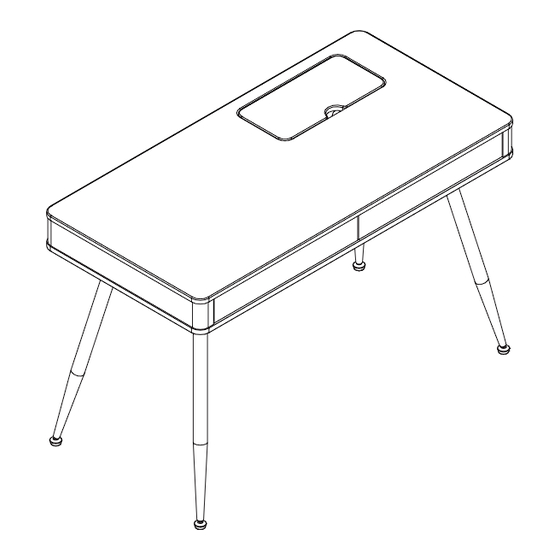

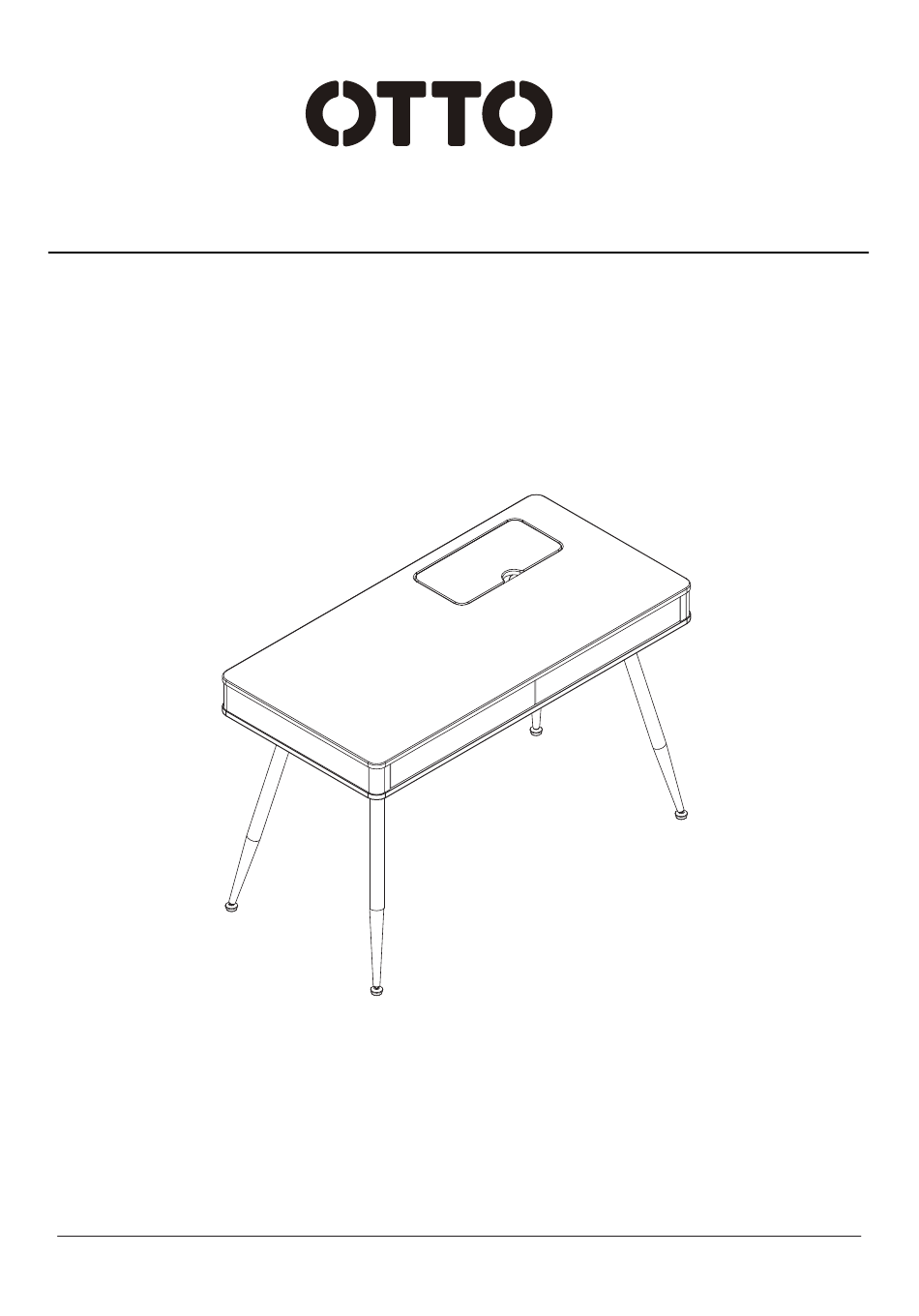

- Page 1 ASSEMBLY INSTRUCTIONS LARVIK 1200MM DESK OTLARVIK This design and instruction booklet is subject to copyright. 1 Carton www.officeworks.com.au For spare parts or hardware call 1300 OFFICE (1300 633 423) 1/14...
- Page 2 Estimated Assembly Time: 40minutes Furniture Assem bly Ins Assembly Video To view an assembly video, go to https://www.officeworks.com.au/ Search the product by item code or name: Click on the icon to watch the video. Customer Service Contact Details Spare Parts & Hardware 1300 OFFICE (1300 633 423) People Required...
- Page 3 Tools Required CAUTION: Do not use tools other than those required, as this can damage your new item NOTE Please check you have all hardware before assembling. If you are missing any hardware, please contact 1300 OFFICE(1300 633 423). Please ensure you have the name of the item, required hardware part and quantity. Please retain your receipt as proof of purchase to validate your warranty.
- Page 4 Parts List 2pcs 2pcs 2pcs 2pcs 2pcs 4pcs 4pcs 4/14...
- Page 5 Hardware List Hardware Spare Part number - HWLARHWPK M6x15mm 8pcs 6x30mm ST4x14mm 32pcs M6x12mm 16pcs 4pcs M6x25mm ST5x38mm 8pcs M6x30mm 8pcs M6x110mm 11pcs 4pcs 4pcs 2set 2set 2pcs 2pcs 4pcs 80mm 2pcs ST3x12mm 8pcs ST4x12mm Hardware Spare Part number - HWLARDSKSL 4pcs 5/14...
- Page 6 Assembly Step 1 4pcs Step 2 4pcs 8pcs 6/14...
- Page 7 Step 3 4pcs 8pcs 8pcs x2 PCS Step 4 4pcs 2pcs 2pcs 7/14...
- Page 8 Step 5 8pcs Step 6 12pcs 2set 2set 8/14...
- Page 9 Step 7 4pcs 2pcs Step 8 8pcs 4pcs 9/14...
- Page 10 Step 9 4pcs 4pcs Step 10 4pcs 10/14...
- Page 11 Step 11 11pcs Step 12 8pcs 11/14...
- Page 12 Step 13 To insert drawer, fully extend both ball bearing tracks on each side and align the slide runners on the drawer with the tracks on the unit. Push the drawer into place until closed. If the drawer does not smoothly push into place, please remove and repeat insertion procedure.
-
Page 13: Maximum Weight Capacity
MAXIMUM WEIGHT CAPACITY NOTE: Desktop 50kg Stationery drawer 3kg 13/14... - Page 14 Officeworks Ltd warrants that this product will be free from defects and work as intended for 3 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
