Summary of Contents for Otto LINDENBERG OTLINDPBR

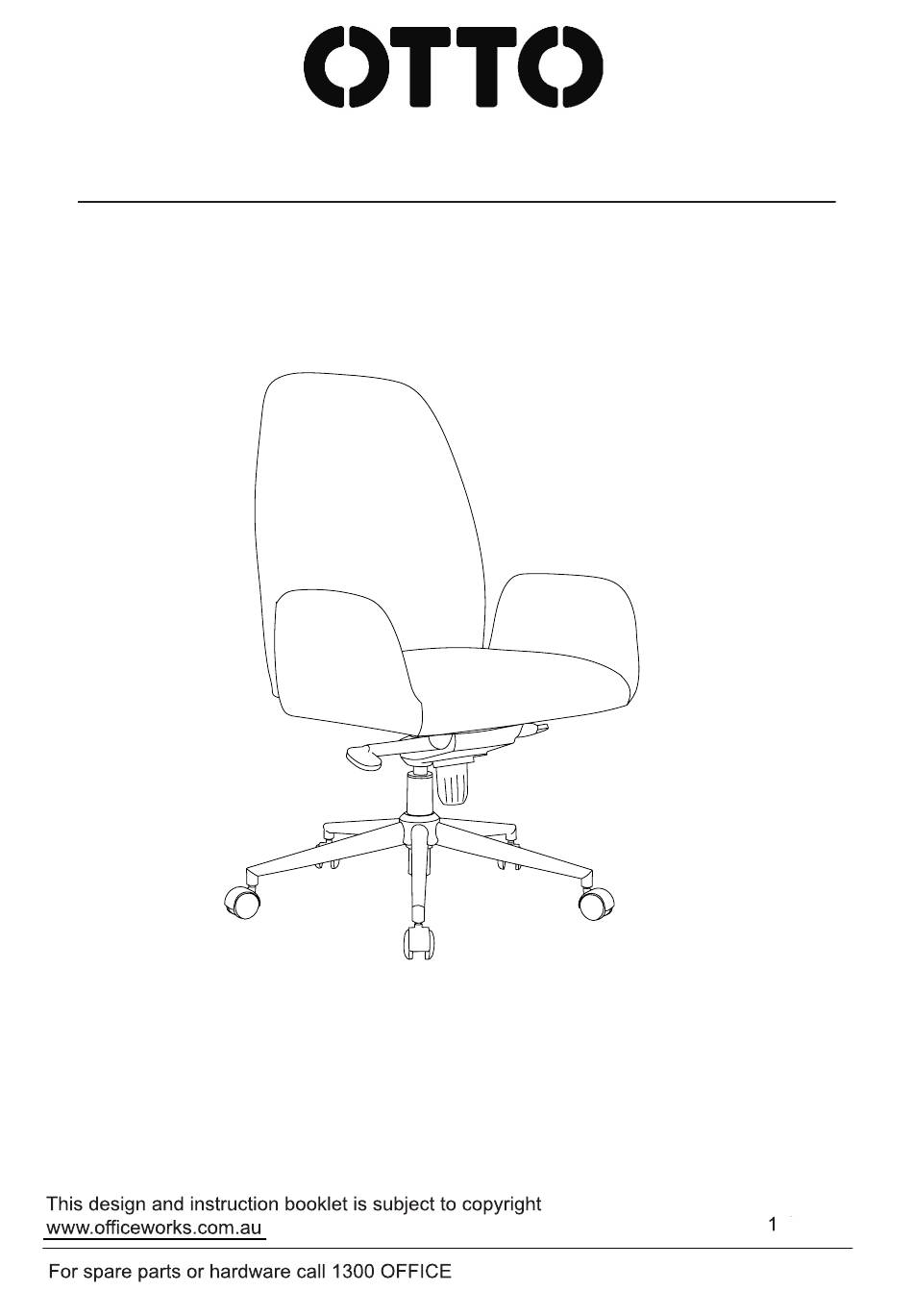

- Page 1 ASSEMBLY INSTRUCTIONS LINDENBERG CHAIR OTLINDPBR/OTLINDFGN Weight capacity:120kg (1300 633 423) 1/10...
- Page 2 Estimated Assembly Time:30minutes Assembly Video To view an assembly video, go to https://www.officeworks.com.au/ Search the product by item code or name: Click on the icon to watch the video. Customer Service Contact Details Spare Parts & Hardware 1300 OFFICE (1300 633 423) People Required General Advice 2/10...
- Page 3 NOTE • Please check you have all hardware before assembling. (1300 633 423). • If you are missing any hardware, please contact 1300 OFFICE Please ensure you have the name of the item, required hardware part and quantity. • • Please retain your receipt as proof of purchase to validate your warranty.
- Page 4 Parts List Hardware List- Hardware Spare Parts number - HWLINDHW G (5/16x22mm) I (M5) H (5/16x30mm) 4/10...

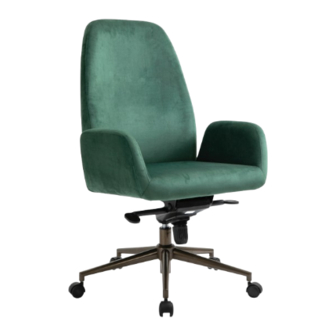

- Page 5 Hardware Spare Parts number - For Brown PU Leather Lindenberg Chair OTLINDPBR HWLINDBRBS HWLINDBRGL HWLINDMECH Black chair base Black gas lift For Green Velvet Lindenberg Chair OTLINDFGN HWLINDGNBS HWLINDGNGL HWLINDMECH Bronze chair base Bronze gas lift 5/10...
- Page 6 Step 1 Step 2 Hx4 (5/16x30mm) Ix1(M5) Make sure the holes on the backrest (F) are aligned with the holes on the seat (E), then place the screws (H) in place. Do not tighten the screws fully. 6/10...
- Page 7 Gx4 (5/16x22mm) Step 3 Ix1(M5) Step 4 7/10...
- Page 8 Step 5 Please tighten all screws before use this chair. 8/10...
- Page 9 Chair Tilt -While seated, reach under the left side of the chair to find the height adjustment handle. -Turn the handle upward to allow chair to tilt back or forth. -Turn the handle downward to lock the chair in the upright &...
- Page 10 Warranty 8 years Officeworks Ltd warrants that this product will be free from defects and work as intended for 3 years from the date of purchase by the original customer. If the product has any defects or does not work as intended during the Warranty Period, Officeworks will, at its election and at its expense, repair or replace the product.
