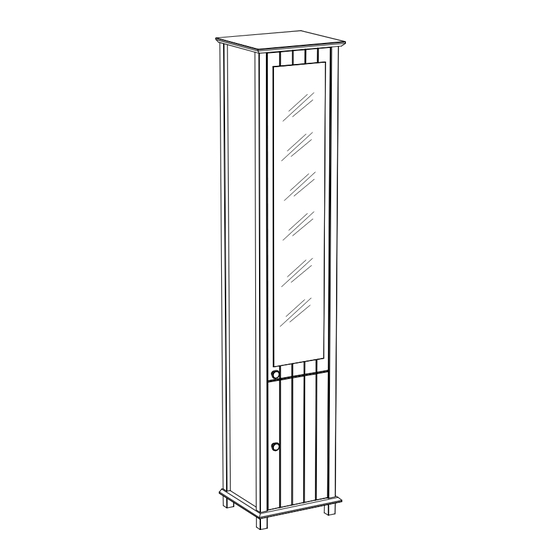

Art. Nr. 45732758, 73204054
LINK ver.
D
Montageanleitung
FR
Notice de montage
NL
Handleiding voor de montage
CZ
Mont žn
á
návod
HU
Szerelési útmutató
TR
Montaj talimatı
RECHT ver.
GB
Assembly instructions
IT
Istruzioni di montaggio
PL
Instrukcja montażu
SK
Návod na
mont ž
á
RO
Instrukcţiuni de montaj
RU
LKZ 043169

Advertisement

loading
Need help?

Need help?

Do you have a question about the LINK 45732758 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Otto LINK 45732758

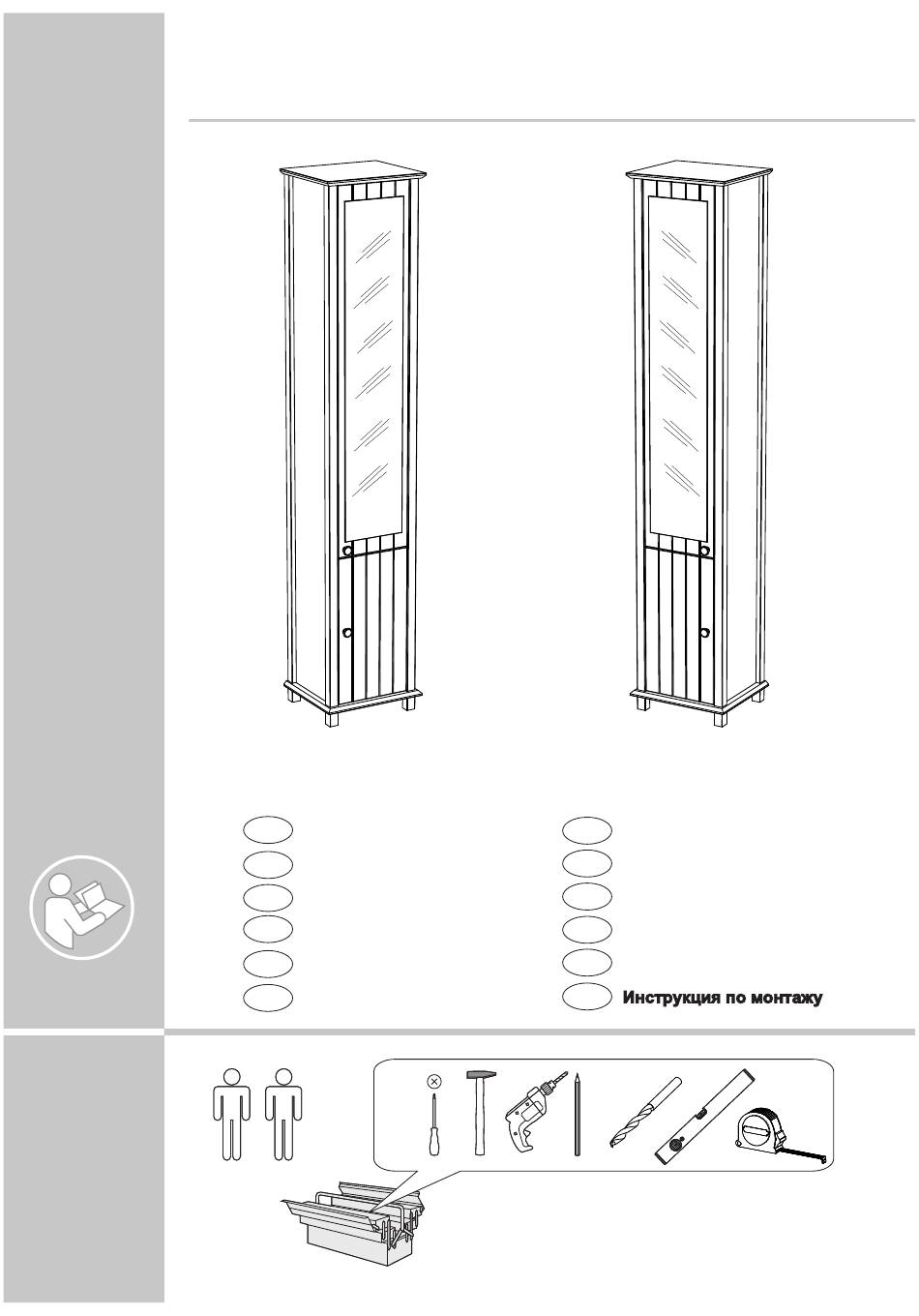

  • Page 1 Art. Nr. 45732758, 73204054 RECHT ver. LINK ver. Montageanleitung Assembly instructions Notice de montage Istruzioni di montaggio Handleiding voor de montage Instrukcja montażu Mont žn á návod Návod na mont ž á Szerelési útmutató Instrukcţiuni de montaj Montaj talimatı LKZ 043169...
  • Page 2 Service • Assistenza • Dienstverlening • Serwis Servis • Szerviz • Сервисная служба Name • Nom • Nome • Naam • Nazwa • Jm no • N zov • N v • é á é Denumire • sim • Название Ì...
  • Page 3 100 mm Ø8x35 34 mm B1 x 16 Ø15x12 Ø17 C1 x 16 Ø3.5x15 Ø4.5x55 F2 x 17 M4x22 Ø5x60 G16 x 1 Ø12 mm G12 x 4 Ø26 IE H=0 mm J2 x 2 N1 x 28 40x30x20 B10 x 1 Ø8x40 We ask for your attention.
  • Page 4 Möbel sollten auf einem Teppich oder was auch immer montiert werden Stoff, um ihn nicht zu zerkratzen. Furniture should be mounted on a carpet or whateverfabric so as not to scratch it. 0.8 m 2.3 m Ø8x35 9 x2 34 mm V-373...
  • Page 5 Ø3.5x15 H=0 mm RECHT ver. Ø3.5x15 H=0 mm LINK ver. V-373...
  • Page 6 Ø5x60 34 mm V-373...
  • Page 7 12 mm D1 x 8 12 mm D1 x 8 V-373...
  • Page 8 X = Y 90° Ø12 mm V-373...
  • Page 9 Ø3.5x15 Ø4.5x55 Achtung • Attention • Attenzione Opgelet • Uwaga • Pozor • Figyelem Atenţie • Dikkat • Внимание Ø8x40 Stellen Sie vor dem Anbringen der Möbel an der Wand sicher, dass sie eben sind. Wenn die Möbel nicht geebnet sind stehen die Türen und Schubladen schräg.
  • Page 10 Schrauben Sie die Schraube rechtwinklig durch die Rückwand (17), bis sich an der Wand eine Markierung bildet. Nächster Schritt Nr.5. Screw in the screw at a right angle through the back wall (17) until a mark is formed on the wall. Next step No.5. Visser la vis à...
  • Page 11 !!! ATTENTION: WHEN INSTALLING THE HANDLES make absolutely sure that when drilled the pre-drilled holes from the front place a piece of wood or something similar is held against, on order to wood separation is prevented. Watch out for the right holes are RECHT ver.
  • Page 12 Ø26 IE Ø3.5x15 M4x22 V-373...
  • Page 13 Ø17 Q1 x 16 Achtung • Attention • Attenzione Opgelet • Uwaga • Pozor • Figyelem Atenţie • Dikkat • Внимание Stellen Sie sicher, dass die Möbel eben sind, bevor Sie die Tür einstellen. Wenn die Möbel nicht geebnet sind, stehen die Türen und Schubladen schräg.
  • Page 14 Möbel aus Naturholz und Plattenwerkstoffen Wspomniane zamiany zachodzące w wyglądzie produktów wykonanych z surowców naturalnych są zupełnie normalne. Niniejsza instrukcja zawiera cenne wskazówki Meble z drewna naturalnego oraz płyt drewnopochodnych dotyczące pielęgnacji mebli, aby jak najdłużej mogli Państwo cieszyć się z ich Meubelen van natuurhout en plaatmateriaal nienagannego wyglądu.
  • Page 15 Sostanzialmente vale: Onderhoudsinstructies voor meubelen van plaatmateriaal • Non poggiare oggetti roventi sui mobili. Gebruik voor de reiniging van uw meubel van plaatmateriaal het best een zachte, • Non poggiare candele a diretto contatto dei mobili. niet pluizige doek of een leren doek. Veeg de oppervlakten ietwat vochtig af. •...
  • Page 16 • Там, где раньше были сучья, появляются светлые места из-за En règle générale : Veuillez n‘utiliser en aucun cas les détergents suivants : естественного выхода смолы. Их можно отполировать с помощью сухой • Chiffons à microfibres ou gomme à saleté. Ils contiennent souvent de fine ткани...
  • Page 17 • cârpe din microfibre sau bureţi de curăţat. Acestea conţin adesea mici • Svetlé miesta na hrčiach vznikajú prirodzeným vystupovaním živice a dajú sa particule abrazive care pot zgâria suprafeţele; odstrániť so suchou utierkou bez vlákien. • substanţe chimice corosive, precum şi solvenţi sau substanţe de curăţat •...
