Summary of Contents for MechMaxx TCR650

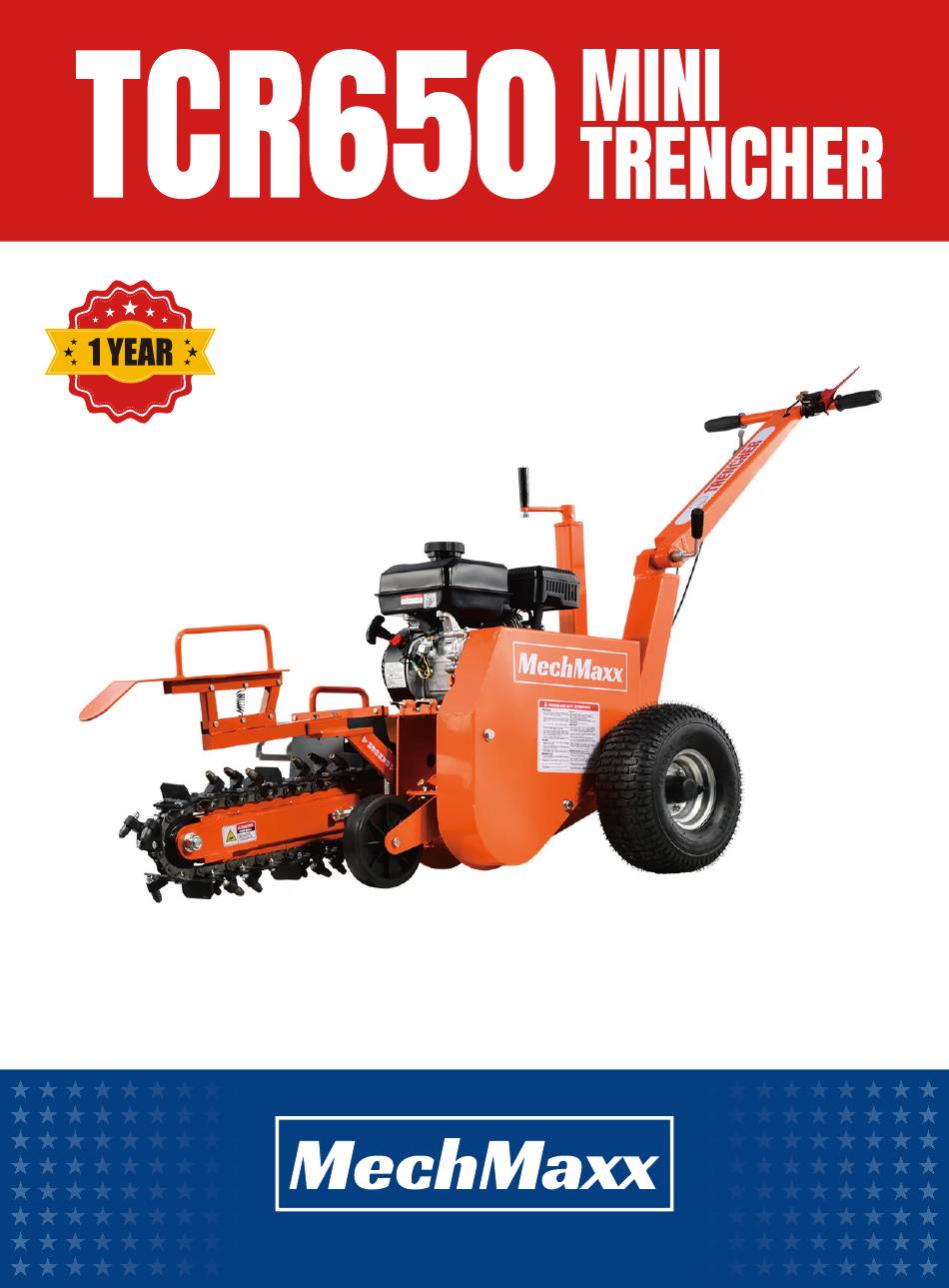

- Page 1 WARRANTY Operator’s Manual www. mechmaxx.com...
-
Page 3: Table Of Contents
A NOTE TO ALL USERS FUEL SAFETY UNPACHING THE CONTAINER DIGGING SAFETY TO-SCALE HARDWARE MAINTAINING YOUR TRENCHER ASSEMBLY MAINTENANCE SAFETY WHEELS LUBRICATION HANDLE ASSEMBLY TRANSPORTING AND STORING CHAIN ASSEMBLY TRANSPORTING CHAIN GUARD STORING SHIELD TROUBLESHOOTING KNOW YOUR MACHINE www. mechmaxx.com TABLE OF CONTENTS... -
Page 4: Specifications
Chain Speed 394 ft/min Max. Trench Depth 18 in Max. Trench Width 4 in 29 in Wheelbase 15*6-6 tubeless tire Tire Assembled Weight 347 lbs Gross Weight 393 lbs 41*31*34 in Packing Size (L*W*H) Warranty 1 year www. mechmaxx.com SPECIFICATIONS... -
Page 5: Safety Signs
Disconnect the spark plug wire before performing maintenance. transporting. Stop engine before removing fuel cap. The trencher shall be stored in a manner that prevents it from falling, Use only genuine replacement parts of the engine manufacturer. rolling or tipping over. www. mechmaxx.com SAFETY SIGNS... -
Page 6: Safety
Do not operate the machine with known leaks is the fuel ing or failed parts before using ti. Check for fuel system. leaks.Keep the machine in safe working condition. www. mechmaxx.com SAFETY... -
Page 7: Machine Use And Care
If the machine should start to make an unusual noise or vibration, immediately shut off the engine, disconnect the spark plug wire, and check for the cause, Unusual noise or vibration is generally warning of trouble . www. mechmaxx.com SAFETY... - Page 8 Don't handle gasoline on moving parts. if you or anyone nearby is smoking, or if you're near anything that could cause it to ignite or explode. Reinstall the fuel tank cap and fuel container cap securely. www. mechmaxx.com SAFETY...
-
Page 9: A Note To All Users
TRENCHER in a safe manner. Contact the dealers for assistance in your area. Exercise caution to avoid slipping or falling. See manufacturer's instructions for proper operation and installation of accessories. Never use the machine without ensuring that all guards and shields are in place. www. mechmaxx.com SAFETY... -
Page 10: Unpaching The Container
UNPACHING THE CONTAINER Use the screwdriver and hammer to open all the side locks. www. mechmaxx.com UNPACHING THE CONTAINER... -
Page 11: To-Scale Hardware
Flat washer nut M8 Spring washer Hex bolt Hex bolt M6 X 25mm M8 X 20mm Hex bolt Hex bolt M6 X 30mm M8 X 25mm Hex bolt M8 X 55mm Hex bolt M16 X 90mm www. mechmaxx.com TO-SCALE HARDWARE... -
Page 12: Assembly
Flat washer 8 bolt M16x90, and then connect the Angle arm to the hex Spring washer 8 bolt M16x90.(See Figure 2) CHAIN ASSEMBLY Connect the chain adaptor to the chain axle plate.(See Figure 4) Figure 2 Figure 4 www. mechmaxx.com ASSEMBLY... -
Page 13: Chain Guard
Connect the chain cover with connection arm plate with flat washer 8,spring washer 8 and hex bolt M8x55.(See Hex bolt M6 X 25mm Figure 6) Flat washer 6 Figure 6 Hex bolt M8 X 55mm Flat washer 8 Spring washer 8 www. mechmaxx.com ASSEMBLY... -
Page 14: Know Your Machine
The trencher must be the job. stopped and the object removed, or restarts the trencyjc. www. mechmaxx.com KNOW YOUR MACHINE... -
Page 15: Operating The Trencher
One or two pulls usually starts the anti-forward control handle, then the trencher can only engine. move backwards. Clockwise rotate the depth control handle and descend the chains to your desired depth. www. mechmaxx.com OPERATING THE TRENCHER... -
Page 16: Stopping
Electric Start: Turn the Key to the OFF position WHEN BLOCKED If the Chain stops moving while digging trenches, the engine should be stopped, take out the muds or anything which stuck the chain, then restart the engine, and start digging again. www. mechmaxx.com OPERATING THE TRENCHER... -
Page 17: Digging Safety
Keep all your body and clothing away from the digging chain, auger and other moving parts. Inspect the digging site. Soil, job specifications and operator experience may dictate that a different trencher or method be used to www. mechmaxx.com OPERATING THE TRENCHER... -
Page 18: Maintenance Safety
Check wedge for sharpness Grease surface of slide rail Check belts Grease rack and pinion Check tire pressure Clean engine exterior and cooling Change Engine Oil First time 5hours Replace air filter Replace spark plug www. mechmaxx.com MAINTAINING YOUR TRENCHER... -
Page 19: Transporting And Storing
The trencher shall be stored in a manner that prevents it from falling, rolling or tipping over. Note: There are legal road requirements for transiting mini machines. It is the owner's responsibility to be aware of these laws and to adhere to them. www. mechmaxx.com TRANSPORTING AND STORING... -
Page 20: Troubleshooting
Engine smokes. (Please refer to needed. You may be using the wrong oil—too light for the temperature. Refer to the engine user manual for your Engine Owner's Manual for detailed information. Clean the cooling fins if engine-specific procedures.) they're dirty. www. mechmaxx.com TROUBLESHOOTING... - Page 22 info@mechmaxx.com...
