Proton InteliSENS DGk-i4 Series Instruction Manual
  1. Manuals
  2. Brands
  3. Proton Manuals
  4. Measuring Instruments
  5. InteliSENS DGk-i4 Series
  6. Instruction manual

Proton InteliSENS DGk-i4 Series Instruction Manual

Diameter gauge
Hide thumbs

Advertisement

Quick Links

Download this manual

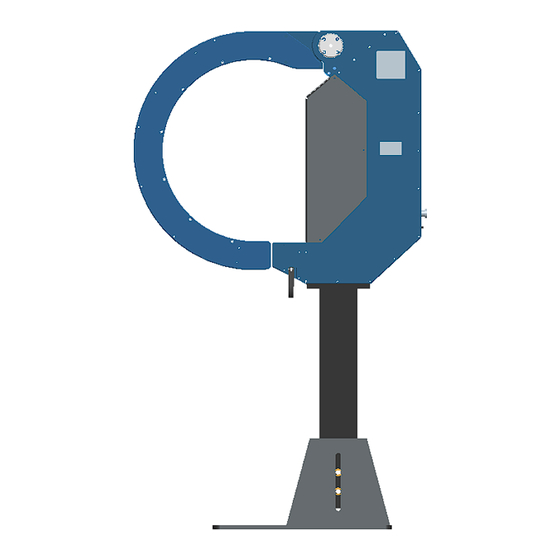

NEW InteliSENS DGk-i4 Series Diameter Gauge
Proton Products NEW InteliSENS DGk-i4 Series Diameter Gauge Instruction Manual (Issue 1h)
Instruction Manual
Issue 1h
21 June 2022
Proton Products Co. Ltd.
10 Aylesbury End
Beaconsfield
Buckinghamshire HP9 1LW
England
www.protonproducts.com
Page 1 of 80
