- Page 1 Contour Energy User Guide...

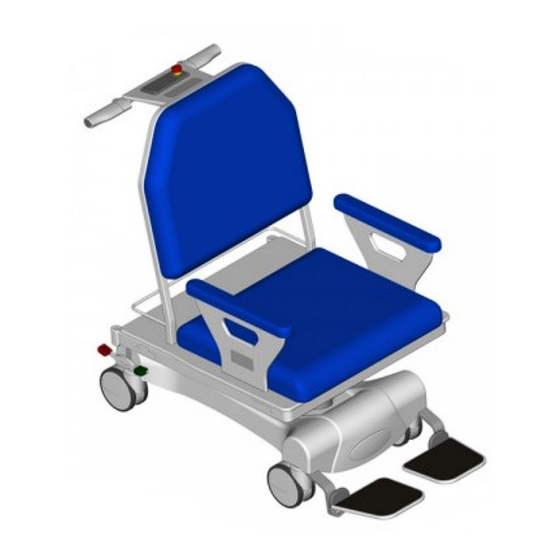

- Page 2 Contour Energy User Guide Thank you for placing your confidence in our Transport Chairs. They have been engineered from quality materials and hand-made with care to fulfil the requirements of the healthcare industry. Your chair will give years of trouble-free service if used and cared for in accordance with our directions.
-
Page 3: Product Overview
Product Overview Overall Size: 750 x 1300mm Height: 1180mm SWL: 300kg v-26102023 - Page 3 "Trusted products made for trusted professionals"... -
Page 4: Product Warnings
Product Warnings PATIENT / STAFF SAFETY Patients, especially children must not be left unattended on or with a chair at any time. Care must be taken in the operation of all moving parts and accessories to minimise risk of injury to staff or patients. -
Page 5: Safe Operation
Does the chair operate correctly, without undue vibration, noise and/or physical stresses? IF NOT, DO NOT USE. Isolate and quarantine the chair with the suspected malfunction. Contact Modsel or an authorised agent for advice. PATIENT SAFETY REQUIRES THAT YOU ALWAYS CHECK THE CUSHIONS BEFORE USE. - Page 6 Steer / Brake System TO STEER THE CHAIR The centre powered drive wheel assists steering. The chair will turn evenly left or right pivoting around this wheel. TO BRAKE WHEN PARKED Press one of the corner RED pedals down fully to activate all four castor brakes. Press the opposite GREEN pedal back to the horizontal (neutral) position to disengage the brakes.
-
Page 7: Foot Supports
Foot Supports WHEN PATIENT IS GETTING ON THE CHAIR Ensure the chair is positioned correctly to the patient and brakes are on. Lift both foot supports to provide safe clearance for the patient while entering. Lift one foot of the patients (or move to one side) at a time and lower each foot support accordingly. WHEN PATIENT IS GETTING OFF THE CHAIR Ensure the chair is positioned correctly to the patient and brakes are on. -
Page 8: To Turn Off
Power Assisted Drive Operation TO TURN ON Push power button. Light will flash green briefly while the system sets and then will display solid green when ready. DO NOT operate the drive handles until this is complete. Ensure the brake/steer pedals are in neutral position (brakes off). Push or pull on the outer handles for forward and backwards drive motion. -
Page 9: Emergency Stop
EMERGENCY STOP Press the red emergency stop button - unit will stop operating. TO RESET THE EMERGENCY STOP Turn button clockwise until it pops out. Press the power button once and wait until the flashing green light is solid green. ORBIT DRIVE LOCK-OUT FUNCTION (Optional) On power up, the interface panel lock indicator (1) will show that the Orbit Drive is in a locked / disengaged status –... -
Page 10: Battery Charging
Battery Charging MAINS POWER CABLE The chair should always be operated while powered with a standard 240V outlet. ALWAYS ENSURE LEAD IS UNPLUGGED BEFORE MOVING THE CHAIR. THE POWERED DRIVE SYSTEM WILL NOT FUNCTION IF THE POWER CABLE IS PLUGGED IN. There is a battery backup to allow chair operation whilst unplugged. - Page 11 Allow fluid to contact electrical fittings, fixtures or connectors. If you suspect significant contamination, consider fogging and/or UVC exposure in conjunction with advice from Modsel and your contamination control representative. DAMAGE CAUSED BY THESE PROCESSES ARE IDENTIFIABLE AND MAY VOID WARRANTY.
-
Page 12: Troubleshooting And Maintenance
Contact MODSEL or authorised agent for advice. DISPOSAL Contact MODSEL or your institution expert for advice on disposal of this device. DO NOT repurpose this device. MODSEL as the legal manufacturer of this medical device can advise if it can be reconditioned. v-26102023 - Page 12... -
Page 13: Year Warranty
Lack of maintenance as per minimum requirements. Vandalism, negligence, abuse, accidents, improper installation or normal wear and tear. Products tampered with or altered, modified or repaired by anyone when not approved by Modsel. Conditions such as close proximity to salt, extreme hot or cold temperatures. - Page 14 Manufacturing Records Manufactured by Modsel Pty Ltd, 54 - 56 Industrial Ave, Maryborough, QLD, 4650, Australia. Contact +61 1300 785 790 Class I Medical Device ARTG Included Product Model/Serial Number; Date of Manufacture; v-26102023 - Page 14...
- Page 15 Notes v-26102023 - Page 15 "Trusted products made for trusted professionals" "Trusted products made for trusted professionals"...
