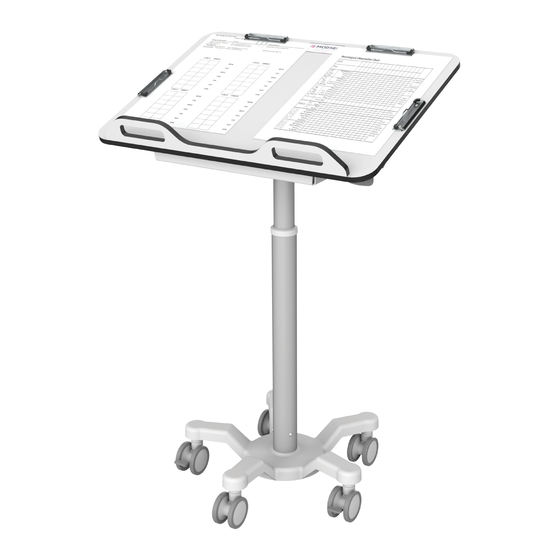

Summary of Contents for Modsel I-Move Chart Servicing
- Page 1 I-Move Chart Servicing...
- Page 2 To facilitate quick and accurate identification, please supply the SERIAL NUMBER found on the MODSEL manufacturers label of the product.
-
Page 3: Troubleshooting And Maintenance
TO ENSURE WARRANTY, PERIODIC MAINTENANCE RECORDS MUST BE RETAINED. Disposal Contact Modsel or your institution expert for advice on disposal of this device. DO NOT repurpose this device. Modsel as the legal manufacturer of this medical device can advise if it can be reconditioned. v-05092022 - Page 3... - Page 4 How To Replace A Column Gas Strut Refer to the Spare Part Identification diagram 1. Partially extend the column to approx. mid position by squeezing the release lever 2. Remove the two release lever retaining nuts (Item 3) 3. Remove the three retaining nuts that hold the trolley top to the column (Item 4) 4.
- Page 5 How To Replace A Release Lever Cable Refer to the Spare Part Identification diagram 1. Partially extend the column to approx. mid position by squeezing the release lever 2. Remove the two release lever retaining nuts (Item 3) 3. Remove the three retaining nuts that hold the trolley top to the column (Item 4) 4.
- Page 6 Spare Part Identification v-05092022 - Page 6 "Trusted products made for trusted professionals"...
- Page 7 Spare Part Identification Table Item Code Description BIC-2310 Clipboard Clip BIC-2169-Long Release Cable BIC-1796 Release Handle MMC-SA-1322-Long Cable I-Move Column BIC-10015726(125N) Column Strut MMC-MC1328 Strut Release Lever BIC-1793-Brake Castor-Brake BIC-1793-Steer Castor BIC-1794 I-move Base v-05092022 - Page 7 "Trusted products made for trusted professionals"...
