Transduction TR-6190-PM User Manual

Nema 4 panel/rack mount pc with intel core 2 quad, core 2 duo and celeron d processor
Hide thumbs

Advertisement

Quick Links

Download this manual

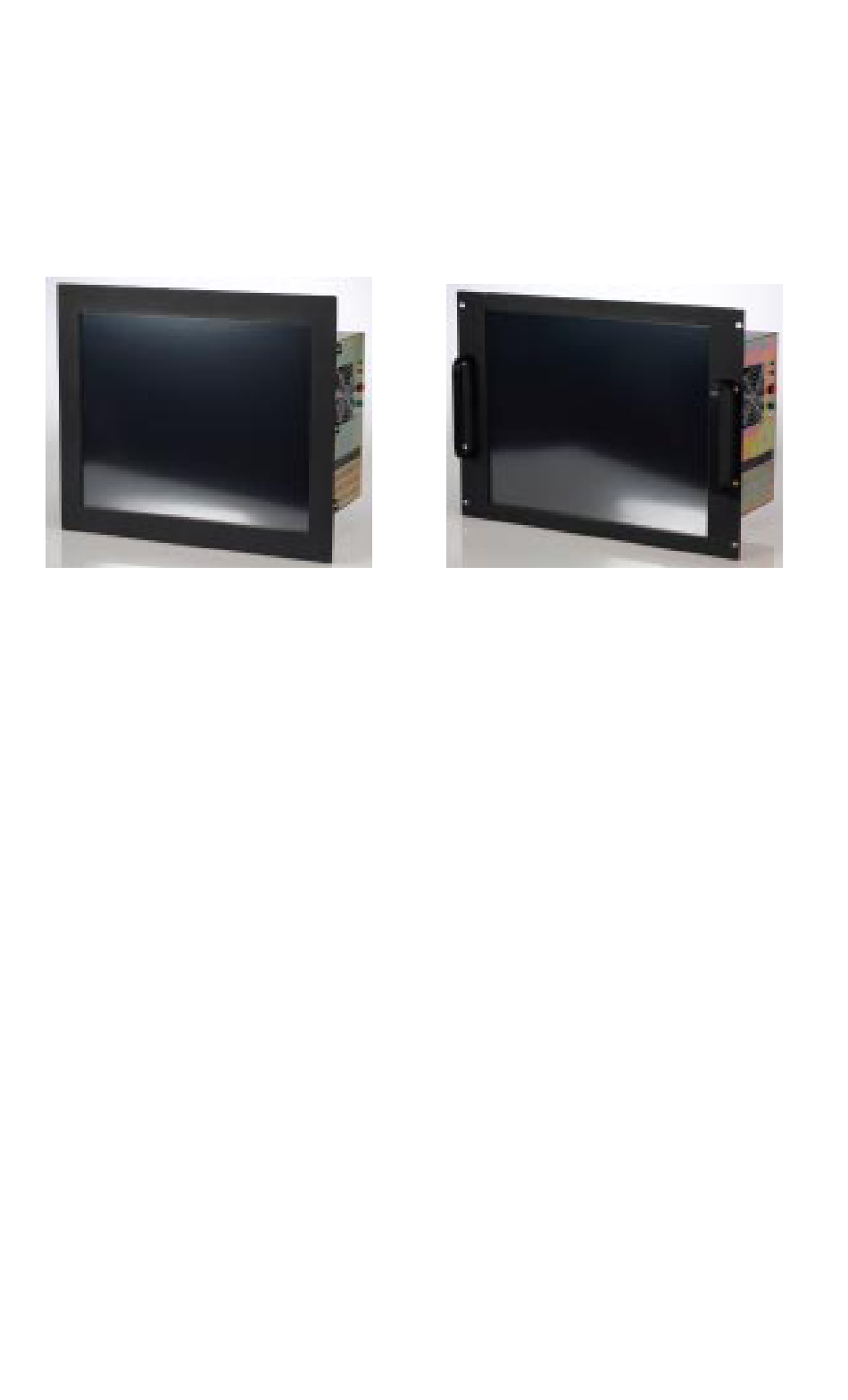

TRANSDUCTION
USER'S MANUAL
Version 1.0
05/20/09
TR-6190-PM NEMA 4 Panel Mount PC
TR-6190-RM NEMA 4 Rack Mount PC
with Intel Core 2 Quad, Core 2 Duo
and Celeron D Processor
5155-23 Spectrum Way, Mississauga, ON, Canada L4W 5A1
TEL: 1-800-268-0427, 905-625-1907
FAX: 905-625-0531

Advertisement

loading
Need help?

Need help?

Do you have a question about the TR-6190-PM and is the answer not in the manual?

Questions and answers

Related Manuals for Transduction TR-6190-PM

Summary of Contents for Transduction TR-6190-PM

  • Page 1 TRANSDUCTION USER’S MANUAL Version 1.0 05/20/09 TR-6190-PM NEMA 4 Panel Mount PC TR-6190-RM NEMA 4 Rack Mount PC with Intel Core 2 Quad, Core 2 Duo and Celeron D Processor 5155-23 Spectrum Way, Mississauga, ON, Canada L4W 5A1 TEL: 1-800-268-0427, 905-625-1907...

  • Page 2: Table Of Contents

    Table of Contents Important Information .............. Warranty .................. Recommended Use ..............Chapter 1 - Introduction Contents ..............2 TR-6190 Specifications ..........3-4 Driver Installation ............5 Touchscreen ..............6-15 Chapter 2 - TR-980 SBC Introduction Features ............... 17 Specifications ..............18-20 Chapter 3 - Installations Jumpers on the TR-980 ..........

  • Page 3: Important Information

    Should you notice an omission or any questionable item in this document, please feel free to notify Transduction. Regardless of the foregoing statement, Transduction assumes no responsibility for any errors that may appear in this document nor for results obtained by the user as a result of using this product.

  • Page 4: Recommended Use

    Recommended Use Safety Precautions and Maintenance FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE TR-6190: • DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel. • Do not spill any liquids into the cabinet or use your monitor near water. • Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure. • Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire. • Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor. • When operating the TR-6190 with its AC power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used in Europe) • In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier. • Do not place any objects onto the monitor and do not use outdoors.
  • Page 5 Introduction This chapter is designed to give you an overview on the TR-6190 industrial PC. The topics covered are as follows: Contents ............ 2 TR-6190 Specifications ....... 3-4 Driver Installation ........5 Touchscreen ..........6-15 TR-6190 User Manual...

  • Page 6: Contents

    Contents Your new TR-6190 box* should contain the following: • TR-6190 PC/LCD • Power Cord • User’s Manual • CD-ROM with drivers Panel Mount version User’s Manual Rack Mount version Driver CD *Remember to save your original box and packing material to transport or ship the monitor. TR-6190 User Manual...

  • Page 7: Tr-6190 Specifications

    TR-6190 Specifications Model TR-6190 NEMA 4 Panel Mount and Rack Mount Industrial PC with TFT LCD Touch Screen Processor Intel Socket 775 for Core 2 Quad, Core 2 Duo or Celeron D with 800/1066/1333MHz FSB Display 19” TFT LCD display Resolution - 1280 x 1024 (XGA) Backlight MTBF 50,000 hours Brightness - 250cd/m ²...
  • Page 8 Dimensions 17.75” (W) x 15.25” (H) x 6.4” (D) (8.00” (D) behind front panel) Rack mount version is 8U high N.W. 32 lbs, G.W. 37 lbs, CUFT. 6 Chassis Colour Black, OEM colour optional Warranty 3 years or 10% initial cost for 5 years Additional Options 9U rack mount version Rear access Floppy/CD option Wall mounting bracket...

  • Page 9: Driver Installation

    Driver Installation The Driver CD will auto-run when inserted in the CDROM drive. It will detect and select your single board computer and will help you to install the drivers automatically. Install Related Chipset INF Driver The selection helps you to install the INF of related chipset interface. Install VGA Driver The selection helps you to install the driver of the on-board VGA interface.

  • Page 10: Touchscreen

    Touchscreen USB Controller Driver Installation All Windows drivers are included on the Transduction TR-6190 8-wire Touchscreen Drivers CD along with Troubleshooting. NOTE: For Win XP and 2000 you MUST logon with administrator’s password. TouchKit software on the driver CD has the required drivers and the utility for toggling between left and right mouse buttons and configuration support.
  • Page 11 Draw Test Test the drawing position in relation to the display screen to verify panel linearity, calibration capability and drawing line quality. Advanced A 25 Point calibration utility for the touch sensor. Press Clear to clear previous calibration records. Press 25 pts Cal to do 25 point calibration by touching the blinking symbol on the panel until you get a beep or it stops blinking.
  • Page 12 No Sound Choose to make no sound when panel is touched. Touch Down Beep will sound when panel is touched. Lift Up The system will not make any sound until finger leaves the touch panel. Frequency Sound frequency, drag the cursor from left to right = low to high. Duration Sound duration, drag the cursor from left to right = short to long.
  • Page 13 Change right/left button by clicking the upper small rectangular box of Touch Tray. Blue area indicates which button has been selected. Shutdown utility Click on shutdown utility in the task bar Shutdown utility dialog There are five modes in shutdown utility: [Standby] to enter standby mode that saves power consumption.
  • Page 14 Constant Touch Enable Constant Touch to force driver to stop reporting touch points when movement is slight. You will see a stabilized cursor instead of a chattering cursor when users touch the same point. Eliminates unwanted noise. Auto Right Button Enable Auto Right Button to force driver to report a right click mouse event to OS when users lift up from a constant touch.
  • Page 15 Double Click Speed Double Click Speed is the double click response time for the Windows system. Users can adjust the speed for easy double click by touch panel. Double Click Area Each individual touch has its own touch tolerance. If the Double Click Area is set to <Smaller>, the panel will be very sensitive about micro-movements when you want to fix on a point.
  • Page 16 Bottom If you set the Edge to <Smaller>, TouchKit will reduce the horizontal position of the bottom edge. If you set the Edge to <Larger>, TouchKit will extend the horizontal position of the bottom edge. Left If you set the Edge to <Smaller>, TouchKit will reduce the vertical position of the left edge.
  • Page 17 Edge Compensation Switch Use the +10% and -10% button to adjust. If you press the +10% button, the top, bottom, left and right edges will extend 10%, and the cursor will be moved 10 pixels from the X and Y Axis to the right and top. If you press the -10% button, the top, bottom, left and right edges will contract 10%, and cursor will be moved 10 pixels from the X and Y Axis to the left and bottom.
  • Page 18 After completing monitor mapping, Press [Apply] to apply the mapping relationship. Split Monitors To use the Split Monitor function, you need to select which controller you want to launch this function, then check the Multiple Monitors box and Split Monitor at the same time as shown below. Press the [Split Monitor] button to set up the active area.
  • Page 19 Declaration of the Manufacturer We hereby certify that the TR-6190 is in compliance with TRANSDUCTION 5155 Spectrum Way Bldg 23 Mississauga, ON L4W 5A1 Canada 905-625-1907 www.transduction.com TR-6190 User Manual...
  • Page 20 TR-980 SBC Introduction This chapter provides information on TR-6190 single board computer, TR-980. The topics covered are as follows: Features ............. 17 Specifications ..........18-20 TR-6190 User Manual...

  • Page 21: Features

    Features  Support Intel® Core 2 Quad, Core 2 Duo, Pentium-D, Pentium 4, Celeron D processor in LGA775 package with FSB 800M/1066/1333MHz.  Two DDR2 1.8V DIMM sockets support up to 4GB system memory in Dual Channel Mode. System memory speed can be DDR2 800 or 667MHz.

  • Page 22: Specifications

    Specifications  Processor Support:  Intel® Core 2 Quad, Core 2 Duo, Pentium-D, Pentium 4, Celeron D processor .  Support Front Side Bus speed 800MHz, 1066MHz and 1333MHz.  LGA775 socket  Major Chipset:  Intel Q35 and ICH9DO chipset. ...
  • Page 23  USB Interface:  Six USB 2.0 ports compliant with USB Specification Rev. 2.0 and support USB Hot-Plug function.  Six ports are in three 2x5/2.54mm box header for internal USB devices connection.  Support Legacy USB devices and Boot from USB devices like USB-HDD, USB-Floppy and USB-CDROM.
  • Page 24  Watchdog Timer:  The WatchDog timer can be disable/enable through BIOS setup.  The timeout interval 1~255 seconds can be programmed through I/O address 842h/843h. The timeout event will generate the RESET.  CMOS:  On-board RTC with 242 bytes of Battery-back CMOS RAM. ...

  • Page 25: Chapter 3 - Installations

    Installations This chapter provides information on how to use the jumpers and connectors on the TR-980. The topics covered are as follows: Jumpers on the TR-980 ......22-25 Connectors on the TR-980 ......26-41 TR-6190 User Manual...
  • Page 26 Jumper Locations on the TR-980 TR-6190 User Manual...
  • Page 27 JP1: Clear CMOS RAM Data This 3-pin Jumper allows the user to disconnect the built-in 3V battery power to clear the information stored in the CMOS RAM. To clear the CMOS data: (1) Turn off the system power. (2) Remove Jumper cap from pin1&2. (3) Short the pin2 and pin3 for three seconds.
  • Page 28 JP2, JP3, JP4: Front Side Bus Selection JP2 and JP3 and JP4 allow users to select the FSB speed. It can be 800 MHz, 1066 MHz or 1333 MHz. User should select the correct FSB speed to make their CPU run on correct speed and ensure the system runs stably.
  • Page 29 COM2MODE: RS232/RS422/RS485 COM2 support multi-protocols include RS232, RS422 and RS485. The Protocols of COM2 can be set up through jumpers. COM2MODE: COM2 Protocols selection. The pin-out for each mode is illustrated on next chapter. COM2MODE I/F TYPE RS-232 (default) RS-422 RS-485 LCDPWR: LCD PANEL Power Selection LCDPWR can be used to select the Panel LCD supple power: +3.3V or...
  • Page 30 Connector Locations on the TR-980 TR-6190 User Manual...
  • Page 31 DIO Connector DIO ports support 8 digital I/O bits. Each bit can be configured as Input or output individually. All bits are 5V tolerant. Signal Pin # Signal Name Name DIO_0 DIO_4 DIO_1 DIO_5 DIO_2 DIO_6 DIO_3 DIO_7 USB12, 34, 56 Connectors The following table shows the pin outs of the USB12, USB34, USB56 connectors.
  • Page 32 SATA1~6 Connectors Pin # Signal Name SATATX+ SATATX- SATARX- SATARX+ VGA Connector The pin assignments of VGA CRT connector are as follows: Signal Name Pin # Pin # Signal Name Green Blue N.C. N.C. N.C. DDC_DATA HSYNC VSYNC DDC_CLK TR-6190 User Manual...
  • Page 33 LAN1, 2- RJ45 Connectors This connector is for the 10/100/1000Mbps Ethernet capability. The figure below shows the pin out assignments of this connector and its corresponding input jack. Pin # Signal Name MDI0+ MDI0- MDI1+ MDI1- MDI2+ MDI2- MDI3+ MDI3- LAN RJ45 LED1, 2 The LAN_LEDs on top of RJ45 are to display the current network connection status.
  • Page 34 AUDIO Connector Pin # Signal Name MIC1-IN-L MIC1-IN-R AGND AGND LINEOUT-L LINE-IN-L LINEOUT-R LINE-IN-R CD_IN Connector CD_IN connector is designed for wire the CD_ROM audio signals to the on-board Audio CODEC. Pin # Signal Name CD_Left CD_Right TR-6190 User Manual...
  • Page 35 PS/2 Keyboard & Mouse Connector The following table describes the pin assignment of PS/2 Keyboard and Mouse connector, which is mount on button of bracket. To attach PS/2 Keyboard and mouse, users need to connect trough a PS/2 1-to-2 Y-cable and plug into this Mini-Din connector. All the PISA-E11 boards come with a Y-cable.
  • Page 36  HDDLED1 (IDE Hard Disk LED Connector) This connector connects to the hard drive activity LED on control panel. This LED will flash when the HDD is being accessed. HDDLED Signal Name Pin # HDDLED  PWRLED1 (Power-On LED) This connector allows users to connect to Front Panel Power indicator.
  • Page 37 System FAN Connector This is a 3-pin header for the system fan. Pin # Signal Name Ground +12V SYSPWM CPU FAN Connector This is a 3-pin header for the CPU fan. Pin # Signal Name Ground +12V CPUPWM IRDA Connector This connector is used for an IrDA connector for wireless communication.
  • Page 38 COM1 Serial Port COM1, a 10-pins box-header connector, is the onboard COM1 serial port of the TR-980. The following table shows its pin assignments. Pin # Signal Name DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready GND, ground DSR, Data set ready RTS, Request to send...
  • Page 39 IDE Connector Signal Name Pin # Pin # Signal Name Reset IDE Ground Host data 7 Host data 8 Host data 6 Host data 9 Host data 5 Host data 10 Host data 4 Host data 11 Host data 3 Host data 12 Host data 2 Host data 13...
  • Page 40 LAN2_LED Connector The 4-pins LAN2_LED connector designed for LAN2 port is for applications need to display LAN2 port status on front panel or the places administrators are easy to access. Pin # Signal Name 2_ACTLED 2_PULUP 2_LINK1000 2_LINK100 SPDIF Connector SPDIF connector is for S/PDIF audio module that allows digital instead of analog sound input or output.
  • Page 41 Floppy Drive Connector Floppy connector is a 34-pin header and will support up to 2.88MB floppy drives. Signal Name Pin # Pin # Signal Name Ground RM/LC Ground No connect Ground No connect Ground Index Ground Motor enable 0 Ground Drive select 1 Ground Drive select 0...
  • Page 42 PRINTER Connector Signal Signal Name Name Line printer strobe AutoFeed PD0, parallel data 0 Error PD1, parallel data 1 Initialize PD2, parallel data 2 Select PD3, parallel data 3 Ground PD4, parallel data 4 Ground PD5, parallel data 5 Ground PD6, parallel data 6 Ground PD7, parallel data 7...
  • Page 43 DVI Connector Signal Signal Name Name TCLK+ TDC1+ TCLK- TDC1- TDC0+ TDC2+ TDC0- TDC2- CLOCK DATA DVI_PLUG BACKLITE Connector Pin # Signal Name +12V Brightness ON/OFF TR-6190 User Manual...
  • Page 44 LVDSLCD Connector The LCD panel, inverter for LCD LAMP, Touch-screen Serial Interface must be connected to this LVDS header, using the below described connector: Signal Name Pin # Pin # Signal Name +12V +12V LCDVDD 5V/3.3V LCDVDD 5V/3.3V BRIGHTNES BCKLITE_ON LVDS_GND LVDS_GND CHA_TX0+...
  • Page 45 AT_KB Connector Pin # Signal Name KBCLK KBDAT PWOK KBVCC ATX_PWR This is a four-pin connector to supports the ATX power and corresponding back-plane. When your back-plane is configured to perform ATX power supply Soft-on/off function, you have to connect the control signals and stand-by power on this connector to your back-plane by a corresponding cable.
  • Page 46 BIOS Setup This chapter describes the different settings available on the Award BIOS that comes with TR-980. The topics covered are as follows: Main Menu ............ 43-45 Standard CMOS Features ....... 46-51 Advanced BIOS Features ........ 52-58 Advanced Chipset Features ......59-62 Integrated Peripherals ........

  • Page 47: Bios Introduction

    BIOS Introduction This manual describes Award's Setup program, which is built into the ROM BIOS. The Setup program allows users to modify the basic system configuration. This special information is then stored in battery-backed RAM so that it retains the Setup information when the power is turned off.

  • Page 48: Main Menu

    4.1 Main Menu Phoenix-AwardBIOS CMOS Setup Utility ►Standard CMOS Features Load Fail-Safe Defaults ►Advanced BIOS Features Load Optimized Defaults ►Advance Chipset Features Set Supervisor Password ►Integrated Peripherals Set User Password ►Power Management Setup Save & Exit Setup ►PnP/PCI Configurations Exit Without Saving ►PC Health Status ↑↓←...
  • Page 49  Integrated Peripherals Use this menu to specify your settings for integrated peripherals.  Power Management Setup Use this menu to specify your settings for power management.  PnP/PCI Configurations Use this menu to set up the PnP/PCI configuration.  PC Health Status Use this menu to display the CPU temperature, FAN speed and voltages.

  • Page 50: Standard Cmos Setup

    4.2 Standard CMOS Features The items in Standard CMOS Setup Menu are divided into 10 categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <Pg Dn> keys to select the value you want in each item. Phoenix-Award BIOS CMOS Setup Utility Standard CMOS Features Date (mm :dd: yy)
  • Page 51 This table shows the selections that you can make on the Standard CMOS Menu. Item Options Description Date Month DD YYYY Set the system date. Note that the ‘Day’ automatically changes when you set the date Time HH : MM : SS Set the system time IDE Channel 0 Master Options are in its sub...
  • Page 52 IDE Channel 0, 1 Master/ Slave The IDE adapters control the hard disk drive. Use a separate sub menu to configure each hard disk drive. Figure 3 shows the IDE Channel 0 / Channel 1 master sub menu. Phoenix-Award BIOS CMOS Setup Utility IDE Channel 0 Master IDE HDD Auto-Detection [Press Enter]...
  • Page 53 IDE Channel 2, 3, 4 Master/ Slave Figure 4 shows the IDE Channel 2 / Channel 3 master sub menu. Phoenix-Award BIOS CMOS Setup Utility IDE Channel 2 Master IDE HDD Auto-Detection [Press Enter] Item Help ► Extended IDE Drive [Auto] Menu Level Access Mode...
  • Page 54 Use the legend keys to navigate through this menu and exit to the main menu. Use the Table listed below to configure the hard disk. Item Options Description IDE HDD Press Enter Press Enter to auto-detect the Auto-detection HDD on this channel. If detection is successful, it fills the remaining fields on this menu.
  • Page 55 Drive A/B These fields identify the types of floppy disk drive A or drive B that has been installed in the computer. The available specifications are: None 360K 1.2M 720K 1.44M 2.88M 5.25 in. 5.25 in. 3.5 in. 3.5 in. 3.5 in.

  • Page 56: Advanced Bios Features

    4.3 Advanced BIOS Features This section allows you to configure your system for basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security. Phoenix-Award BIOS CMOS Setup Utility Advanced BIOS Features ►CPU Features [Press Enter] Item Help...
  • Page 57 CPU Feature Phoenix-Award BIOS CMOS Setup Utility CPU Feature PPM Mode [Native Mode] Item Help Limit CPUID Max Val [Disabled] ► Menu Level C1E Function [Auto] Execute Disabled Bit [Enabled] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default (Figure 6) PPM Mode...
  • Page 58 Hard Disk Boot Priority Phoenix-Award BIOS CMOS Setup Utility Hard Disk Boot Priority 1.Bootable Add-in Cards Item Help ► Menu Level Use <> or <> to select a device, then press <+> to move it up, or <-> to move it down the list. Press <ESC>...

  • Page 59: Virus Warning

    Virus Warning Allows you to choose the VIRUS Warning feature for IDE Hard Disk boot sector protection. If this function is enabled and someone attempt to write data into this area, BIOS will show a warning message on screen and alarm beep.
  • Page 60 Boot Other Device When enabled, BIOS will try to load the operating system from other device when it failed to load from the three devices above. The choice: Enabled (default), Disabled. Swap Floppy Drive If the system has two floppy drives, choose "Enabled" to assign physical drive B to logical drive A and vice-versa.
  • Page 61 Typematic Rate (Chars/Sec) Sets the number of times a second to repeat a keystroke when you hold the key down. The choice: 6 (default), 8, 10, 12, 15, 20, 24, 30. Typematic Rate (Chars/Sec) ….. [ ….. [ ] ….. [ ] …..

  • Page 62: Security Option

    Security Option Select whether the password is required every time the system boots or only when you enter setup. System The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt.

  • Page 63: Advanced Chipset Features

    4.4 Advanced Chipset Features This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and access to system memory resources, such as DRAM and the external cache. It also coordinates communications between the conventional ISA bus and the PCI bus.
  • Page 64 DRAM Timing Selectable The choice: Manual, By SPD (default). If DRAM Timing Selectable is [Manual], can choice these Items: ► CAS Latency Time. ► Dram RAS# to CAS# Delay. DRAM RAS# Precharge. ► ► Precharge dealy (tRAS). System Memory Frequency. ►...

  • Page 65: Memory Hole At 15M-16M

    Memory Hole At 15M-16M Enabling this feature reserves 15 MB to 16 MB memory address space for ISA expansion cards that specifically require this setting. This makes memory from 15 MB and up unavailable to the system. Expansion cards can only access memory up to 16 MB. The choice: Enabled, Disabled (default) PCI Express Root Port Func The choice: [Press Enter].
  • Page 66 DVMT / FIXED Memory Size This field is used to select the graphics memory size used by DVMT/ Fixed mode. The choice: 64MB, 128MB (default), 224MB. Boot Display This field is used to select the type of display to use when the system boots.

  • Page 67: Integrated Peripherals

    4.5 Integrated Peripherals Phoenix-Award BIOS CMOS Setup Utility Integrated Peripherals ► On Chip IDE Device [Press Enter] Item Help ► Super IO Device [Press Enter] ► Watch Dog Timer Select [Disabled] Menu Level ►USB Device Setting [Press Enter] ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default On Chip IDE Device Phoenix-Award BIOS CMOS Setup Utility...
  • Page 68 IDE HDD Block Mode Block mode is also called block transfer, multiple commands, or multiple sectors read / write. If your IDE hard drive supports block mode (most new drives do), select Enabled for automatic detection of the optimal number of block mode (most new drives do), select Enabled for automatic detection of the optimal number of block read /write per sector where the drive can support.
  • Page 69 On-Chip Secondary PCI IDE These fields allow you to enable or disable the primary and secondary IDE controller. Select disabled if you want to add a different hard drive controller. The choice: Enabled (default), Disabled. SATA Mode Controls the SATA controller's operating mode. The choice: IDE (default), RAID, AHCI.
  • Page 70 Onboard Serial Port 2 Select an address and corresponding interrupt for the second serial ports. The choice: Disable, 3F8/IRQ4, 2F8/IRQ3 (default), 3E8/IRQ4, 2E8/IRQ3, Auto. UART Mode Select This item allows you to select which mode for the Onboard Serial Port 2. The choice: IrDA, ASKIR, Normal (default).
  • Page 71 IR Transmission Delay The choice: Disabled, Enabled (default). UR2 Duplex Mode The choice: Full, Half (default). Onboard Parallel Port This item allows you to determine onboard parallel port controller I/O address setting. The choice: 378/IRQ7 (default), 278/IRQ5, 3BC/IRQ7, Disabled. Parallel Port Mode The choice: SPP (default), EPP, ECP, ECP+EPP, Normal.
  • Page 72 If Parallel Port Mode Select is [EPP] will show: Phoenix-Award BIOS CMOS Setup Utility Super IO Device Onboard Serial Port 1 [3F8/IRQ4] Item Help Onboard Serial Port 2 [2F8/IRQ3] ► UART Mode Select [IrDA] Menu Level RxD , TxD Active [Hi, Lo] IR Transmission Delay [Enabled]...
  • Page 73 ECP Mode Use DMA If your system supports ECP parallel port mode and you have the port set to use ECP, you must use this setting to assign a DMA channel for use by the port. The choice: DMA1, DMA3 (default). If Parallel Port Mode Select is [ECP+EPP] will show: Phoenix-Award BIOS CMOS Setup Utility Super IO Device...
  • Page 74 Watch Dog Timer Select The choice: Disabled (default), Enable.  USB Device Setting Phoenix-Award BIOS CMOS Setup Utility USB Device Setting USB 1.0 Controller [Enabled] Item USB 2.0 Controller [Enabled] Help USB Operation Mode [High Speed] USB Keyboard Function [Enabled] Menu USB Mouse Function [Enabled]...
  • Page 75 USB Mouse Function The choice: Enabled (default), Disabled. USB Storage Function The choice: Enabled (default), Disabled. TR-6190 User Manual...

  • Page 76: Power Management Setup

    4.6 Power Management Setup The Power Management Setup allows you to configure you system to most effectively save energy while operating in a manner consistent with your own style of computer use. Phoenix-Award BIOS CMOS Setup Utility Power Management Setup Item Help ►PCI Express PM Funtion [Press Enter]...

  • Page 77: Power Management

    PCI Express PM Funtion Phoenix-Award BIOS CMOS Setup Utility PCI Express PM Funtion PCI Express PME [Enabled] Item Help ► Menu Level ↑↓← → ：Move Enter: Select +/-/PU/PD: Value F10:Save Esc: Exit F1:General Help F5:Previous Value F6:Fail-Safe Defaults F7:Optimized Default The choice: Enabled (default), Disabled.

  • Page 78: Video Off Method

    Video off Method This determines the manner in which the monitor is blanked. This specifies the power saving state that the VGA video subsystem enters after the specified period of display inactivity has expired. The choice: Blank Screen, V/H SYNC+ Blank, DPMS (default). Blank Screen The BIOS will only black the screen when the system gets into power management mode...
  • Page 79 HDD Power Down When enable and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active. The choice: 1Min, 2Min, 3Min, 4Min, 5Min, 6Min, 7Min, 8Min, 9Min, 10Min, 11Min, 12Min, 13Min, 14Min, 15Min, Disable (default). Soft-Off by PWR-BTTN This field defines the power off mode when using an ATX power supply.
  • Page 80 Resume by Alarm You can set "Resume by Alarm" item to enabled and key in Date/time to power on system. The choice: Enabled, Disabled (default). If Resume by Alarm is [Enabled], can choice Date Alarm and Time Alarm: Date (of Month) Alarm Every day, 1~31.
  • Page 81 FDD, COM, LPT Port When Enabled, the system will resume from suspend mode if FDD, COM port, or LPT port is active. The choice: Enabled, Disabled (default). PCI PIRQ [A-D] # When Enabled, the system will resume from suspend mode if interrupt occurs.

  • Page 82: Pnp/Pci Configuration

    4.7 PnP/PCI Configuration This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.
  • Page 83 Reset Configuration Data Default is disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the OS cannot boot. The choice: Enabled, Disabled (default).
  • Page 84 IRQ Resource When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt. This item allows you to determine the IRQ assigned to the ISA bus and is not available to any PCI slot. Phoenix-Award BIOS CMOS Setup Utility IRQ Resource IRQ-3 assigned to...
  • Page 85 DMA Resource When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt. This item allows you to determine the IRQ assigned to the ISA bus and is not available to any PCI slot. Phoenix-Award BIOS CMOS Setup Utility DMA Resource DMA-0 assigned to...

  • Page 86: Int Pin 1/2/3/4/5/6/7/8 Assignment

    PCI/VGA Palette Snoop This BIOS feature determines if your graphics card should allow VGA palette snooping by a fixed function display card. The choice: Enabled, Disabled (default). INT Pin 1/2/3/4/5/6/7/8 Assignment The choice: Auto (default),3,4,5,7,9,10,11,12,14,15. Maximum Payload Size The choice: 128 (default). TR-6190 User Manual...

  • Page 87: Pc Health Status

    4.8 PC Health Status This section helps you to get more information about your system including CPU temperature, FAN speed and voltages. It is recommended that you contact with your motherboard supplier to get proper value about your setting of the CPU temperature. Phoenix-Award BIOS CMOS Setup Utility PC Health Status CPU Warning Temperature...

  • Page 88: Shutdown Temperature

    CPU FAN Speed Shows speed. CPU Fan CHASSIS Fan Speed Shows CHASSIS speed. POWER Fan Speed Shows POWER speed. Shutdown Temperature Select the CPU over-heated shutdown temperature. C/140F, 65C/149F, 70C/158F, The choice: Disabled (default), 60 75C/167F. TR-6190 User Manual...

  • Page 89: Frequency/Voltage Control

    4. 9 Load Fail-Safe Defaults When you press <Enter> on this item you get a confirmation dialog box with a message similar to: Phoenix-Award BIOS CMOS Setup Utility ►Stand CMOS Features ►Frequency/Voltage Control ►Advanced BIOS Features Load Fail-Safe Default ►Advance Chipset Features Load Optimized Default ►Integrated Peripherals Set Supervisor Password...

  • Page 90: Set Supervisor/User Password

    4.11 Set Supervisor/ User Password You can set either supervisor or user password, or both of them. The differences between are: Supervisor password: can enter and change the options of the setup menus. User password: just can only enter but do not have the right to change the options of the setup menus.
  • Page 91 ENTER PASSWORD: Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc>...

  • Page 92: Supervisor/User Password Settings

    4.12 Save & Exit Setup Pressing <Enter> on this item asks for confirmation: Phoenix-Award BIOS CMOS Setup Utility ►Stand CMOS Features ►Frequency/Voltage Control ►Advanced BIOS Features Load Fail-Safe Default ►Advance Chipset Features Load Optimized Default ►Integrated Peripherals Set Supervisor Password SAVE to CMOS and EXIT (Y/N)? Y ►Power Management Set User Password...
  • Page 93 Appendix This chapter provides the appendices of the user manual. The topics covered are as follows: I/O Port Address Map .......... 90 Interrupt Request Lines (IRQ) ....... 91 Post Beep .............. 92 TR-6190 Mechanical Drawings ......93-99 TR-6190 Panel Mount Clip Drawing ..... 100 TR-6190 PCI 6S Drawing ........

  • Page 94: I/O Port Address Map

    A. I/O Port Address Map Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. There is a total of 1K port address space available. The following table lists the I/O port addresses used on the Industrial CPU Card.

  • Page 95: Interrupt Request Lines (Irq)

    B. Interrupt Request Lines (IRQ) There are a total of 15 IRQ lines available on the Industrial CPU Card. Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on the Industrial CPU Card.

  • Page 96: Post Beep

    C. POST Beep Currently there are two kinds of beep codes in BIOS. This code indicates that a video error has occurred and the BIOS cannot initialize the video screen to display any additional information. This beep code consists of a single long beep followed by two short beeps.
