Transduction TR-5001 User Manual

Nema 4 panel mount pc with lcd tft touch screen
Hide thumbs
Table of Contents

Advertisement

Quick Links

TRANSDUCTION
USER'S MANUAL
Version 1.3
06/19/09
TR-5001 NEMA 4 Panel Mount PC
with LCD TFT Touch Screen
5155-23 S pectrum Way, Mississauga, ON, Canada L4W 5A1
TEL: 1-800-268-0427, 905-625-1907
FAX: 905-625-0531

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-5001 and is the answer not in the manual?

Questions and answers

Related Manuals for Transduction TR-5001

Summary of Contents for Transduction TR-5001

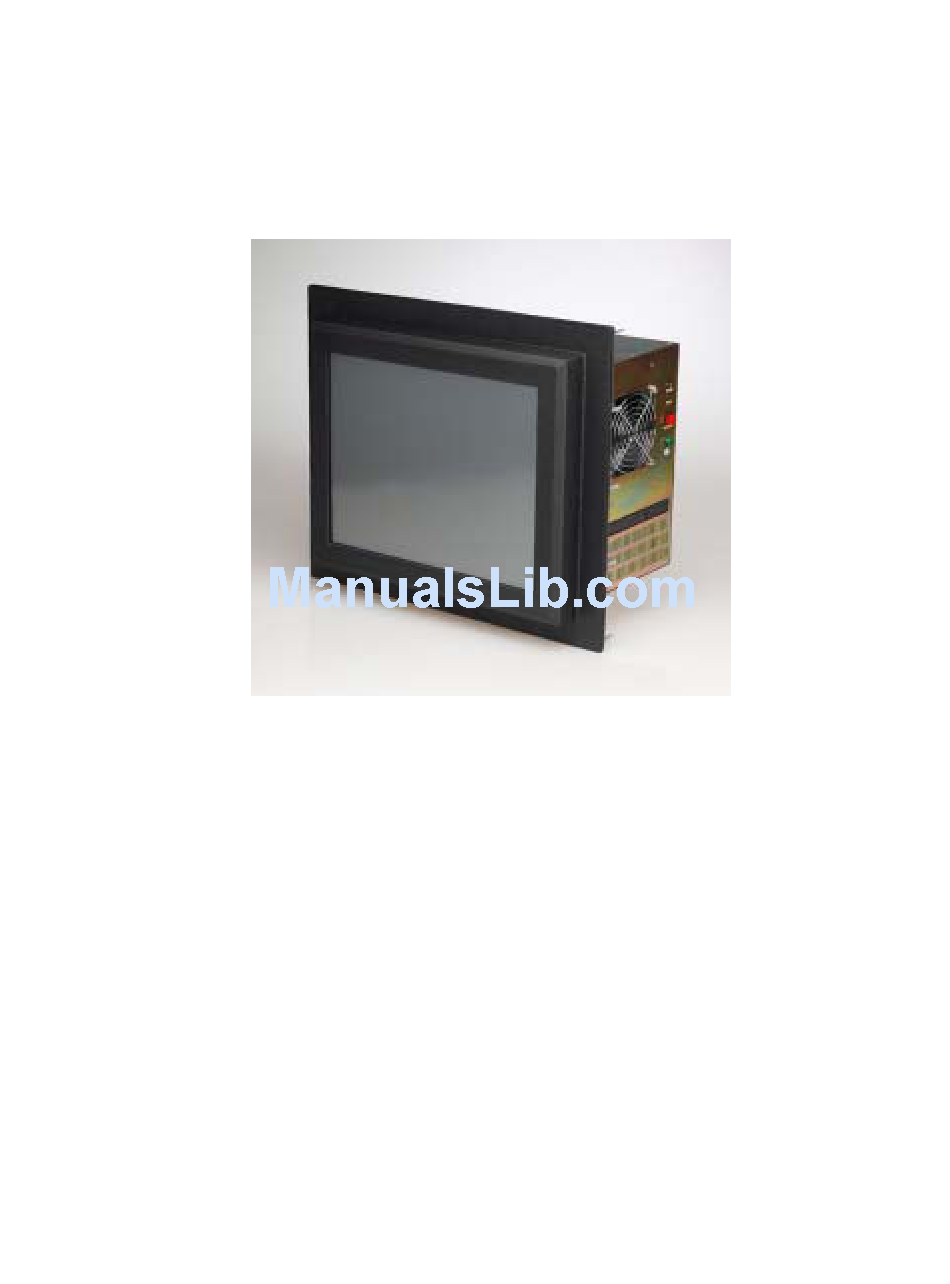

  • Page 1 TRANSDUCTION USER’S MANUAL Version 1.3 06/19/09 TR-5001 NEMA 4 Panel Mount PC with LCD TFT Touch Screen 5155-23 S pectrum Way, Mississauga, ON, Canada L4W 5A1 TEL: 1-800-268-0427, 905-625-1907 FAX: 905-625-0531...

  • Page 2: Table Of Contents

    Table of Contents Important Information ... Warranty ... Recommended Use ... Chapter 1 - Introduction Contents ... 2 TR-5001 Specifications ... 3 Driver Installation ... 4 Touchscreen ... 5-12 Chapter 2 - SBC introduction Checklist ... Description ... Features ... 16 Specifications ...

  • Page 3: Important Information

    Description of the failure Mark the RMA number clearly on the outside of each box, include a failure report and return the product to: Transduction 5155 – 23 Spectrum Way Mississauga ON Canada L4W 5A1 Attn: RMA Department TR-5001 User Manual...

  • Page 4: Recommended Use

    Do not place this product on a sloping or unstable cart, stand or table, as the • monitor may fall, causing serious damage to the monitor. When operating the TR-5001 with its AC 125-240V power supply, use a power • supply cord that matches the power supply voltage of the AC power outlet being used.
  • Page 5 Introduction This chapter is designed to give you an overview on the TR-5001 industrial PC. The topics covered are as follows: Contents ... 2 TR-5001 Specifications ... 3 Driver Installation ... 4 Touchscreen ... 5-12 TR-5001 User Manual...

  • Page 6: Contents

    Contents Your new TR-5001 box* should contain the following: TR-5001 PC/LCD • Power Cord • User’s Manual • CD-ROM with drivers • User’s Manual *Remember to save your original box and packing material to transport or ship the monitor. CD-ROM with drivers...

  • Page 7: Tr-5001 Specifications

    TR-5001 Specifications Model TR-5001 NEMA 4 Panel Mount and Rack Mount Industrial PC with TFT LCD Processor Intel Socket 478 for Pentium 4 or Celeron up to 3.6GHz with 800MHz FSB Display 15” TFT LCD display Memory 2 x 184 pin DIMM sockets, up to 2GB DDR memory Expansion Slots Seven slot backplane with one PICMG CPU card Drive Bay 2 x 3.5”...

  • Page 8: Driver Installation

    The selection helps you to install the driver of the on-board audio interface. Install Hi-Speed USB 2.0 Driver The selection helps you to install the driver of the on-board USB 2.0 interface. Browse the CD The selection helps you to find the drivers in this CD directly. TR-5001 User Manual...

  • Page 9: Touchscreen

    When the New Hardware Found message comes up, choose Cancel. Run the Setup.exe program from the driver CD. Please note that the touch screen controller in the TR-5001 is USB and follow the prompts accordingly. Windows will copy the files to your hard drive and setup will be complete. (Windows XP will give a warning message about the TouchKit Controller certification, press Continue anyway.)
  • Page 10 The system will not make any sound until finger leaves the touch panel. Frequency Sound frequency, drag the cursor from left to right = low to high. Duration Sound duration, drag the cursor from left to right = short to long. TR-5001 User Manual...
  • Page 11 [Standby] to enter standby mode that saves power consumption. [Shutdown] to turn off PC. [Reboot] to restart PC. [Cancel] to escape from the Shutdown utility dialog. [Exit] to disable the Shutdown utility. Please note that Windows NT does not support this function. Shutdown utility dialog TR-5001 User Manual...
  • Page 12 Cursor visibility function allows the cursor to be hidden. Go to Start / Control Panel / Mouse / Pointers / Scheme, and choose TouchKit Hide Cursor. Press [Apply] to make the setting change, and press [OK] to escape the property page. Double Click Adjustment TR-5001 User Manual...
  • Page 13 Right If you set the Edge to <Smaller>, TouchKit will reduce the vertical position of the right edge. If you set the Edge to <Larger>, TouchKit will extend the vertical position of the right edge. TR-5001 User Manual...
  • Page 14 10%, and cursor will be moved 10 pixels from the X and Y Axis to the left and bottom. Choose the Default button to restore the default settings. 4. MONITORS: Multiple Monitors, Split Monitor Multiple Monitors To configure the mapping relationship between the monitors and the touch panels, select the monitor page as below. TR-5001 User Manual...
  • Page 15 Left: 0, Right: 0, Top: 0 and Bottom: 0. 5. ABOUT: General information about TouchKit. Uninstalling TouchKit To uninstall, use the TouchKit/Uninstall from the Programs menu on the Start button. TR-5001 User Manual...
  • Page 16 Declaration of the Manufacturer We hereby certify that the TR-5001 is in compliance with TRANSDUCTION 5155 Spectrum Way Bldg 23 Mississauga, ON L4W 5A1 Canada 905-625-1907 www.transduction.com TR-5001 User Manual...
  • Page 17 TR-979 SBC Introduction This chapter provides information on the TR-5001 single board computer, TR-979 . The topics covered are: Checklist ... 14 Description ... 14-15 Features ... 16 Specifications ... 17-20 TR-5001 User Manual...

  • Page 18: Checklist

    This makes TR-979 an ideal SBC card for CTI, ISP servers, workstations, automation as well as other industrial applications. TR-979 provides the most complete features needed for system operation. These include Two Gigabits LAN, Audio, LVDS Encoder, Dual channel UDMA100 IDE drive controller, Dual TR-5001 User Manual...
  • Page 19 CPU fan speeds to prevent system crashes by warning the user of adverted conditions. The power management feature provides power savings by slowing down the CPU clock, turning off the monitor screen and stopping the HDD spindle motor. TR-5001 User Manual...

  • Page 20: Features

    Four USB2.0 ports. USB2.0 cable kit is available to mount UBS connector on chassis or bracket. • Support Hardware Monitor and Watch-Dog timers. System will alert administrators while abnormal operation condition happened. • Support remote wake up on LAN and Modem. TR-5001 User Manual...

  • Page 21: Specifications

    One 15-pins D-type connector on bracket for CRT display. One 20-pins 2mm pin-header for LVDS interface LCD panel VBIOS support diffused 18/24/48-bits TFT LCD. Panel type selectable through BIOS setup. Dual Display to both CRT and TFT-Panel. TR-5001 User Manual...
  • Page 22 Support Teaming, load balancing and fault-tolerance with Intel Bay-City 3.0 drivers. Support Wake-on-LAN while ATX power supply is attached. • CMOS: On-board RTC with 242 bytes of Battery-back CMOS RAM. One 3-pins Jumper to clear CMOS data. TR-5001 User Manual...
  • Page 23 CPU socket. • USB Interface: • Four USB pin-header connectors, compliant with USB Specification Rev. 2.0 and support USB Hot-Plug function. • Support Legacy Usb devices and Boot from USB devices like USB-HDD, USB-Floppy and USB-CDROM. TR-5001 User Manual...
  • Page 24 Power Supply: 12A@ +5v typical; 300mA@ +12v typical 100mA@ -12V typical; 200mA@ +5VSTB (Option) Temperature: 0ºC to 60ºC operating; -40ºC to 70ºC storage Humidity: 5% to 95% Dimensions: 13.3"(L) x 4.8"(W) or 338mm (L) x 124mm (W) TR-5001 User Manual...
  • Page 25 TR-979 in order to set up a workable system. The topics covered are: CPU Installation ... 22 Memory Installation ... 23 Jumpers on the TR-979... 24-29 Connectors on the TR-979... 30-45 Watchdog Timer Configuration ... 46 TR-5001 User Manual...

  • Page 26: Cpu Installation

    WARNING!: If no FAN circulating Air on the CPU, the processor might been overheated and damage both CPU and SBC components. IMPORTANT: You must set jumpers for “CPU FSB speed” depending on the CPU that you install. TR-5001 User Manual...

  • Page 27: Memory Installation

    ----- ----- 128MB 128MB 128MB 256MB 128MB 512MB 256MB 128MB 256MB 256MB 256MB 512MB 256MB 512MB 128MB 512MB 256MB 512MB 512MB 512MB Total Memory 128MB 256MB 512MB 256MB 384MB 640MB 384MB 512MB 768MB 1280MB 640MB 768MB 1536MB TR-5001 User Manual...

  • Page 28: Jumpers On The Tr-979

    If you have doubts about the best jumper configuration for your needs, contact your dealer or sales representative. The following picture below shows the jumpers on TR-979 and their respective functions. TR-5001 User Manual...
  • Page 29 Jumper Locations on the TR-979 COM2MODE TR-5001 User Manual...
  • Page 30 : Pin 1-2 Short 533MT/s CPU FSB : Pin 1-2 Open : Pin 1-2 Open 800MT/s CPU FSB : Pin 1-2 Short Setting Function Pin 1-2 Normal Operation Short/Closed (default) Pin 2-3 Clear CMOS Short/Closed Content TR-5001 User Manual Function...
  • Page 31 The JP8 jumper is used to select time-out signal. It can be RESET to re-boot system, NMI to signal CPU or disable this function. Time-out Period 10 Sec 20 Sec 30 Sec 80 Sec Setting Function Pin 1-2 NMI to signal CPU Short/Closed Pin 2-3 RESET to re-boot Short/Closed system TR-5001 User Manual...
  • Page 32 Panel work in specified power rail. JP8~ 9: On-Board LAN Enable/Disable selection On-Board Fast Ethernet LAN chips can be disabled by shorting the JP8 or/and JP9 jumper. Port # PORT 1 PORT 2 +3.3V Enable Disable TR-5001 User Manual...
  • Page 33 COM2MODE: COM2 RS232/RS422/RS485 Selection COM2MODE I/F TYPE RS-232 RS-422 RS-485 TR-5001 User Manual...

  • Page 34: Connectors On The Tr-979

    Connectors on the TR-979 The connectors on the TR-979 allows you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers, etc. The following picture below lists the connectors on TR-979. TR-5001 User Manual...
  • Page 35 Connector Locations on the TR-979 IRDA COM2 COM1 Printer Floppy AUDIO USB1＊2 USB3＊4 IDE1 IDE2 Front Panel Keylock LAN1 LAN1LED LAN2LED PS2KBMS ATKB CDIN SATA1 SATA2 SYSFAN LVDS TR-5001 User Manual LAN2 ATXPW ATPWR CPUFAN...
  • Page 36 Reset Power-On LED This connector allows users to connect to Front Panl Power indicator. RESET PWR HDD PWR LED LED BTN RESET Pin # IDE LED Pin # TR-5001 User Manual Signal Name Reset Ground Signal Name Ground...
  • Page 37 The keylock switch, when closed, will disable the keyboard function. IDE LED Signal Name Pin # IDE_ACT Ground PWR BTN Signal Name Pin # PWR-BTN Power LED Signal Name Pin # Power_on Ground Keylock Ground TR-5001 User Manual...
  • Page 38 Address 1 Address 0 Chip select 0 Activity Pin # Pin # Ground DRQ0 IRQ14 TR-5001 User Manual Signal Name Ground Host data 8 Host data 9 Host data 10 Host data 11 Host data 12 Host data 13 Host data 14...
  • Page 39 Host data 9 Host data 10 Host data 11 Host data 12 Host data 13 Host data 14 Host data 15 Ground Ground Ground Host ALE Ground No connect No connect Address 2 Chip select 1 Ground TR-5001 User Manual...
  • Page 40 Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground Ground TR-5001 User Manual Signal Name RM/LC No connect No connect Index Motor enable 0 Drive select 1 Drive select 0 Motor enable 1 Direction Step Write data...
  • Page 41 PD4, parallel data 4 PD5, parallel data 5 PD6, parallel data 6 PD7, parallel data 7 ACK, acknowledge Busy Paper empty Select Pin # Pin # Signal Name AutoFeed Error Initialize Select Ground Ground Ground Ground Ground Ground Ground Ground TR-5001 User Manual...
  • Page 42 DTR, Data terminal ready GND, ground 6 DSR, Data set ready 7 RTS, Request to send CTS, Clear to send RI, Ring indicator N.C. TR-5001 User Manual RS422/RS485 Mode Signal Name TX- (422/485) TX+ (422/485) RX+ (422) RX- (422) N.C.
  • Page 43 Y-cable and plug into this Mini-Din connector. All the TR-979 SBC boards come with a Y-cable. Contact your dealer if the Y-cable is missing. Pin # Signal Name Keyboard clock Keyboard data Signal Name Keyboard data Mouse data Keyboard clock Mouse clock TR-5001 User Manual...
  • Page 44 The following table shows the pin outs of the USB connectors. Signal Name Blue N.C. N.C. HSYNC Pin # Signal Name USB1 USB0 Signal Name Pin# Pin # USB- USB+ Ground N.C. TR-5001 User Manual Signal Name Green N.C. N.C. VSYNC Rotation +12V Ground...
  • Page 45 This is a 3-pin header for the chassis fan. The fan must be a 12V fan. 1 2 3 IrDA Pin # Signal Name Ground Pin # Signal Name PWR_GD 5V_SB (standby +5V) PS-ON (soft on/off) Pin # Signal Name Rotation +12V Ground TR-5001 User Manual Ir RX Ir TX...
  • Page 46 10Base-T, 100Base-T or 1000Base-T. Pin # Signal Name MDI0+ MDI0- MDI1+ MDI1- MDI2+ MDI2- MDI3+ MDI3- LNK/ACT STATUS Link Disconnected FLASH Packets TX/RX SPEED MODE Orange 1000 Mbps Green 100 Mbps 10 Mbps TR-5001 User Manual...
  • Page 47 The Power good signal will be generated by the circuit on the SBC card. Pin 1 is replace with +5V power to increase supply current. Pin # LAN LED Pin # Signal Name +12V -12V TR-5001 User Manual Signal Name ACTLED- LINKLED- ORGLED- GRNLED-...
  • Page 48 CD_INconnector is designed for wire the CD_ROM audio signals to the on-board Audio CODEC. 4 3 2 1 Audio Connectors LAN LED Signal Name Pin # CD_Left CD_AGND CD_AGND CD_Right LAN LED Signal Name Pin # Jack Detect Vreference MIC-IN AGND AGND LINE-OUT-L LINE-IN-L LINE-OUT-R LINE-IN-R TR-5001 User Manual...
  • Page 49 Note: Contact your dealer for LCD Cable kit and Video BIOS customization. WOL Connectors 3 2 1 SATA Connectors Pin # Pin # Pin # Pin # Signal Name 5VSB PME- Signal Name SATARX+ SATARX- SATATX- SATATX+ TR-5001 User Manual Signal Name TX0- TX1- TX2- TX3- TXC- LCD_VCC...

  • Page 50: Watchdog Timer Configuration

    I/O port 043H for the system to stop the watchdog function. The timer has a tolerance of 20% for its intervals. The following describes how the timer should be programmed. Enabling Watchdog DX, 0843H DX, AX Disabling Watchdog DX, 043H DX, AX TR-5001 User Manual...
  • Page 51 Integrated Peripherals... 68-74 Power Management Setup... 75-78 PnP/PCI Configurations ... 79-81 PC Health Status... 82-83 Frequency/Voltage Control ... 84 Load Fail-Safe Defaults... 85 Load Optimized Defaults ... 85 Supervisor/User Password Setting ... 86 Exit Selecting ... 87 TR-5001 User Manual...

  • Page 52: Bios Introduction

    Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you The BIOS TR-5001 User Manual...
  • Page 53 Use the left and right arrow keys to choose the menu you want to be in. To display a sub menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “ ” pointer marks all sub menus. Function TR-5001 User Manual...
  • Page 54 These defaults have been carefully chosen by both Award and TR-979 manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. TR-5001 User Manual...

  • Page 55: Main Menu

    Use this menu to set the Advanced Features available on your system. Frequency/Voltage Control Load Fail-Safe Defaults Load Optimized Defaults Set Supervisor Password Set User Password Save & Exit Setup Exit Without Saving ↑ ↓ ← → : Select Item TR-5001 User Manual...
  • Page 56 Supervisor / User Password Use this menu to set User and Supervisor Passwords. Save & Exit Setup Save CMOS value changes to CMOS and exit setup. Exit Without Save Abandon CMOS value changes exit setup. TR-5001 User Manual...

  • Page 57: Standard Cmos Setup

    ↑↓←→Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-safe defaults Standard CMOS Features [None] [None] [None] [None] [1.44M, 3.5 in.] [None] [EGA/VGA] [All Errors] 640K 121856K 122880K F7:Optimized Defaults TR-5001 User Manual Item Help Menu Level Change the day, month, year and century...
  • Page 58 MONO All Errors No Errors All, but Keyboard All, but Diskette All, but Disk/Key TR-5001 User Manual Description Set the system date. Note that the ‘Day’ automatically changes when you set the date Set the system time Press <Enter> to enter the sub menu of detailed options Press <Enter>...
  • Page 59 Use the Table listed below to configure the hard disk. HDDs IDE Cannel 0 Master [Press Enter] [Auto] Menu Level [Auto] To auto-detect the HDD’s size, head... on this channel 0 MB F7:Optimized Defaults TR-5001 User Manual Item Help...
  • Page 60 Max = 255 heads Min = 0 **** Warning: Setting a value of Max = 65535 65535 means no hard disk Min = 0 **** Max = 65535 Min = 0 Number of sectors per track Max = 255 TR-5001 User Manual...
  • Page 61 All, But Disk/Key The system boot will not be halted for a key- board or disk error; it will stop for all others. 720KB 1.44MB 2.88MB 3.5 in. 3.5 in. 3.5 in. TR-5001 User Manual...

  • Page 62: Advanced Bios Features

    [Enabled] attempt to write data into [Disabled] this area, BIOS will show a [Enabled] warning message on screen [On] and alarm beep [Fast] [Disabled] [250] [Setup] [Enabled] [1.4] [Non-OS2] [No] [Disabled] F7:Optimized Defaults TR-5001 User Manual Item Help...
  • Page 63 The choice: 4Min, 8Min, 16Min, 32Min. Thermal Management Limit CPU MaxVal Set Limit CPUID MaxVal to 3, Should Be “Disabled” for WinXp. The choice: Enabled, Disabled CPU Feature [16Min] Item Help Thermal Monitor 1 [Disabled] Menu Level F7:Optimized Defaults TR-5001 User Manual...
  • Page 64 Hard Disk Boot Priority Item Help Menu Level Use <↑> or <↓> to select a device, then press <+> to move it up, or <－> to move it down the list. Press <ESC> to exit this menu F7:Optimized Defaults TR-5001 User Manual...
  • Page 65 B to logical drive A and vice-versa. The choice: Enabled/Disabled. Boot Up Floppy Seek Enabled tests floppy drives to determine whether they have 40 or 80 tracks. The choice: Enabled/Disabled. Boot Up NumLock Status Select power on state for NumLock. The choice: On/Off. TR-5001 User Manual...
  • Page 66 Menu and then you will be asked to enter password. Do not type anything and just press <Enter>, it will disable security. Once the security is disabled, the system will boot and you can enter Setup freely. TR-5001 User Manual...
  • Page 67 This option allows Windows 95 to share with other peripherals IRQ6 which is assigned to a floppy disk drive if the drive is not existing. The default setting is No. The choice: Yes, No. Small Logo (EPA) show The choice: Enabled/Disabled. TR-5001 User Manual...

  • Page 68: Advanced Chipset Features

    Advanced Chipset Features [By SPD] [2.5] [Auto] [Enabled] [Disabled] [Disabled] [128] [PCI Slot] [Enabled] [8MB] [Auto] [Auto] F6:Fail-safe defaults F7:Optimized Defaults TR-5001 User Manual Item Help Menu Level...
  • Page 69 The precharge time is the number of cycles it takes for the RAS to accumulate its charge before DRAM refresh. If insufficient time is allowed, refresh may be incomplete and the DRAM may fail to retain data. The choice: 3, 2. TR-5001 User Manual...
  • Page 70 PCI memory address range dedicated for graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation. The choice: 4M, 8M, 16M, 32M, 64M, 128M, 256M. TR-5001 User Manual...
  • Page 71 The choice: 1MB, 8MB, 16MB. Boot Display The choice: Auto, CRT, LFP, CRT+LFP, EFP, TV, CRT+EFP, CRT+TV. Panel Number The choice: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16. TR-5001 User Manual...

  • Page 72: Integrated Peripherals

    [Enabled] [Auto] [Auto] [Auto] [Auto] [Disabled] Primary Master [Primary Slave] F7:Optimized Defaults TR-5001 User Manual Item Help Menu Level Item Help Menu Level If your IDE hard drive supports block mode select Enabled for automatic detection of the optimal number of...
  • Page 73 (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device. The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4. TR-5001 User Manual...
  • Page 74 The choice: Primary Master, Primary Slave, Secondary Master, Secondary Slave, Primary Master, Secondary Master, SATA0 master, SATA1 master. Serial ATA Port1 Mode The choice: Primary Master, Primary Slave, Secondary Master, Secondary Slave, Primary Master, Secondary Master, SATA0 master, SATA1 master. TR-5001 User Manual...
  • Page 75 USB Keyboard Support Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard. The choice: Enabled, Disabled. Onboard Device [Enabled] [Enabled] [Disabled] [Disabled] Menu Level [Auto] [Enabled] F7:Optimized Defaults TR-5001 User Manual Item Help...
  • Page 76 FDC or the system has no floppy drive, select Disabled in this field. The choice: Enabled, Disabled. SuperIO Device [Enabled] [3F8/IRQ4] [2F8/IRQ3] [Normal] Menu Level Hi, Lo Enabled Half [378/IRQ7] [SPP] EPP1.7 [Off] F7:Optimized Defaults TR-5001 User Manual Item Help...
  • Page 77 Select an operating mode for the onboard parallel (printer) port. Select Normal, Compatible, or SPP unless you are certain your hardware and software both support one of the other available modes. The choice: SPP, EPP, ECP, ECP+EPP, Normal. TR-5001 User Manual...
  • Page 78 Select EPP port type 1.7 or 1.9. The choice: EPP1.7, 1.9. ECP Mode Use DMA Select a DMA channel for the parallel port for use during ECP mode. The choice: 3, 1. PWRON After PWR-Fail The choice: Off, On, Former-Sts. TR-5001 User Manual...

  • Page 79: Power Management Setup

    OS can avoid the Windows Shutdown issue. The choice: AT, ATX. [AT] Item Help [Enabled] [User Define] Menu Level [DPMS] [Yes] [Disabled] [Disabled] [Instant-Off] [50.0%] [Enabled] [Enabled] [Enabled] [Disabled] 0 : 0 : 0 [Disabled] [Disabled] [Disabled] [Disabled] [Disabled] [Disabled] F7:Optimized Defaults TR-5001 User Manual...
  • Page 80 This option only writes blanks to the video buffer. Initial display power management signaling. Allows the BIOS to control video display card if it supports the DPMS feature. TR-5001 User Manual...
  • Page 81 The choice: Disabled, 1 min, 2 min, 4 min, ….. 15 min. Soft-Off by PWR-BTTN The choice: Instant-Off, Delay 4 Sec. CPU THRM-Throttling The choice: 75.0%, 50.0%, 25.0% Wake-Up by PCI card The choice: Enabled, Disabled. TR-5001 User Manual...
  • Page 82 When Enabled, any activity from one of the listed system peripheral devices or IRQs wakes up the system. The choice: Enabled, Disabled. PCI PIRQ[A-D]# When Enabled, any activity from one of the listed PCI IRQ signals wakes up the system. The choice: Enabled, Disabled. TR-5001 User Manual...

  • Page 83: Pnp/Pci Configuration

    Default is Disabled. Select Enabled to reset Extended System Configuration Data(ESCD) when you exit Setup if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the OS cannot boot TR-5001 User Manual...
  • Page 84 - Bus 0 Dev29 Func 0 USB 1.0/1.1 UHCI Cntrlr - Bus 0 Dev29 Func3 Choices are Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15. INTB Assignment Device(s) using this INT: Multimedia Device- Bus 0 Dev31 Func 5 Simple COMM. Cntrlr TR-5001 User Manual...
  • Page 85 Choices are Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15. INTH Assignment Device(s) using this INT: USB 2.0 EHCI Cntrlr- Bus 0 Dev29 Func7 Choices are Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15. TR-5001 User Manual...

  • Page 86: Pc Health Status

    PC Health Status [Disabled ] 52°C / 125°F 32°C / 95°F 35°C / 95°F 4500 RPM 0 RPM 1.7V 1.5V 3.31V 5.01V 12.0V -12.03V -5.09V 3.28V 4.95V [Disabled] F7:Optimized Defaults °C/122°F, 53°C/127°F, 56°C/133°F, 60°C/140°F, TR-5001 User Manual Item Help Menu Level...
  • Page 87 CPU FAN Speed Shows CPU FAN speed. CHASSIS FAN Speed Shows System FAN speed. Vcore/1.5V/3.3V/5V/12V/-12V/-5V/VBAT/5VSB Voltages Shows Power rails voltage. Shutdown Temperature Select the CPU over-heated shutdown temperature. The choice: Disabled, 60 °C/140°F, 65°C/149°F, 70°C/158°F, 75°C/167°F. TR-5001 User Manual...

  • Page 88: Frequency/Voltage Control

    Spread Spectrum This item allows you to enable/disable the spread spectrum modulation. The spread spectrum technology also helps to alleviate the EMI. The choice: Enabled, Disabled. Frequency/Voltage Control [14X] [Disabled] [Enabled] F7:Optimized Defaults TR-5001 User Manual Item Help Menu Level...

  • Page 89: Load Fail-Safe Defaults

    When you press <Enter> on this item you get a confirmation dialog box with a message similar to: Load Optimized Defaults (Y/N) ? N Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations. TR-5001 User Manual...

  • Page 90: Supervisor/User Password Settings

    Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup. TR-5001 User Manual...

  • Page 91: Exit Selecting

    Pressing <Enter> on this item asks for confirmation: Quit without saving (Y/N)? N This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer. TR-5001 User Manual...

  • Page 92: Appendix

    Appendix I/O Port Address Map Interrupt Request Lines (IRQ) POST Beep TR-5001 User Manual...

  • Page 93: I/O Port Address Map

    Clear Math Coprocessor Busy Signal Reset Math Coprocessor IDE Interface Parallel Port #2(LPT2) Serial Port #2(COM2) Graphics adapter Controller Parallel Port #1(LPT1) Network Ports Monochrome & Printer adapter EGA adapter CGA adapter Floppy Disk Controller Serial Port #1(COM1) TR-5001 User Manual...

  • Page 94: Interrupt Request Lines (Irq)

    Function System Timer Output Keyboard Interrupt Cascade Serial Port #2 Serial Port #1 Reserved Floppy Disk Controller Parallel Port #1 Real Time Clock Software Redirected to Int 0Ah Reserved Reserved PS/2 Mouse 80287 Primary IDE Secondary IDE TR-5001 User Manual...

  • Page 95: Post Beep

    This beep code consists of a single long beep followed by two short beeps. The other code indicates that your DRAM error has occurred. This beep code consists of a single long beep repeatedly. TR-5001 User Manual...
