Transduction TR-5190-PM User Manual

Nema 4 panel/rack mount pc with 19” lcd touch screen
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TRANSDUCTION
USER'S MANUAL
Version 1.1
04/14/09

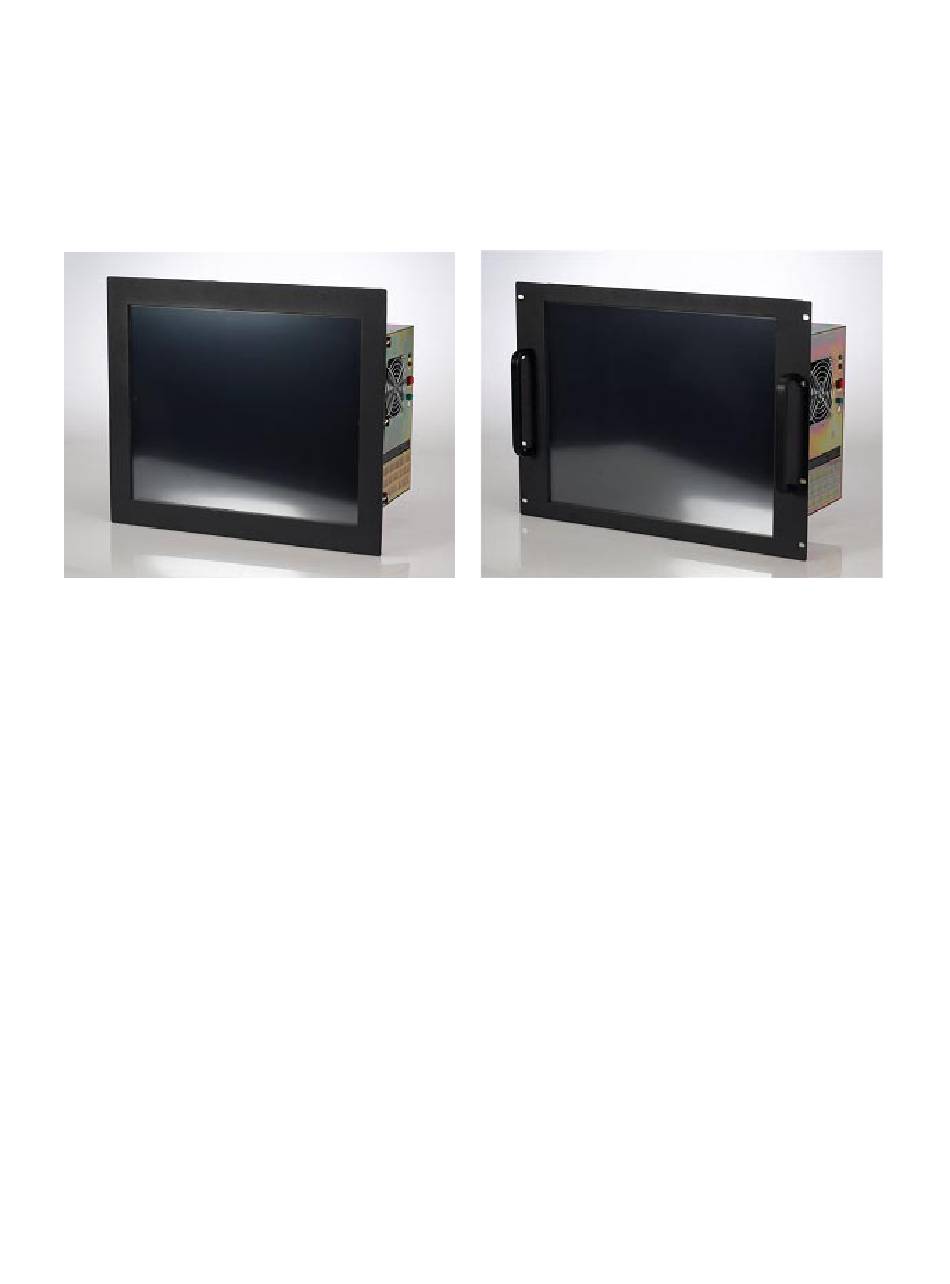

TR-5190-PM NEMA 4 Panel Mount PC
TR-5190-RM NEMA 4 Rack Mount PC
with 19" LCD Touch Screen
5155-23 Spectrum Way, Mississauga, ON, Canada L4W 5A1
TEL: 1-800-268-0427, 905-625-1907
FAX: 905-625-0531

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TR-5190-PM and is the answer not in the manual?

Questions and answers

Related Manuals for Transduction TR-5190-PM

Summary of Contents for Transduction TR-5190-PM

  • Page 1 TRANSDUCTION USER’S MANUAL Version 1.1 04/14/09 TR-5190-PM NEMA 4 Panel Mount PC TR-5190-RM NEMA 4 Rack Mount PC with 19” LCD Touch Screen 5155-23 Spectrum Way, Mississauga, ON, Canada L4W 5A1 TEL: 1-800-268-0427, 905-625-1907 FAX: 905-625-0531...

  • Page 2: Table Of Contents

    Table of Contents Important Information ............... Warranty .................. Recommended Use ..............Chapter 1 - Introduction Contents ..............2 TR-5190 Specifications ..........3 Driver Installation ............4 Touchscreen ..............5-12 Chapter 2 - SBC introduction Checklist ..............Description ..............14-15 Features ............... 16 Specifications ..............

  • Page 3: Important Information

    All relevant issues have been considered in the preparation of this document. Should you notice an omission or any questionable item in this document, please feel free to notify Transduction. Regardless of the foregoing statement, Transduction assumes no responsibility for any errors that may appear in this document nor for results obtained by the user as a result of using this product.

  • Page 4: Recommended Use

    Recommended Use Safety Precautions and Maintenance FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE TR-5190: • • • • • DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks.
  • Page 5 Introduction This chapter is designed to give you an overview on the TR-5190 industrial PC. The topics covered are as follows: Contents ..............2 TR-5190 Specifications ..........3 Driver Installation ............. 4 Touchscreen .............. 5-12 TR-5190 User Manual...

  • Page 6: Contents

    Contents Your new TR-5190 box* should contain the following: • TR-5190 PC/LCD • Power Cord • User’s Manual • CD-ROM with drivers Panel Mount version User’s Manual Rack Mount version Driver CD *Remember to save your original box and packing material to transport or ship the monitor. TR-5190 User Manual...

  • Page 7: Tr-5190 Specifications

    TR-5190 Specifications Model TR-5190 NEMA 4 Panel Mount and Rack Mount Industrial PC with TFT LCD Touch Screen Processor Intel Socket 478 for Pentium 4 or Celeron up to 3.6GHz with 800MHz FSB Display 19” TFT LCD display Resolution - 1280 x 1024 (XGA) Backlight MTBF 50,000 hours Brightness - 250cd/m ²...

  • Page 8: Driver Installation

    Driver Installation The Driver CD will auto-run when inserted in the CDROM drive. It will detect and select your single board computer and will help you to install the drivers automatically. Install Related Chipset INF Driver The selection helps you to install the INF of related chipset interface. Install VGA Driver The selection helps you to install the driver of the on-board VGA interface.

  • Page 9: Touchscreen

    Touchscreen USB Controller Driver Installation All Windows drivers are included on the Transduction TR-5190 8-wire Touchscreen Drivers CD along with Troubleshooting. NOTE: For Win XP and 2000 you MUST logon with administrator’s password. TouchKit software on the driver CD has the required drivers and the utility for toggling between left and right mouse buttons and configuration support.
  • Page 10 Advanced A 25 Point calibration utility for the touch sensor. Press Clear to clear previous calibration records. Press 25 pts Cal to do 25 point calibration by touching the blinking symbol on the panel until you get a beep or it stops blinking. After calibration, the new record will overwrite the old one.
  • Page 11 Mouse Mode The Mouse Mode provides users different operating options. Mouse Button Click it to show/hide Touch Tray on the right bottom corner of the desktop. Users can choose show or hide Touch Tray from the mouse icon in the taskbar. Change right/left button by clicking the upper small rectangular box of Touch Tray.
  • Page 12 Mouse Mode There are three mouse modes: [Normal Mode] Provides all the mouse functions, including the dragging function. [Click on Touch] Click action is executed as soon as panel is touched. [Click on Release] Click action will not be executed until finger leaves the panel. Option Touchkit provides an option for advanced Mouse Emulation setting.
  • Page 13 Double Click Speed Double Click Speed is the double click response time for the Windows system. Users can adjust the speed for easy double click by touch panel. Double Click Area Each individual touch has its own touch tolerance. If the Double Click Area is set to <Smaller>, the panel will be very sensitive about micro-movements when you want to fix on a point.
  • Page 14 In some cases, the cursor will be behind the finger when you touch the panel. If you cannot see the cursor, you can set the X Axis or Y Axis to move the cursor. Offset X Axis If you set the Offset X Axis to <Smaller>, cursor will be moved one pixel to the left of the X Axis.
  • Page 15 Set the check box (Use Multiple Monitors) to enable multiple monitors mapping. Unchecking this box will disable multiple-monitor configuration, and all of the touch panel controllers will be mapped to the primary monitor. The gray shadow area is the monitor mapped to the selected controller/panel.
  • Page 16 Declaration of the Manufacturer We hereby certify that the TR-5190 is in compliance with TRANSDUCTION 5155 Spectrum Way Bldg 23 Mississauga, ON L4W 5A1 Canada 905-625-1907 www.transduction.com TR-5190 User Manual...
  • Page 17 TR-979 SBC Introduction This chapter provides information on the TR-5190 single board computer, TR-979 . The topics covered are: Checklist ..............14 Description ..............14-15 Features ................ 16 Specifications ............... 17-20 TR-5190 User Manual...

  • Page 18: Checklist

    Checklist Please check that your package is complete and contains the items below. If you discover damaged or missing items, please contact your dealer. The TR-979 Industrial SBC Card 1 ATA100 IDE Ribbon Cable 1 Floppy Ribbon Cable 1 Serial Port Ribbon Cable and 1 Parallel Port attached to a Mounting Bracket 1 Serial Port Ribbon Cable attached to a Mounting Bracket 1 Seria ATA cable...
  • Page 19 SATA-150 ports with RAID 0 and 1 support, high performance serial ports, enhanced parallel port, and the most updated BIOS. Four USB 2.0 ports and a programmable watchdog timer are available on-board. What’s more, the Intel 865G on-board incorporates the latest microprocessor technology to provide the increased bandwidth needed to operate your system bus at speeds up to 800MHz FSB.

  • Page 20: Features

    Features • Support Pentium 4 Prescott (90nm) and Northwood(0.13um) CPU with 400/533/800M FSB speed selectable. Intel VRD 10.1 compliant to support future advanced processor. • Dual Channel Memory bus doubles the data rate, up to 6.4GBytes/s. System memory speed can be DDR266,330 or 400, selectable by BIOS setup.

  • Page 21: Specifications

    Specifications • Processor Socket 478 supports Intel® Pentium® 4 series processors: Intel® Celeron® based on 0.13μcore, 400MHz FSB, up to 2.80GHz Intel® Pentium® 4 based on 0.13μcore, 512KB L2, 533MHz FSB, without HT Technology, up to 2.80 GHz Intel® Pentium® 4 based on 0.13μcore, 512KB L2, 533MHz FSB, with HT Technology, up to 3.06 GHz Intel®...
  • Page 22 PIDE and SATA: • Two Enhanced PIDE interfaces for up to four devices, support PIO Mode 3/4 or Ultra ATA33/66 /100 IDE Hard Disk, ATAPI CD-ROM and LS-120 drive. Two SATA connectors support up to two SATA-150 HDDs. Two SATA ports can be configured as RAID-0 and RAID-1 with RAID BIOS and Intel IAA drivers.
  • Page 23 Audio: • RealTek ALC201A AC97 Audio chip on-board. One 10-pins pin-haeder for Audio Line-IN, Line-OUT and MIC cabling. One CD-ROM Audio-In 4-pins connector on-board. BIOS: • Phoenix-Award Standard PnP BIOS 6.2. 4Mbit FlashROM with BootBlock for Fail-safe. Enhanced ACPI and DMI2.0 compliant. BIOS utility for field update.
  • Page 24 ATX Power Supply support: • On-borad 4-pin ATX power supply header (requires the passive backplane supports ATX power supply) On-board power button header for Soft power off, i.e. front panel turn off system power. Support Windows2K/XP shutdown automatically turn off the system power.
  • Page 25 Installations This chapter provides information on how to use the jumpers and connectors on the TR-979 in order to set up a workable system. The topics covered are: CPU Installation ..............22 Memory Installation ............... 23 Jumpers on the TR-979............24-29 Connectors on the TR-979............

  • Page 26: Cpu Installation

    CPU Installation The TR-979 Industrial SBC Card provides a 478-pins ZIF socket for Pentium 4 processors with FC-PAG2 package. To Install a CPU, first turn off your system and remove its cover. Locate the ZIP socket and open it by first pulling the lever sideways away from the socket then upwards to a 90-degree right angle.

  • Page 27: Memory Installation

    Memory Installation The TR-979 Industrial CPU Card provides two 184-pin DIMM sockets for a maximum total memory of 2GB SDRAM. The memory modules can come in sizes of 128MB, 256MB, 512MB and 1GB SDRAM. The TR-979 Industrial CPU Card supports two 184-pin DIMM (Dual In-line Memory Module) sockets.

  • Page 28: Jumpers On The Tr-979

    Jumpers on the TR-979 The jumpers on the TR-979 allow you to configure your SBC card according to the needs of your applications. If you have doubts about the best jumper configuration for your needs, contact your dealer or sales representative.
  • Page 29 Jumper Locations on the TR-979 COM2MODE TR-5190 User Manual...
  • Page 30 JP1 ~ 2: CPU Frequency Selector JP1 and JP2 allow users to select the CPU FSB speed. It can be 400MT/s, 533MT/s or 800MT/s. User should select the correct FSB speed to make their CPU run on correct speed and ensure the system runs stably. JP1~JP2 Setting Function...
  • Page 31 JP4 ,JP5: WatchDog Timer Period Selection The WatchDog Timer time-out period can be set as 10 sec, 20 sec, 30 sec and 80 sec. The following table describes the jumper settings for the period. JP4 JP5 Time-out Period 10 Sec JP5 JP4 20 Sec JP5 JP4...
  • Page 32 JP7: LCD PANEL Power Selection JP7 can be used to select the Panel LCD supple power: +3.3V or +5V. The default setting is on +3.3V.User need to check the LCD panel spec and adjust this jumper and make Panel work in specified power rail. +3.3V JP8~ 9: On-Board LAN Enable/Disable selection On-Board Fast Ethernet LAN chips can be disabled by shorting the JP8...
  • Page 33 COM2MODE: COM2 RS232/RS422/RS485 Selection COM2MODE I/F TYPE RS-232 RS-422 RS-485 TR-5190 User Manual...

  • Page 34: Connectors On The Tr-979

    Connectors on the TR-979 The connectors on the TR-979 allows you to connect external devices such as keyboard, floppy disk drives, hard disk drives, printers, etc. The following picture below lists the connectors on TR-979. TR-5190 User Manual...
  • Page 35 Connector Locations on the TR-979 IRDA LAN1 LAN1LED LAN2LED LAN2 COM2 PS2KBMS COM1 ATKB Printer CDIN Floppy SATA1 AUDIO SATA2 USB1＊2 SYSFAN USB3＊4 ATXPW IDE1 LVDS IDE2 ATPWR Front Panel Keylock CPUFAN TR-5190 User Manual...
  • Page 36 Front Panel Connector The front panel of the case has a control panel, which provides light indication of the computer activities and switches to change the computer status. RESET PWR HDD PWR LED LED BTN RESET Switch The reset switch allows the user to reset the system without turning the main power switch Off and then On.
  • Page 37 IDE Hard Disk LED Connector This connector connects to the hard drive activity LED on control panel. This LED will flash when the HDD is being accessed. IDE LED Signal Name Pin # IDE_ACT Ground ATX Power ON/OFF Button This 2-pin connector acts as the “Power Supply On/Off Switch” on the SBC card.
  • Page 38 EIDE Connectors Primary IDE Connector Signal Name Pin # Pin # Signal Name Reset IDE Ground Host data 7 Host data 8 Host data 6 Host data 9 Host data 5 Host data 10 Host data 4 Host data 11 Host data 3 Host data 12 Host data 2...
  • Page 39 Secondary IDE Connector Signal Name Pin # Pin # Signal Name Reset IDE Ground Host data 7 Host data 8 Host data 6 Host data 9 Host data 5 Host data 10 Host data 4 Host data 11 Host data 3 Host data 12 Host data 2 Host data 13...
  • Page 40 Floppy Drive Connector Floppy connector is a 34-pin header and will support up to 2.88MB floppy drives. Signal Name Pin # Pin # Signal Name Ground RM/LC Ground No connect Ground No connect Ground Index Ground Motor enable 0 Ground Drive select 1 Ground Drive select 0...
  • Page 41 Parallel Port Connector The following table describes the pin out assignments of this connector. Signal Name Pin # Pin # Signal Name Line printer strobe AutoFeed PD0, parallel data 0 Error PD1, parallel data 1 Initialize PD2, parallel data 2 Select PD3, parallel data 3 Ground...
  • Page 42 COM1 Serial Port COM1, a 10-pin header connector , is the onboard COM1 serial port of the TR-979. The following table shows its pin assignments. Pin # Signal Name DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready GND, ground DSR, Data set ready RTS, Request to send...
  • Page 43 External Keyboard Connector Pin # Signal Name Keyboard clock Keyboard data PS/2 Keyboard & Mouse Connector The following table describes the pin assignment of PS/2 Keyboard and Mouse connector, which is mount on button of bracket. To attach PS/2 Keyboard and mouse, users need to connect trough a PS/2 1-to-2 Y-cable and plug into this Mini-Din connector.
  • Page 44 VGA Connector The pin assignments of VGA CRT connector are as follows: Signal Name Signal Name Green Blue N.C. N.C. N.C. N.C. HSYNC VSYNC CPU Fan Power Connector This is a 3-pin header for the CPU fan. The fan must be a 12V fan. Pin # Signal Name 1 2 3...
  • Page 45 IrDA Connector This connector is used for an IrDA connector for wireless communication. +5V IRRX IRTX IrDA Pin # Signal Name FIR GND Ir RX Ground Ir TX ATX Power Connector This is a four-pin connector to support the ATX power and corresponding back-plane.
  • Page 46 LAN- RJ45 Connector This connector is for the 10/100Mbps Ethernet capability of the CPU card. The figure below shows the pin out assignments of this connector and its corresponding input jack. Pin # Signal Name MDI0+ MDI0- MDI1+ MDI1- MDI2+ MDI2- MDI3+ MDI3-...
  • Page 47 LANLED Connectors The 4-pins LANLED connector designed for each LAN port is for applications need to display LAN port status on front panel or the places administrators are easy to access. LAN LED Signal Name Pin # LAN LED ACTLED- LINKLED- ORGLED- GRNLED-...
  • Page 48 CD_IN Connectors CD_INconnector is designed for wire the CD_ROM audio signals to the on-board Audio CODEC. LAN LED Signal Name Pin # 4 3 2 1 CD_Left CD_AGND CD_AGND CD_Right Audio Connectors LAN LED Signal Name Pin # Jack Detect Vreference MIC-IN AGND...
  • Page 49 LCD LVDS Connector LCD LVDS connector is designed for wiring the LVDS signals to the LCD Panel. Signal Pin # Pin # Signal Name Name TX0+ TX0- TX1+ TX1- TX2+ TX2- TX3+ TX3- TXC+ TXC- LCD_VCC LCD_VCC Note: Contact your dealer for LCD Cable kit and Video BIOS customization. WOL Connectors Pin # Signal Name...

  • Page 50: Watchdog Timer Configuration

    Watchdog Timer Configuration The function of the watchdog timer is to reset the system automatically and is defined at I/O port 0843H. To enable the watchdog timer and allow the system to reset, read I/O port 0443H. To disable the timer, read I/O port 043H for the system to stop the watchdog function.
  • Page 51 BIOS Configuration This chapter describes the different settings available in the Award BIOS that comes with the TR-979 CPU card. The topics covered in this chapter are as follows: BIOS Introduction ..............48-50 Main Menu ................51-52 Standard CMOS Setup ............53-57 Advanced BIOS Features ............

  • Page 52: Bios Introduction

    BIOS Introduction This Chapter discusses Award™ Setup program built into the TR-979 BIOS. The Setup program allows users to modify the basic system configuration. This special information is then stored in battery-backed RAM so that it retains the Setup information when the power is turned off.
  • Page 53 do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to... PRESS F1 TO CONTINUE, DEL TO ENTER SETUP Using Setup In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1>...
  • Page 54 Getting Help Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again. In Case of Problems If, after making and saving system changes with Setup, you discover that your computer no longer is able to boot, the AwardBIOS™...

  • Page 55: Main Menu

    Main Menu Once you enter the AwardBIOS™ CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu.
  • Page 56 Advanced Chipset Features Use this menu to change the values in the chipset registers and optimize your system's performance. Integrated Peripherals Use this menu to specify your settings for integrated peripherals. Power Management Setup Use this menu to specify your settings for power management. PnP / PCI Configuration Use this menu to set up the PnP/PCI configuration.

  • Page 57: Standard Cmos Setup

    Standard CMOS Setup The items in Standard CMOS Setup Menu are divided into 10 categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item. Phoenix –...
  • Page 58 This table shows the selections that you can make on the Standard CMOS Menu Item Options Description Date Month DD YYYY Set the system date. Note that the ‘Day’ automatically changes when you set the date Time HH : MM : SS Set the system time IDE Channel 0 Master Options are in its sub menu...
  • Page 59 HDDs / HDDs Channel 0 Channel 1 The IDE adapters control the hard disk drive. Use a separate sub menu to configure each hard disk drive. Figure 2 shows the IDE primary Phoenix – AwardBIOS CMOS Setup Utility IDE Cannel 0 Master Item Help IDE HDD Auto-Detection [Press Enter]...
  • Page 60 Item Options Description IDE HDD Press Enter Press Enter to auto-detect the Auto-detection HDD on this channel. If detection is successful, it fills the remaining fields on this menu. IDE Channel 0 Master None Selecting ‘manual’ lets you set Auto the remaining fields on this Manual screen.
  • Page 61 Drive A / Drive B These fields identify the types of floppy disk drive A or drive B that has been installed in the computer. The available specifications are: 360KB 720KB 1.2MB 1.44MB 2.88MB 5.25 in. 5.25 in. 3.5 in. 3.5 in.

  • Page 62: Advanced Bios Features

    Advanced BIOS Features This section allows you to configure your system for basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security. Phoenix – AwardBIOS CMOS Setup Utility Advanced BIOS Features CPU Feature [Press Enter] Item Help...
  • Page 63 CPU Feature Phoenix – AwardBIOS CMOS Setup Utility CPU Feature Delay Prior Thermal [16Min] Item Help Thermal Management Thermal Monitor 1 Limit CPUID MaxVal [Disabled] Menu Level ↑↓←→Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults Delay Prior Thermal The choice: 4Min, 8Min, 16Min, 32Min.
  • Page 64 Hard Disk Boot Priority Phoenix – AwardBIOS CMOS Setup Utility Hard Disk Boot Priority 1. Bootable Add-in Cards Item Help Menu Level Use <↑> or <↓> to select a device, then press <+> to move it up, or <－> to move it down the list.
  • Page 65 Hyper-Threading Technology Enabled For windows XP and Linux 2.4.x (OS optimized for Hyper Threading Technology) Disabled For other OS (OS not optimized for Hyper Threading Technology) Quick Power On Self Test Allows the system to skip certain tests while booting. This will decrease the time needed to boot the system.
  • Page 66 Gate A20 Option Select if chipset or keyboard controller should control GateA20. Normal A pin in the keyboard controller controls GateA20 Fast Lets chipset control GateA20 Typematic Rate Setting Key strokes repeat at a rate determined by the keyboard controller. When enabled, the typematic rate and typematic delay can be selected.
  • Page 67 APIC Mode MPS Version Control For OS The choice: 1.1, 1.4. OS Select For DRAM > 64MB Select the OS2 only if you are running OS/2 operating system with greater than 64MB of RAM on the system. The choice: Non-OS2, OS2. Report No FDD For WIN 95 This option allows Windows 95 to share with other peripherals IRQ6 which is assigned to a floppy disk drive if the drive is not existing.

  • Page 68: Advanced Chipset Features

    Advanced Chipset Features Phoenix – AwardBIOS CMOS Setup Utility Advanced Chipset Features DRAM Timing Selectable [By SPD] Item Help x CAS Latency Time [2.5] x Active to Precharge Delay Menu Level x DRAM RAS# to CAS# Delay x DRAM RAS# Precharge Memory Frequency For [Auto] System BIOS Cacheable...
  • Page 69 DRAM Timing Selectable This item allows you to select the DRAM timing determined by the timing information stored in SPD or set by the User manually. The default is By SPD. When this field is set as By SPD, the DRAM Timing items below will become read-only.
  • Page 70 Memory Frequency For This item allows user to set the DDR DRAM operation frequency. The Auto is default. The choice: DDR266, Auto. System BIOS Cacheable Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result.
  • Page 71 Init Display First The choice: PCI Slot, Onboard/AGP On-Chip VGA Setting On-Chip VGA The choice: Enabled, Disabled. On-Chip Frame Buffer Size The choice: 1MB, 8MB, 16MB. Boot Display The choice: Auto, CRT, LFP, CRT+LFP, EFP, TV, CRT+EFP, CRT+TV. Panel Number The choice: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16.

  • Page 72: Integrated Peripherals

    Integrated Peripherals Phoenix – AwardBIOS CMOS Setup Utility Integrated Peripherals OnChip IDE Device [Press Enter] Item Help Onboard Device [Press Enter] SuperIO Device [Press Enter] Menu Level ↑↓←→ Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults OnChip IDE Device Phoenix –...
  • Page 73 IDE HDD Block Mode If your IDE hard drive supports block mode select Enabled for automatic detection of the optimal number of block read/writes per sector the drive can support The choice: Enabled, Disabled. IDE DMA transfer acess The choice: Enabled, Disabled. On-Chip Primary PCI IDE The chipset contains a PCI IDE interface with support for two IDE channels.
  • Page 74 Primary/Secondary Master/Slave UDMA Ultra DMA/33/66/100 implementation is possible only if your IDE hard drive and cable supports it and the operating environment includes a UDMA driver If your hard drive and your system software both support Ultra DMA/33/66/100, select Auto to enable BIOS support. The System BIOS will also check the IDE cable.
  • Page 75 Onboard Device Phoenix – AwardBIOS CMOS Setup Utility Onboard Device USB Controller [Enabled] Item Help USB 2.0 Controller [Enabled] USB Keyboard Support [Disabled] USB Mouse Support [Disabled] Menu Level AC97 Audio [Auto] CSA LAN (Giga-LAN) [Enabled] ↑↓←→ Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults USB Controller...
  • Page 76 USB Mouse Support The choice: Enabled, Disabled. AC97 Audio The choice: Auto, Disabled. CSA LAN(Giga-LAN) The choice: Enabled, Disabled. SuperIO Device Phoenix – AwardBIOS CMOS Setup Utility SuperIO Device Onboard FDC Controller [Enabled] Item Help Onboard Serial Port 1 [3F8/IRQ4] Onboard Serial Port 2 [2F8/IRQ3] UART Mode Select...
  • Page 77 Onboard Serial Port 1/Port 2 Select an address and corresponding interrupt for the first and second serial ports. The choice: 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3, Disabled, Auto. UART Mode Select The choice: IrDA, ASKIR, Normal. RxD, TxD Active This item allows you to choose Hi-Active or Low-Active of TX and RX signlal, which depends on different H/W requirement.
  • Page 78 EPP Mode Select Select EPP port type 1.7 or 1.9. The choice: EPP1.7, 1.9. ECP Mode Use DMA Select a DMA channel for the parallel port for use during ECP mode. The choice: 3, 1. PWRON After PWR-Fail The choice: Off, On, Former-Sts. TR-5190 User Manual...

  • Page 79: Power Management Setup

    Power Management Setup The Power Management Setup allows you to configure you system to most effectively save energy while operating in a manner consistent with your own style of computer use. Phoenix – AwardBIOS CMOS Setup Utility Power Management Setup Power-Supply Type [AT] Item Help...
  • Page 80 ACPI Function This item allows you to enable/disable the Advanced Configuration and Power Management (ACPI). The choice: Enabled, Disabled. Power Management This category allows you to select the type (or degree) of power saving and is directly related to the following modes: HDD Power Down Suspend Mode There are three selections for Power Management, three of which have...
  • Page 81 Video Off In Suspend This determines the if the turn off the video display when system enter suspend mode. The choice: Yes, No. MODEM Use IRQ This determines the IRQ in which the MODEM can use. The choice: 3, 4, 5, 7, 9, 10, 11, NA. Suspend Mode When enabled and after the set time of system inactivity, CPU will be put into the suspend mode.
  • Page 82 Power On By Ring An input signal on the serial Ring Indicator (RI) line (in other words, an ncoming call on the modem) awakens the system from a soft off state. The choice: Enabled, Disabled. Wake Up On LAN The choice: Enabled, Disabled. Resume by Alarm When Enabled, your can set the date and time at which the RTC (real-time clock) alarm awakens the system from Suspend mode.

  • Page 83: Pnp/Pci Configuration

    PnP/PCI Configuration Setup This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.
  • Page 84 The choice: Enabled, Disabled. Resource controlled by BIOS can automatically configure all the boot and Plug and Play compatible devices. If you choose Auto, you cannot select IRQ DMA and memory base address fields, since BIOS automatically assigns them. The choice: Auto(ESCD), Manual. IRQ Resources When resources are controlled manually, assign each system interrupt a type, depending on the type of device using the interrupt.
  • Page 85 - Bus 0 Dev31 Func 6 SMBus Cntrlr - Bus 0 Dev31 Func 3 Choices are Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15. INTC Assignment Device(s) using this INT: Network Cntrlr-Bus 1 Dev 1 Func 0 USB 1.0/1.1 UHCI Cntrlr -Bus 0 Dev29 Func 2 Choices are Auto, 3, 4, 5, 7, 9, 10, 11, 12, 14, 15.

  • Page 86: Pc Health Status

    PC Health Status This section helps you to get more information about your system including CPU temperature, FAN speed and voltages. It is recommended that you contact with your motherboard supplier to get proper value about your setting of the CPU temperature. Phoenix –...
  • Page 87 CPU FAN Speed Shows CPU FAN speed. CHASSIS FAN Speed Shows System FAN speed. Vcore/1.5V/3.3V/5V/12V/-12V/-5V/VBAT/5VSB Voltages Shows Power rails voltage. Shutdown Temperature Select the CPU over-heated shutdown temperature. The choice: Disabled, 60 °C/140°F, 65°C/149°F, 70°C/158°F, 75°C/167°F. TR-5190 User Manual...

  • Page 88: Frequency/Voltage Control

    Frequency/Voltage Control Phoenix – AwardBIOS CMOS Setup Utility Frequency/Voltage Control CPU Clock Ratio [14X] Item Help Auto Detect PCI Clk [Disabled] Spread Spectrum [Enabled] Menu Level ↑↓←→ Move Enter: Select +/-/PU/PD: Value F10:Save ESC: Exit F1:General Help F5:Previous Values F6:Fail-safe defaults F7:Optimized Defaults CPU Clock Ratio Min=14...

  • Page 89: Load Fail-Safe Defaults

    Load Fail-Safe Defaults When you press <Enter> on this item you get a confirmation dialog box with a message similar to: Load Fail-Safe Defaults (Y/N) ? N Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations. Load Optimized Defaults When you press <Enter>...

  • Page 90: Supervisor/User Password Settings

    Supervisor/User Password Setting You can set either supervisor or user password, or both of then. The differences between are: supervisor password : can enter and change the options of the setup menus. user password : just can only enter but do not have the right to change the options of the setup menus.

  • Page 91: Exit Selecting

    Exit Selecting Save & Exit Setup Pressing <Enter> on this item asks for confirmation: Save to CMOS and EXIT (Y/N)? Y Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS.

  • Page 92: Appendix

    Appendix I/O Port Address Map Interrupt Request Lines (IRQ) POST Beep TR-5190 User Manual...

  • Page 93: I/O Port Address Map

    A. I/O Port Address Map Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. There are a total of 1K port address space available. The following table lists the I/O port addresses used on the Industrial CPU Card.

  • Page 94: Interrupt Request Lines (Irq)

    B. Interrupt Request Lines (IRQ) There are a total of 15 IRQ lines available on the Industrial CPU Card. Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on the Industrial CPU Card.

  • Page 95: Post Beep

    C. POST Beep Currently there are two kinds of beep codes in BIOS. This code indicates that a video error has occurred and the BIOS cannot initialize the video screen to display any additional information. This beep code consists of a single long beep followed by two short beeps.
