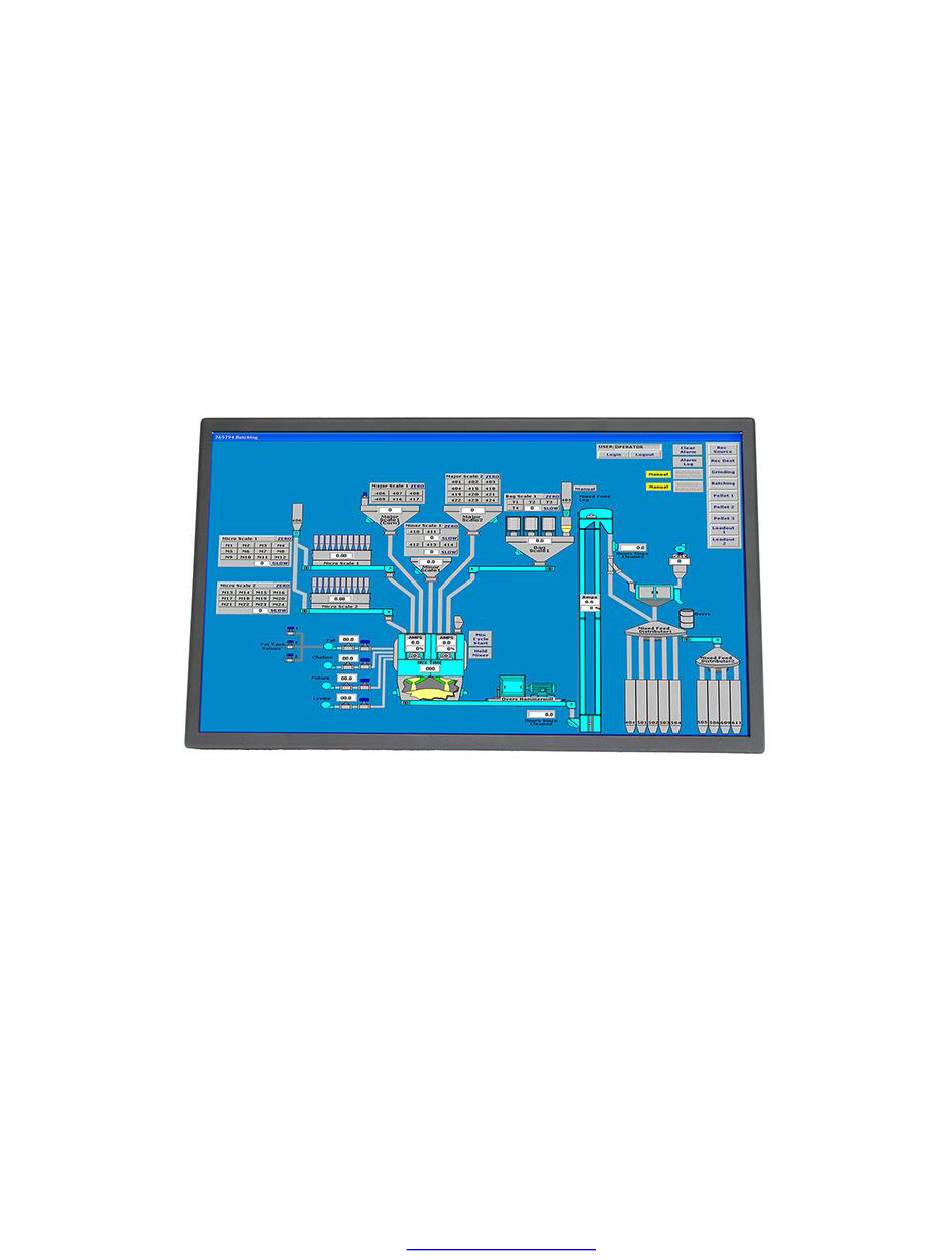

- Page 1 TR-LCD2300W-V2 Industrial Wide-Screen LCD Touch Screen Monitor with AC/DC Power Supply USER MANUAL Version 1.2 10/17/22 Transduction Inc. 23-5155 Spectrum Way, Mississauga, ON Canada L4W 5A1 Tel: 1-800-268-0427, 905-625-1907 Fax: 905-625-0531 Email: sales@transduction.com...
- Page 2 Revision Description Date Initial Release 10/19/2016 Revise viewing angle in 11/29/2016 specifications and add IEC 61000-6-4 / EN61000-6-4 certificate Revise to reflect change of 10/17/2022 video controller board and LCD panel TR-LCD2300W-V2 User Manual...
-
Page 3: Table Of Contents
Table of Contents Introduction ........................4 Description of the TR-LCD2300W-V2 Computer Monitor ..........4 Specifications ........................7 Important Information ....................9 Safety Precautions ......................10 Contents ........................11 Quick Start ........................13 OSD Setup Button Functions ..................14 Button Name and Function ..................14 OSD Setup ......................... -
Page 4: Introduction
Transduction has a long history of manufacturing computers and monitors for the nuclear power plants in USA, China and Canada. Utmost attention is paid during design, manufacturing and test of our products in accordance with QA audits of several nuclear clients. - Page 5 TR-LCD2300W-V2 Front TR-LCD2300W-V2 Rear TR-LCD2300W-V2 User Manual...
- Page 6 TR-LCD2300W-V2 Rear (With Optional VESA Bracket) TR-LCD2300W-V2 User Manual...
-
Page 7: Specifications
80% minimum at full load Power Supply Efficiency 21.300” (L) x 12.600” (H) x 2.795” (W) Dimensions 54.10cm (L) x 32.00cm (H) x 7.09cm (W) Weight Power Supply 1.2lbs (0.55kg) 14.33lbs (6.5kg) With VESA Bracket 15.43lbs (7.0kg) TR-LCD2300W-V2 User Manual... - Page 8 Note# 2 – Safety: This monitor includes video controller card that is not software programmable and not accessible via any connection to the monitor. Note# 3: EMI/RFI is compliant with EPRI TR-102323 Rev. 3 for Nuclear Safety Related Applications. TR-LCD2300W-V2 User Manual...
-
Page 9: Important Information
Products returned for repair must be accompanied by a Return Material Authorization (RMA) number, obtained from Transduction prior to return. Freight on all returned items must be prepaid by the customer. The customer is responsible for any loss or damage caused by the carrier in transit. -
Page 10: Safety Precautions
• Do not place the monitor face down. The CDT surface may be damaged. • When cleaning, wipe with slightly moistened soft cloth. Do not spray any cleaner directly on the monitor. • Do not remove housing. No serviceable parts inside. Refer servicing to Transduction. TR-LCD2300W-V2 User Manual... -
Page 11: Contents
Contents Your new TR-LCD2300W-V2 monitor box should contain the following: 1. TR-LCD2300W-V2 monitor with AC/DC power supply 2. AC power cord, 6 feet 3. USB 2.0 Type A to Type A cable, 5 feet (optional – if touch screen model is ordered) 4. - Page 12 6FT DVI to 6FT SVGA to SVGA cable DVI Cable 6FT DisplayPort to DisplayPort Cable AC/DC Power Supply Optional VESA Mount Bracket TR-LCD2300W-V2 Monitor TR-LCD2300W-V2 User Manual...
-
Page 13: Quick Start
Quick Start **Warning: Never attach monitor to computer with the power ON as it might damage video port. To attach the TR-LCD2300W-V2 monitor to your computer, follow the instructions below: 1. Turn OFF the power to your computer. 2. Plug the power cord for the monitor into nearby outlet. -
Page 14: Osd Setup Button Functions
Scroll through items within the main menu DOWN Increases the adjustment of the selected LEFT function Decreases the adjustment of the selected RIGHT function Select video input source SOURCE Go to previous sub-menu Turns ON/OFF the monitor POWER TR-LCD2300W-V2 User Manual... -
Page 15: Osd Setup
Brightness is highlighted, press MENU ton select and then RIGHT or LEFT to adjust the brightness level. If setting is finished, press SOURCE to go back to Brightness sub-menu and press SOURCE again to go back to Brightness/Contrast main menu. New OSD parameters are saved in NVRAM. TR-LCD2300W-V2 User Manual... -
Page 16: Brightness/Contrast
Brightness/Contrast Color Settings TR-LCD2300W-V2 User Manual... -
Page 17: Input Source
Input Source TR-LCD2300W-V2 User Manual... -
Page 18: Display Settings
Display Settings Other Settings TR-LCD2300W-V2 User Manual... -
Page 19: Information
Information Auto Adjust TR-LCD2300W-V2 User Manual... -
Page 20: Resolutions Supported
Resolutions Supported TR-LCD2300W-V2 User Manual... -
Page 21: Touch Screen Calibration (If Option Is Ordered)
1. Insert the TR-LCD Touchscreen Drivers & User Manual CD into the CD-DVD- R/W drive. 2. Open the Touch folder. 3. Open the EETI_Resistive_Capactive folder. **(Open the ELO folder if monitor was ordered with ELO touch controller.)** TR-LCD2300W-V2 User Manual... - Page 22 4. Open the eGalaxTouch_5.11.0.9126_Win2K_XP_Vista_7 folder. 5. Double-click the setup icon. TR-LCD2300W-V2 User Manual...
- Page 23 6. Leave the Install PS/2 interface driver box unchecked. Click Next. 7. Uncheck the Install RS232 interface driver box. Click Next. TR-LCD2300W-V2 User Manual...
- Page 24 8. Leave None selected. Click Next. 9. Leave Support Multi-Monitor System box check marked. Click Next. TR-LCD2300W-V2 User Manual...
- Page 25 10. Choose destination location to install driver. Click Next. 11. Click Yes to perform an initial four-point calibration. TR-LCD2300W-V2 User Manual...
- Page 26 12. Touch the 4 red points (red dot inside circle within 4 pointing arrows) with a stylus and then click OK. You have 15 seconds to touch each point. 13. Open the Touch Screen software and select Setting. TR-LCD2300W-V2 User Manual...
- Page 27 14. Select 25 Points calibration for Linearization Style and then click Apply. 15. Under the Tools tab, select the Linearization button. TR-LCD2300W-V2 User Manual...
- Page 28 16. Touch all 25 red points (red dot inside circle within 4 pointing arrows) with a stylus and then click OK. You have 15 seconds to touch each point. TR-LCD2300W-V2 User Manual...
-
Page 29: Troubleshooting Tips
“Unrecognized monitor, Plug & Play See the video card manual to see if (VESA DDC) monitor the Plug & Play (VESA DDC) Install the monitor driver according to the Driver Installation Instructions. found”. function can be supported. TR-LCD2300W-V2 User Manual... -
Page 30: Frequently Asked Questions
Control Panel, Display, Screen Saver. How can I clean the outer case / LCD Panel? Clean the monitor with a soft cloth, using either a cleaning solution or plain water. Do not spray directly on to the monitor. TR-LCD2300W-V2 User Manual... -
Page 31: Mechanical Drawings
Mechanical Drawings This page is left blank TR-LCD2300W-V2 User Manual...
