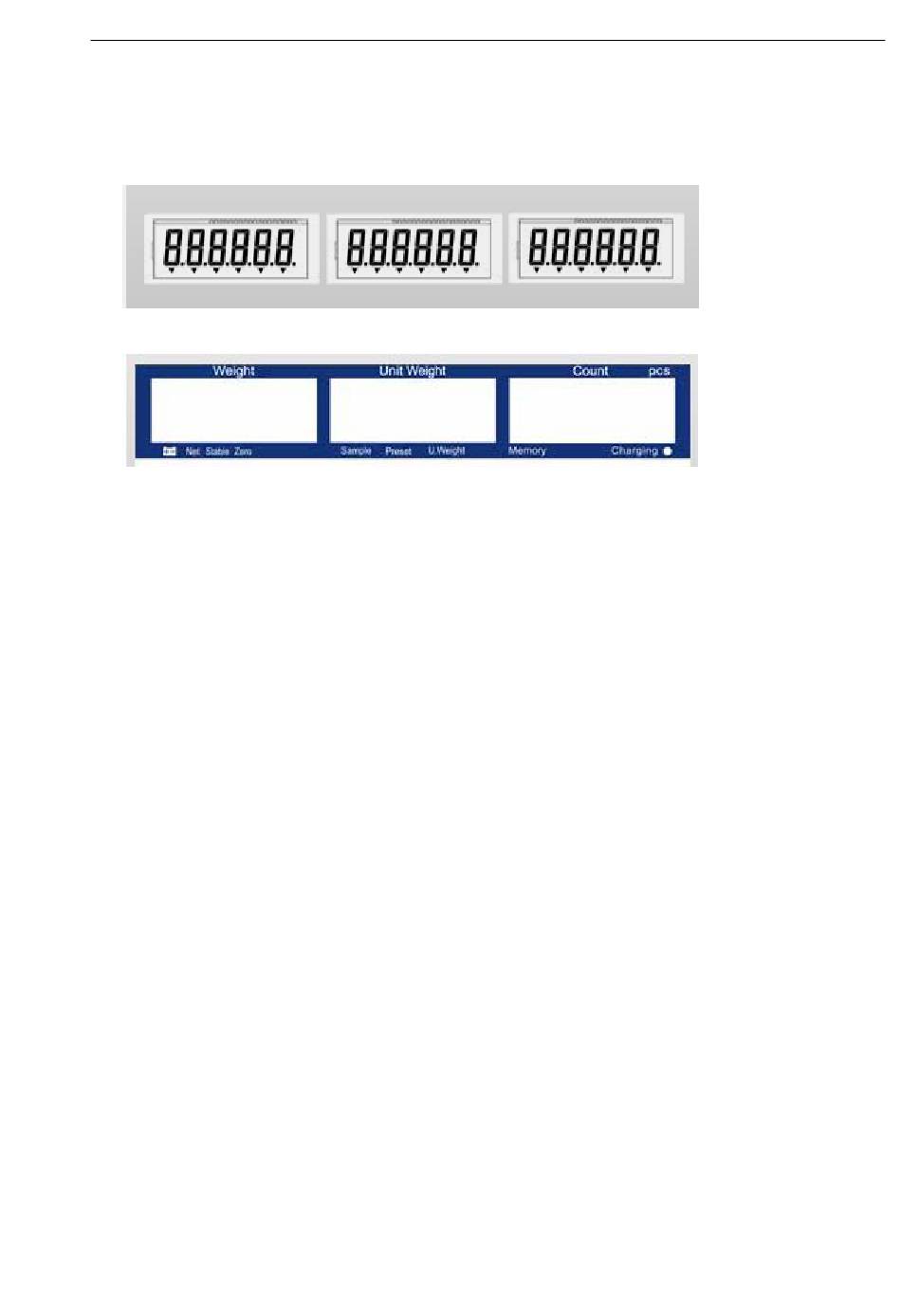

Display

LCD
Overlay
: Battery indicator. When it‟s illuminated, battery should be recharge.
BATT
Net : Net weight indicator. When the scale has been tared and the display is in
NET mode
Stable : Stable indicator. When it‟s illuminated, the scale is stable.
: Zero indicator. When it‟s illuminated, the scale is in Zero point
Zero
Sample : Sample indicator. If the scale that considers the number of samples
is insufficient for an accurate count.
U. Wt : Unit weight Indicator. If the Unit Weight is not sufficient for an
Accurate count it will illuminate.
LED : Battery charging status, when the scale is plugged into the mains
power the internal battery will be recharged. If the LED is green,
the battery has a full charge. If it is red, the battery is nearly
discharged and if yellow, the battery is being charged.
