SP Series Technical Manual 1. PRECAUTIONS CAUTION Permit only qualified persons to service the instrument Before connecting or disconnecting any components, remove the power. Failure to observe these precautions bodily harm or damage to or destruction of the equipment.

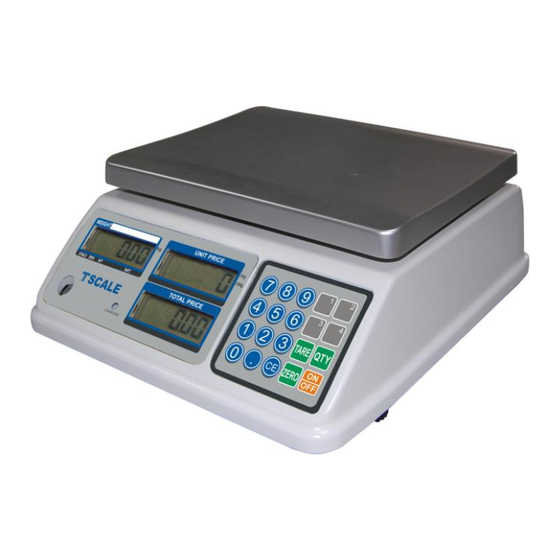

SP Series Technical Manual 2. INTRODUCTION The SP series weighing scales is fully water proof scale. It is suitable for sanitary applications, general weighing, price computing and accumulation applications IP65 waterproof technology ABS Plastic housing. Super low power consumption.
SP Series Technical Manual 3. SPECIFICATIONS DIMENSION SPECIFICATION Model Capacity 15kg Division External Resolution 3000/6000/Dual Display 15mm LCD x 3 display with White back light Pan Size 200mm x 260mm Keypad 20 mechanical keys Operate 0° C - 40° C /32° F - 104° F...
SP Series Technical Manual Load cell specifications Model No Rated Capacity 6~50 (kg) Rated Out put 2.0 mV/V±0.2 mV/V Excitation Voltage 18 VDC IP Level IP65 Material Aluminum Alloy Φ 3.8mm four core shield Cable 409Ω ±6Ω Input Resistance 350 Ω ± 3Ω...
SP Series Technical Manual 4. INSTALLATION Unpacking Carefully take the balance out of its package, make it sure its not damaged and all accessories are included. Remove the Indicator from the carton. Remove the protective covering. Store the packaging and to use if you need to transport the scale later.
Page 9
SP Series Technical Manual CAUTION Below the scale there is a breathable knob. Its default setting is for weigh. If you want to wash tighten the knob, after wash release the knob for weigh When want to weigh, release When want to wash, tight screw...
SP Series Technical Manual 5. PARTS DESCRIPTION Overall View Spirit Level Key board Leveling Feet Sealing Ring Breathable knob & Adaptor jack Adaptor - 9 -...
Page 11
SP Series Technical Manual Keyboard Keys Description Turn the scale power On/Off Set the display to zero. Enter the clear tare weights, Storing the current weight as tare value PLU keys Quantity key, use for with out weighing. Clear incorrect entries and error conditions Numeric Keys.
Page 12
SP Series Technical Manual Display Rear Display Display Weight STABLE Stability Display ZERO Zero display Net Weight BATT Low Battery Display Unit Price kg/ 100g Current unit weight - 11 -...
SP Series Technical Manual 6. OPERATION Initial Start-up Warm-up time of 15 minutes stabilizes the measured values after switching on. 1. Power ON/OFF Switch on the scale by pressing . The display is switched on and the self test is started.
SP Series Technical Manual 5. Commodities with out weighing Enter the unit price by pressing numeric keys Press the Enter the quantity by pressing numeric keys. Display will be show the total price If want to add this value into memory, press key.
SP Series Technical Manual 7. PARAMETERS Enter the Menu Turn on the scale. Press during that start up until display will be shown Enter the Password. Press 0000 and press Then press to confirm, display will be show Select the Menu ...
Page 16
SP Series Technical Manual Price desc float F5 init zero Init 2 To set the auto zero range. Options: 0 / 2/ 4 / 10 / 20 / 3 0 F6 re zero Re 2 To set the re zero range (manual zero...
SP Series Technical Manual 8. CALIBRATION Turn on the scale. Press during that start up until display will be shown Enter the Password 0000 Then press to confirm, display will be show Press the calibration switch to operate the function; Switch is locating near the battery.
SP Series Technical Manual 9. DRAWING Parts Name SST Pan Screw with handle Spacer ABS Pan M4*10 Star Screw Film Fix Circle 1 M4 Spring Washer Rear Display Overlay Top Cover Allen Screw M6 Spring washer Load cell upper bracket...
SP Series Technical Manual 10. ERROR CODE Error Message Description Solution ----- Maximum load exceeded Unload or reduce weight Err 1 Incorrect date Enter the date by using format “yy;mm:dd” Err 2 Incorrect time Enter the time by using format “hh:mm:ss”...
Page 22
