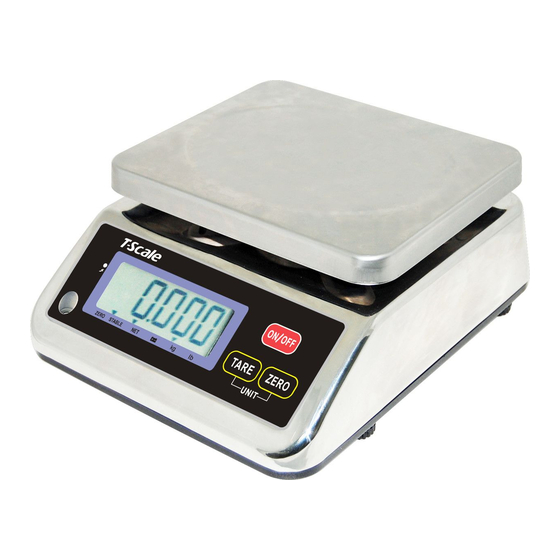

Summary of Contents for TScale s29 series
- Page 1 Waterproof Scale Technical Manual...
- Page 2 S29 Series Technical Manual Manufacturer Taiwan Scale Mfg. Co., Ltd Model Report No ASZ091201012S-2 Applicable IP67 Standards W & P Scales Mfg. (Kunshan) Co., Ltd. Taiwan Scale Mfg. Co., Ltd. No. 99 Shunchang Road 282, Sec.3, Hoping W. Rd. Zhoushi, Kunshan...
-
Page 3: Table Of Contents
S29 Series Technical Manual CONTENTS P RECA UTIO NS …………………………………………………………….. 4 I NSTALL ATIO N………. … ………………………………………………….5 PARTS DESCRIPTION…..............6 O P E RATI O N ……………………………………………………………….. . 8 P A RA METE R ……………………………………………………………… . . 9 CALIBRATION……………………………………………………………..1 0 ERRO R DISP LA Y……………………………………………… …………11 D R AW I NG ……... -
Page 4: Precautions
S29 Series Technical Manual 1. PRECAUTIONS Avoid installing the scale in direct sunlight, which may cause discoloration. Avoid overloading that could cause damage to the scale. If the scale is not to be used for a long period of time, remove all batteries from the battery compartment to avoid leakage. -
Page 5: Installation
S29 Series Technical Manual 2. INSTALLATION Unpacking Carefully take the balance out of its package, make it sure its not damaged and all accessories are included. Accessories, 1. Balance 2. Adaptor 3. Pan 4. Product manual Keep the packaging material for your future use. -
Page 6: Parts Description
S29 Series Technical Manual 3. PARTS DESCRIPTION Platform Key board Spirit Level Leveling Feet Optional Dry and Rechargeable Battery Adaptor jack Sealing Ring - 6 -... - Page 7 S29 Series Technical Manual Key Board Weight Display Zero Zeroing Display Stable Stable Display Net Weight Display Low Battery Lb / kg Current Weighing Mode Keys : Turns the scale power On / Off : Subtracts weight of container : Sets display to Zero...
-
Page 8: Operation
S29 Series Technical Manual 4. OPERATION Initial Start-up Warm-up time of 15 minutes stabilizes the measured values after switching on. 1. Power ON/OFF . Switch on the scale by pressing . The display is switched on and the self test is started. -
Page 9: P A Ra Mete R
S29 Series Technical Manual 5. PARAMETERS Enter the Menu Turn on the scale. Press during that start up until display will be shown F1C al Enter the Selected Menu Press , it can confirm which will be shown displayed. -
Page 10: Calibration
S29 Series Technical Manual 6. CALIBRATION Turn on the scale. Press during that start up until display will be shown. F1C al Press to confirm and display will be shown unload Press , display will be shown current calibration weight value. If... -
Page 11: Error Display
S29 Series Technical Manual 7. ERROR DISPLAY Error Message Description Solution ----- Maximum load exceeded Unload or reduce weight Err 1 Incorrect date Enter the date by using format “yy;mm:dd” Err 2 Incorrect time Enter the time by using format “hh:mm:ss”... -
Page 12: D R Aw I
S29 Series Technical Manual 11. DRAWING - 12 -... -
Page 13: Parts Name
S29 Series Technical Manual PARTS NAME Parts Name Material Spec SST Pan SUS304 Screw with handle SUS304 Rubber 1 With waterproof glue Rubber 2 With waterproof glue Pan Support SUS304 LCD Protection Sheet 2 1 PMMA Optional S29 Rear Display... - Page 14 S29 Series Technical Manual Foot fixer Foot Washer Washer cover SUS304 - 14 -...
-
Page 15: Specifications
S29 Series Technical Manual 12. SPECIFICATIONS DIMENSION SPECIFICATION Model Capacity 3kg/6kg/15kg External Resolution 3000/6000/Dual Display 25mm LCD display with White back light Dimensions 230mm x 300mm x 190mm Keypad Three keys Operate 0° C - 40° C / 32° F - 104° F... -
Page 16: Load Cell Specification
S29 Series Technical Manual LOAD CELL SPECIFICATIONS Model No LC-A-L Rated Capacity 3~45kg Sensitivity 2.0± 0.002mv/v Excitation Voltage IP Level IP67 Material Aluminum 0.3~3m Φ 4mm Cable 405Ω ±5Ω Input Resistance 350Ω ±3Ω Out put Resistance Temperature -40° C ~ +80° C...
