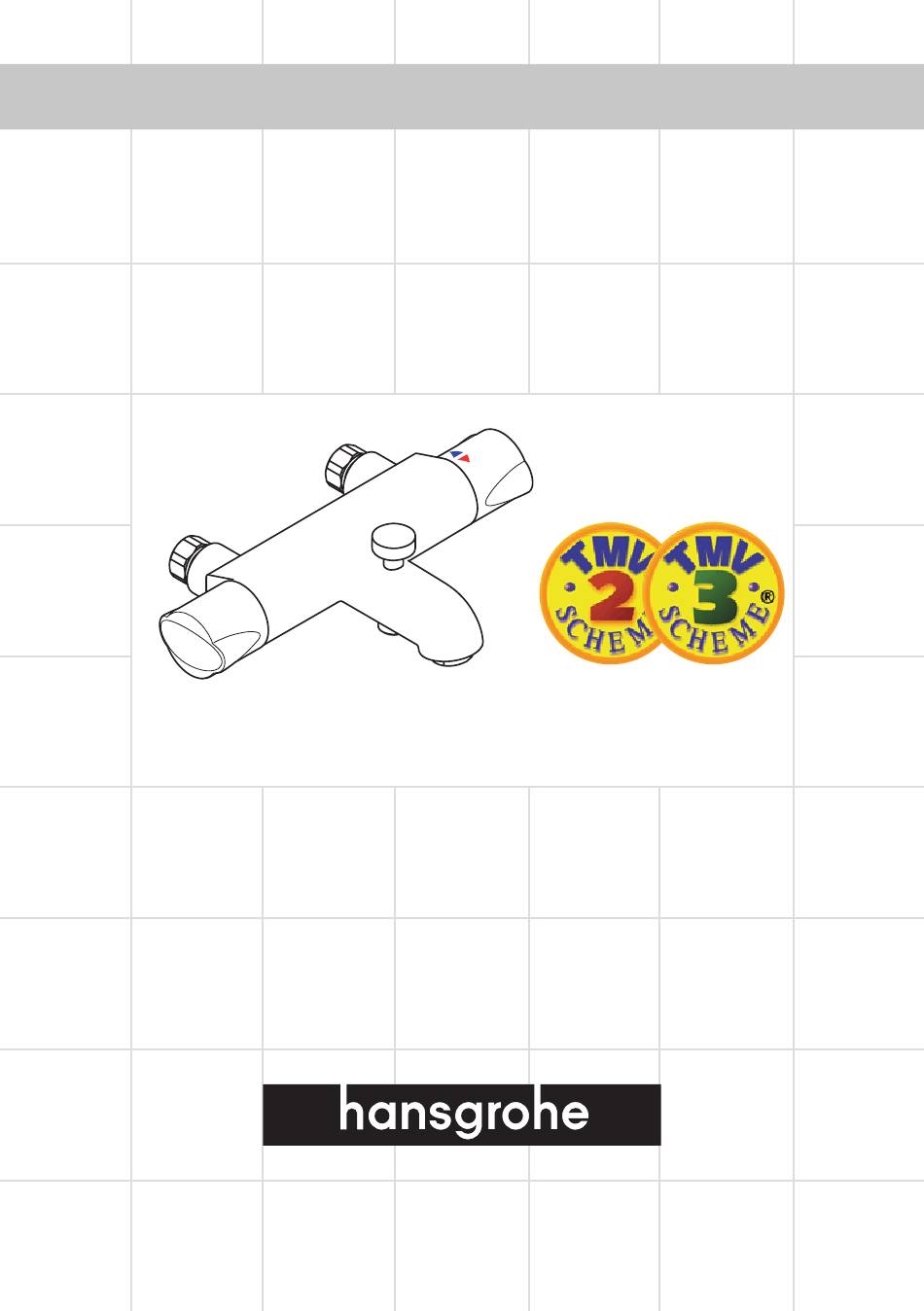

- Page 1 Installation Instructions Ecomax Bath/Shower 14242000...
- Page 2 Bester Service, beste Preise Ihr Online-Fachhändler für: • Kostenlose und individuelle Beratung • TOP Bewertungen • Hochwertige Produkte • Exzelenter Kundenservice • Kostenloser und schneller Versand • Über 20 Jahre Erfahrung E-Mail: info@unidomo.de Tel.: 04621 - 30 60 89 0 www.unidomo.de uniDomo GmbH &...
-
Page 3: Table Of Contents
Contents Safety and Important Information Pack Contents Dimensions Technical Data Supply Conditions TMV2 Supply Conditions TMV3 Installation Requirements Installation Thermostat Commissioning and in-service tests Commissioning In-service tests Frequency of in-service tests The Ecomax Bath / Shower 14242000 meets the Thermostatic Adjustement requirements of the TMV2 and TMV3 Scheme. -
Page 4: Safety And Important Information
Safety and Important Information Hansgrohe products are safe provided they are installed, used and maintained in accordance with these instructions and recornrnendations. Please read these instructions thoroughly and retain for future use. The plumbing installation of this thermostat mixing valvemust comply with the requirements of UK Water Regulations/Bylaws (Scotland), Building Regulations or any other regulations specified by the local Water Authority and supplier. -
Page 5: Pack Contents Dimensions
Dimensions Pack Contents Please check that you have been supplied with the following: Thermostat Bath / Shower Ecomax Bath/Shower Mesh washers Flow limiter (when assembling the flow limiter, the TMV2 and TMV3 certificate is invalid) Diverter fixing device Optional accessories Escutcheons S-unions Pillar unions... -
Page 6: Technical Data
Technical Data NB. If a water supply is fed by gravity then the supply pressure should be verified to ensure the conditions of use are appropriate for the valve. This thermostatic valve will suit supplies of: Valves operating outside of these supply conditions HIGH PRESSURE (HP-S) cannot be guaranteed to operate as a TMV2 or TMV3 valve. -
Page 7: Installation Requirements
Installation Requirements This thermostatic mixer valve must be installed in com- pliance with current Water Regulations. If you have any doubts about the Water Regulation requirements contact your local water services provider or use the services of a professional plumber. This mixer valve is suitable for use with the following water supply systems: Gas Combination Boiler (multi-point) 1.0 - 10 bar*... - Page 8 Unvented System (pressure balanced) Pumped System...
-
Page 9: Installation
Installation Shower Thermostat PTFE tape 150 mm COLD 34 - 39 Seal Bath/Shower Thermostat 180 mm... - Page 10 Bath / Shower Thermostat (positioned over a Bath/Shower Thermostat (Fitting to the bath using bath) pillar unions. The thermostatic mixing valve must be installed in a The thermostatic mixing valve must be installed in a position that is easily accessible for commissioning position that is easily accessible for commissioning and future servicing.
-
Page 11: Commissioning And In-Service Tests Commissioning
Commissioning and in-service tests Commissioning record the equipment, thermometer etc. used for the measurements Purpose Table A: Guide to maximum stabilised Since the installed supply conditions are likely to temperatures recorded during site tests be different from those applied in the laboratory tests it is appropriate, at commissioning, to carry Application Mixed water... -
Page 12: Frequency Of In-Service Tests
In-service tests TMV3* General Purpose In the absence of any other instruction or guidance on the means of determining the appropriate fre- The purpose of in-service tests is to regularly monitor quency of in-service testing, the following procedure and record the performance of the thermostatic may be used: mixing valve. -
Page 13: Temperature Limitation
Thermostatic Adjustment Temperature Limitation The temperature is limited by the safety stop to 40°C. If a higher temperature is required, it is possible to over ride SW 3 mm the safety stop by depressing the safety button. NB. It is recommended that for private domestic use the maximum mixed water temperature be set at the following factory set values: Shower Mixer 43°C... - Page 14 5. Turn the spindle until the required maximum tempe- rature is reached (40°C). You will need to use a thermometer (fig. 4). 6. Replace the locking ring back onto the spindle as shown. Refit the circlip (fig. 5). 7. Replace the handle, screw and end cap (fig.
-
Page 15: Operating Your Thermostat
Operating your Thermostat Flow ON/OFF Control Turn the flow control handle (fig.1a) anti-clockwise to turn the water on and to increase the flow. Turn it clockwise to decrease the flow and turn off. Temperature Control Turn the temperature control handle (fig. 1b) anti-clock- wise to increase the water temperature and clockwise to decrease the water temperature. -
Page 16: Assembling And Operating The Diverter Fixing Device
Assembling and Operating the Diverter Fixing Device If the Bath / Shower Diverter does not work perfect, please assemble the diverter fixing device. To remove the diverter knob, fix the diverter from below with a screw driver and screw off the diverter knob (fig. Assemble the diverter fixing device (fig. -
Page 17: Cleaning
Cleaning Cleaning materials for Mixers and Showers Acids are necessary ingredients of cleaning materials for removing lime. However please pay particular attention to the following points when cleaning mixers and showers: Only use cleaning material specifically intended for this type of cleaning - such as Hansgrohe’s Decalci- fying Agent, available through the specialist sanitary trade. -
Page 18: Spare Parts
Spare Parts Bath/Shower Thermostat 15x2 28x1,5 Thermoelement 96633000 Shut off unit 92929000 Handle for thermoelement 97469000 Handle for shut off unit 97335000 Aerator complete 97163000 Diverter knob 96488000 Selector complete 97164000 Connecting thread complete 97210000 Filter 96922000 10 Diverter fixing device 97211000 11 Check valve OV25 / DN25 96644000... -
Page 19: Trouble Shooting
Trouble Shooting Fault Cause Remedy Insuffient water flow Supply pressure inadequate Check mains pressure Shower filter seal dirty Clean filter seal between shower and hose Thermostat cartridge filters dirty Remove cartridge & clean the filters on the barrel ‚Crossflow‘, hot water is forced check valves dirty or Clean check valves - into cold water pipe, or vice... -
Page 20: Warranty
Warranty You have purchased a quality product from Hansgrohe. All parts which show any kind of fault as far as construction, material or assembly are concerned within the first 24 months after installation, we will repair or exchange the part in question free of charge. - Page 21 Hansgrohe · Units D1 & D2 Sandown Park · Trading Estate Royal Mills · Esher Surrey KT10 8BL · Technical Hotline 0870 770 1975 E-Mail: technical@hansgrohe.co.uk · Internet: www.hansgrohe.com...
