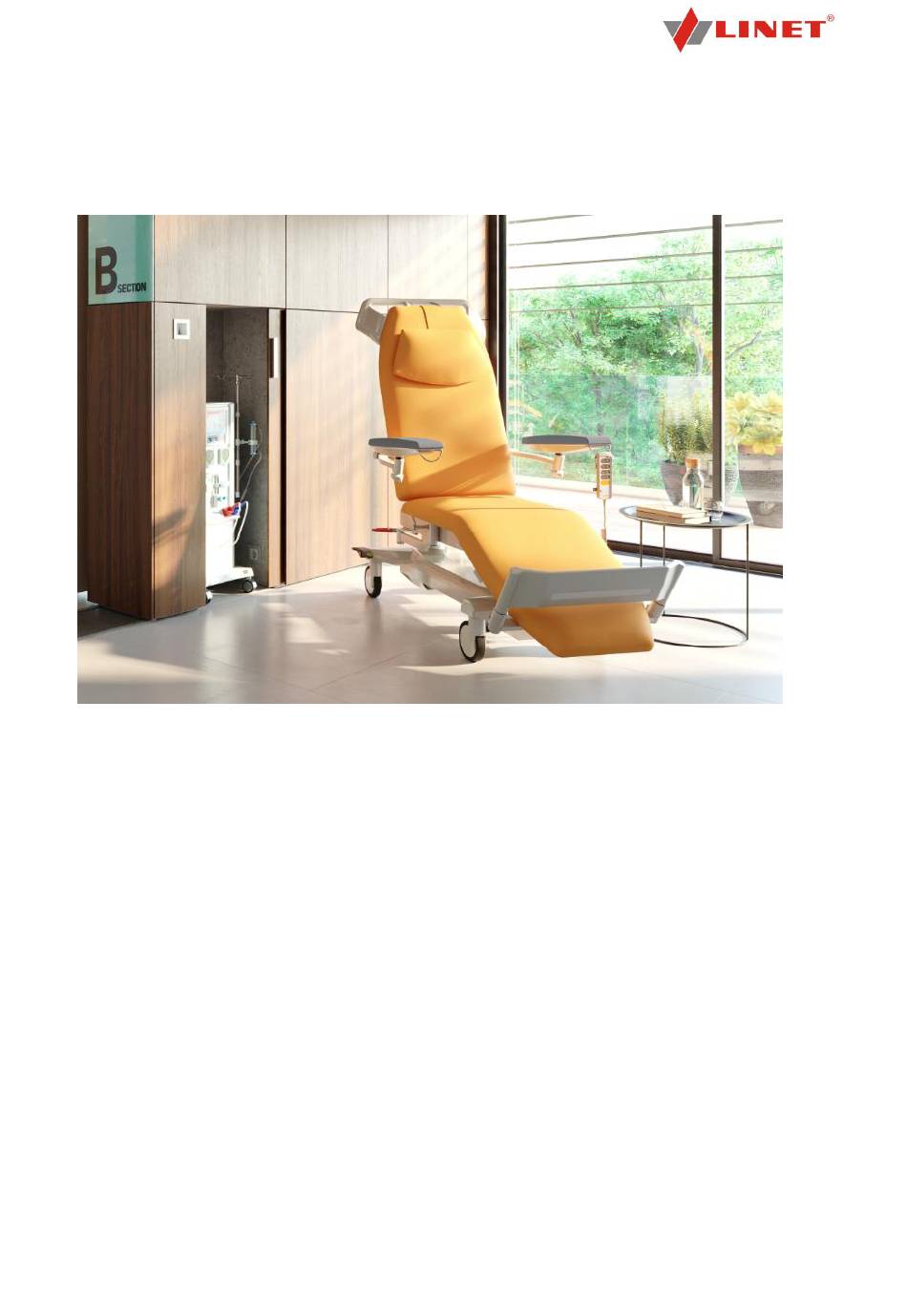

- Page 1 ser manual and technical description PURA Multifunctional chair D9U004ODA-0101_01 Version: 01 EN Publication Date: 2019-03...
- Page 2 PURA Multifunctional chair Author: BORCAD Medical a.s. Related links: http://www.linet.com/cs/borcad-medical All rights reserved. All trademarks and brands are the property of the appropriate owners. The manufacturer reserves the right to changes in the contents of this manual that relate to the product´s technical regulations. It is for this reason that the contents of this manual may indicate differences from the current manufacture of the product.
-
Page 3: Table Of Contents
Table of Contents 1 INTRODUCTION .............................. 5 2 SAFETY AND DANGERS ..........................11 2.1 Safety instructions ................... 11 3 UN-PACKING MANUAL ..........................13 4 OVERVIEW OF BASIC PARTS ........................17 4.1 Overview of basic versions ................17 4.2 Overview of colour verisons ................17 4.3 Safety ...................... - Page 4 6.24 Electric leg rest ..................... 47 6.25 USB cell-phone recharger ................48 6.26 Patient fixation band ..................48 6.27 Front / rear transport handles ................ 49 6.28 Height-adjustable elbow-rests ............... 49 6.29 Elbow-rests with cavities for elbows .............. 49 6.30 Mechanic CPR ....................50 6.31 Patient card holder ..................
-
Page 5: Introduction
1 Introduction Please read carefully the whole instruction manual, which is designed to familiarize you with the correct use and the parameters of your new birthing chair. Please always follow the instructions contained in this manual and use the chair only in accordance with these instructions. Please keep these instructions near the chair throughout its operation. - Page 6 Pictogram Meaning Danger Danger: Hazardous voltage This symbol refers to all information that may help you to avoid operational complications Applied parts B Applied parts BF Production number Mark for intermittent functioning, this means that if the product is used without int x/y interruptions for an "x"...
- Page 7 Producer Date of production Follow the instructions manual Equipotentiality Symbol of the packaging material: "Store in a dry place" Symbol of the packaging material: "Attention! Fragile" Symbol of the packaging material: "Hold in upright position" Temperature limit Symbol for transport Symbol for "relative humidity of the air".
- Page 8 STOP BUTTON Warning: Don’t place items in this space Warning: Maximum load of the leg-support part Warning: Maximum load of the back part Warning: Don’t place items onto this cover Risk of hand injuries Warning: Risk of hand injuries Warning: Do not push or pull infusion stand Cardiopulmonary resuscitation (CPR) Warning:...
- Page 9 Warning stickers location...
- Page 10 Abbreviation Meaning Light emitting diodes Power intake unit Computer standard for computer imaging technology Universal serial bus Liquid crystal display Information technology Personal computer Sound intensity unit Pressure unit Frequency unit in the SI system Electromagnetic compatibility High frequency Medical equipment CISPR International Special Committee on Radio Interference Please address any potential queries to the authorized representative or directly to the producer BORCAD...
-
Page 11: Safety And Dangers
2 Safety and Dangers 2.1 Safety instructions ❖ Follow the instructions carefully. ❖ Any non-observance of this manual may lead to injuries or material damage. ❖ Exclusively use the chair if it is in perfect working order. ❖ If necessary, check the chair functions daily or at each shift change. ❖... - Page 12 ❖ Before setting the lowest position, ensure there is no risk of any parts of the chair colliding with servers, accessories or body parts. ❖ Ensure there is no risk of damaging the cables of supervisor panel or handset when they are stored on siderails or chair ends.
-
Page 13: Un-Packing Manual
3 Un-packing Manual Shipment inspection after delivery Do not unpack and/or accept the shipment if the package is clearly damaged! If that is the case, file a complaint. Personnel qualification Persons authorised to install the product and put it into operation, i.e. persons trained by BORCAD Medical a.s. - Page 14 Remove the top of the packaging and the corner of the box. Cut off the corners of the outer reinforcement or crush them with your foot so that you can pull the chair out of the pallet easily. Carefully cut through the plastic packaging.
- Page 15 Version with armrests: the armrests are placed horizontally, they do not touch the chair. Cut the strap to release them. Gradually pull all accessories out of the packaging and cut-outs, remove the empty packaging from the pallet and dispose of it. Cut off the tightening straps from the hand control and the power cable and remove the mirelon tubes at the bottom frame.
- Page 16 Cut off the tightening straps at the back part and remove the mirelon tube. Cut off the tightening straps holding the chair’s chassis together with the pallet and release the brake of the wheels. Then the chair can be carried by two persons from the pallet and placed on the ground. Křížovým šroubovákem odstraňte všechny 4 dřevěné...
-
Page 17: Overview Of Basic Parts
4 Overview of basic parts Back section with non removable uphostery Seat section / leg section with non removable upholstery Adjustable armrests Base of the chair with lifting column Lockable castors – 100 mm diameter Castors with central brake – 150 mm diameter Adjustable siderails Pilow (option) IV pole holder (option) -
Page 18: Safety
For service assistance: the authorized service centre of BORCAD Medical a.s. can responsibly evaluate technical and safety properties only if the use, repairs, changes etc. have been carried out in centres approved by the... - Page 19 Consult BORCAD Medical a.s. or local dealer before using medical electrical equipment where influence on the chair can be strong. NOTE AAMI/ANSI/IEC certified medical electrical equipment used in ICU is not restricted.
- Page 20 Warning: Dangerous electric voltage Do not wrap the power cable around the chair and its parts – front part, barriers, armrests, transport handles and others! When lifting the chair or its back part, there is a risk of cable tear! Risk of electric shock or fire! In case of visible damage to the cabling, do not tamper with the chair or the cable! It is always necessary to call service technicians! The mains power cable must be always attached to a selected place on the chair with a plastic hook!
- Page 21 Electromagnetic compatibility Chair is intended for hospitals except for near active HF surgical equipment and the RF shielded room of a medical system for magnetic resonance imaging, where the intensity of EM disturbances is high. Chair has defined no essential performance. WARNING! It is recommended to avoid the use of this device next to or in block with other device, because it could lead to improper operation.
- Page 22 ±2 kV for power line Fast electrical transients / burst IEC 61000-4-4 repetition frequency 100 kHz ± 1 kV Line-to-line Surge ± 2 kV Line-to-ground IEC 61000-4-5 3 V (0,15 MHz – 80 MHz) Conducted RF IEC 61000-4-6 6 V in ISM bands between 0,15 MHz and 80 MHz 80 % AM at 1 kHz Power frequency (50/60 Hz) magnetic field 30 A/m...
-
Page 23: Setting The Product
The chair must be connected to the mains and left at least 10 hours connected to the mains so that the backup battery is loaded to its full capacity. BORCAD Medical a.s. recomend to set up the chair in to Welcome position before every new patient: •... -
Page 24: Transport, Braking
4.4.1 Transport, braking The chair also allows f o r t h e transport of a patient. This is, however, subject to the following conditions: Warning: Caution Transport the chair in its lowest position and make sure that it is not transported over areas with lateral inclination exceeding 6°. - Page 25 The chair is fitted with four castors (150mm version) and it may be moved in all directions. Castor functions are controlled by pedal brakes. Setting of the wheel pedal: Backward All castors locked Horizontally All castors free, spinning around their axle Forward Left castor locked (patient on the chair view) in forward direction, other castors free, spinning around their axle.
-
Page 26: Transportation Of The Chair From One Place To Another
4.4.2 Transportation of the chair from one place to another Follow the instruction below: • Do not move the chair over cables. • Power cable of the chair must always be fixed in the hook. • Unlock the castors before travelling (see castor control and transportation). •... -
Page 27: Operating The Chair
In case of replacing the fuses, check the correct position of the fuse. To replace a fuse you don’t need necessarily a service centre of BORCAD Medical a.s. the operation can also be performed by a specialist in the electricity sector. -
Page 28: Motor Setting
5.1 Motor setting The hand controller is very intuitive, ergonomic design and standard feature. It contains basic positions of chair sections (back section, foot section, and foot support), up/down and chair inclination. It also offers functions such as lock position, GO button, Trendelenburg, indication of the battery status, indication of connection to mains, STOP button and memory functions (horizontal and access position). - Page 29 GO button The GO button is used to turn on the time interval in which other functions on the control can be used. The GO interval ends 3 minutes after the control was used the last time. Next to the GO button, there is a LED indicator of the active GO periods (the time interval in which the control functions can be used).
- Page 30 Positioning of Positioning of the leg rest the back part Positioning of (accessories) and under-leg the under-leg part part simultaneously Height adjustment To reach the horizontal position, it is necessary to press and hold the button To reach the entry position, it is necessary to press the Positioning of button and hold it for a while...
-
Page 31: Armrests
5.2 Armrests 5.2.1 Basic armrests Warning: Caution The armrests are adapted for a maximum load – see Technical parameters In case of overload (such as when sitting on the armrests) this component may lose their functionality. We strongly recommend that you respect the maximum load of the armrest. -
Page 32: Siderails
5.3 Siderails Warning: Caution Risk of injury due to patient falling out of chair! • Ensure that folded-up siderails are securely anchored. • Press against siderails from inside in order to check stability. • Hospital personnel are responsible for ensuring siderails are folded-up when the chair is occupied. The split plastic siderails are components of the chair, the siderails cannot be removed. -
Page 33: Electric Setting Of Trendelenburg
5.4 Electric setting of Trendelenburg Warning: Caution The optional equipment of the arm-chair contains a backup battery, which serves to set the chair into the anti- shock position in case of a power outage. To set the Trendelenburg position press (and keep holding) the button on the remote control. In this way the anti- shock position can be set starting from any previous position of the chair. -
Page 34: Equipotential Bonding
5.5 Equipotential bonding The chair is fitted with a coupling for synchronizing the potential with other electrical medical equipment. The coupling is located behind the chair under the lying surface of the chair. The chair is interconnected to the other device by means of a cable (not supplied with the chair) that is connected easily by its end to the coupling. -
Page 35: Accessories
6 Accessories Warning: Caution Never put removable accessories onto the arm-chair, onto its loading area, onto the bottom cover or over a patient. Otherwise you can cause injury to persons or damage to the device! 6.1 Rotary holder of the infusion stand Warning: Caution The maximum loading is 10 kg! -
Page 36: Pillow (Flat)
6.3 Pillow (flat) A comfort height-adjustable head rest provides a support for a patient's head. A pillow with a leatherette band can be easily demounted. 6.4 Pillow (half-round) A comfort height-adjustable head rest provides a support for a patient's head. A pillow with a leatherette band can be easily demounted. -
Page 37: Pillow (For Legs)
6.6 Pillow (for legs) It serves for underlaying the patient's legs (under knees) lying in a horizontal position. 6.7 Pillow (between the back and seat parts) The pillow increases patient's comfort in the area of his/her thighs, mainly in a horizontal position of the arm-chair. The pillow can be easily unfastened from the both sides of the arm-chair by unhooking from the pin. -
Page 38: Big Plastic Box For Personal Things
6.8 Big plastic box for personal things Warning: Caution The big plastic box cannot be combined with the oxygen bottle holder! The maximum loading is 8 kg! It serves for putting patient's personal things into it. The vessel volume is 20 l. Dimensions (length: 42 cm, height: 23 cm, width: 30 cm). -
Page 39: Din Lath
6.10 DIN lath Warning: Caution While moving the arm-chair up and down, please make sure that ambient things are not in collision with or cannot be captured by this holder. The maximum loading is 50 kg at the maximum outreach of 200 mm! The holder is used for the placement of the certain accessories such as, for example, an additional rest, infusion stand and surgical trays. -
Page 40: Lamp For Reading
6.12 Lamp for reading 6.13 PVC cloth of elbow-rests (a pair) 6.14 PVC cloth of the leg rest 6.15 Tablet holder (L/R) Warning: Caution The maximum loading is 8 kg! While using a tablet in the holder, give a special attention to it. A tablet should be always safety laid in the holder to avoid its falling out and damaging. -
Page 41: Oxygen Bottle Holder
6.16 Oxygen bottle holder Warning: Caution The maximum loading is 15 kg! It is impossible to combine it with the big plastic box! Please be especially careful during manipulation with an oxygen bottle with the holder. It is always necessary to fix the oxygen bottle with the holder with the help of an attached strap to prevent from its falling out. -
Page 42: Front Buffer
6.18 Front buffer Warning: Caution The maximum loading is 45 kg! We recommend it in case of frequent transportation of the chair. Without these accessories, artificial leather can be damaged in case of a collision of the chair with an obstacle! It serves as a protection of the arm-chair during frequent transportation of the arm-chair with/without a patient. -
Page 43: Eating Table (Version With Barriers)
6.20 Eating table (version with barriers) Warning: Caution The maximum carrying capacity is 15 kg! During installation of the table or during its extraction, it is always necessary to pay attention on a patient who seats in the arm-chair. It is necessary to avoid a collision with his/her head, body, fingers! When the table is mounted, it is never allowed to tilt the barriers down. -
Page 44: Eating Table (For The Version With Elbow-Rests)
6.21 Eating table (for the version with elbow-rests) Warning: Caution The maximum carrying capacity is 15 kg! During installation of the table or during its extraction, it is always necessary to pay attention on the patient who seats in the arm-chair. It is necessary to avoid a collision with his/her head, body, fingers! When the table is mounted, it is never allowed to position the elbow-rests. -
Page 45: Front Central Brake (A Pair)
6.22 Front central brake (a pair) The arm-chair is equipped with a front central brake only for the version with 150 mm wheels for an additional fee. The functions of the wheels are controlled by the brake pedals. Adjustment of the wheel pedal: STOP All wheels are blocked NEUTRAL... -
Page 46: Fifth Wheel
6.23 Fifth wheel The arm-chair can be equipped with a fifth wheel placed in the center of the support frame. The fifth wheel allows you to run and navigate the arm-chair in long corridors and small rooms. The version is only with 150 mm wheels. How to activate the fifth wheel: Disconnect the arm-chair from the main connection. -
Page 47: Electric Leg Rest
6.24 Electric leg rest Warning: Caution The leg rest doesn't protect the arm-chair against a stroke! The electric leg rest can't be combined with the front buffer! We don't recommend suspension of other accessories on the leg rest! The maximum capacity is 45 kg vertically and 100 kg when squeezed! Displacement is possible with the help of the manual controller by holding the push-buttons up and down. -
Page 48: Usb Cell-Phone Recharger
6.25 USB cell-phone recharger 6.26 Patient fixation band Warning: Caution While positioning the arm-chair, always unbind the patient for his/her safety and comfort. It is especially valid for the movement of the back part and the seat part. In the case of the use of the fixation band, it is recommended to place the arm-chair in the lowest position. To ensure higher patient's safety, patients can be fixed on the arm-chair with the leatherette strap in the field of their belly and breast. -
Page 49: Front / Rear Transport Handles
6.27 Front / rear transport handles Warning: Caution The maximum capacity is 45 kg vertically and 100 kg when squeezed! It serves mainly for easier transportation of the arm-chair with a patient in the horizontal position. 6.28 Height-adjustable elbow-rests 6.29 Elbow-rests with cavities for elbows... -
Page 50: Mechanic Cpr
6.30 Mechanic CPR Warning: Caution The CPR controller is marked by informative labels on the both sides under the rear section. The labels are marked by a CPR text. The CPR doesn't serve for individual settings of the back part to different positions, neither for saving time by personnel. -
Page 51: Patient Card Holder
6.31 Patient card holder 6.32 Drinking vessel holder It serves for fixing a can or a cup with drink. Before removing the hold, it is always necessary to take out its content. Afterwards rotate the holder by 90° downward and remove it from the barrier. In case of installing, please proceed in the opposite order. -
Page 52: Backup Battery
6.35 Backup battery Warning: Caution Only service personnel is entitled to replace the battery! The battery replacement by insufficiently trained personnel is dangerous and can reduce functionality of the medical device! The battery is charged automatically from the control unit and requires no special maintenance. If there is a difference between the temperature of the chair and the ambient temperature (transportation/storage) in the place where you intend to install the chair, it is necessary to wait 24 hours until the chair temperature was stabilized to the room temperature. - Page 53 Indication of the battery status Yellow LED diode Battery status No light Battery capacity is sufficient (the battery is fully charged before the start of the use) Short flashes (short flash, Battery charging - continue charging until the indicator lamp goes longer period without lighting) out.
-
Page 54: Care
7 Care All BORCAD Medical a.s. products are designed for many years of service under the conditions of correct use. Please use your chair and its accessories carefully. Please follow these instructions and the herein descrichair operation procedures. Avoid negligent handling. Do not, in case of a function failure, undertake any repairs and never use force! 7.1 Cleaning and disinfection... -
Page 55: Cleaning The Chair
In terms of the hygienic preparation process, that the corresponding dialysis centers or day surgery center room and all the furnishings and medical devices used, must be cleaned or disinfected directly and promptly after an occupancy in order to prepare the premises for a new occupancy. This means that such cleaning affects all parts of the chair. -
Page 56: Maintenance
Distilled water √ H2O2 √ NaCl √ Soapy solution √ Sodium bicarbonate (NaHCO √ Citric acid √ Sodium carbonate . 10H √ Ammonia 25% √ Acetic Acid 80% √ Benzalkonium chloride 20,0 g Phenoxypropanol 35,0 g √ Novalon 2000 100% √... -
Page 57: List Of Error, Malfunction And Generated Messages
8.1 List of error, malfunction and generated messages Action to be taken by the Actions to be taken by Problem Likely cause operator to solve the the qualified service desription problem personnel Connect the power cable to Verify that the mains are Probably the chair is not The chair does not the mains and also to... -
Page 58: Technical Parameters
8.2 Technical parameters Rest area 2123 ± 3 mm Total rest area length 965 ± 2 mm Back section length 528 ± 2 mm Seat section length 630 ± 2 mm Foot section length 590 – 385 ± 10mm Back section width 590 ±... - Page 59 Castors Castor diameter / brake 150 mm / central, total 100 mm / without central, Castor diameter / brake total Adjustment angles: 0° ± 1° /+70° ± 2° Back section adjustment angle 0°±1° / -12° ±1° Seat section adjustment angle 0°...
-
Page 60: Electrical Parameters
8.3 Electrical parameters Batteries – back-up 24V/1,2 Ah Voltage – input 100 V Voltage – input 110 V Voltage – input 120 V Voltage – input 127 V Voltage – input 230 V Frequency 50/60 Hz Motor voltage 24 V Ingress protection of the birthing chair IPX4 Device protection class... -
Page 61: Nameplate
8.4 Nameplate Sample of a manufacturing nameplate Ilustrative picture Address of Manufacturer Manufacturing Date (Year-Month-Day) Symbols Serial Number 1D Bar code EAN128 (Serial Number) Electrical Specification 8.5 Storage instruction and transport During storage and transport, no heavy objects should be placed on the chair. Putting extra object on chair during storage is not allowed. -
Page 62: Service And Repairs
(preferably in English) the manufacturer at: For repairs, please use only the original BORCAD MEDICAL a.s. spare parts and the services of trained service technicians licensed to repair products of this type. Unprofessional repairs shall be considered as a substantial breach of the warranty terms and conditions and the manufacturer simultaneously does not bear any responsibility for any further possible damage to the product which might result from unprofessional intervention. -
Page 63: Applied Parts
8.8 Applied parts The applied parts of the product are of type B - providing a moderate degree of patient protection. • padding / mattress • armrests • siderails The applied parts of the product are of the BF type - providing a moderately high degree of patient protection. •... -
Page 64: Declaration Of Conformity
8.9 Declaration of conformity... -
Page 65: Disposal
PCB or CFC. Noise emissions and vibrations meet the directives for healthcare facilities. BORCAD MEDICAL a.s. has taken care to ensure all wood used in the production of its chair systems is responsibly source (Mahagony, Jacaranda, Ebony, Teak or wood from Amazonian / rainforests are not used.
