TIPO
MODELO DE ARREFECIMENTO
UNIDADE INTERNA
MODELO
UNIDADE EXTERNA
FICHA TECNICA
ALIMENTAÇÃO .......................................................................................... 230 V~50 Hz
PRESSÃO MÁXIMA
ASPIRAÇÃO .............................................................................................. 1.160 kPa
ARREFECIMENTO
COMPRESSÃO ......................................................................................... 4.120 kPa
POTÊNCIA ................................................................................................... 2,75 kW
POTÊNCIA CONSUMIDA ........................................................................... 1,05 kW
REFRIGERANTE ........................................................................................ R410A 590 g
CORRENTE CONSUMIDA ............................................................................... 4,7 A
DIMENSÕES E PESO (LÍQUIDO)
COEFICIENTE DE EFICIÊNCIA ENERGÉTICA .................................................. 2,62
UNIDADE INTERNA
CORRENTE MÁX.
ALTURA/COMPRIMENTO/PROFUNDIDADE ........................ 257/808/187 mm
Arrefecimento .................................................................................................. 5,8 A
PESO .............................................................................................. 8,0 kg (NET)
UNIDADE EXTERNA
ALTURA/COMPRIMENTO/PROFUNDIDADE ........................ 535/695/250 mm
PESO ............................................................................................... 30 kg (NET)
TIPO
MODELO DE ARREFECIMENTO
UNIDADE INTERNA
MODELO
UNIDADE EXTERNA
FICHA TECNICA
ALIMENTAÇÃO .......................................................................................... 230 V~50 Hz
PRESSÃO MÁXIMA
ASPIRAÇÃO .............................................................................................. 1.160 kPa
ARREFECIMENTO
COMPRESSÃO ......................................................................................... 4.120 kPa
POTÊNCIA ..................................................................................................... 3,4 kW
POTÊNCIA CONSUMIDA ........................................................................... 1,33 kW
REFRIGERANTE ........................................................................................ R410A 720 g
CORRENTE CONSUMIDA ............................................................................... 6,2 A
DIMENSÕES E PESO (LÍQUIDO)
COEFICIENTE DE EFICIÊNCIA ENERGÉTICA .................................................. 2,56
UNIDADE INTERNA
CORRENTE MÁX.
ALTURA/COMPRIMENTO/PROFUNDIDADE ........................ 257/808/187 mm
Arrefecimento ................................................................................................... 7,3 A
PESO .............................................................................................. 8,0 kg (NET)
UNIDADE EXTERNA
ALTURA/COMPRIMENTO/PROFUNDIDADE ........................ 535/695/250 mm
PESO ............................................................................................... 32 kg (NET)
RS-9FA
RO-9FA
COOLING MODEL
ROOM AIR CONDITIONER
RS-12FC
RO-12FC

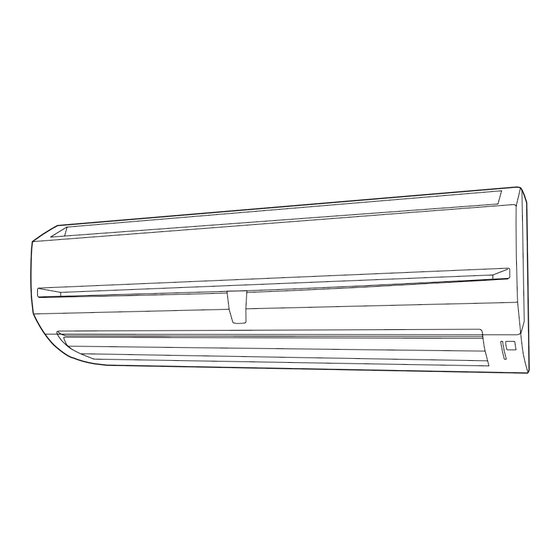

WALL MOUNTED TYPE
Indoor Unit
RS-9FA
RS-12FC
Outdoor Unit
RO-9FA
RO-12FC
KEEP THIS OPERATION MANUAL
FOR FUTURE REFERENCE
OPERATING MANUAL
BEDIENUNGSANLEITUNG
MODE D'EMPLOI
MANUAL DE FUNCIONAMIENTO
MANUALE DI ISTRUZIONI
ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
MANUAL DE INSTRUÇÕES
P/N9312355037-01
EC DECLARATION OF CONFORMITY
∆ΗΛΩΣΗ ΕΓΚΡΙΣΗΣ ΚΑΤΑΛΛΗΛΟΤΗΤΑΣ
CE-KONFORMITÄTSERKLÄRUNG
CE VERKLARING VAN OVEREENSTEMMING
DECLARATION DE CONFORMITE-CE
EG-FÖRSÄKRAN OM ÖVERENSSTÄMMELSE
CE DECLARACIÓN DE CONFORMIDAD
DECLARAÇÃO DE CONFORMIDADE DA
DICHIARAZIONE DI CONFORMITÀ CE
COMUNIDADE EUROPEIA (CE)
Fuji Denki Sosetsu Co., Ltd.
20-8 Hatchobori 2-Chome Chuo-Ku, Tokyo, JAPAN
declares under its sole responsibility that the air conditioning models
erklärt hiermit, daß die nachfolgend bezeichneten Raumklimageräte
déclare sous sa seule responsabilité que les modèles de climatiseur ci-dessous
declara bajo su exclusiva responsabilidad que los modelos de acondicionadores de aire
dichiara sotto la sua unica responsabilità che i condizionatori d'aria modelli
δηλώνει, οτι µε δική της υπευθυν τητα τα µοντέλα των κλιµατιστικών
verklaart onder eigen verantwoordelijkheid dat de airconditioning-modellen
intygar på eget ansvar att luftkonditioneringsmodellerna
declara sob sua responsabilidade que os modelos de ar condicionado
RS-9FA / RO-9FA
RS-12FC / RO-12FC
to which this declaration relates is in conformity with the following standards:
worauf sich diese Konformitätserklärung bezieht, folgenden Richtlinien entspricht:
auxquels la présente déclaration s'applique, sont conformes aux normes suivantes:
como esta declaración especifica, cumplen con las siguientes normas:
ai quali si riferisce la presente dichiarazione sono conformi ai seguenti standars:
εις τα οποία η παρούσα δήλωση αναφέρεται, είναι προσαρµοσµένα σύµφωνα µε τα παρακάτω πρ τυπα:
waarop deze verklaring van toepassing is, in conformiteit zijn met de volgende normen:
till vilka denna deklaration är relaterade, är i överensstämmelse med följande standarder:
indicados na declaração estão em conformidade com as normas seguintes:
a. EN 60 335-1
d. EN 55 014-2
b. EN 60 335-2-40
e. EN 61 000-3-2
c . EN 55 014-1
f . EN 60 335-2-80
By conformance with the standards, the referenced products follows the provisions of the directives listed
below:
In Übereinstimmung mit den Standards, erfüllen die obengenannten Produkte den Verordnungen der unten
aufgeführten EG-Richtlinien:
Par leur conformité aux normes précitées, les appareils de ce type répondent aux exigences des directives
suivantes:
De acuerdo con estas normas, los productos referenciados cumplen lo estipulado por las directivas listadas a
continuación:
Od altri documenti normativi conformi alle disposizioni delle direttive sotto elencate:
Τα αναφερ µενα µοντέλα, σύµφωνα µε τους κανονισµούς, ακολουθούν τις απαιτήσεις ασφαλείας των κάτωθι
άρθρων:
Overeenkomstig de normen, voldoen de betreffende produkten aan de bepalingen van de hieronder vermelde
richtlijnen:
Genom överensstämmelse med dessa standarder, uppfyller de berörda produkterna föreskrifterna i de
direktiv som anges här nedan:
Os seguintes produtos referenciados na lista abaixo, estão em conformidade com as normas:
a. EC Council Directive 73/23/EEC
b. EC Council Directive 89/336/EEC
Place of Issue : Japan
Title of Authority
Date of Issue
: 24. JANUARY 2003
Declaration Reference : Fuji Denki Sosetsu Co., Ltd.
Authorized by : Signature:
MASARU SHIBUI
: Air Conditioning Division
General Manager
20-8 Hatchobori
2-Chome Chuo-ku,
Tokyo, Japan
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fuji Electric RS-9FA
Summary of Contents for Fuji Electric RS-9FA
- Page 1 MODELO declara sob sua responsabilidade que os modelos de ar condicionado UNIDADE EXTERNA RO-12FC WALL MOUNTED TYPE FICHA TECNICA RS-9FA / RO-9FA RS-12FC / RO-12FC ALIMENTAÇÃO ..................230 V~50 Hz PRESSÃO MÁXIMA ASPIRAÇÃO ....................1.160 kPa ARREFECIMENTO to which this declaration relates is in conformity with the following standards: COMPRESSÃO ..................
-
Page 2: Table Of Contents
CONTENTS INDOOR UNIT UNIDAD INTERIOR MODEL INNENGERÄT APPARECCHIO INTERNO RS-9FA MODELL Fig. 1 UNITÉ INTÉRIEURE ΕΣΩΤΕΡΙΚΗ ΜΟΝΑ∆Α MODÈLE MODELO OUTDOOR UNIT UNIDAD EXTERIOR SAFETY PRECAUTIONS ........En-1 ADJUSTING THE DIRECTION OF MODELLO AUSSENGERÄT APPARECCHIO ESTERNO RO-9FA ΜΟΝΤΕΛΟ UNITÉ EXTÉRIEURE ΕΞΩΤΕΡΙΚΗ ΜΟΝΑ∆Α... -
Page 3: Features And Functions
FEATURES AND FUNCTIONS AUTOMATIC OPERATION REMOVABLE INTAKE GRILLE Merely press the START/STOP button, and the unit will be- The indoor unit’s Intake Grille can be removed for easy clean- gin automatic operation in the Cooling or Dry mode as ap- ing and maintenance. -
Page 4: Name Of Parts
NAME OF PARTS Fig. 1 Indoor Unit Fig. 6 Remote Control Unit 1 Operating Control Panel (Fig. 2) I SLEEP button 2 MANUAL AUTO button J MASTER CONTROL button K SET TEMP. button ( 3 Remote Control Signal Receiver L Signal Transmitter 4 Indicator Lamps (Fig. -
Page 5: Preparation
PREPARATION CAUTION! Turn on the Power G Take care to prevent infants from accidentally swallowing batteries. Connect the Power Supply Plug (Fig. 1 C) to an electri- G When not using the remote control unit cal outlet; in the case of a direct line connection, turn for an extended period, remove the batteries to avoid possible leakage and on the circuit breaker. -
Page 6: Operation
OPERATION To Select Mode Operation Press the START/STOP button (Fig.6 R). The indoor unit’s OPERATION indicator lamp (red) (Fig. 3 5) will light. The air conditioner will start operating. Press the MASTER CONTROL button (Fig.6 J) to se- lect the desired mode. Each time the button is pressed, the mode will change in the following order. - Page 7 To Stop Operation Press the START/STOP button. The OPERATION indicator lamp (red) (Fig. 3 5) will go out. About Mode Operation G Depending on the room temperature at the time operation begins, the AUTO: During Cooling/Dry mode: operating mode will be switched automatically as shown in the Set the thermostat to a temperature set- accompanying table.
-
Page 8: Timer Operation
TIMER OPERATION To Use the OFF TIMER To Cancel the Timer Press the START/STOP button (Fig. 6 R) Press the CANCEL TIMER button. (if the unit is already operating, proceed to step 2). To Change the Timer Settings The Indoor Unit’s OPERATION Indicator Lamp (red) (Fig. 3 5) will light. Press the ON TIMER button/OFF TIMER button as required. -
Page 9: Sleep Timer Operation
SLEEP TIMER OPERATION Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operate is stopped. To Use the SLEEP timer To Cancel the Timer: While the air conditioner is operating or stopped, press the Press the CANCEL TIMER button. -
Page 10: Adjusting The Direction Of Air Circulation
ADJUSTING THE DIRECTION OF AIR CIRCULATION Vertical (up-down) direction of airflow is adjusted by pressing the Remote Control Unit’s AIR FLOW DIRECTION button. Hori- zontal (right-left) airflow direction is adjusted manually, by moving the Air Flow Direction Louvers. Whenever making horizontal airflow adjustments, start air conditioner operation and be sure that the vertical air direction louvers are stopped. -
Page 11: Swing Operation
SWING OPERATION Begin air conditioner operation before performing this procedure. To select SWING Operation Press the SWING LOUVER button (Fig. 6 T). The SWING indicator lamp (orange) (Fig. 3 7) will light. In this mode, the Air Flow Direction Louvers will swing automatically to direct the air flow both up and down. -
Page 12: Cleaning And Care
CLEANING AND CARE G Before cleaning the air conditioner, be sure to turn it off and disconnect the Power Supply Cord. CAUTION! G Be sure the Intake Grille (Fig. 1 8) is installed securely. G When removing and replacing the air filters, be sure not to touch the heat exchanger, as personal injury may result. -
Page 13: Troubleshooting
TROUBLESHOOTING In the event of a malfunction (burning smell, etc.), immediately stop operation, disconnect the WARNING! Power Supply Plug, and consult authorized service personnel. Merely turning off the unit’s power switch will not completely disconnect the unit from the power source. -
Page 14: Operating Tips
TROUBLESHOOTING Items to check Symptom See Page G Is the Power Supply Plug disconnected its outlet? CHECK ONCE Doesn’t operate at all: MORE G Has there been a power failure? — G Has a fuse blown out, or a circuit breaker been tripped? G Is the timer operating? 7 - 8 G Is the air filter dirty? -
Page 15: Temperature And Humidity Range
OPERATING TIPS Temperature and Humidity Range Cooling Mode Dry Mode About 21-43 °C About 21-43 °C Outdoor temperature Indoor temperature About 18-32 °C About 18-32 °C G If the air conditioner is used under higher temperature conditioner than those listed, the built-in protection circuit may operate to prevent internal circuit damage.
