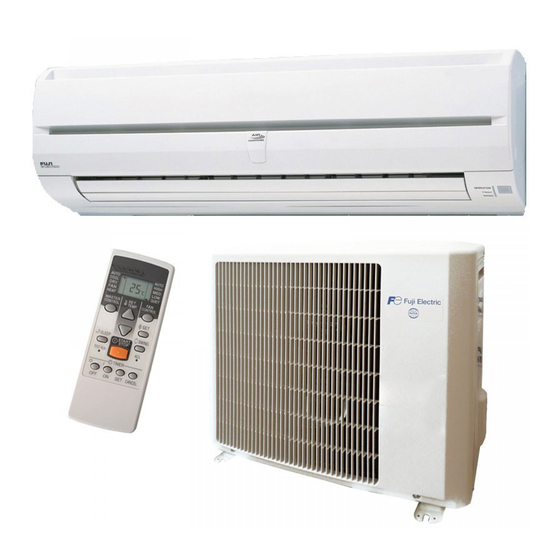

SPLIT TYPE
ROOM AIR CONDITIONER
WALL MOUNTED
Models
Indoor unit
Outdoor unit
RS-9UB
RO-9UB
RS-9UB
RO-9UC
RS-12UD
RO-12UD
C ONT E NT S
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . 1
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . .
REFRIGERANT SYSTEM DIAGRAM . . . . .
CIRCUIT DIAGRAM. . . . . . . . . . . . . . . . . . . . 5
INDOOR PCB CIRCUIT DIAGRAM . . . . . .
DISASSEMBLY ILLUSTRATION . . . . . . . . . 9
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . .
STANDARD ACCESSORIES
type
2
4
7
14
. . . . . . . . . . . .
16
Advertisement
Table of Contents
Related Manuals for Fuji Electric RS-9UB
Summary of Contents for Fuji Electric RS-9UB
-

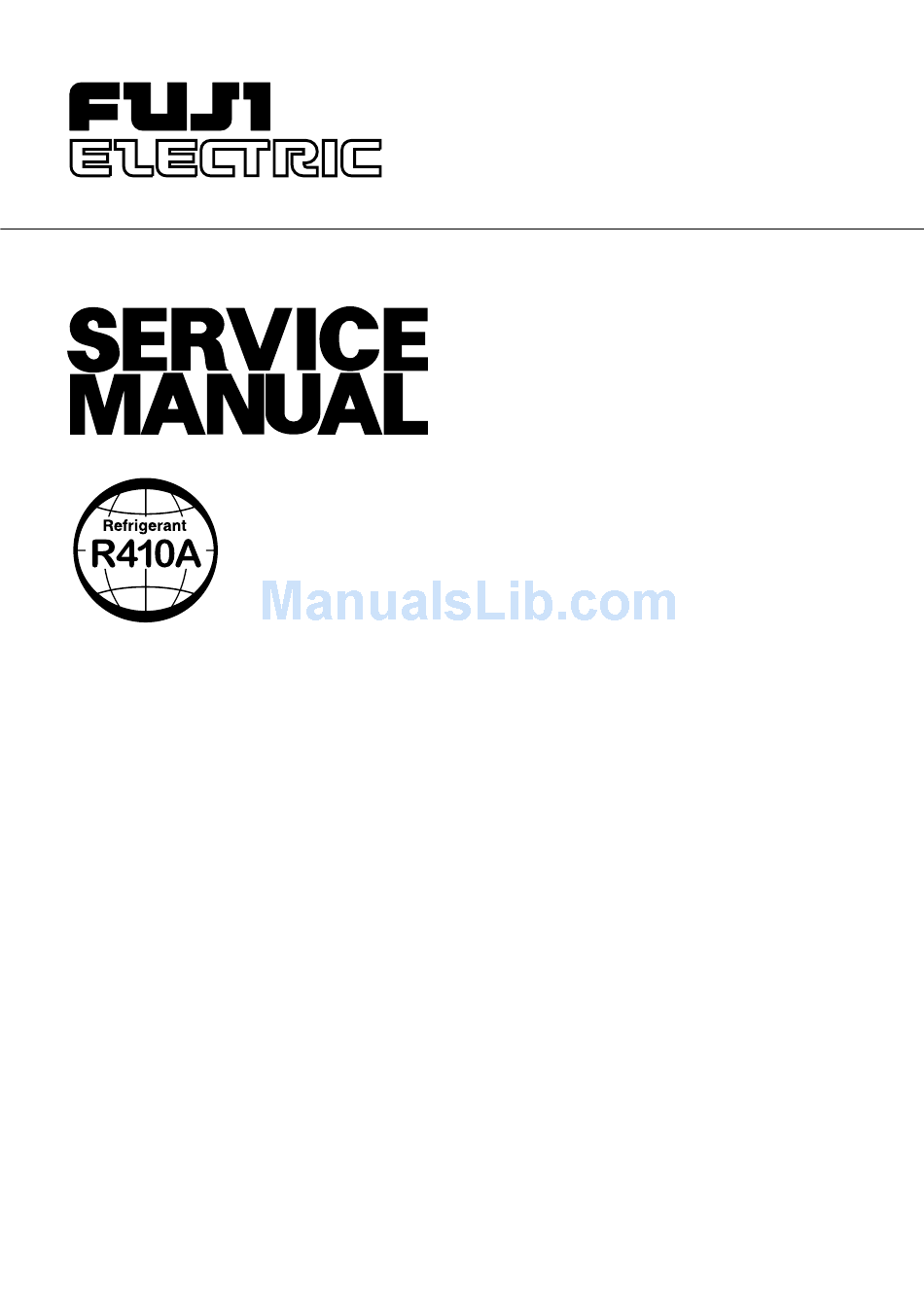

Page 1: Wall Mounted Type
SPLIT TYPE ROOM AIR CONDITIONER WALL MOUNTED type Models Indoor unit Outdoor unit RS-9UB RO-9UB RS-9UB RO-9UC RS-12UD RO-12UD C ONT E NT S SPECIFICATIONS ..... 1 DIMENSIONS . -
Page 2: Specifications
SP E CIF I CA TI O NS TYPE COOLING & HEATING INDOOR UNIT RS-9UB RS-12UD OUTDOOR UNIT RO-9UB RO-9UC RO-12UD COOLING CAPACITY ( kW ) 2.60 2.60 3.25 HEATING CAPACITY ( kW ) 2.95 2.95 3.95 ELECTRICAL DATA POWER SOURCE... - Page 3 DI M EN SI ON S INDOOR UNIT Models : RS-9UB Unit : mm RS-12UD 2004.12.29...
- Page 4 OUTDOOR UNIT Model : RO-9UB Unit : mm RO-9UC Model : RO-12UD Drain pipe hold 20 2005.03.22...
-
Page 5: Refrigerant System Diagram
RE F RIG ER AN T S Y ST E M DI AG RA M Models : RS-9UB / RO-9UB RS-9UB / RO-9UC OUTDOOR UNIT INDOOR UNIT Capillary tube for heating and cooling Dryer Refrigerant pipe 6.35mm(1/4") 2-Way valve Compressor... -
Page 6: Circuit Diagram
C IR C U IT D IA GRAM Models : RS-9UB RS-12UD Thermistor (Room Temp.) Thermistor (Pipe Temp.) 2 3 4 5 Stepping Motor Display PCB Controller PCB 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8... -
Page 7: Fan Motor Capacitor
Models : RO-9UB RO-12UD FAN MOTOR WHITE TERMINAL CAPACITOR DARK GRAY WHITE WHITE COMPRESSOR COMPRESSOR CAPACITOR FAN MOTOR OVERLOAD FOUR WAY RELAY BLUE VALVE COIL DARK GRAY BLACK Model : RO-9UC FAN MOTOR CAPACITOR WHITE TERMINAL DARK GRAY WHITE WHITE COMPRESSOR FAN MOTOR COMPRESSOR... -
Page 9: Error Display
ERR OR D I SP L AY Large division indication Small division indication LED flashing LED flashing Error contents Error contents operation timer operation timer 0.5 second thermistor 0.1 second room temp. thermistor error 2 times 0.1 second 0.5 second 2 times 0.5 second 0.1 second... -
Page 10: Disassembly Illustration
DISASS EMBLY IL LUST RATION Models : RS-9UB RS-12UD 2004.12.28... - Page 11 Models : RS-9UB RS-12UD 2005.07.27...
- Page 12 Model : RO-9UB 2005.01.07...
- Page 13 Model : RO-9UC 2005.01.07...
- Page 14 Model : RO-12UD 2005.01.07...
-
Page 15: Parts List
PA RT S LI S T INDOOR UNIT Part No. Ref. Ord. Description Q'ty RS-9UB RS-12UD Capacitor (Fan Motor) 9900089061 9900089061 Panel (Front) Total Assy 9312172092 9312172122 Flow Control Panel-Z 9306058012 9306058012 Louver-A 9306055028 9306055028 Filter 9305444014 9305444014 Base 9309755062... - Page 16 OUTDOOR UNIT Part No. Part No. Ref. Ord. Ref. Ord. Description Description Q'ty Q'ty RO-9UB RO-9UC RO-12UD Emblem-Rear 9308892010 9308892010 Emblem-Rear 9308892010 Cabinet Front Panel, Plastic 9306016012 9306016012 Cabinet Front Panel, Plastic 9306386016 Connector Cover 9306018016 9306018016 Connector Cover 9306119010 Cabinet Rear Panel, Plastic 9306017019 9306017019...
-
Page 17: Standard Accessories
STANDARD ACCESSORIES Part No. Name and Shape RS-9UB RS-12UD Wall hook bracket 9304358008 9304358008 Remote control unit 9312058020 9312058020 Battery (penlight) 0600185534 0600185534 Tapping screw ( 4 x 25 ) 0700076046 0700076046 Cloth tape 9308117007 9308117007 Drain pipe (Including drain packing) - Page 18 0309G2371...
