www.enindel.com

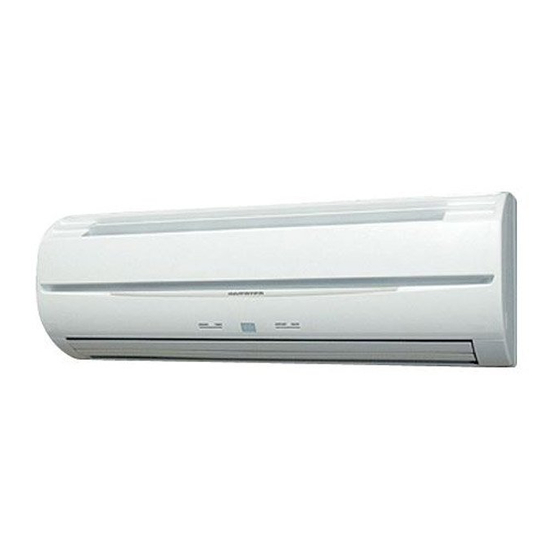

SPLIT TYPE
ROOM AIR CONDITIONER
WALL MOUNTED
Models
Indoor unit
RSA07LCC
RSA09LCC
CONTE NTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . 1
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 2
REFRIGERANT SYSTEM DIAGRAM . . . . . 3
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . 4
INDOOR PCB CIRCUIT DIAGRAM . . . . . .
ERROR CONTENTS . . . . . . . . . . . . . . . . . . .
DISASSEMBLY ILLUSTRATION . . . . . . . . . 9
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . 14
STANDARD ACCESSORIES . . . . . . . . . . .
type
Outdoor unit
ROR07LCC
ROR09LCC
5
6
8
16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fuji Electric RSA07LCC
Summary of Contents for Fuji Electric RSA07LCC
-
Page 1: Table Of Contents
ROOM AIR CONDITIONER WALL MOUNTED type Models Indoor unit Outdoor unit RSA07LCC ROR07LCC RSA09LCC ROR09LCC CONTE NTS SPECIFICATIONS ..... . 1 DIMENSIONS . -
Page 2: Specifications
SPECIFIC ATI ON S DIMENSIONS TYPE COOL & HEAT INVERTER INDOOR UNIT H x W x D 275 x 790 x 215 mm RSA07LCC RSA09LCC INDOOR UNIT OUTDOOR UNIT H x W x D 540 x 660 x 290 mm ROR07LCC... - Page 3 DI ME NSIO NS (unit : mm) INDOOR UNIT OUTDOOR UNIT www.enindel.com 2006.05.10...
-
Page 4: Refrigerant System Diagram
RE FRIGER ANT SY STE M D IAG R AM Heat exchanger 3-Way ( INDOOR ) valve Muffler 2-Way valve 4-Way valve Strainer Expansion valve Heat exchanger Strainer ( OUTDOOR ) Cooling Heating Refrigerant pipe diameter Liquid : 1/4" (6.35 mm) Gas : 3/8"... -
Page 5: Circuit Diagram
CIRCU I T DI AG RA M INDOOR UNIT INDICATOR PCB BLACK CONTROLLER PCB BROWN GREEN / YELLOW OUTDOOR UNIT PCB (MAIN) Reactor Reactor Compressor R(U) WHITE WHITE S(V) W 1 0 WHITE WHITE BLACK C(W) W 1 1 BLACK Thermistor (pipe) BLACK BLACK... -
Page 6: Indoor Pcb Circuit Diagram
INDOO R PCB CIR CUIT D IA GR AM Models : RSA07LCC, RSA09LCC TERMINAL BOARD POWER SOURCE BLUE 230V 50HZ GREEN / YELLOW CONTROLLER PCB ASSEMBLY K02DR-0503HSE-C1 BLACK I C 1 uPD780024ASGB-X70 -8ET-A R53 - R54 DW12D1 CN4 2P-SAN ROOM TEMPERATURE THERMISTOR 10K <1/8W>... -
Page 7: Outdoor Pcb Circuit Diagram
OUT DO OR PC B CIRC UI T DIAG RA M Models : INVERTER ASSEMBLY ROR07LCC ROR07LCC : EZ-00506HUE ROR09LCC ROR09LCC : EZ-0053HUE EMI FILTER COMPRESSOR REACTOR SERIAL TERMINAL 4-WAY VALVE CONTROLLER PCB ASSEMBLY AC FAN MOTOR ROR07LCC : K05CS-0502HUE-C1 ROR09LCC : K05CS-0500HUE-C1 CN40 B6B-XARK-1-A... - Page 8 Models : CONTROLLER PCB ASSEMBLY ROR07LCC ROR07LCC : K05CS-0502HUE-C1 ROR09LCC : K05CS-0500HUE-C1 ROR09LCC REACTOR AC230V 50Hz IC200 FSBS10CH60 EXPANSION VALVE THERMISTOR HEAT EXCHANGE DISCHARGE TEMP. THERMISTOR OUTDOOR TEMP. www.enindel.com 2006.05.10...
-
Page 9: Disassembly Illustration
DISASS E MBL Y I L LUS TRA TIO N Models : RSA07LCC RSA09LCC www.enindel.com 2006.05.10... - Page 10 Models : RSA07LCC RSA09LCC www.enindel.com 2006.05.10...
- Page 11 Models : ROR07LCC ROR09LCC www.enindel.com 2006.05.10...
- Page 12 Models : ROR07LCC ROR09LCC www.enindel.com 2006.05.10...
- Page 13 Models : ROR07LCC ROR09LCC www.enindel.com 2006.05.10...
-
Page 14: Parts List
PART S LIST INDOOR UNIT Part No. Ref. Ord. Description RSA07LCC Q'ty RSA09LCC Air Filter 9309997011 Filter (Electric) 9312153015 Filter (ION) 9311925033 Holder (Filter) 9306602017 Clamper (Grille) 9306755010 Front Panel Total Assy 9313130114 Intake Grille Assy 9313131074 Gear-A 9309994003 Casing Assy... - Page 15 OUTDOOR UNIT Part No. Ref. Ord. Description ROR07LCC Q'ty ROR09LCC Cover (Case) 9331256018 Bracket Valve 9310229026 Cover (Switch) 9310979013 Inverter Case Assy 9331279017 Front Panel Assy 9331334013 Propeller Fan 9309909014 Bracket (Motor) Assy 9331355018 Reactor Assy 9900357016 Separator Assy 9331392013 Base Assy 9331280013 Top Panel Assy...
-
Page 16: Standard Accessories
S T AND ARD AC CES SORIES Part No. Name and Shape RSA07LCC RSA09LCC Wall hook bracket 9312752027 Remote control INVERTER unit 9315027030 Remote control unit holder 9305642045 Battery (penlight) 0600185527 Cloth tape 9310519004 Tapping screw (big) 4 x 25) - Page 17 0602G3037 www.enindel.com...
